HDTP-2000 - Echo Heavy-Duty Trash Pump (SN: 2297814 - 9999999) PUMP, FRAME Parts Diagram

Heavy-Duty Trash Pump

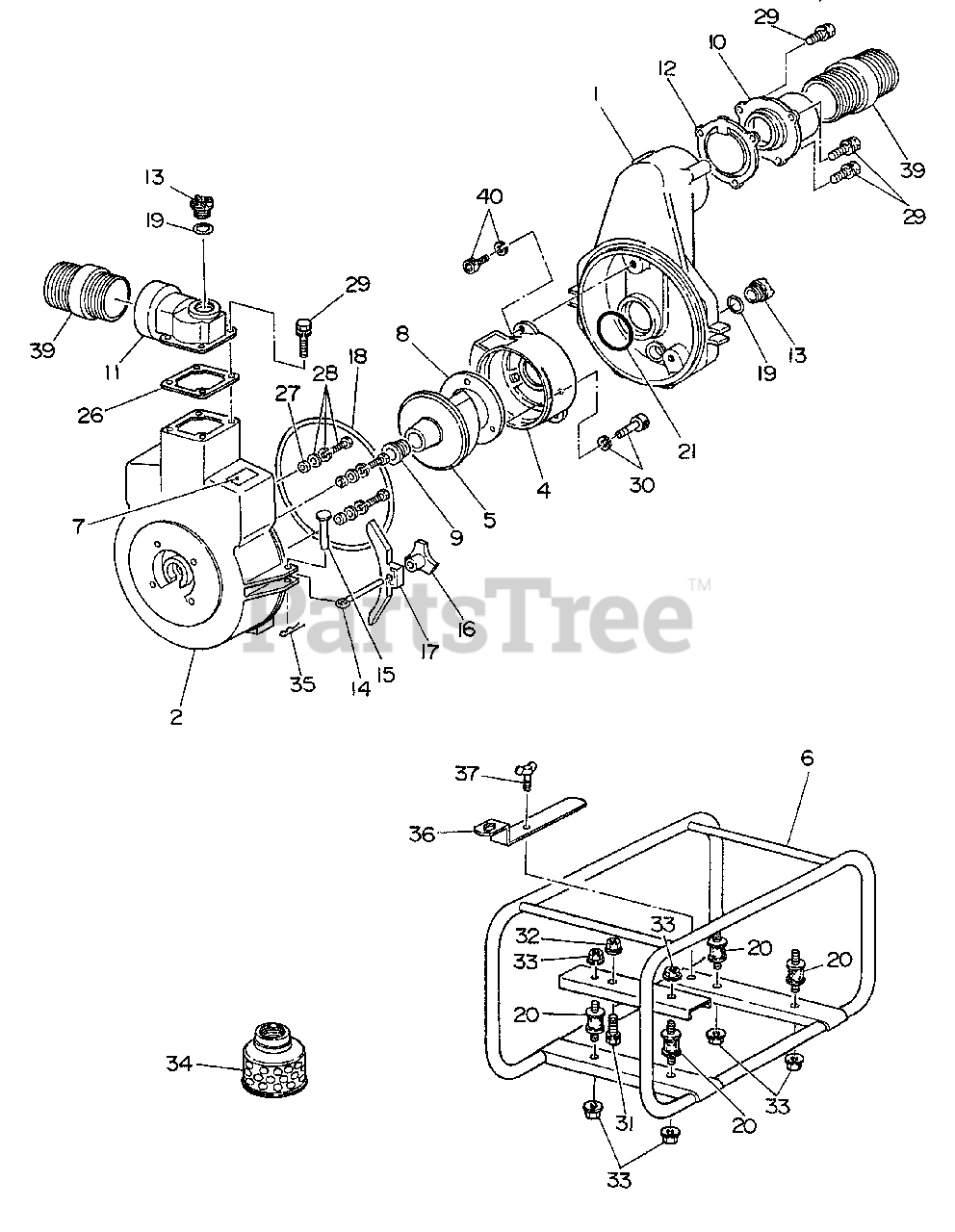

PUMP, FRAME Parts Diagram

  • Title

1

Echo 104810000062

CASING
(Superseded to Discontinued)

$

$

Not available

2

Echo 104800521002

COVER, CASING
(Superseded to Discontinued)

$

$

Not available

4

Echo 104810000063

INNER CASING
(Superseded to Discontinued)

$

$

Not available

5

Echo 104800521004

IMPELLER
(Superseded to Discontinued)

$

$

Not available

6

Echo 104810000120

FRAME
(Superseded to Discontinued)

$

$

Not available

7

Echo 104820006703

LABEL - PUMP
(Superseded to Discontinued)

$

$

Not available

8

Echo 104810000064

LINER
(Superseded to Discontinued)

$

$

Not available

9

Echo 104800521008

SEAL

$164.99

$

Usually ships in 2-4 days

0

10

Echo 104810000065

SUCTION FLANGE
(Superseded to Discontinued)

$

$

Not available

11

Echo 104810000066

DELIVERY FLANGE
(Superseded to Discontinued)

$

$

Not available

12

Echo 104810000067

VALVE, CHECK

$29.99

$

Usually ships in 2-4 days

0

13

Echo 104800501021

PLUG
(Superseded to 40021612620)

$16.99

$

In Stock, only 2 left!

0

14

Echo 104800521013

COVER, BOLT
(Superseded to Discontinued)

$

$

Not available

15

Echo 104800521014

RIVET
(Superseded to Discontinued)

$

$

Not available

16

Echo 104800521015

KNOB
(Superseded to Discontinued)

$

$

Not available

17

Echo 104800521016

HOLDER, CASING COVER
(Superseded to Discontinued)

$

$

Not available

18

Echo 104800521017

PACKING

$21.99

$

Usually ships in 2-4 days

0

19

Echo 104800501022

O-RING

$2.49

$

Usually ships in 2-4 days

0

20

Echo 104800521019

CUSHION

$27.99

$

Usually ships in 2-4 days

0

21

Echo 104800521020

O-RING

$8.99

$

Usually ships in 2-4 days

0

26

Echo 104800501020

PACKING

$6.99

$

In Stock, only 1 left!

0

27

Echo 104800501006

SEAL

$5.99

$

Usually ships in 2-4 days

0

28

Echo 104800521027

BOLT - 4X48
(Superseded to Discontinued)

$

$

Not available

29

Echo 100011408250

BOLT - 8X25
(Superseded to Discontinued)

$

$

Not available

30

Echo 104800521029

SCREW - 6X16

$2.49

$

Usually ships in 2-4 days

0

31

Echo 100011408400

BOLT - 8X40
(Superseded to Discontinued)

$

$

Not available

32

Echo 100023808000

NUT - 8 -- FLANGE
(Superseded to Discontinued)

$

$

Not available

33

Echo 104801001024

NUT - 8
(Superseded to Discontinued)

$

$

Not available

34

Echo 104810000020

STRAINER, DEBRIS
(Superseded to Discontinued)

$

$

Not available

35

Echo 104800521034

PIN - SPRING
(Superseded to Discontinued)

$

$

Not available

36

Echo 104800521035

SUPPORT
(Superseded to Discontinued)

$

$

Not available

37

Echo 104800521036

THUMBSCREW
(Superseded to Discontinued)

$

$

Not available

39

Echo 104810000080

NIPPLE (NPT x NPT)
(Superseded to Discontinued)

$

$

Not available

40

Echo 104800521029

SCREW - 6X16

$2.49

$

Usually ships in 2-4 days

0
