HDTP-3000 - Echo Heavy-Duty Trash Pump (SN: 1242264 - 9999999) PUMP, FRAME Parts Diagram

Heavy-Duty Trash Pump

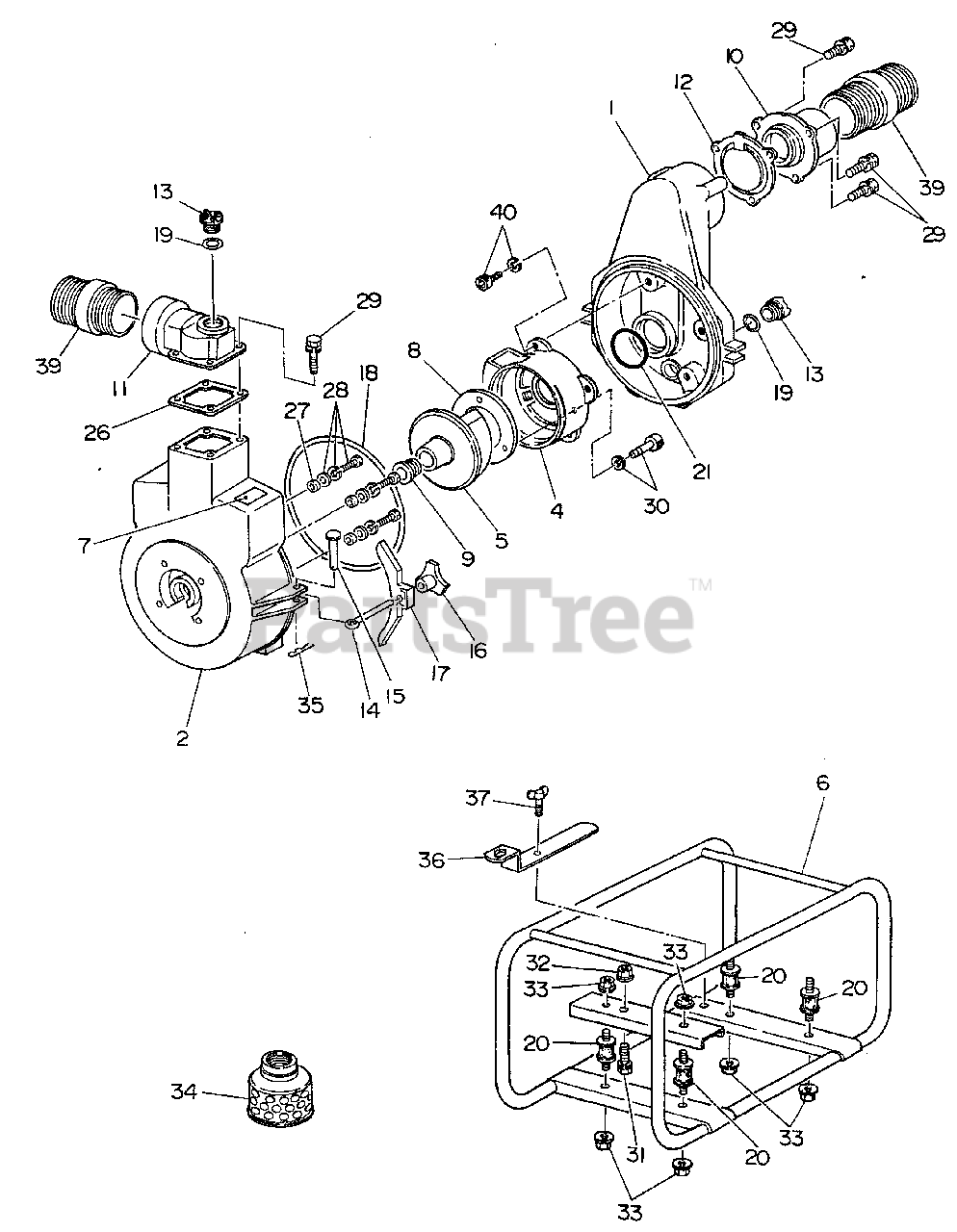

PUMP, FRAME Parts Diagram

  • Title

1

Echo 104810000068

CASING
(Superseded to Discontinued)

$

$

Not available

2

Echo 104800821002

CASING COVER
(Superseded to Discontinued)

$

$

Not available

4

Echo 104810000103

INNER CASING
(Superseded to Discontinued)

$

$

Not available

5

Echo 104810000104

IMPELLER
(Superseded to Discontinued)

$

$

Not available

6

Echo 104810000121

FRAME
(Superseded to Discontinued)

$

$

Not available

7

Echo 104820006803

LABEL, PUMP NAME
(Superseded to Discontinued)

$

$

Not available

8

Echo 104810000070

LINER
(Superseded to Discontinued)

$

$

Not available

9

Echo 104800821008

SEAL, MECHANICAL
(Superseded to Discontinued)

$

$

Not available

10

Echo 104810000071

SUCTION FLANGE
(Superseded to Discontinued)

$

$

Not available

11

Echo 104810000072

DELIVERY FLANGE
(Superseded to Discontinued)

$

$

Not available

12

Echo 104810000073

VALVE, CHECK
(Superseded to Discontinued)

$

$

Not available

13

Echo 104800821012

PLUG
(Superseded to Discontinued)

$

$

Not available

14

Echo 104800821013

COVER, BOLT
(Superseded to Discontinued)

$

$

Not available

15

Echo 104800821014

RIVET
(Superseded to Discontinued)

$

$

Not available

16

Echo 104800821015

KNOB
(Superseded to Discontinued)

$

$

Not available

17

Echo 104800821016

CASING COVER HOLDER
(Superseded to Discontinued)

$

$

Not available

18

Echo 104800821017

PACKING, CASING

$39.99

$

Usually ships in 2-4 days

0

19

Echo 104800821018

O-RING
(Superseded to Discontinued)

$

$

Not available

20

Echo 104800821019

CUSHION RUBBER
(Superseded to Discontinued)

$

$

Not available

21

Echo 104800821020

O-RING
(Superseded to Discontinued)

$

$

Not available

26

Echo 104800801020

PACKING, DELIVERY FLANGE
(Superseded to Discontinued)

$

$

Not available

27

Echo 104800501006

SEAL PACKING

$6.49

$

Usually ships in 2-4 days

0

28

Echo 104800521027

BOLT - 4×48
(Superseded to Discontinued)

$

$

Not available

29

Echo 100011410300

BOLT - 10×30
(Superseded to Discontinued)

$

$

Not available

30

Echo 104800821029

SOCKET BOLT (M6×20)
(Superseded to Discontinued)

$

$

Not available

31

Echo 100011410450

BOLT - 10×45
(Superseded to Discontinued)

$

$

Not available

32

Echo 100023810000

NUT - 10 -- FLANGE
(Superseded to Discontinued)

$

$

Not available

33

Echo 104801001024

NUT - 8
(Superseded to Discontinued)

$

$

Not available

34

Echo 104810000025

STRAINER, DEBRIS
(Superseded to Discontinued)

$

$

Not available

35

Echo 104800821034

PIN, SPRING
(Superseded to Discontinued)

$

$

Not available

36

Echo 104800521035

SUPPORT
(Superseded to Discontinued)

$

$

Not available

37

Echo 104800521036

THUMBSCREW - 6×15
(Superseded to Discontinued)

$

$

Not available

39

Echo 104810000081

NIPPLE (NPTXNPT)
(Superseded to Discontinued)

$

$

Not available

40

Echo 104800821039

SOCKET BOLT(M8×30)
(Superseded to Discontinued)

$

$

Not available
