HE 20 (UT-30092) - Homelite Electric 20" Walk-Behind Mower Handles & Controls Parts Diagram

Electric 20" Walk-Behind Mower

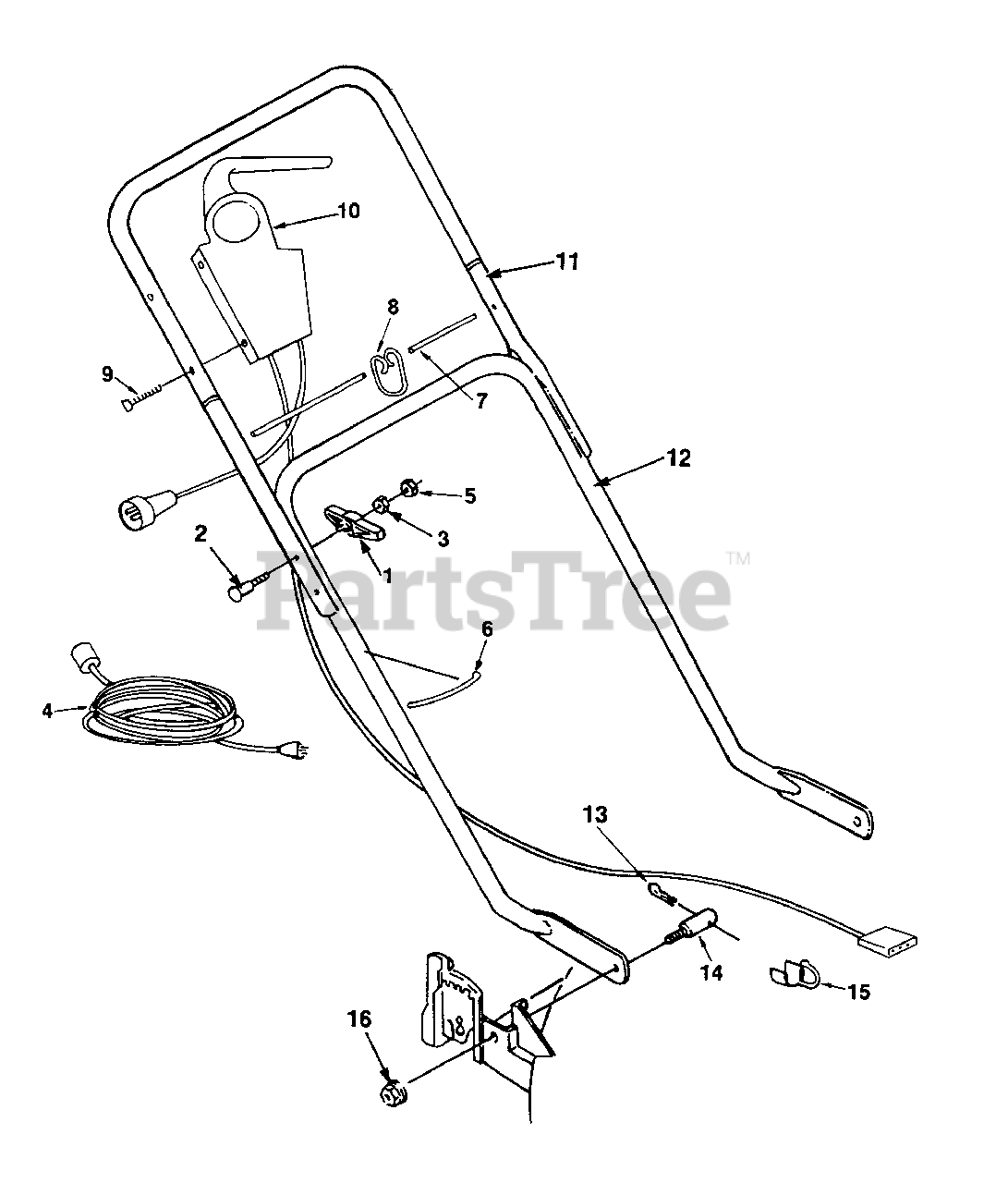

Handles & Controls Parts Diagram

  • Title

1

Homelite JA339550

KNOB- Handle

$

$

Not available

2

Homelite JA359102

BOLT

$

$

Not available

3

Homelite JA443106

NUT- Hex
(Superseded to 81018)

$

$

Not available

4

Homelite 00695

CORD- Extension (access.)

$

$

Not available

5

Homelite JA444718

NUT- Hex lock

$

$

Not available

6

Homelite JA991636

TIE- Cable

$

$

Not available

7

Homelite JA992918

ROD- Cord hanger

$

$

Currently unavailable

8

Homelite JA990269

LINK- Lift

$22.99

$

Usually ships in 3-7 days

0

9

Homelite JA992917

SCREW- Flat hd

$

$

Currently unavailable

10

CONTROL

Note: Control manufactured by Briggs & Stratton. Refer to Briggs & Stratton for control parts. Model 748001,Type 0133-01.

$

$

Not available

11

Homelite JA992911

HANDLE- Upper

$

$

Currently unavailable

12

Homelite JA992400

HANDLE- Lower

$

$

Currently unavailable

13

Homelite JA460306

PIN- Hair

$

$

Not available

14

Homelite JA359178

STUD

$

$

Not available

15

Homelite JA992919

BUSHING- Strain relief

$

$

Currently unavailable

16

Homelite JA445775

NUT- Flanged
(Superseded to UP06674)

$

$

Not available
