HE 2200 LDC - RedMax Edger (1998-09) 004 - STICK EDGER Parts Diagram

Edger

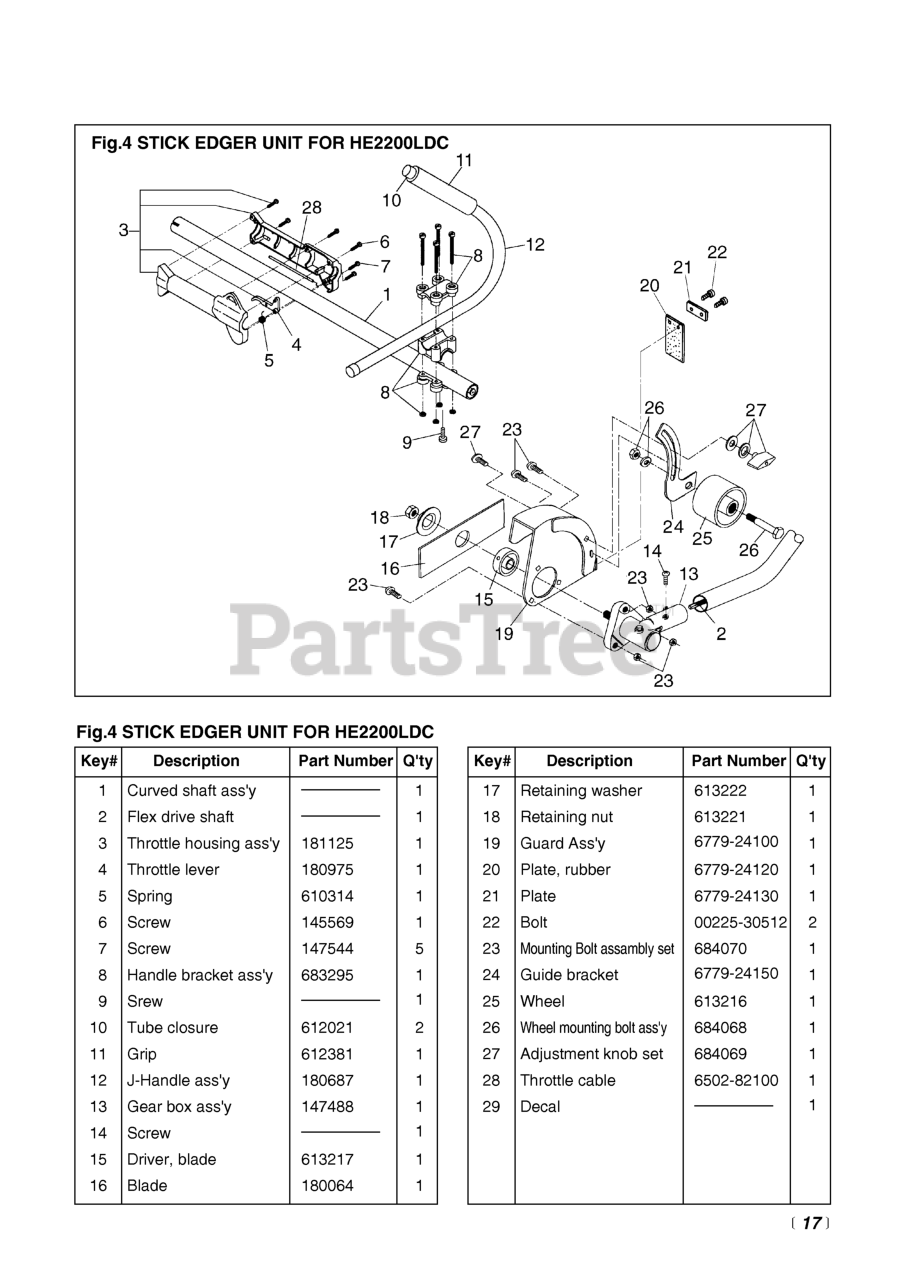

004 - STICK EDGER Parts Diagram

  • Title

1

CURVED SHAFT ASSY

$

$

Not available

2

FLEX, DRIVE SHAFT

$

$

Not available

3

RedMax 181125

180277
(Superseded to 574047201)

$

$

Not available

4

RedMax 180975

LEVER, THROTTLE
(Superseded to 574049001)

$

$

Not available

5

RedMax 610314

SPRING, THROTTLE TRIGGER
(Superseded to 574065001)

$

$

Not available

6

RedMax 145569

SET SCREW, ANTI-ROTATION
(Superseded to 574045201)

$

$

Not available

7

RedMax 147544

181501

$

$

Not available

8

RedMax 683295

HANDLE BRACKET ASSEMBLY
(Superseded to 574066201)

$27.99

$

Usually ships in 3-10 days

0

9

SCREW

$

$

Not available

10

RedMax 612021

CAP
(Superseded to 574065401)

$

$

Not available

11

RedMax 612381

612831

$

$

Not available

12

RedMax 180687

180286
(Superseded to 532180687)

$47.99

$

Usually ships in 3-10 days

0

13

RedMax 147488

GEARCASE ASSEMBLY
(Superseded to 574060101)

$

$

Not available

14

SCREW

$

$

Not available

15

RedMax 613217

147489
(Superseded to 574045601)

$

$

Not available

16

RedMax 180064

6367-15110

$

$

Not available

17

RedMax 613222

147490

$

$

Not available

18

RedMax 613221

NUT, RETAINING

$2.11

$

Usually ships in 3-10 days

0

19

RedMax 677924100

GUARD ASSEMBLY
(Superseded to 574088201)

$87.99

$

Usually ships in 3-10 days

0

20

RedMax 677924120

PLATE, RUBBER

$8.49

$

Usually ships in 3-10 days

0

21

RedMax 677924130

PLATE

$3.65

$

Usually ships in 3-10 days

0

22

RedMax 0022530512

BOLT

$

$

Not available

23

RedMax 684070

MOUNTING BOLT ASSY SET
(Superseded to 574046201)

$8.99

$

Usually ships in 3-10 days

0

24

RedMax 677924150

6779-24151
(Superseded to 677924151)

$

$

Not available

25

RedMax 613216

WHEEL

$2.82

$

Usually ships in 3-10 days

0

26

RedMax 684068

WHEEL MOUNTING BOLT ASSY
(Superseded to 574066501)

$

$

Not available

27

RedMax 684069

ADJUSTMENT KNOB ASSY
(Superseded to 574066601)

$4.99

$

Usually ships in 3-10 days

0

28

RedMax 650282100

CABLE COMP (RPLS 6460- )
(Superseded to 574087701)

$

$

Not available

29

DECAL

$

$

Not available
