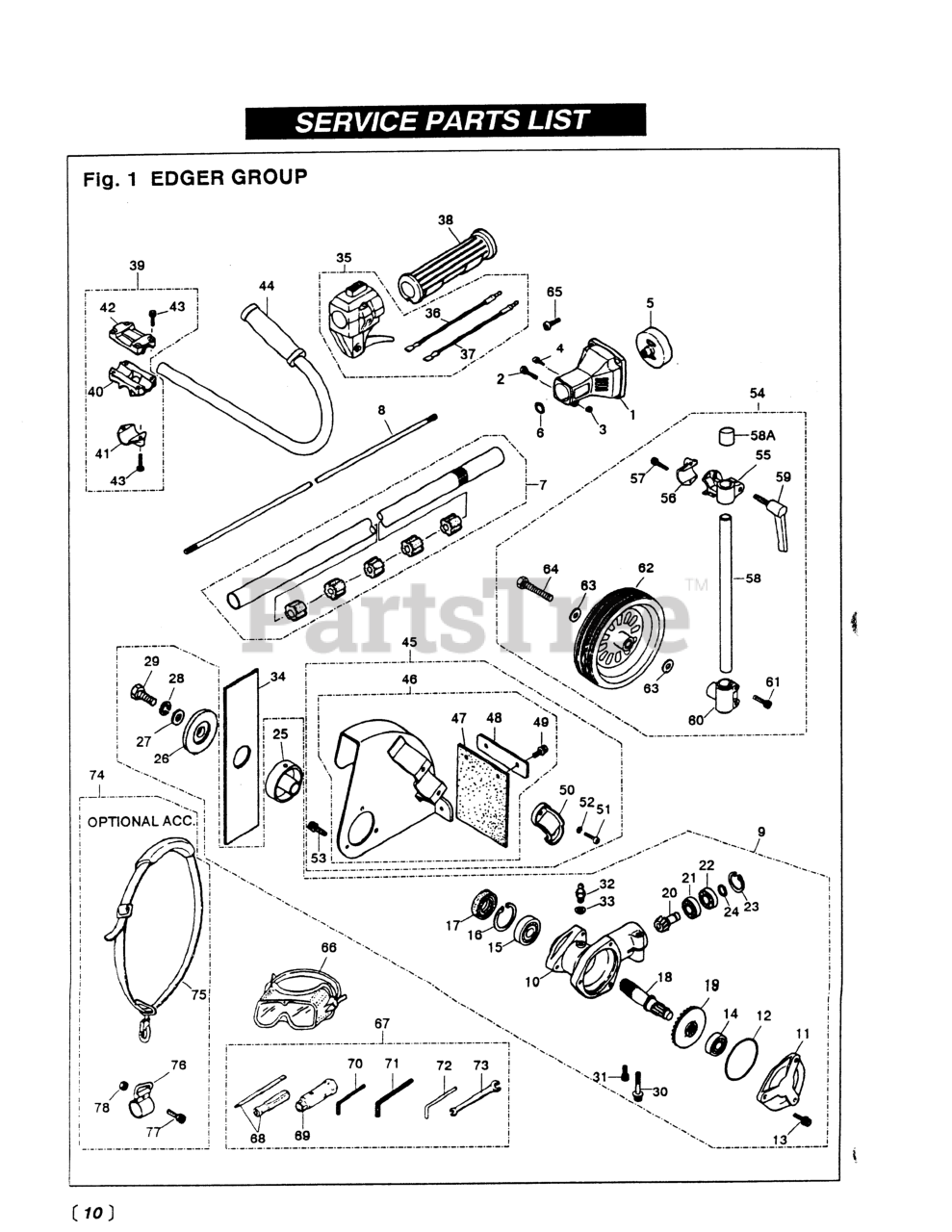

HE 260 - RedMax Edger (1993-03) > Parts Diagrams (2) > 010 - EDGER GROUP

  • Title
355011102

1

HOUSING (NO LONGER AVAILABLE)

Part# 355011102

Note: Context Note: @ÿ

OEM Warranty Repair Part for RedMax

Not available

022530635

2

BOLT, M6x35 (RPLS -50635)

Part# 022530635

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 4 to 6 business days

Your price: $0.47

028010605

3

NUT, M6 X 5

Part# 028010605

OEM Warranty Repair Part for RedMax

Not available

027710614

4

SCREW, M6 X 14

Part# 027710614

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 4 to 6 business days

Your price: $0.34

355012111

5

DRUM

Part# 355012111

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 4 to 6 business days

Your price: $19.06

318013330

6

RING, SNAP

Part# 318013330

OEM Warranty Repair Part for RedMax

Not available

636711300

7

PIPE COMPLETE

Part# 636711300

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 4 to 6 business days

Your price: $82.04

936612210

8

3520-12212

Part# 936612210

OEM Warranty Repair Part for RedMax

Not available

636713000

9

6367-06050

Part# 636713000

OEM Warranty Repair Part for RedMax

Not available

636713110

10

6367-06060

Part# 636713110

OEM Warranty Repair Part for RedMax

Not available

636713120

11

COVER

Part# 636713120 (Superseded to 521452401)

OEM Warranty Repair Part for RedMax

Not available

636713150

12

O-RING

Part# 636713150 (Superseded to 521452701)

OEM Warranty Repair Part for RedMax

Not available

335031470

13

BOLT

Part# 335031470 (Superseded to 574081301)

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 4 to 8 business days

Your price: $2.23

0600006000

14

BEARING (RPLS T3403-13510)

Part# 0600006000

OEM Warranty Repair Part for RedMax

Not available

0600006201

15

BEARING

Part# 0600006201

OEM Warranty Repair Part for RedMax

Not available

0406503212

16

RING, SNAP, M32 x 1.2

Part# 0406503212

OEM Warranty Repair Part for RedMax

Not available

318013141

17

SEAL, OIL

Part# 318013141 (Superseded to 520889801)

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 4 to 6 business days

Your price: $3.98

354113212

18

SHAFT, GEAR

Part# 354113212

OEM Warranty Repair Part for RedMax

Not available

636713130

19

GEAR

Part# 636713130 (Superseded to 521452501)

OEM Warranty Repair Part for RedMax

Not available

636713140

20

PINION

Part# 636713140 (Superseded to 521452601)

OEM Warranty Repair Part for RedMax

Not available

0600000609

21

BEARING (RPLS T3403-13530)

Part# 0600000609

OEM Warranty Repair Part for RedMax

Not available

0600100609

22

BEARING (RPLS T3300-13531)

Part# 0600100609

OEM Warranty Repair Part for RedMax

Not available

0406502412

23

RING, SNAP, M24 x 1.2

Part# 0406502412

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 4 to 6 business days

Your price: $0.55

321013330

24

RING, SNAP (RPLS T3300-13330)

Part# 321013330 (Superseded to 520910501)

OEM Warranty Repair Part for RedMax

Not available

354113241

25

HOLDER (A)

Part# 354113241

OEM Warranty Repair Part for RedMax

Not available

354113251

26

HOLDER (B)

Part# 354113251 (Superseded to 521179101)

OEM Warranty Repair Part for RedMax

Not available

0164330823

27

WASHER, M8 x 2.3 (RPLS -20823)

Part# 0164330823

OEM Warranty Repair Part for RedMax

Not available

331043210

28

WASHER (RPLS 3180-13270)

Part# 331043210 (Superseded to 520966501)

OEM Warranty Repair Part for RedMax

Not available

357933260

29

BOLT, LH

Part# 357933260 (Superseded to 521209901)

OEM Warranty Repair Part for RedMax

Not available

354013260

30

BOLT, M6 x 1.35

Part# 354013260 (Superseded to 521171901)

OEM Warranty Repair Part for RedMax

Not available

0125230512

31

BOLT, M5 x 12

Part# 0125230512

OEM Warranty Repair Part for RedMax

Not available

319913350

32

FITTING, GREASE

Part# 319913350

OEM Warranty Repair Part for RedMax

Not available

0164120608

33

WASHER, M6 X .8

Part# 0164120608

OEM Warranty Repair Part for RedMax

Not available

636715110

34

BLADE, EDGER (RPLS 147315)

Part# 636715110

OEM Warranty Repair Part for RedMax

Not available

604112300

35

LEVER ASSEMBLY

Part# 604112300

OEM Warranty Repair Part for RedMax

Not available

611614420

36

CORD-A, BLACK

Part# 611614420

OEM Warranty Repair Part for RedMax

Not available

611614430

37

CORD-B, RED

Part# 611614430

OEM Warranty Repair Part for RedMax

Not available

357732140

38

3577-32141

Part# 357732140

OEM Warranty Repair Part for RedMax

Not available

358314100

39

BRACKET (USE 3583-14101)

Part# 358314100

OEM Warranty Repair Part for RedMax

Not available

358314110

40

NO LONGER AVAILABLE

Part# 358314110

Note: Context Note: @ÿ

OEM Warranty Repair Part for RedMax

Not available

358314121

41

CAP, LOWER

Part# 358314121

OEM Warranty Repair Part for RedMax

Not available

325714190

42

3257-14192

Part# 325714190

OEM Warranty Repair Part for RedMax

Not available

0125230522

43

BOLT, M5 X 22

Part# 0125230522

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 4 to 6 business days

Your price: $0.48

636714200

44

HANDLE, J

Part# 636714200

OEM Warranty Repair Part for RedMax

Not available

636724000

45

6461-24000

Part# 636724000

OEM Warranty Repair Part for RedMax

Not available

636724100

46

6461-24100

Part# 636724100

OEM Warranty Repair Part for RedMax

Not available

636724120

47

PLATE (RUBBER)

Part# 636724120

OEM Warranty Repair Part for RedMax

Not available

636724130

48

6367-24131

Part# 636724130

OEM Warranty Repair Part for RedMax

Not available

022530512

49

BOLT, M5 X 12

Part# 022530512

OEM Warranty Repair Part for RedMax

Not available

580724120

50

3520-24120

Part# 580724120

OEM Warranty Repair Part for RedMax

Not available

0125230618

51

BOLT, M6 X 18

Part# 0125230618

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 4 to 6 business days

Your price: $0.85

029020615

52

WASHER, M6 X 15

Part# 029020615

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 4 to 6 business days

Your price: $0.17

335031470

53

BOLT

Part# 335031470 (Superseded to 574081301)

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 4 to 8 business days

Your price: $2.23

636725000

54

USE T3052-25001

Part# 636725000

Note: Context Note: @ÿ

OEM Warranty Repair Part for RedMax

Not available

636715230

55

BRACKET

Part# 636715230

OEM Warranty Repair Part for RedMax

Not available

358314121

56

CAP, LOWER

Part# 358314121

OEM Warranty Repair Part for RedMax

Not available

0125230522

57

BOLT, M5 X 22

Part# 0125230522

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 4 to 6 business days

Your price: $0.48

636715210

58

PIPE

Part# 636715210

OEM Warranty Repair Part for RedMax

Not available

636725230

58A

612021

Part# 636725230

OEM Warranty Repair Part for RedMax

Not available

395615340

59

LEVER

Part# 395615340

OEM Warranty Repair Part for RedMax

Not available

380815230

60

3808-15233

Part# 380815230

OEM Warranty Repair Part for RedMax

Not available

0125230625

61

BOLT, M6 X 25

Part# 0125230625

OEM Warranty Repair Part for RedMax

Not available

636725150

62

WHEEL

Part# 636725150

OEM Warranty Repair Part for RedMax

Not available

0164221016

63

WASHER, M10 x 1.6

Part# 0164221016

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 4 to 6 business days

Your price: $0.39

0101051060

64

BOLT, M10 X 60

Part# 0101051060

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 4 to 6 business days

Your price: $3.12

026030620

65

0263-30620

Part# 026030620

OEM Warranty Repair Part for RedMax

Not available

624292110

66

NO LONGER AVAILABLE

Part# 624292110

Note: Context Note: @ÿ

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 4 to 6 business days

Your price: $6.72

353291000

67

TOOL SET

Part# 353291000

OEM Warranty Repair Part for RedMax

Not available

103091340

68

SCREWDRIVER

Part# 103091340 (Superseded to 516153801)

OEM Warranty Repair Part for RedMax

Not available

323991310

69

NO LONGER AVAILABLE

Part# 323991310

Note: Context Note: @ÿ

OEM Warranty Repair Part for RedMax

Not available

0900700425

70

WRENCH (TOOL)

Part# 0900700425

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 4 to 6 business days

Your price: $0.75

0900700528

71

WRENCH (TOOL)

Part# 0900700528

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 4 to 6 business days

Your price: $1.61

354091110

72

BAR

Part# 354091110

OEM Warranty Repair Part for RedMax

Not available

354091120

73

SPANNER, 8 X 10 (RPLS 2540- )

Part# 354091120 (Superseded to 521176201)

OEM Warranty Repair Part for RedMax

Not available

636706010

74

STRAP KIT

Part# 636706010

OEM Warranty Repair Part for RedMax

Not available

611217201

75

6112-17202

Part# 611217201

OEM Warranty Repair Part for RedMax

Not available

352017110

76

HANGER COMP

Part# 352017110

OEM Warranty Repair Part for RedMax

Not available

0125230510

77

BOLT, M5 X 10

Part# 0125230510

OEM Warranty Repair Part for RedMax

Not available

028010504

78

NUT, M5 X 4

Part# 028010504

OEM Warranty Repair Part for RedMax

Not available
