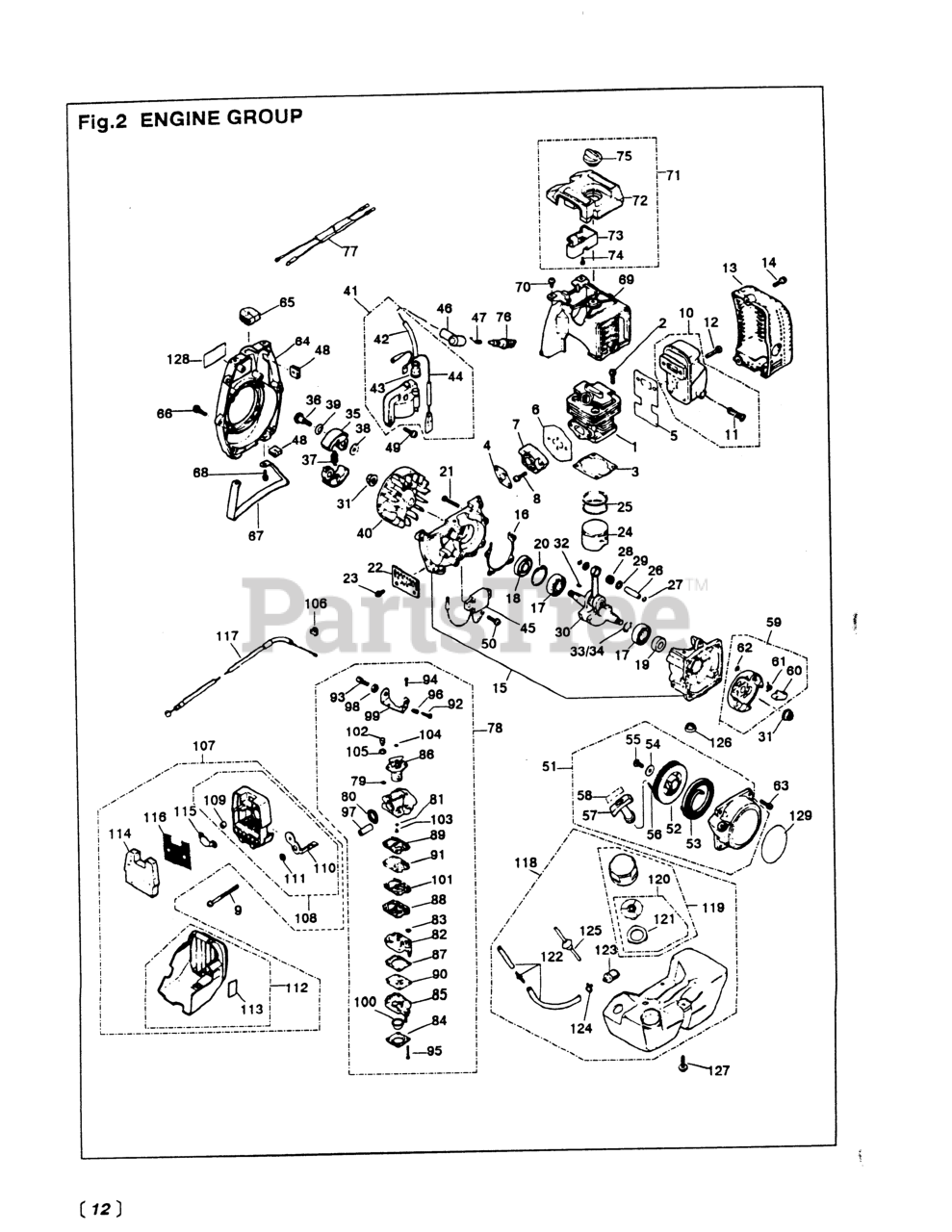

HE 260 - RedMax Edger (1993-03) > Parts Diagrams (2) > 012 - ENGINE GROUP

  • Title
160012111

1

CYLINDER (NLA)

Part# 160012111

Note: Context Note: @ÿ

OEM Warranty Repair Part for RedMax

Not available

331012280

2

3310-12281

Part# 331012280

OEM Warranty Repair Part for RedMax

Not available

160013120

3

1600-13121

Part# 160013120

OEM Warranty Repair Part for RedMax

Not available

175013131

4

1750-13132

Part# 175013131

OEM Warranty Repair Part for RedMax

Not available

160013140

5

1600-13141

Part# 160013140

OEM Warranty Repair Part for RedMax

Not available

160013150

6

1600-13151

Part# 160013150

OEM Warranty Repair Part for RedMax

Not available

160113162

7

INSULATOR (RPLS -13161)

Part# 160113162

OEM Warranty Repair Part for RedMax

Not available

140075510

8

SCREW (USE 0263-90520 )

Part# 140075510

OEM Warranty Repair Part for RedMax

Not available

026030560

9

0263-30560

Part# 026030560

OEM Warranty Repair Part for RedMax

Not available

160115100

10

1600-15110

Part# 160115100

OEM Warranty Repair Part for RedMax

Not available

160115120

11

ARRESTER (RPLS 5850-15140)

Part# 160115120

OEM Warranty Repair Part for RedMax

Not available

160015150

12

SCREW

Part# 160015150

OEM Warranty Repair Part for RedMax

Not available

160015210

13

COVER, MUFFLER

Part# 160015210

OEM Warranty Repair Part for RedMax

Not available

140075510

14

SCREW (USE 0263-90520 )

Part# 140075510

OEM Warranty Repair Part for RedMax

Not available

160021100

15

CRANKCASE ASSEMBLY

Part# 160021100

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 4 to 6 business days

Your price: $97.84

160021140

16

1600-21141

Part# 160021140

OEM Warranty Repair Part for RedMax

Not available

0603006201

17

BEARING

Part# 0603006201

OEM Warranty Repair Part for RedMax

Not available

110021210

18

2169-21210

Part# 110021210

OEM Warranty Repair Part for RedMax

Not available

165021220

19

SEAL, OIL (RPLS 1200-21220)

Part# 165021220

OEM Warranty Repair Part for RedMax

Not available

0406503212

20

RING, SNAP, M32 x 1.2

Part# 0406503212

OEM Warranty Repair Part for RedMax

Not available

026000530

21

SCREW, M5 x 30(RPLS 0263-00530

Part# 026000530

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 4 to 6 business days

Your price: $0.25

160021310

22

GUARD

Part# 160021310

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 4 to 6 business days

Your price: $1.40

140015510

23

0263-90514

Part# 140015510

OEM Warranty Repair Part for RedMax

Not available

160041110

24

PISTON

Part# 160041110

OEM Warranty Repair Part for RedMax

Not available

128041220

25

RING, PISTON

Part# 128041220

OEM Warranty Repair Part for RedMax

Not available

160041310

26

PIN, PISTON

Part# 160041310 (Superseded to 516385601)

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 1 business day

Your price: $8.93

126041320

27

RING, SNAP (RPLS 1101-41320)

Part# 126041320

OEM Warranty Repair Part for RedMax

Not available

110141331

28

BEARING

Part# 110141331

OEM Warranty Repair Part for RedMax

Not available

117341340

29

WASHER, THRUST (NLA)

Part# 117341340

Note: Context Note: @ÿ

OEM Warranty Repair Part for RedMax

Not available

160042000

30

CRANKSHAFT COMP

Part# 160042000

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 4 to 6 business days

Your price: $144.31

165043230

31

182301

Part# 165043230 (Superseded to 516437401)

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 4 to 6 business days

Your price: $3.34

100043240

32

KEY

Part# 100043240 (Superseded to 516147801)

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 1 business day

Your price: $3.34

113043260

33

SHIM (NO LONGER AVAILABLE)

Part# 113043260

Note: Context Note: @ÿ

OEM Warranty Repair Part for RedMax

Not available

114043250

34

SHIM

Part# 114043250

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 4 to 6 business days

Your price: $0.32

160051112

35

1600-51113

Part# 160051112

OEM Warranty Repair Part for RedMax

Not available

114051250

36

BOLT

Part# 114051250

OEM Warranty Repair Part for RedMax

Not available

160051223

37

SPRING

Part# 160051223

OEM Warranty Repair Part for RedMax

Not available

114051230

38

WASHER, FLAT (USE 182303)

Part# 114051230

OEM Warranty Repair Part for RedMax

Not available

114051242

39

WASHER (RPLS -51241)

Part# 114051242

OEM Warranty Repair Part for RedMax

Not available

160071111

40

ROTOR

Part# 160071111

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 4 to 6 business days

Your price: $59.88

160071200

41

COIL ASSEMBLY

Part# 160071200

OEM Warranty Repair Part for RedMax

Not available

160071220

42

CORD HIGHTENS (NLA)

Part# 160071220

Note: Context Note: @ÿ

OEM Warranty Repair Part for RedMax

Not available

140071230

43

CAP

Part# 140071230

OEM Warranty Repair Part for RedMax

Not available

160071240

44

CORD

Part# 160071240

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 4 to 6 business days

Your price: $4.74

140071311

45

UNIT (RPLS -71310)

Part# 140071311

OEM Warranty Repair Part for RedMax

Not available

140072111

46

CAP, PLUG

Part# 140072111

OEM Warranty Repair Part for RedMax

Not available

140072121

47

SPRING PLUG (RPLS 3310-71320)

Part# 140072121

OEM Warranty Repair Part for RedMax

Not available

160072130

48

GROMMET

Part# 160072130

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 4 to 6 business days

Your price: $0.89

140075510

49

SCREW (USE 0263-90520 )

Part# 140075510

OEM Warranty Repair Part for RedMax

Not available

026030516

50

0263-30516

Part# 026030516

OEM Warranty Repair Part for RedMax

Not available

160075101

51

RECOIL ASSEMBLY

Part# 160075101

OEM Warranty Repair Part for RedMax

Not available

160075120

52

REEL

Part# 160075120

OEM Warranty Repair Part for RedMax

Not available

160075130

53

SPRING, SPIRAL

Part# 160075130

OEM Warranty Repair Part for RedMax

Not available

160075140

54

WASHER

Part# 160075140

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 4 to 6 business days

Your price: $0.41

160075150

55

1600-75151

Part# 160075150

OEM Warranty Repair Part for RedMax

Not available

160075160

56

ROPE

Part# 160075160

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 4 to 6 business days

Your price: $4.56

114075320

57

KNOB

Part# 114075320

OEM Warranty Repair Part for RedMax

Not available

160075180

58

TAPE

Part# 160075180

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 4 to 6 business days

Your price: $0.76

160075201

59

PULLEY ASSEMBLY

Part# 160075201

OEM Warranty Repair Part for RedMax

Not available

160075220

60

RATCHET

Part# 160075220

OEM Warranty Repair Part for RedMax

Not available

160075230

61

SPRING, RETURN

Part# 160075230

OEM Warranty Repair Part for RedMax

Not available

103472180

62

E-RING

Part# 103472180

OEM Warranty Repair Part for RedMax

Not available

140075510

63

SCREW (USE 0263-90520 )

Part# 140075510

OEM Warranty Repair Part for RedMax

Not available

160031111

64

1600-31112

Part# 160031111

OEM Warranty Repair Part for RedMax

Not available

163072150

65

GROMMET

Part# 163072150

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 4 to 6 business days

Your price: $0.57

026360516

66

SCREW, M5 X 16

Part# 026360516

OEM Warranty Repair Part for RedMax

Not available

354093110

67

STAND

Part# 354093110

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 4 to 6 business days

Your price: $9.96

140015510

68

0263-90514

Part# 140015510

OEM Warranty Repair Part for RedMax

Not available

160032110

69

1600-32112

Part# 160032110

OEM Warranty Repair Part for RedMax

Not available

140015510

70

0263-90514

Part# 140015510

OEM Warranty Repair Part for RedMax

Not available

160033100

71

1600-33102

Part# 160033100

OEM Warranty Repair Part for RedMax

Not available

160033110

72

1600-33111

Part# 160033110

OEM Warranty Repair Part for RedMax

Not available

160033120

73

1600-33121

Part# 160033120

OEM Warranty Repair Part for RedMax

Not available

160033130

74

SCREW

Part# 160033130

OEM Warranty Repair Part for RedMax

Not available

160033140

75

1881-33140

Part# 160033140

OEM Warranty Repair Part for RedMax

Not available

121673110

76

3699-90030-10

Part# 121673110

OEM Warranty Repair Part for RedMax

Not available

163372910

77

CORD

Part# 163372910

OEM Warranty Repair Part for RedMax

Not available

160181000

78

CARBURETOR

Part# 160181000

OEM Warranty Repair Part for RedMax

Not available

175181130

79

RING

Part# 175181130 (Superseded to 516523601)

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 4 to 6 business days

Your price: $2.23

175181230

80

RING, PACKING (NLA)

Part# 175181230

Note: Context Note: @ÿ

OEM Warranty Repair Part for RedMax

Not available

175181240

81

RING, O

Part# 175181240

OEM Warranty Repair Part for RedMax

Not available

160181450

82

BODY

Part# 160181450

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 4 to 6 business days

Your price: $22.09

330681380

83

SCREEN

Part# 330681380

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 4 to 6 business days

Your price: $1.22

175181520

84

COVER

Part# 175181520

OEM Warranty Repair Part for RedMax

Not available

189181490

85

BODY

Part# 189181490

OEM Warranty Repair Part for RedMax

Not available

106581150

86

VALVE ASSY (NO LONGER AVAIL)

Part# 106581150

Note: Context Note: @ÿ

OEM Warranty Repair Part for RedMax

Not available

175181470

87

KIT ONLY

Part# 175181470

OEM Warranty Repair Part for RedMax

Not available

175181440

88

GASKET, PLATE

Part# 175181440

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 4 to 6 business days

Your price: $10.39

106581410

89

GASKET, PUMP

Part# 106581410

OEM Warranty Repair Part for RedMax

Not available

331081260

90

DIAPHRAGM (USE 4810-81260)

Part# 331081260

OEM Warranty Repair Part for RedMax

Not available

106581420

91

DIAPHRAGM

Part# 106581420

OEM Warranty Repair Part for RedMax

Not available

175181310

92

SCREW, IDLE AD

Part# 175181310

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 4 to 6 business days

Your price: $3.20

160181180

93

SCREW, CABLE

Part# 160181180

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 4 to 6 business days

Your price: $3.11

175281110

94

SCREW

Part# 175281110 (Superseded to 516528701)

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 4 to 6 business days

Your price: $2.23

175281530

95

SCREW

Part# 175281530

OEM Warranty Repair Part for RedMax

Not available

175181320

96

SPRING, IDLE A

Part# 175181320

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 4 to 6 business days

Your price: $2.72

175181220

97

SLEEVE, MOUNT

Part# 175181220

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 4 to 6 business days

Your price: $7.68

175181180

98

NUT, CABLE ADJUSTER

Part# 175181180

OEM Warranty Repair Part for RedMax

Not available

175181120

99

BRACKET, IDLE

Part# 175181120

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 4 to 6 business days

Your price: $7.76

175181510

100

PUMP, PRIMING

Part# 175181510

OEM Warranty Repair Part for RedMax

Not available

175181430

101

PLATE, PUMP (NLA)

Part# 175181430

Note: Context Note: @ÿ

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 4 to 6 business days

Your price: $4.07

175181141

102

SWIVEL (USE -06040)

Part# 175181141

OEM Warranty Repair Part for RedMax

Not available

160181251

103

JET (RPLS -81250)

Part# 160181251

OEM Warranty Repair Part for RedMax

Not available

175181160

104

PLUG NEEDLE

Part# 175181160

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 4 to 6 business days

Your price: $1.23

175181190

105

WASHER

Part# 175181190

OEM Warranty Repair Part for RedMax

Not available

160181810

106

CAP, CABLE END

Part# 160181810

OEM Warranty Repair Part for RedMax

Not available

160182003

107

CLEANER ASSY (USE -82004)

Part# 160182003

OEM Warranty Repair Part for RedMax

Not available

160182102

108

1460-82101

Part# 160182102

OEM Warranty Repair Part for RedMax

Not available

160182120

109

SLEEVE

Part# 160182120

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 4 to 6 business days

Your price: $1.08

160182132

110

NO LONGER AVAILABLE

Part# 160182132

Note: Context Note: @ÿ

OEM Warranty Repair Part for RedMax

Not available

160182140

111

WASHER

Part# 160182140

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 4 to 6 business days

Your price: $0.76

160182202

112

COVER, AIR FILTER (RPLS -82201

Part# 160182202

OEM Warranty Repair Part for RedMax

Not available

113382060

113

LABEL

Part# 113382060

OEM Warranty Repair Part for RedMax

Not available

160182310

114

1601-82311

Part# 160182310

OEM Warranty Repair Part for RedMax

Not available

160182320

115

PLATE

Part# 160182320

OEM Warranty Repair Part for RedMax

Not available

160182351

116

1601-82352

Part# 160182351

OEM Warranty Repair Part for RedMax

Not available

185582100

117

CABLE COMP (RPLS 1633-83100)

Part# 185582100

OEM Warranty Repair Part for RedMax

Not available

160185005

118

2115-85000

Part# 160185005

OEM Warranty Repair Part for RedMax

Not available

160185200

119

1601-85201

Part# 160185200

OEM Warranty Repair Part for RedMax

Not available

160085302

120

VALVE COMPLETE

Part# 160085302

OEM Warranty Repair Part for RedMax

Not available

160085322

121

PACKING (RPLS -85321)

Part# 160085322

OEM Warranty Repair Part for RedMax

Not available

160185403

122

2115-85400

Part# 160185403

OEM Warranty Repair Part for RedMax

Not available

185085300

123

5500-85400 (RRLS. 1750-85300)

Part# 185085300

OEM Warranty Repair Part for RedMax

Not available

126085460

124

CLIP (REPLACES 2841-31280)

Part# 126085460

OEM Warranty Repair Part for RedMax

Not available

160185701

125

3080-85500

Part# 160185701

OEM Warranty Repair Part for RedMax

Not available

160086110

126

WASHER

Part# 160086110

OEM Warranty Repair Part for RedMax

Not available

160086120

127

SCREW, M5 X 22

Part# 160086120

OEM Warranty Repair Part for RedMax

Not available

163331120

128

LABEL

Part# 163331120

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 4 to 6 business days

Your price: $0.76

163375411

129

LABEL (NLA)

Part# 163375411

Note: Context Note: @ÿ

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 4 to 6 business days

Your price: $1.40
