HEZ 230 F (967600801) - RedMax Edger (2014-08) CARBURETOR Parts Diagram

Edger

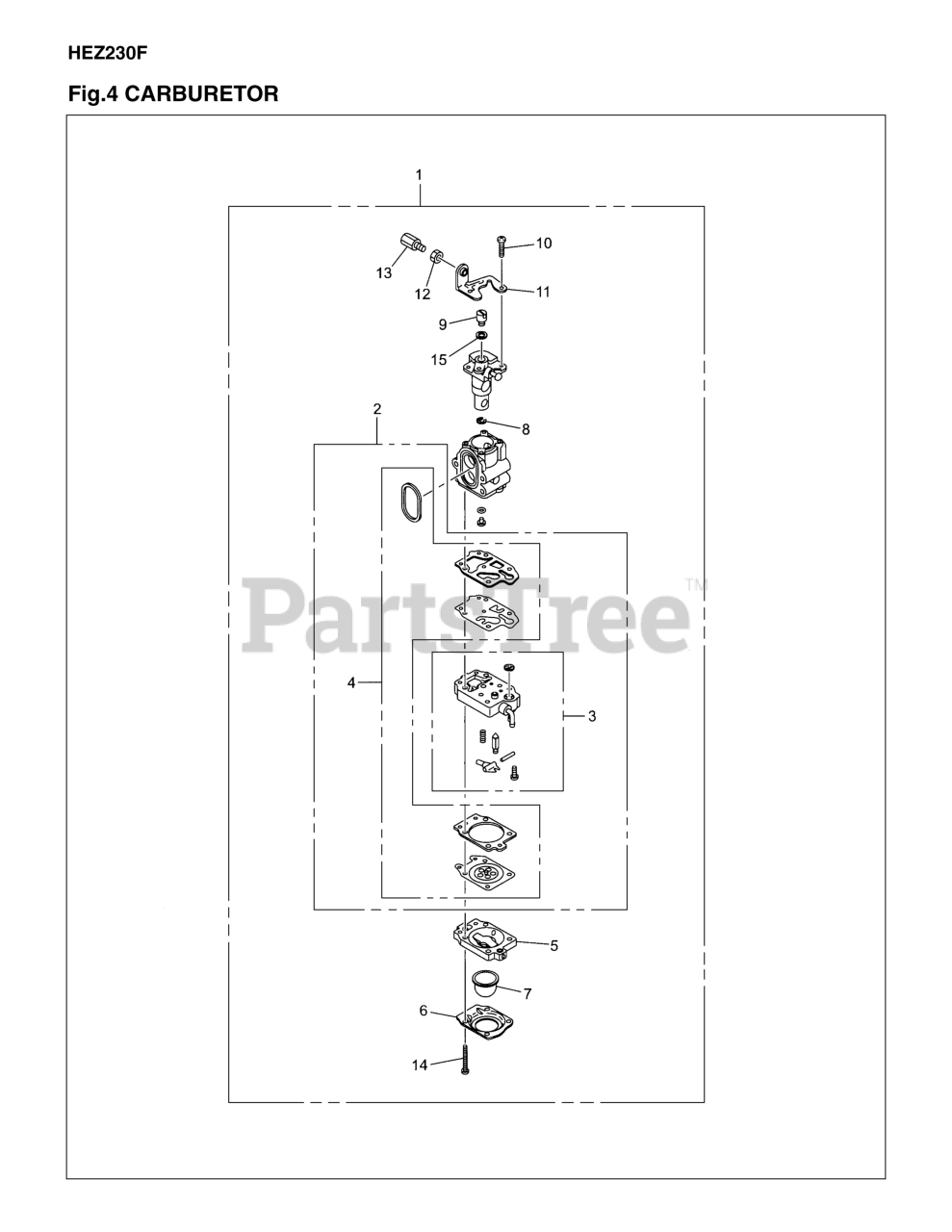

CARBURETOR Parts Diagram

  • Title

1

RedMax 587078301

CARBURETOR ASSY

$157.99

$

Usually ships in 3-10 days

0

2

RedMax 587297001

REBUILD KIT

$109.99

$

Usually ships in 3-10 days

0

3

RedMax 502238401

CARBURETOR BODY

$53.99

$

In Stock, Qty 5

0

4

RedMax 587296801

GASKET KIT

$87.99

$

Usually ships in 3-10 days

0

5

RedMax 506740901

BODY

$34.99

$

In Stock, only 1 left!

0

6

RedMax 506741001

1OVER
(Superseded to 516543901)

$6.49

$

In Stock, Qty 12

0

7

RedMax 505306701

PUMP

$8.99

$

In Stock, Qty 20+

0

8

RedMax 506738601

RING
(Superseded to 516523601)

$3.99

$

Usually ships in 3-10 days

0

9

RedMax 506741201

SWIVEL
(Superseded to 516597701)

$9.99

$

Usually ships in 3-10 days

0

10

RedMax 505307901

SCREW
(Superseded to 516528701)

$3.99

$

Usually ships in 3-10 days

0

11

RedMax 506746001

BRACKET
(Superseded to 521359901)

$12.99

$

Usually ships in 3-10 days

0

12

RedMax 506612601

NUT
(Superseded to 510487401)

$4.99

$

In Stock, only 4 left!

0

13

RedMax 506741301

ADJUSTER
(Superseded to 521756001)

$7.49

$

Usually ships in 3-10 days

0

14

RedMax 506741101

SCREW

$4.99

$

In Stock, only 3 left!

0

15

RedMax 506746101

WASHER
(Superseded to 521360401)

$0.99

$

Usually ships in 3-10 days

0
