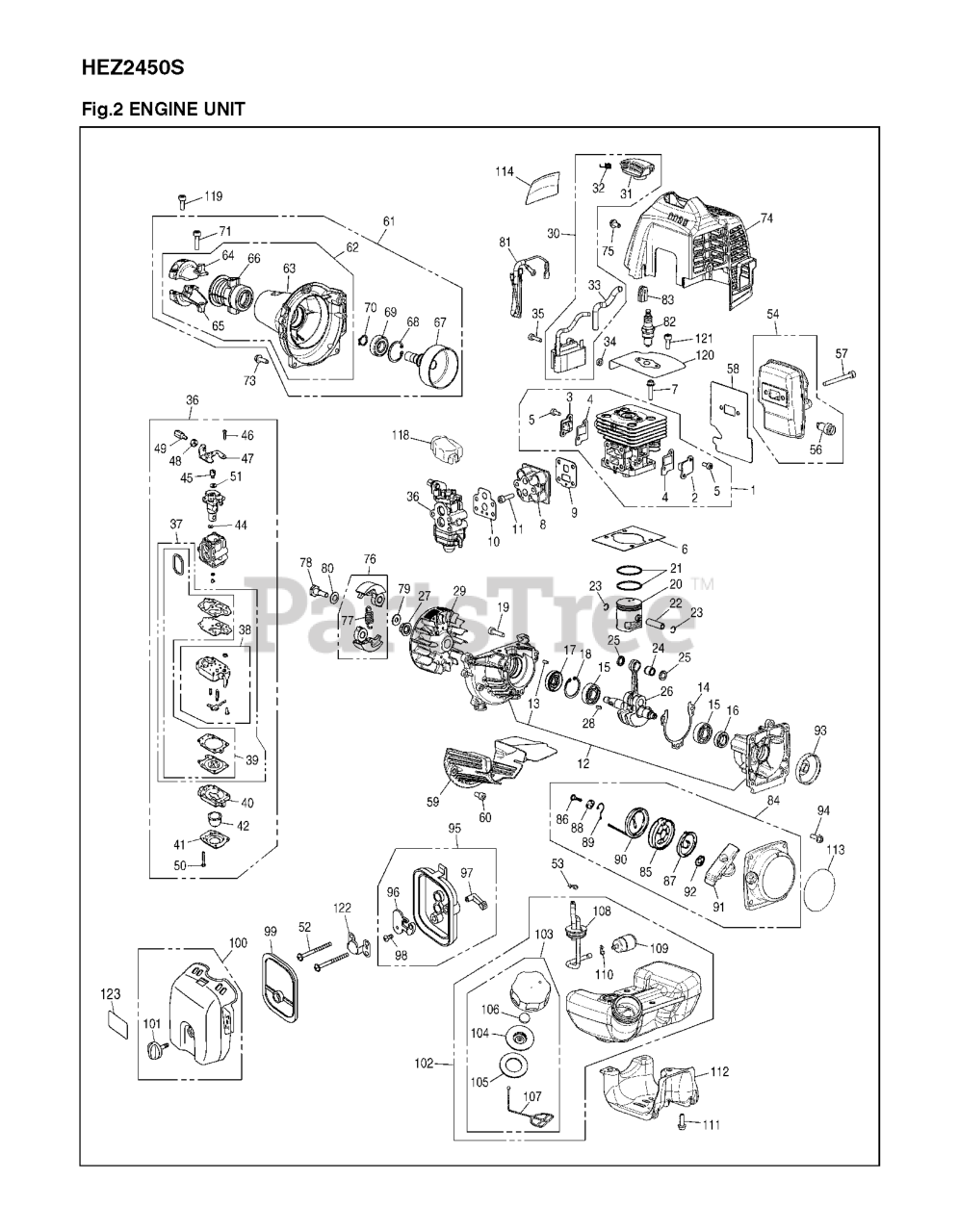

HEZ 2450 S - RedMax Edger (SN: 90900101 & Above) > Parts Diagrams (2) > ENGINE

  • Title
506653801

1

Cylinder, Complete

Part# 506653801

Note: . 2-5

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 1 business day

Your price: $33.53

506654101

2

COVER TRS

Part# 506654101

Note: . 3 4 5

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 4 to 6 business days

Your price: $5.58

506654201

3

COVER TRF

Part# 506654201

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 4 to 6 business days

Your price: $5.58

506654301

4

Gasket, TR

Part# 506654301

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 1 business day

Your price: $2.23

504119201

5

BOLT

Part# 504119201

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 4 to 6 business days

Your price: $1.11

521751901

6

GASKET, BASE

Part# 521751901

Note: BASE

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 4 to 6 business days

Your price: $3.34

521345201

7

OBSOLETE - RP_BOLT

Part# 521345201 (Superseded to 506745201)

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 4 to 8 business days

Your price: $1.11

511349701

8

INSULATOR

Part# 511349701

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 4 to 6 business days

Your price: $10.05

511350001

9

INSULATOR GASKET(R-848F0814B0)

Part# 511350001

Note: INSU

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 4 to 6 business days

Your price: $2.23

506654801

10

Carburetor Gasket

Part# 506654801

Note: CARB

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 4 to 6 business days

Your price: $2.23

506689001

11

Torx Bolt

Part# 506689001

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 4 to 6 business days

Your price: $3.34

512325801

12

CRANKCASE-C

Part# 512325801

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 4 to 6 business days

Your price: $13.41

505296101

13

OBSOLETE - PIN

Part# 505296101 (Superseded to 516762801)

Note: PIN

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 4 to 6 business days

Your price: $2.23

506684801

14

Case Gasket

Part# 506684801

Note: CASE

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 4 to 6 business days

Your price: $2.23

506610301

15

Bearing

Part# 506610301

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 1 business day

Your price: $8.93

504121501

16

SEAL

Part# 504121501

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 4 to 6 business days

Your price: $7.82

506612901

17

OBSOLETE - %SEAL

Part# 506612901

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 1 business day

Your price: $3.34

506609901

18

RP_RING

Part# 506609901

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 1 business day

Your price: $2.23

504114301

19

BOLT

Part# 504114301

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 4 to 6 business days

Your price: $3.34

506655001

20

Piston

Part# 506655001

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 1 business day

Your price: $33.53

506618101

21

RING

Part# 506618101

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 4 to 6 business days

Your price: $10.05

505040701

22

Pin

Part# 505040701

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 1 business day

Your price: $7.82

505045201

23

RING

Part# 505045201

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 4 to 6 business days

Your price: $2.23

506685001

24

BEARING

Part# 506685001

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 4 to 6 business days

Your price: $7.82

505041001

25

Washer

Part# 505041001

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 4 to 6 business days

Your price: $2.23

528058401

26

CRANKSHAFT C

Part# 528058401

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 4 to 6 business days

Your price: $100.61

504118001

27

OBSOLETE - NUT

Part# 504118001 (Superseded to 516437401)

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 4 to 6 business days

Your price: $2.23

506689401

28

OBSOLETE - KEY

Part# 506689401

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 4 to 6 business days

Your price: $2.23

515384501

29

ROTOR

Part# 515384501

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 4 to 6 business days

Your price: $36.88

511351101

30

COIL-A

Part# 511351101

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 1 business day

Your price: $83.84

521610001

31

CAP

Part# 521610001

Note: . 31-35

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 1 business day

Your price: $6.70

506655201

32

Spring

Part# 506655201

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 1 business day

Your price: $2.23

506618201

33

TUBE

Part# 506618201

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 4 to 8 business days

Your price: $2.23

504118601

34

OBSOLETE - SPACER

Part# 504118601

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 4 to 6 business days

Your price: $2.23

506745701

35

BOLT

Part# 506745701

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 4 to 6 business days

Your price: $2.23

511351601

36

CARBURETOR (RPLS 848F088100)

Part# 511351601

Note: . 37-51

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 4 to 6 business days

Your price: $156.51

528070101

37

Carburetor Rebuild Kit

Part# 528070101

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 4 to 6 business days

Your price: $72.66

513418401

38

Part# 513418401

OEM Warranty Repair Part for RedMax

Not available

515378701

39

GASKET KIT

Part# 515378701

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 4 to 6 business days

Your price: $61.48

506740901

40

BODY

Part# 506740901

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 4 to 6 business days

Your price: $22.35

506741001

41

OBSOLETE - COVER

Part# 506741001

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 4 to 6 business days

Your price: $4.46

505306701

42

PUMP

Part# 505306701

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 4 to 6 business days

Your price: $6.70

506738601

44

OBSOLETE - RING

Part# 506738601 (Superseded to 516523601)

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 4 to 6 business days

Your price: $2.23

506741201

45

OBSOLETE - SWIVEL

Part# 506741201

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 4 to 6 business days

Your price: $7.82

505307901

46

OBSOLETE - SCREW

Part# 505307901

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 4 to 6 business days

Your price: $2.23

506746001

47

Part# 506746001

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 4 to 6 business days

Your price: $8.93

506612601

48

OBSOLETE - NUT

Part# 506612601 (Superseded to 516524101)

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 4 to 6 business days

Your price: $2.23

506741301

49

OBSOLETE - ADJUSTER

Part# 506741301 (Superseded to 521756001)

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 4 to 6 business days

Your price: $4.46

506741101

50

SCREW

Part# 506741101

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 4 to 6 business days

Your price: $2.23

506746101

51

Washer

Part# 506746101

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 4 to 6 business days

Your price: $2.23

521515501

52

BOLT TORX

Part# 521515501

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 4 to 6 business days

Your price: $2.23

506741501

53

CLIP

Part# 506741501

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 1 business day

Your price: $2.23

521613501

54

MUFFLER

Part# 521613501

Note: . 56

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 4 to 6 business days

Your price: $22.35

506615601

56

ARRESTER

Part# 506615601

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 4 to 6 business days

Your price: $6.70

504116501

57

BOLT

Part# 504116501

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 1 business day

Your price: $2.23

511350401

58

GASKET, MUFFLER

Part# 511350401

Note: MUFF

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 1 business day

Your price: $6.70

506629601

59

PLATE

Part# 506629601

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 4 to 8 business days

Your price: $6.70

504119601

60

BOLT 08

Part# 504119601

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 4 to 6 business days

Your price: $2.23

528053101

61

HOUSING ASSY RPLS T1

Part# 528053101

Note: . 62-71

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 4 to 6 business days

Your price: $83.84

512326201

62

HOUSING

Part# 512326201

Note: . 63-66

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 4 to 6 business days

Your price: $44.71

512326301

63

HOUSING

Part# 512326301

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 4 to 6 business days

Your price: $27.94

521768201

64

BRACKET (A) (RPLS T170031211)

Part# 521768201

Note: (A)

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 4 to 6 business days

Your price: $6.70

521768301

65

BRACKET (B)

Part# 521768301

Note: (B)

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 4 to 6 business days

Your price: $7.82

512360501

66

CUSHION

Part# 512360501

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 4 to 6 business days

Your price: $14.52

521609801

67

DRUM (RPLS 481031120-22)

Part# 521609801

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 4 to 6 business days

Your price: $33.53

506609901

68

RP_RING

Part# 506609901

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 1 business day

Your price: $2.23

521770801

69

OBSOLETE - BEARING

Part# 521770801 (Superseded to 525953201)

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 4 to 6 business days

Your price: $11.17

516124101

70

RING

Part# 516124101

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 4 to 6 business days

Your price: $2.23

504114301

71

BOLT

Part# 504114301

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 4 to 6 business days

Your price: $3.34

515391301

73

BOLT

Part# 515391301

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 4 to 6 business days

Your price: $2.23

511350501

74

COVER, ENGINE

Part# 511350501

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 1 business day

Your price: $13.41

521515901

75

BOLT (RPLS T495051010-11)

Part# 521515901

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 4 to 6 business days

Your price: $2.23

512328301

76

Shoe, Comp

Part# 512328301

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 1 business day

Your price: $20.11

515389301

77

SPRING

Part# 515389301

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 4 to 6 business days

Your price: $3.34

513189601

78

SCREW

Part# 513189601

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 4 to 6 business days

Your price: $2.23

505054401

79

WASHER

Part# 505054401

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 4 to 6 business days

Your price: $2.23

513189501

80

WASHER

Part# 513189501

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 1 business day

Your price: $2.23

512328601

81

CORD-COMP

Part# 512328601

Note: CMR7H

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 4 to 6 business days

Your price: $7.82

521233401

82

OBSOLETE - PLUG CMR7H

Part# 521233401 (Superseded to 506615101)

OEM Warranty Repair Part for RedMax

Not available

506615901

83

GROMMET

Part# 506615901

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 4 to 6 business days

Your price: $2.23

512328801

84

RECOIL ASSY

Part# 512328801

Note: . 85-92

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 4 to 6 business days

Your price: $50.30

504114701

85

OBSOLETE - SPRING SPIRAL

Part# 504114701

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 4 to 6 business days

Your price: $13.41

515367101

86

SCREW

Part# 515367101

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 4 to 6 business days

Your price: $2.23

504115001

87

OBSOLETE - SPRING, SPIRAL

Part# 504115001

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 4 to 6 business days

Your price: $8.93

504114601

88

OBSOLETE - ARM

Part# 504114601

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 1 business day

Your price: $2.23

504114801

89

RP_ROPE

Part# 504114801

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 4 to 6 business days

Your price: $4.46

504114901

90

ROPE

Part# 504114901

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 4 to 6 business days

Your price: $5.58

506614701

91

KNOB

Part# 506614701

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 4 to 6 business days

Your price: $3.34

515385601

92

PLATE.STOPPER

Part# 515385601

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 4 to 8 business days

Your price: $2.23

504114401

93

PULLEY

Part# 504114401

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 4 to 6 business days

Your price: $6.70

506745601

94

BOLT

Part# 506745601

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 4 to 6 business days

Your price: $2.23

528074901

95

Air Cleaner Body Assembly

Part# 528074901

Note: . 96-98

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 4 to 6 business days

Your price: $14.52

528074301

96

PLATE CHOKE

Part# 528074301

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 4 to 6 business days

Your price: $2.23

528074401

97

LEVER

Part# 528074401

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 4 to 6 business days

Your price: $2.23

506673801

98

OBSOLETE - SCREW

Part# 506673801

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 4 to 6 business days

Your price: $2.23

528074701

99

Air Filter Element

Part# 528074701

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 4 to 6 business days

Your price: $8.93

528075001

100

OBSOLETE - %CLEANER COVER ASSY

Part# 528075001 (Superseded to 575832701)

Note: . 101

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 4 to 6 business days

Your price: $6.70

528074601

101

Part# 528074601

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 1 business day

Your price: $3.34

528050101

102

OBSOLETE - TANK ASSY

Part# 528050101

Note: . 103-110

OEM Warranty Repair Part for RedMax

Not available

505309601

103

CAP A

Part# 505309601

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 4 to 6 business days

Your price: $7.82

515369401

104

OBSOLETE - HOLDER-A

Part# 515369401

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 4 to 6 business days

Your price: $8.93

506744301

105

PACKING

Part# 506744301

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 4 to 6 business days

Your price: $2.23

506746801

106

FILTER

Part# 506746801

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 4 to 6 business days

Your price: $3.34

506745801

107

STOPPER

Part# 506745801

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 4 to 6 business days

Your price: $2.23

521754601

108

OBSOLETE - PIPE-C

Part# 521754601 (Superseded to 579138307)

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 1 business day

Your price: $10.05

506614601

109

OBSOLETE - FILTER

Part# 506614601

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 4 to 6 business days

Your price: $6.70

506707001

110

OBSOLETE - CLIP

Part# 506707001

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 1 business day

Your price: $2.23

515391301

111

BOLT

Part# 515391301

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 4 to 6 business days

Your price: $2.23

512326501

112

GUARD

Part# 512326501

Note: TANK

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 4 to 6 business days

Your price: $13.41

528052501

113

LABEL RECOIL

Part# 528052501

Note: RECOIL

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 4 to 6 business days

Your price: $3.34

506744201

118

COVER

Part# 506744201

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 4 to 6 business days

Your price: $6.70

504119601

119

BOLT 08

Part# 504119601

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 4 to 6 business days

Your price: $2.23

511349501

120

PLATE

Part# 511349501

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 4 to 6 business days

Your price: $5.58

504119601

121

BOLT 08

Part# 504119601

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 4 to 6 business days

Your price: $2.23

528074801

122

Plate

Part# 528074801

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 4 to 8 business days

Your price: $3.34

523071401

123

LABEL

Part# 523071401

Note: CAUTION

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 1 business day

Your price: $5.58
