HEZ 3001 S - RedMax Edger (SN: 70200101 & Above) (2007-01)

Edger

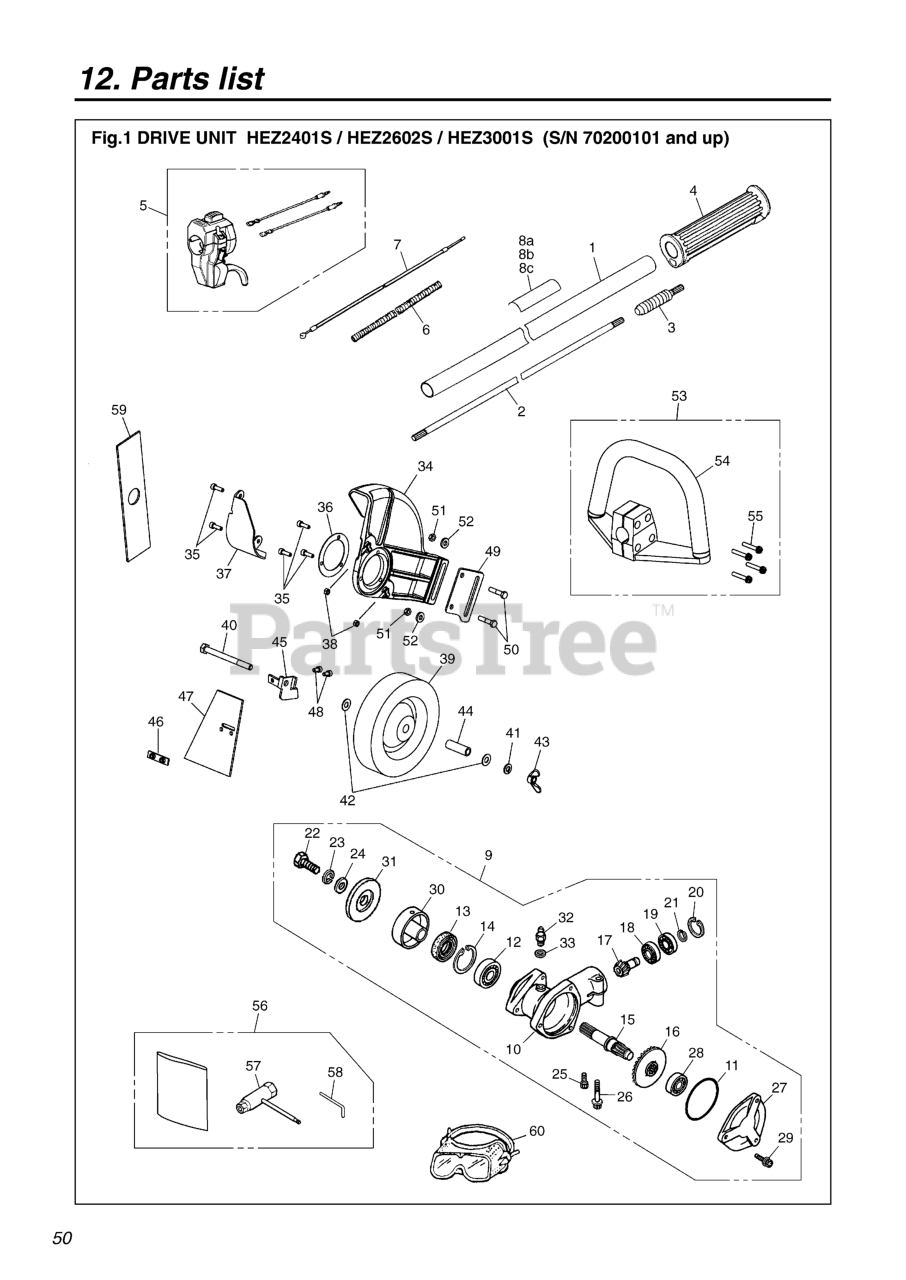

HEZ 3001 S - RedMax Edger (SN: 70200101 & Above) (2007-01) > Parts Diagrams (2) > 002 - DRIVE UNIT

  • Title
848A475820

1

PIPE COMP.

Part# 848A475820

OEM Warranty Repair Part for RedMax

Not available

848JCG58E0

2

SHAFT

Part# 848JCG58E0 (Superseded to 511553501)

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 4 to 8 business days

Your price: $83.84

848JCC5830

3

JOINT COMP.

Part# 848JCC5830

OEM Warranty Repair Part for RedMax

Not available

848J8032H2

4

GRIP

Part# 848J8032H2 (Superseded to 521651001)

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 4 to 6 business days

Your price: $8.93

8488R20344

5

LEVER ASSY

Part# 8488R20344 (Superseded to 521529701)

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 4 to 6 business days

Your price: $42.47

T300212240

6

TUBE (RPLS 4900-72141)

Part# T300212240

OEM Warranty Repair Part for RedMax

Not available

T300283100

7

CABLE (RPLS 5580-83100)

Part# T300283100

OEM Warranty Repair Part for RedMax

Not available

848A4990R0

8C

LABEL, NAME

Part# 848A4990R0 (Superseded to 510982601)

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 4 to 6 business days

Your price: $6.70

636713000

9

6367-06050

Part# 636713000

OEM Warranty Repair Part for RedMax

Not available

636713110

10

6367-06060

Part# 636713110

OEM Warranty Repair Part for RedMax

Not available

636713150

11

O-RING

Part# 636713150 (Superseded to 521452701)

OEM Warranty Repair Part for RedMax

Not available

0600006201

12

BEARING

Part# 0600006201

OEM Warranty Repair Part for RedMax

Not available

318013141

13

SEAL, OIL

Part# 318013141 (Superseded to 520889801)

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 4 to 6 business days

Your price: $3.98

0406503212

14

RING, SNAP, M32 x 1.2

Part# 0406503212

OEM Warranty Repair Part for RedMax

Not available

354113212

15

SHAFT, GEAR

Part# 354113212

OEM Warranty Repair Part for RedMax

Not available

636713130

16

GEAR

Part# 636713130 (Superseded to 521452501)

OEM Warranty Repair Part for RedMax

Not available

636713140

17

PINION

Part# 636713140 (Superseded to 521452601)

OEM Warranty Repair Part for RedMax

Not available

0600000609

18

BEARING (RPLS T3403-13530)

Part# 0600000609

OEM Warranty Repair Part for RedMax

Not available

0600100609

19

BEARING (RPLS T3300-13531)

Part# 0600100609

OEM Warranty Repair Part for RedMax

Not available

0406502412

20

RING, SNAP, M24 x 1.2

Part# 0406502412

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 4 to 6 business days

Your price: $0.55

321013330

21

RING, SNAP (RPLS T3300-13330)

Part# 321013330 (Superseded to 520910501)

OEM Warranty Repair Part for RedMax

Not available

357933260

22

BOLT, LH

Part# 357933260 (Superseded to 521209901)

OEM Warranty Repair Part for RedMax

Not available

331043210

23

WASHER (RPLS 3180-13270)

Part# 331043210 (Superseded to 520966501)

OEM Warranty Repair Part for RedMax

Not available

0164330823

24

WASHER, M8 x 2.3 (RPLS -20823)

Part# 0164330823

OEM Warranty Repair Part for RedMax

Not available

0125230512

25

BOLT, M5 x 12

Part# 0125230512

OEM Warranty Repair Part for RedMax

Not available

354013260

26

BOLT, M6 x 1.35

Part# 354013260 (Superseded to 521171901)

OEM Warranty Repair Part for RedMax

Not available

636713120

27

COVER

Part# 636713120 (Superseded to 521452401)

OEM Warranty Repair Part for RedMax

Not available

0600006000

28

BEARING (RPLS T3403-13510)

Part# 0600006000

OEM Warranty Repair Part for RedMax

Not available

335031470

29

BOLT

Part# 335031470 (Superseded to 574081301)

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 4 to 8 business days

Your price: $2.23

354113241

30

HOLDER (A)

Part# 354113241

OEM Warranty Repair Part for RedMax

Not available

354113251

31

HOLDER (B)

Part# 354113251 (Superseded to 521179101)

OEM Warranty Repair Part for RedMax

Not available

319913350

32

FITTING, GREASE

Part# 319913350

OEM Warranty Repair Part for RedMax

Not available

0164120608

33

WASHER, M6 X .8

Part# 0164120608

OEM Warranty Repair Part for RedMax

Not available

848A4766A1

34

GUARD

Part# 848A4766A1 (Superseded to 510981001)

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 4 to 6 business days

Your price: $41.36

T320724130

35

BOLT (M5x0.8-16)

Part# T320724130

OEM Warranty Repair Part for RedMax

Not available

T320724150

36

PLATE

Part# T320724150

OEM Warranty Repair Part for RedMax

Not available

T320724210

37

PROTECTOR

Part# T320724210 (Superseded to 526059401)

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 4 to 6 business days

Your price: $6.70

028010504

38

NUT, M5 X 4

Part# 028010504

OEM Warranty Repair Part for RedMax

Not available

848A4766P0

39

WHEEL

Part# 848A4766P0 (Superseded to 505172501)

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 4 to 6 business days

Your price: $33.53

022400865

40

BOLT

Part# 022400865

OEM Warranty Repair Part for RedMax

Not available

0160220825

41

WASHER, SPRING

Part# 0160220825

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 4 to 6 business days

Your price: $0.62

0164220810

42

WASHER, PLANE(USE 01640-20816)

Part# 0164220810

OEM Warranty Repair Part for RedMax

Not available

0154050840

43

WING NUT

Part# 0154050840

OEM Warranty Repair Part for RedMax

Not available

T320725160

44

SLEEVE

Part# T320725160

OEM Warranty Repair Part for RedMax

Not available

848A4766U0

45

BRACKET

Part# 848A4766U0

OEM Warranty Repair Part for RedMax

Not available

T320724320

46

PLATE

Part# T320724320

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 4 to 6 business days

Your price: $2.18

T320724330

47

RUBBER (FLAP)

Part# T320724330

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 1 business day

Your price: $13.41

0125230510

48

BOLT, M5 X 10

Part# 0125230510

OEM Warranty Repair Part for RedMax

Not available

848A4766R0

49

Main Bracket

Part# 848A4766R0

OEM Warranty Repair Part for RedMax

Not available

022400840

50

BOLT

Part# 022400840

OEM Warranty Repair Part for RedMax

Not available

848A4766T0

51

NUT

Part# 848A4766T0

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 4 to 6 business days

Your price: $0.97

0164220810

52

WASHER, PLANE(USE 01640-20816)

Part# 0164220810

OEM Warranty Repair Part for RedMax

Not available

T319514002

53

HANDLE ASSY. (REPLACES -14001)

Part# T319514002

OEM Warranty Repair Part for RedMax

Not available

T319514102

54

HANDLE T

Part# T319514102 (Superseded to 512553501)

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 4 to 6 business days

Your price: $22.35

T496053030

55

SCREW

Part# T496053030 (Superseded to 521863101)

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 1 business day

Your price: $2.23

8488U00200

56

TOOL-SET

Part# 8488U00200 (Superseded to 510959301)

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 4 to 6 business days

Your price: $5.58

8488U10060

57

SOCKET

Part# 8488U10060 (Superseded to 510960201)

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 4 to 6 business days

Your price: $6.70

354091110

58

BAR

Part# 354091110

OEM Warranty Repair Part for RedMax

Not available

636715110

59

BLADE, EDGER (RPLS 147315)

Part# 636715110

OEM Warranty Repair Part for RedMax

Not available

848A5692C0

60

GOGGLE

Part# 848A5692C0 (Superseded to 510989401)

OEM Warranty Repair Part for RedMax

Not available
