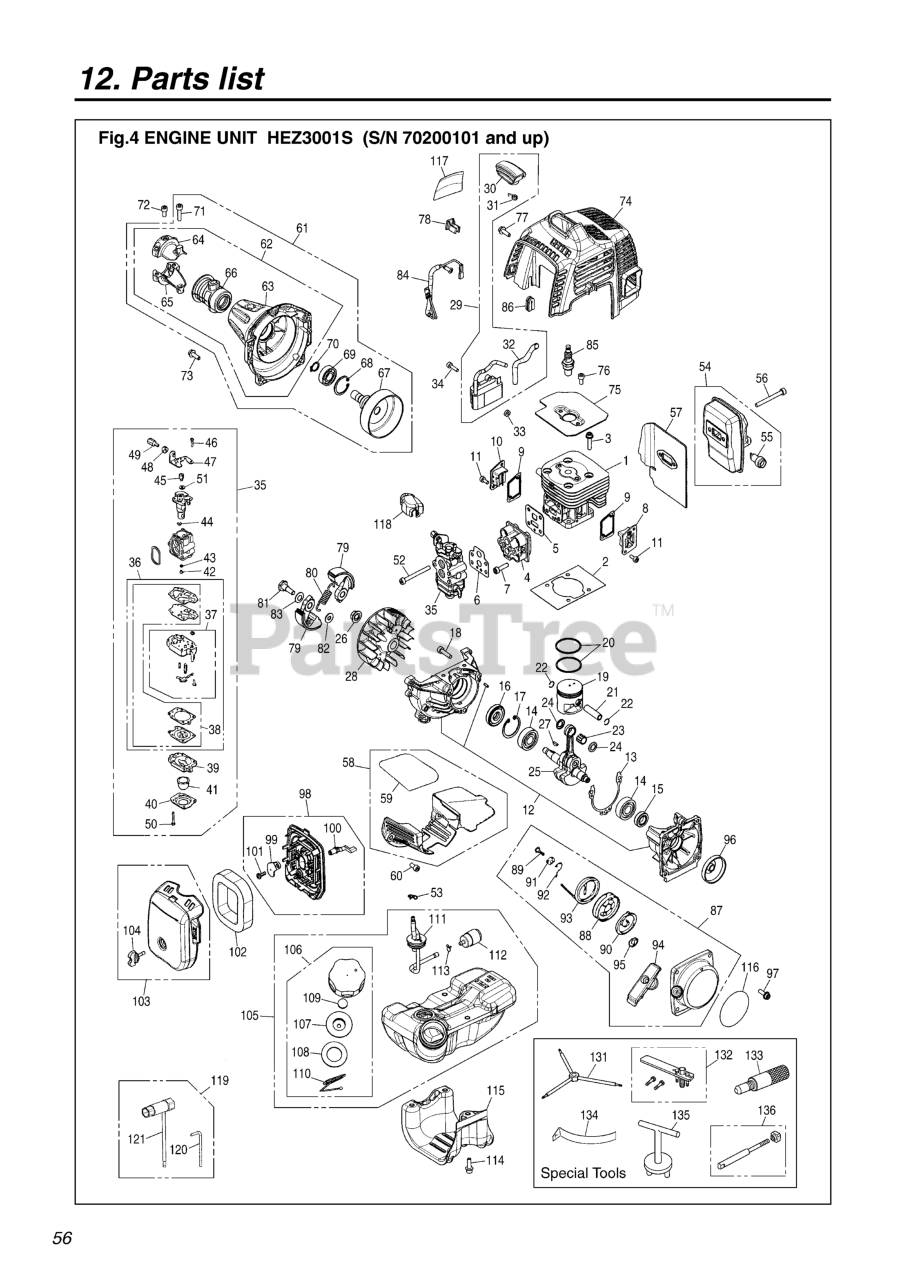

HEZ 3001 S - RedMax Edger (SN: 70200101 & Above) (2007-01) > Parts Diagrams (2) > 003 - ENGINE UNIT

  • Title
848F6012A3

1

CYLINDER (RPLS 848-F60-12A2)

Part# 848F6012A3 (Superseded to 521614401)

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 4 to 6 business days

Your price: $27.94

T159012210

2

GASKET, BASE

Part# T159012210 (Superseded to 504119101)

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 4 to 6 business days

Your price: $3.34

482012130

3

BOLT

Part# 482012130 (Superseded to 521345201)

OEM Warranty Repair Part for RedMax

Not available

848F6014A1

4

INSULATOR

Part# 848F6014A1

OEM Warranty Repair Part for RedMax

Not available

848F6014B1

5

GASKET,INSUL.(RPLS.T1590-13120

Part# 848F6014B1

OEM Warranty Repair Part for RedMax

Not available

T159013130

6

GASKET, CARBURETOR

Part# T159013130 (Superseded to 521755001)

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 4 to 6 business days

Your price: $2.23

T495052021

7

BOLT, TORX

Part# T495052021 (Superseded to 505040401)

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 4 to 6 business days

Your price: $2.23

848F6012C1

8

COVER, TRS

Part# 848F6012C1 (Superseded to 521614501)

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 4 to 6 business days

Your price: $4.46

848F6012E1

9

GASKET, TR

Part# 848F6012E1 (Superseded to 521614801)

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 1 business day

Your price: $3.34

848F6012D2

10

COVER,TRF (REPLACES -12D1)

Part# 848F6012D2 (Superseded to 521614701)

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 4 to 6 business days

Your price: $4.46

482016310

11

BOLT, TORX

Part# 482016310

OEM Warranty Repair Part for RedMax

Not available

848F602111

12

CRANKCASE-C

Part# 848F602111 (Superseded to 521615501)

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 4 to 6 business days

Your price: $16.76

848F6021D1

13

GASKET, CASE

Part# 848F6021D1 (Superseded to 504121201)

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 4 to 6 business days

Your price: $2.23

84889C3200

14

BEARING

Part# 84889C3200 (Superseded to 504121401)

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 4 to 6 business days

Your price: $8.93

481021210

15

SEAL

Part# 481021210 (Superseded to 504121501)

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 4 to 6 business days

Your price: $7.82

165021220

16

SEAL, OIL (RPLS 1200-21220)

Part# 165021220

OEM Warranty Repair Part for RedMax

Not available

0406503212

17

RING, SNAP, M32 x 1.2

Part# 0406503212

OEM Warranty Repair Part for RedMax

Not available

482013180

18

BOLT (RPLS 2850-14220)

Part# 482013180

OEM Warranty Repair Part for RedMax

Not available

848F6041A2

19

PISTON

Part# 848F6041A2 (Superseded to 521615901)

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 4 to 6 business days

Your price: $42.47

T159041210

20

RING

Part# T159041210

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 1 business day

Your price: $7.82

T220041310

21

PIN

Part# T220041310

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 4 to 6 business days

Your price: $6.04

331041320

22

RING, SNAP

Part# 331041320

OEM Warranty Repair Part for RedMax

Not available

331041410

23

BEARING

Part# 331041410

OEM Warranty Repair Part for RedMax

Not available

165041510

24

WASHER (RPLS 3310-41341)

Part# 165041510

OEM Warranty Repair Part for RedMax

Not available

848F604201

25

CRANKSHAFT-C

Part# 848F604201 (Superseded to 521616001)

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 4 to 8 business days

Your price: $100.61

165043230

26

182301

Part# 165043230 (Superseded to 516437401)

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 4 to 6 business days

Your price: $2.23

100043240

27

KEY

Part# 100043240 (Superseded to 516147801)

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 4 to 6 business days

Your price: $2.23

T170071110

28

ROTOR

Part# T170071110 (Superseded to 521769301)

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 4 to 6 business days

Your price: $33.53

T159071200

29

COIL-A

Part# T159071200

OEM Warranty Repair Part for RedMax

Not available

481072111

30

CAP (RPLS 4810-72110)

Part# 481072111

OEM Warranty Repair Part for RedMax

Not available

T110872120

31

SPRING

Part# T110872120

OEM Warranty Repair Part for RedMax

Not available

285071320

32

TUBE

Part# 285071320

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 4 to 6 business days

Your price: $1.19

126071261

33

SPACER (RPLS -71260)

Part# 126071261 (Superseded to 516258101)

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 4 to 6 business days

Your price: $2.23

482072150

34

BOLT TORX

Part# 482072150

OEM Warranty Repair Part for RedMax

Not available

848F608102

35

CARBURETOR ASSY

Part# 848F608102 (Superseded to 521616301)

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 4 to 6 business days

Your price: $145.33

848F600630

36

REBUILD KIT

Part# 848F600630

OEM Warranty Repair Part for RedMax

Not available

185081450

37

BODY, PUMP

Part# 185081450

OEM Warranty Repair Part for RedMax

Not available

481006021

38

KIT, GASKET (REPLACES-06020)

Part# 481006021

OEM Warranty Repair Part for RedMax

Not available

185081490

39

BODY, PURGE

Part# 185081490

OEM Warranty Repair Part for RedMax

Not available

185081520

40

COVER, PUMP

Part# 185081520 (Superseded to 516543901)

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 4 to 6 business days

Your price: $4.46

175181510

41

PUMP, PRIMING

Part# 175181510

OEM Warranty Repair Part for RedMax

Not available

481081251

42

JET (REPLACES 4810-81250)

Part# 481081251

OEM Warranty Repair Part for RedMax

Not available

175181240

43

RING, O

Part# 175181240

OEM Warranty Repair Part for RedMax

Not available

175181130

44

RING

Part# 175181130 (Superseded to 516523601)

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 4 to 6 business days

Your price: $2.23

188181140

45

SWIVEL

Part# 188181140 (Superseded to 516597701)

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 4 to 6 business days

Your price: $7.82

175281110

46

SCREW

Part# 175281110 (Superseded to 516528701)

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 4 to 6 business days

Your price: $2.23

550081120

47

BRACKET

Part# 550081120

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 4 to 6 business days

Your price: $7.42

175181180

48

NUT, CABLE ADJUSTER

Part# 175181180

OEM Warranty Repair Part for RedMax

Not available

191881170

49

SCREW, CABLE ADJUSTER

Part# 191881170

OEM Warranty Repair Part for RedMax

Not available

185081530

50

SCREW

Part# 185081530

OEM Warranty Repair Part for RedMax

Not available

550081160

51

WASHER

Part# 550081160

OEM Warranty Repair Part for RedMax

Not available

482015310

52

BOLT

Part# 482015310

OEM Warranty Repair Part for RedMax

Not available

195086120

53

CLIP

Part# 195086120

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 1 business day

Your price: $2.23

848F671510

54

MUFFLER ASSY

Part# 848F671510

OEM Warranty Repair Part for RedMax

Not available

481015140

55

ARRESTER

Part# 481015140

OEM Warranty Repair Part for RedMax

Not available

482015310

56

BOLT

Part# 482015310

OEM Warranty Repair Part for RedMax

Not available

848F6015C0

57

GASKET, MUFFLER

Part# 848F6015C0

OEM Warranty Repair Part for RedMax

Not available

848F601530

58

PLATE-A

Part# 848F601530 (Superseded to 521615201)

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 1 business day

Your price: $13.41

848F6015F0

59

SHEET

Part# 848F6015F0 (Superseded to 521615401)

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 4 to 8 business days

Your price: $2.23

482012350

60

BOLT

Part# 482012350 (Superseded to 504119601)

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 4 to 6 business days

Your price: $2.23

848F605302

61

HOUSING ASSY

Part# 848F605302

OEM Warranty Repair Part for RedMax

Not available

T159031100

62

HOUSING COMP.

Part# T159031100 (Superseded to 521755101)

OEM Warranty Repair Part for RedMax

Not available

T159031110

63

HOUSING

Part# T159031110 (Superseded to 521755201)

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 1 business day

Your price: $36.88

T170031212

64

BRACKET (A) (RPLS -31211)

Part# T170031212 (Superseded to 521768201)

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 4 to 6 business days

Your price: $6.70

T170031221

65

BRACKET (B)

Part# T170031221 (Superseded to 521768301)

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 4 to 6 business days

Your price: $7.82

T170031232

66

CUSHION (RPLS -31231)

Part# T170031232

OEM Warranty Repair Part for RedMax

Not available

848F3051A1

67

DRUM (REPLACES 4810-31122)

Part# 848F3051A1 (Superseded to 521609801)

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 4 to 6 business days

Your price: $33.53

0406502812

68

RING, SNAP, M28 x 1.2

Part# 0406502812

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 4 to 6 business days

Your price: $0.67

T170131150

69

BEARING

Part# T170131150

OEM Warranty Repair Part for RedMax

Not available

0406401210

70

RING, SNAP (RPLS 3130-13270)

Part# 0406401210

OEM Warranty Repair Part for RedMax

Not available

482013180

71

BOLT (RPLS 2850-14220)

Part# 482013180

OEM Warranty Repair Part for RedMax

Not available

482012350

72

BOLT

Part# 482012350 (Superseded to 504119601)

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 4 to 6 business days

Your price: $2.23

482085510

73

BOLT

Part# 482085510

OEM Warranty Repair Part for RedMax

Not available

848F6031A1

74

COVER, ENGINE

Part# 848F6031A1

OEM Warranty Repair Part for RedMax

Not available

848F6012G2

75

PLATE, CYL

Part# 848F6012G2 (Superseded to 511377601)

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 4 to 8 business days

Your price: $4.46

482012350

76

BOLT

Part# 482012350 (Superseded to 504119601)

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 4 to 6 business days

Your price: $2.23

482032120

77

BOLT, TORX

Part# 482032120

OEM Warranty Repair Part for RedMax

Not available

T160072210

78

CLAMP

Part# T160072210 (Superseded to 521758801)

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 4 to 6 business days

Your price: $2.23

482051110

79

SHOE

Part# 482051110

OEM Warranty Repair Part for RedMax

Not available

482051220

80

SPRING

Part# 482051220

OEM Warranty Repair Part for RedMax

Not available

114051250

81

BOLT

Part# 114051250

OEM Warranty Repair Part for RedMax

Not available

114051230

82

WASHER, FLAT (USE 182303)

Part# 114051230

OEM Warranty Repair Part for RedMax

Not available

114051242

83

WASHER (RPLS -51241)

Part# 114051242

OEM Warranty Repair Part for RedMax

Not available

T155173200

84

CORD COMP.

Part# T155173200

OEM Warranty Repair Part for RedMax

Not available

T110873110

85

SPARK PLUG (CMR7H)

Part# T110873110

OEM Warranty Repair Part for RedMax

Not available

481072120

86

GROMMET

Part# 481072120 (Superseded to 506615901)

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 4 to 6 business days

Your price: $2.23

T155175100

87

RECOIL-A

Part# T155175100

OEM Warranty Repair Part for RedMax

Not available

450075120

88

REEL

Part# 450075120 (Superseded to 504114901)

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 4 to 6 business days

Your price: $5.58

450075150

89

SCREW

Part# 450075150

OEM Warranty Repair Part for RedMax

Not available

185075130

90

SPRING, SPIRAL

Part# 185075130

OEM Warranty Repair Part for RedMax

Not available

450075180

91

COLLAR

Part# 450075180

OEM Warranty Repair Part for RedMax

Not available

450075190

92

ARM

Part# 450075190

OEM Warranty Repair Part for RedMax

Not available

481075160

93

ROPE (REPLACES 4500-75160)

Part# 481075160

OEM Warranty Repair Part for RedMax

Not available

333075421

94

KNOB (RPLS -75420)

Part# 333075421 (Superseded to 506614701)

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 4 to 6 business days

Your price: $3.34

481075170

95

PLATE, STOPPER

Part# 481075170

OEM Warranty Repair Part for RedMax

Not available

450075210

96

PULLEY

Part# 450075210

OEM Warranty Repair Part for RedMax

Not available

482032120

97

BOLT, TORX

Part# 482032120

OEM Warranty Repair Part for RedMax

Not available

848F008310

98

BODY ASSY (RPLS T1551-82100)

Part# 848F008310

OEM Warranty Repair Part for RedMax

Not available

T151282130

99

PLATE, CHOKE

Part# T151282130

OEM Warranty Repair Part for RedMax

Not available

T160082140

100

LEVER

Part# T160082140

OEM Warranty Repair Part for RedMax

Not available

T110882190

101

SCREW

Part# T110882190

OEM Warranty Repair Part for RedMax

Not available

T155182170

102

ELEMENT

Part# T155182170

OEM Warranty Repair Part for RedMax

Not available

848F628320

103

COVER-A (RPLS T1551-82200)

Part# 848F628320 (Superseded to 521617701)

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 1 business day

Your price: $7.82

T110882220

104

KNOB

Part# T110882220

OEM Warranty Repair Part for RedMax

Not available

848F608502

105

TANK ASSY

Part# 848F608502 (Superseded to 521616501)

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 1 business day

Your price: $67.07

T101585202

106

CAP ASSY (RPLS -85201)

Part# T101585202

OEM Warranty Repair Part for RedMax

Not available

450085300

107

HOLDER (REPLACES -85230)

Part# 450085300

OEM Warranty Repair Part for RedMax

Not available

450085220

108

PACKING

Part# 450085220

OEM Warranty Repair Part for RedMax

Not available

560185260

109

FILTER

Part# 560185260

OEM Warranty Repair Part for RedMax

Not available

482085260

110

STOPPER

Part# 482085260

OEM Warranty Repair Part for RedMax

Not available

848F608530

111

PIPE-C

Part# 848F608530

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 4 to 6 business days

Your price: $6.06

330285400

112

FILTER ASSY

Part# 330285400

OEM Warranty Repair Part for RedMax

Not available

195086120

113

CLIP

Part# 195086120

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 1 business day

Your price: $2.23

T495052030

114

BOLT (USE 848-815-2000)

Part# T495052030

OEM Warranty Repair Part for RedMax

Not available

848F6085Z0

115

GUARD, TANK

Part# 848F6085Z0 (Superseded to 521616701)

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 4 to 6 business days

Your price: $6.70

848F6090C0

116

LABEL, RECOIL

Part# 848F6090C0 (Superseded to 511380401)

OEM Warranty Repair Part for RedMax

Not available

848F6090B0

117

LABEL, COVER

Part# 848F6090B0 (Superseded to 511380201)

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 4 to 6 business days

Your price: $1.12

450081910

118

COVER

Part# 450081910

OEM Warranty Repair Part for RedMax

Not available

8488U00120

119

TOOL SET

Part# 8488U00120 (Superseded to 521532701)

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 4 to 8 business days

Your price: $10.05

354091110

120

BAR

Part# 354091110

OEM Warranty Repair Part for RedMax

Not available

8488U10040

121

SOCKET

Part# 8488U10040

OEM Warranty Repair Part for RedMax

Not available

285096410

131

WRENCH (RPLS. 2670-96410)

Part# 285096410

OEM Warranty Repair Part for RedMax

Not available

289096100

132

PULLER ASSY

Part# 289096100 (Superseded to 520769301)

OEM Warranty Repair Part for RedMax

Not available

481096220

133

STOPPER (TOOL)

Part# 481096220

OEM Warranty Repair Part for RedMax

Not available

335096240

134

GUAGE, AIR GAP (TOOL)

Part# 335096240

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 4 to 6 business days

Your price: $17.91

450096100

135

PULLER, RECOIL (TOOL)

Part# 450096100

OEM Warranty Repair Part for RedMax

Not available

8488W10000

136

ROD-A

Part# 8488W10000 (Superseded to 521533501)

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 4 to 6 business days

Your price: $111.79
