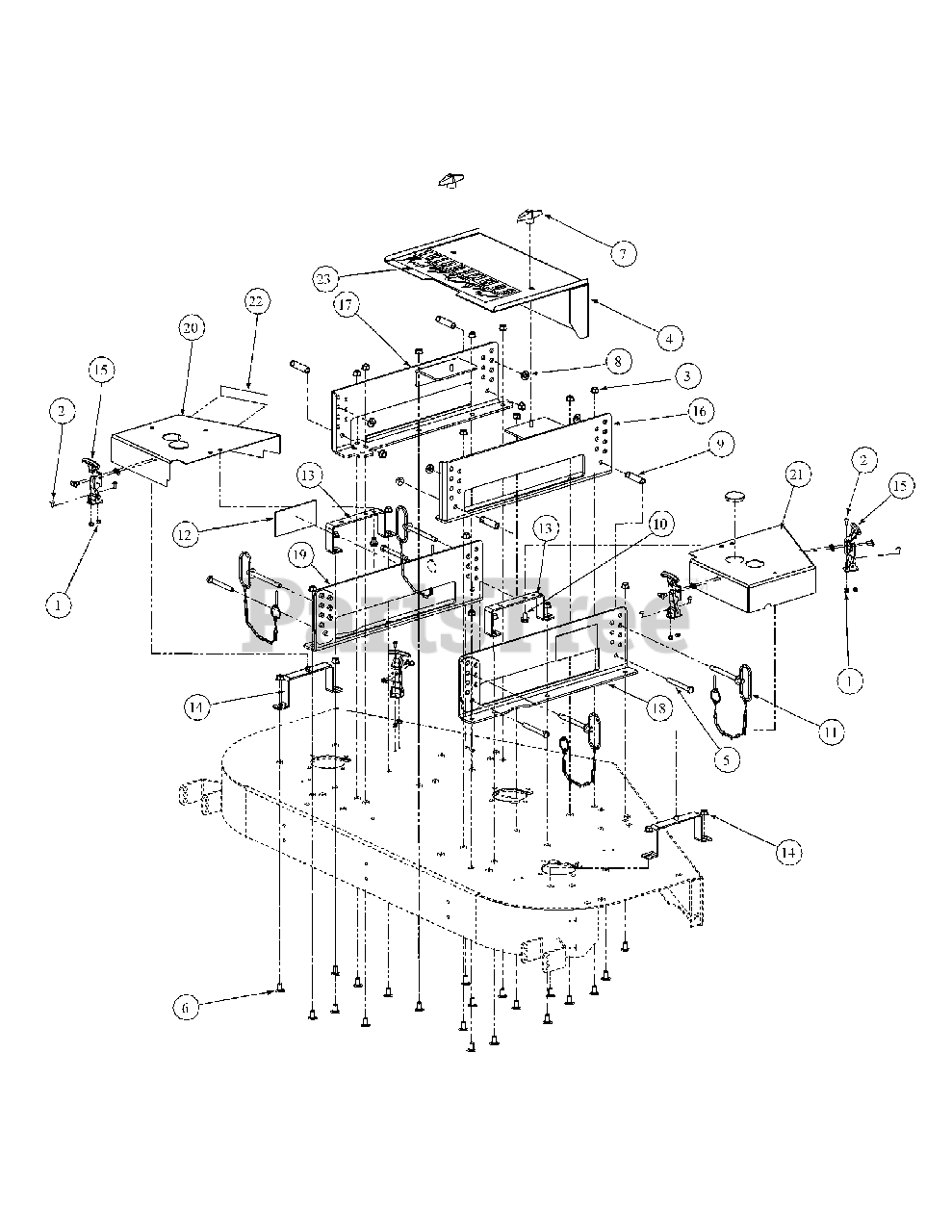

HF 1954 (55AF3DAW150) - Cub Cadet Walk-Behind Mower, Kawasaki Fabricated Float Deck Assembly Parts Diagram

Walk-Behind Mower, Kawasaki

Fabricated Float Deck Assembly Parts Diagram

  • Title

1

Cub Cadet 00014608

Lock Nut Nylon Insert, 10-32
(Superseded to 712-05003)

$3.49

$

In Stock, only 2 left!

0

2

Cub Cadet 00017778

Machine Screw, 10-32 x 1/2

$4.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 00022560

Flange Lock Hex Nut, 3/8-16
(Superseded to 712-05007)

$4.49

$

In Stock, Qty 20+

0

4

Cub Cadet 01006400

Center Belt Cover

$

$

Not available

5

Cub Cadet 710-3130

Hex Cap Screw, 3/8-16, 3.25

$10.99

$

In Stock, Qty 20+

0

6

Cub Cadet 710-3178

Carriage Bolt, 3/8-16 x .75 Lg.

$4.49

$

Usually ships in 3-6 days

0

7

Cub Cadet 720-04072A

Wingnut Knob Assembly, 5/16-18

$7.49

$

In Stock, Qty 20+

0

8

Cub Cadet 736-0262

Flat Washer, .385 ID x .870 OD x .092

$4.49

$

In Stock, Qty 20+

0

9

Cub Cadet 01000395

Spacer

$

$

Not available

10

Cub Cadet 01004304

Hex Index Washer Screw, 3/8-16, .5
(Superseded to 710-0773)

$7.99

$

In Stock, Qty 20+

0

11

Cub Cadet 01004402

Deck Pin, 3/8 Dia.

$

$

Not available

12

Cub Cadet 01004522

Label, Height of Cut

$

$

Not available

13

Cub Cadet 01004684-0637

Belt Cover Support

$39.99

$

Usually ships in 3-6 days

0

14

Cub Cadet 01005438-0637

Outer Belt Cover Support

$

$

Not available

15

Cub Cadet 935-04038

Draw Latch T-Handle

$16.99

$

In Stock, Qty 20+

0

16

Cub Cadet 01006404

Inner Hanger Assembly, RH

$

$

Not available

17

Cub Cadet 01006402

Inner Hanger Assembly, LH

$

$

Not available

18

Cub Cadet 01006403

Outer Hanger Assembly, RH

$

$

Not available

19

Cub Cadet 01006401

Outer Hanger Assembly, LH

$

$

Not available

20

Cub Cadet 01006601

Belt Cover Weldment, LH

$

$

Not available

21

Cub Cadet 01006602

Belt Cover Weldment, RH

$

$

Not available

22

Cub Cadet 01006677

Label, Mower Deck, HF1748

Note: NLA

$

$

Not available

23

Cub Cadet 01006789

Label, Commercial Mower Deck

$30.99

$

Usually ships in 3-6 days

0
