HF 1954 (55AF3DAW150) - Cub Cadet Walk-Behind Mower, Kawasaki Kawasaki Engine Assembly Parts Diagram

Walk-Behind Mower, Kawasaki

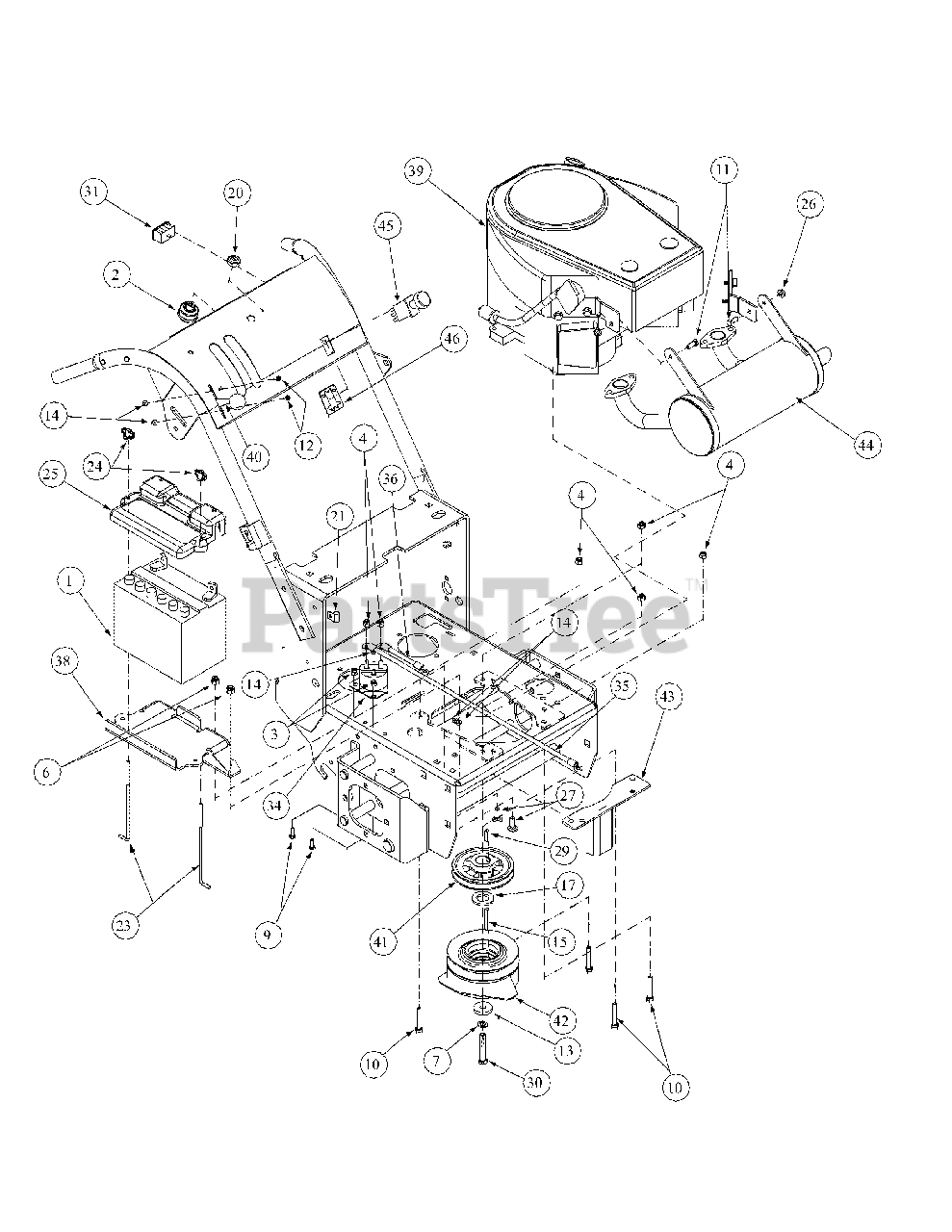

Kawasaki Engine Assembly Parts Diagram

  • Title

1

Cub Cadet 925-1707D

Battery, 12V

$

$

Not available

2

Cub Cadet 925-0267B

Ignition Switch

$35.99

$

In Stock, Qty 12

0

3

Cub Cadet 00012152

Lock Nut Nylon Insert, 1/4-20

$4.49

$

In Stock, only 1 left!

0

4

Cub Cadet 00012165

Nut, 5/16-18, Nylock

$4.99

$

In Stock, only 1 left!

0

6

Cub Cadet 712-04065

Lock Nut, Nylon Insert, 3/8-16

$3.99

$

In Stock, Qty 20+

0

7

Cub Cadet 00012195

Lock Washer, 7/16

$

$

Not available

9

Cub Cadet 00013131

Hex Cap Screw, 1/4-20, .75

$6.49

$

In Stock, only 1 left!

0

10

Cub Cadet 00013198

Hex Cap Screw, 5/16 -18 x 2
(Superseded to 710-3103)

$4.49

$

In Stock, Qty 13

0

11

Cub Cadet 00013406

Hex Cap Screw, 5/16-18 x 3/4
(Superseded to 710-3008)

$4.49

$

In Stock, Qty 20+

0

12

Cub Cadet 00013669

Screw, Hex Washer w/Slot, 10-32 x 1/2

$2.99

$

Usually ships in 3-6 days

0

13

Cub Cadet 00013675

Plated Clutch Washer

$9.49

$

Usually ships in 3-6 days

0

14

Cub Cadet 00014608

Lock Nut, Nylon Insert, 10-32
(Superseded to 712-05003)

$3.49

$

In Stock, only 3 left!

0

15

Cub Cadet 00021517

Key Stick, 1/4 x 1/4 x 2

$8.99

$

In Stock, only 1 left!

0

16

Cub Cadet 00022547

Lock Nut, 5/16-18

$

$

Not available

17

Cub Cadet 01005040

Special Washer

$

$

Not available

18

Cub Cadet 00023887

Belt, Hydro Pump (not shown)

$51.99

$

In Stock, only 1 left!

0

20

Cub Cadet 00032097

Nut, w/Cap, 5/8-32 Ignition
(Superseded to 00032097P)

$

$

Not available

21

Cub Cadet 00060807

Support Clamp, 3/8 OD

$

$

Not available

22

Cub Cadet 00095784

Black Battery Cable, 10-1/4", (not shown)

$

$

Not available

23

Cub Cadet 911-0222A

Battery Hold Down Rod

$11.99

$

In Stock, only 1 left!

0

24

Cub Cadet 912-0397

Wing Nut, 1/4-20 w/Bell Wash
(Superseded to 712-0397A)

$3.99

$

In Stock, Qty 20+

0

25

Cub Cadet 01000204

Large Battery Cover

$11.99

$

Usually ships in 3-6 days

0

26

Cub Cadet 712-3004A

Hex Flange Lock Nut, 5/16-18

$3.99

$

In Stock, Qty 20+

0

27

Cub Cadet 01000643

Carriage Bolt, 3/8-16 x 1

$5.49

$

In Stock, Qty 9

0

29

Cub Cadet 01001393

Keystick; 1/4 x 1/4 x 1

$

$

Not available

30

Cub Cadet 00035193

Capscrew, 7/16-20 x 1.75

$

$

Not available

31

Cub Cadet 925-04893

Hour Meter
(Superseded to 925-04893A)

$165.99

$

Usually ships in 3-6 days

0

32

Cub Cadet 01001811

Hourmeter Harness, (not shown)
(Superseded to 929-04195)

$8.49

$

Usually ships in 3-6 days

0

33

Cub Cadet 01002142

Kohler Wide Track Harness, (not shown)

$

$

Not available

34

Cub Cadet 925-3001

Magnetic Solenoid Switch

$58.99

$

In Stock, Qty 9

0

35

Cub Cadet 01002252

Red Battery Cable 24"

$38.99

$

Usually ships in 3-6 days

0

36

Cub Cadet 01002253

Red Battery Cable 5"

$

$

Not available

37

Cub Cadet 01002433

Kawasaki Harness Adapter (not shown)

$

$

Not available

38

Cub Cadet 01002637-0637

Battery Bracket

$

$

Not available

39

Cub Cadet 01008519P

19 Hp Twin Kawasaki Engine
(Superseded to KM-FH601V-GS01S)

$

$

Not available

40

Cub Cadet 01004051P

Throttle Control, w/detent, 47.25

$

$

Not available

41

Cub Cadet 01004096

Sheave, 1.125 Bore, w/2 Set Screws

$

$

Not available

42

Cub Cadet 01004716

Electric Clutch

$

$

Not available

43

Cub Cadet 01004734

Clutch Ret Assembly Ogura 1.125 ID

$

$

Not available

44

Cub Cadet 01009299

Muffler Kawasaki, w/brackets
(Superseded to 01009299P)

$

$

Not available

45

Cub Cadet 01002111

Blade Clutch Switch
(Superseded to 925-1716A)

$73.99

$

In Stock, Qty 20+

0

46

Cub Cadet 783-0462

Retainer Clip

$7.99

$

In Stock, only 2 left!

0

45

Cub Cadet 01004051P

Control Throttle w/Detent

$

$

Not available

46

Cub Cadet 01000192

Muffler Bracket

$

$

Not available

47

Cub Cadet 925-04893

Hour Meter
(Superseded to 925-04893A)

$165.99

$

Usually ships in 3-6 days

0

48

Cub Cadet 01006565

17 HP Kawasaki Engine

Note: NLA

$

$

Not available

49

Cub Cadet 01002111

Blade Clutch Switch
(Superseded to 925-1716A)

$73.99

$

In Stock, Qty 20+

0

Cub Cadet KM-11013-7002

Air Filter

$21.99

$

In Stock, Qty 16

0

Cub Cadet KM-11013-7033

Pre-Cleaner

$5.99

$

In Stock, Qty 20+

0

Cub Cadet KM-49065-7010

Oil Filter
(Superseded to KM-49065-0724)

$18.99

$

In Stock, Qty 20+

0

Cub Cadet 759-3331

Spark Plug

$3.99

$

In Stock, only 1 left!

0
