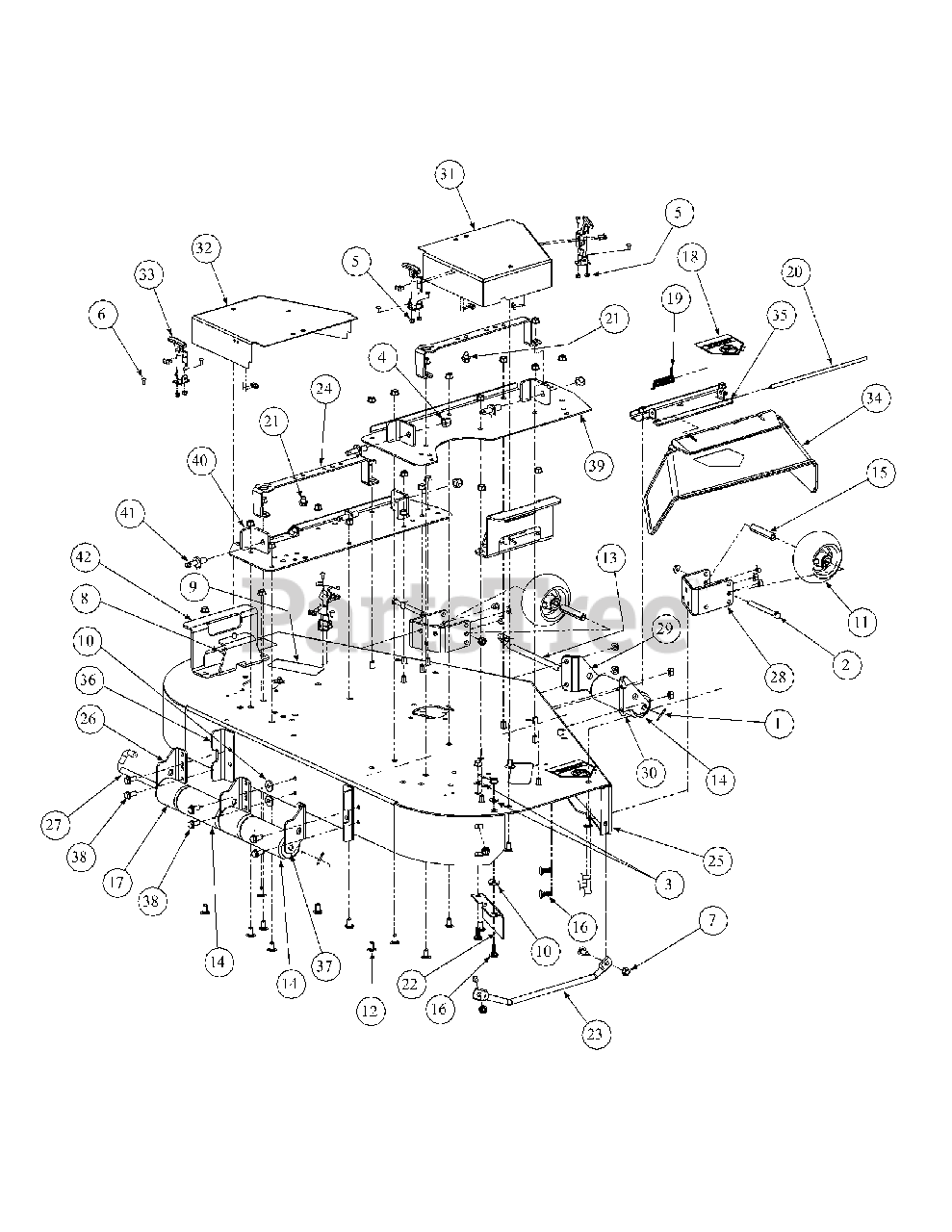

HFF 1748 (55AG5D4V750) - Cub Cadet Walk-Behind Mower, Kawasaki Fab Deck Assembly Parts Diagram

Walk-Behind Mower, Kawasaki

Fab Deck Assembly Parts Diagram

  • Title

1

Cub Cadet 00003107

Cotter Pin, .125 Dia x 1.0
(Superseded to 914-0115)

$3.99

$

In Stock, Qty 20+

0

2

Cub Cadet 00011925

Hex Head Cap Screw, 3/8-16 x 4.00
(Superseded to 710-0411)

$8.49

$

In Stock, Qty 20+

0

3

Cub Cadet 00012158

Washer, 3/8 Zinc

$4.49

$

In Stock, Qty 10

0

4

Cub Cadet 00012428

Nut, 1/2-13, Nylon Insert

$6.99

$

In Stock, Qty 8

0

5

Cub Cadet 00014608

Nut, 10-32, Nylon Insert
(Superseded to 712-05003)

$3.49

$

In Stock, only 3 left!

0

6

Cub Cadet 00017778

Phillips Head Machine Screw, 10-32 x 1/2

$4.99

$

In Stock, only 2 left!

0

7

Cub Cadet 00022560

Nut, 3/8-16, Hex Flange Lock
(Superseded to 712-05007)

$4.49

$

In Stock, Qty 20+

0

8

Cub Cadet 00030633

Decal, Rotating Blade

$

$

Not available

9

Cub Cadet 00030635

Decal, Warning Shield Missing
(Superseded to 777S33782)

$7.99

$

Usually ships in 3-6 days

0

10

Cub Cadet 00083192

Idler Washer
(Superseded to 736-0258)

$4.49

$

In Stock, Qty 5

0

11

Cub Cadet 634-3159

Wheel, 5.00 Dia

$34.99

$

In Stock, Qty 20+

0

12

Cub Cadet 710-3178

Carriage Bolt, 3/8-16 x .75

$4.49

$

Usually ships in 3-6 days

0

13

Cub Cadet 911-3314

Roller Pin, 1/2 Dia x 7.31
(Superseded to 711-3314A)

$25.99

$

In Stock, Qty 20+

0

14

Cub Cadet 731-3005

Front Roller

$28.99

$

In Stock, Qty 20+

0

15

Cub Cadet 750-3193

Wheel Spacer

$18.99

$

In Stock, Qty 20+

0

16

Cub Cadet 01000643

Carriage Bolt, 3/8-16 x 1.00

$5.49

$

In Stock, Qty 9

0

17

Cub Cadet 01001169

Grass Catcher Roller

$24.99

$

In Stock, Qty 19

0

18

Cub Cadet 01002166

Decal, Danger Hands & Feet

$12.99

$

Usually ships in 3-6 days

0

19

Cub Cadet 732-04797

Torsion Spring, 0.4 ID x 2.16

$11.99

$

In Stock, Qty 11

0

20

Cub Cadet 747-3384

Deflector Chute Rod

$27.99

$

In Stock, Qty 6

0

21

Cub Cadet 01004304

Self Tapping Screw, 3/8-16 x 0.500
(Superseded to 710-0773)

$7.49

$

Usually ships in 3-6 days

0

22

Cub Cadet 01009296-0637

Chute Baffle

$49.99

$

Usually ships in 3-6 days

0

23

Cub Cadet 01008644

Finger Guard

$36.99

$

In Stock, Qty 5

0

24

Cub Cadet 01004684-0637

Belt Cover Support

$39.99

$

Usually ships in 3-6 days

0

25

Cub Cadet 01009892

48" Fab Deck Assembly

$

$

Not available

26

Cub Cadet 01004707-0637

Grass Catcher Roller Bracket

$23.99

$

In Stock, Qty 18

0

27

Cub Cadet 02002798

Grass Catcher Roller Rod

$79.99

$

In Stock, Qty 5

0

28

Cub Cadet 01005243-0637

Front Anti SCalp Wheel Bracket

$57.99

$

In Stock, only 2 left!

0

29

Cub Cadet 01005244

Left Hand Front Roller Bracket

Variations

Cub Cadet 01005244-0637

Roller Bracket, LH - POWDER BLACK (0637)

$

$

Not available

Cub Cadet 01005244-4021

Roller Bracket, LH - CUB YELLOW 2 (4021)

$

$

Not available

$

$

30

Cub Cadet 01005245-0637

Right Hand Front Roller Bracket

$36.99

$

In Stock, Qty 5

0

31

Cub Cadet 01007157

Right Hand Belt Cover Weldment
(Superseded to 02000446)

$

$

Not available

31

Cub Cadet 02000446

Right Hand Belt Cover

$

$

Not available

32

Cub Cadet 02000445

Left Hand Belt Cover Weldment

$

$

Not available

32

Cub Cadet 02000445

Left Hand Belt Cover

$

$

Not available

33

Cub Cadet 935-04038

T-Handle Draw Latch

$15.99

$

In Stock, Qty 20+

0

34

Cub Cadet 01006693P

Chute Deflector

$68.99

$

In Stock, Qty 20+

0

35

Cub Cadet 01006748-0637

Chute Deflector Bracket

$35.99

$

In Stock, Qty 5

0

36

Cub Cadet 01008789

Deck Sway Bracket

$

$

Not available

37

Cub Cadet 01008791

Grass Catcher Roller Bracket
(Superseded to 01008790-0637)

$37.99

$

Usually ships in 3-6 days

0

38

Cub Cadet 01009243

Self Tapping Screw, 3/8-16 x 0.875

$14.99

$

Usually ships in 3-6 days

0

39

Cub Cadet 01009293

Right Hand Lift Plate Weldment

$

$

Not available

40

Cub Cadet 01009295

Left Hand Lift Plate Weldment

$

$

Not available

41

Cub Cadet 01009380

Deck Lift Pin, 7/16 Dia x 1.20

$

$

Not available

42

Cub Cadet 01009735

Handle Cover Bracket Deck Weldment

$

$

Not available
