HFF 1748 (55AG5D4V750) - Cub Cadet Walk-Behind Mower, Kawasaki FH541V-AS25 Cylinder & Crankcase Parts Diagram

Walk-Behind Mower, Kawasaki

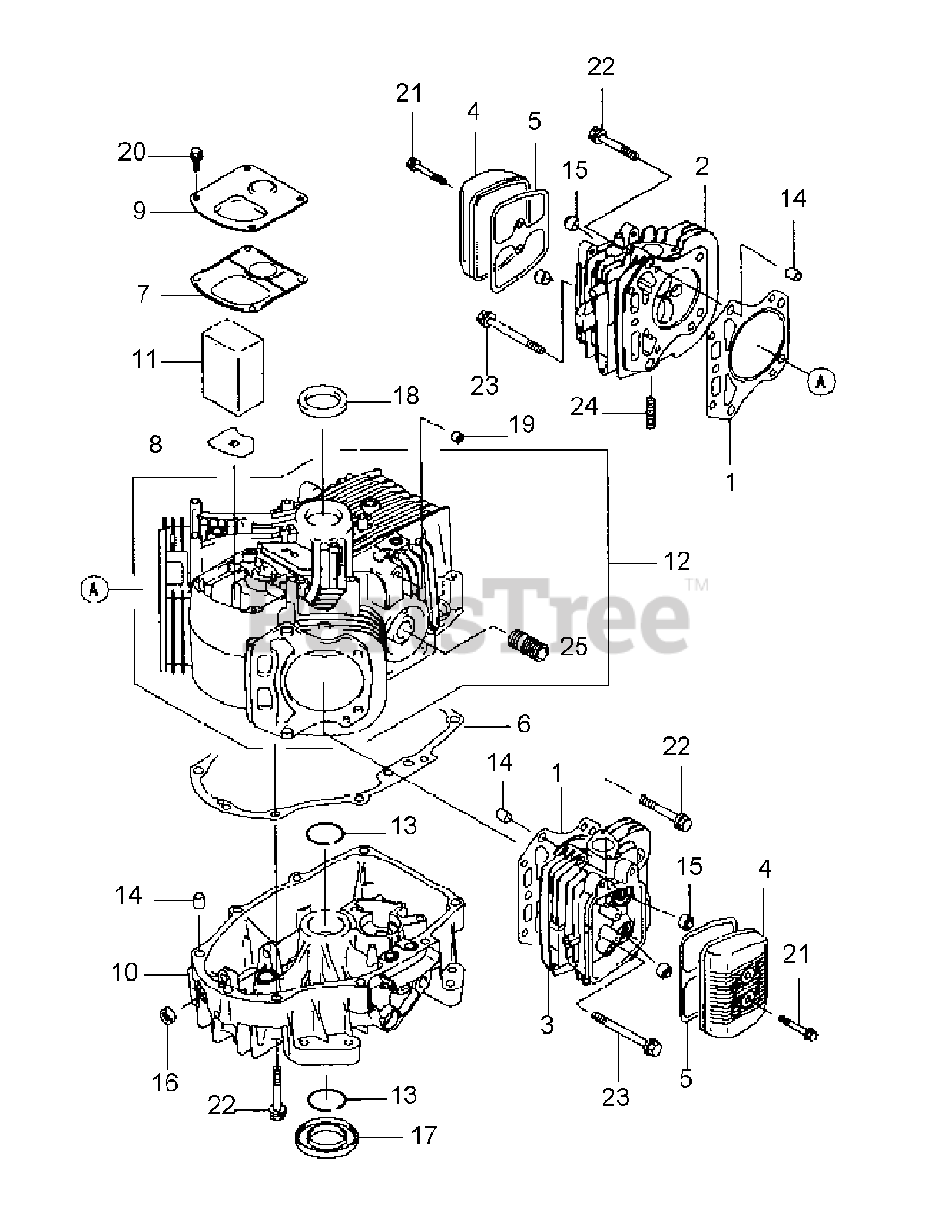

FH541V-AS25 Cylinder & Crankcase Parts Diagram

  • Title

1

Cub Cadet KM-11004-7016

GASKET-HEAD

$10.99

$

In Stock, Qty 20+

0

2

Cub Cadet KM-11008-6043

HEAD-COMP-CYLINDER, #2

$274.99

$

In Stock, Qty 8

0

3

Cub Cadet KM-11008-7020

HEAD-COMP-CYLINDER, #1

$274.99

$

In Stock, only 4 left!

0

4

Cub Cadet KM-11022-7003

CASE-ROCKER

$14.99

$

In Stock, only 2 left!

0

5

Cub Cadet KM-11060-7001

GASKET, ROCKER CASE

$6.99

$

In Stock, Qty 20+

0

6

Cub Cadet KM-11060-7008

GASKET,

$6.99

$

In Stock, Qty 20+

0

7

Cub Cadet KM-11061-7097

GASKET, BREATHER

$8.49

$

In Stock, Qty 7

0

8

Cub Cadet KM-13271-7016

PLATE

$2.49

$

In Stock, Qty 13

0

9

Cub Cadet KM-14091-7006

COVER
(Superseded to KM-99996-6104)

$19.99

$

In Stock, Qty 20+

0

10

Cub Cadet KM-49015-6253

COVER-CRANKCASE

$183.99

$

Usually ships in 2-5 days

0

11

Cub Cadet KM-49109-7002

BREATHER ELEMENT
(Superseded to KM-99996-6104)

$19.99

$

In Stock, Qty 20+

0

12

Cub Cadet KM-49120-7023

CRANKCASE-COMP

$

$

Not available

13

Cub Cadet KM-92033-7003

SNAP RING

$0.99

$

In Stock, Qty 20+

0

14

Cub Cadet KM-92043-7001

PIN

$0.99

$

In Stock, Qty 20+

0

15

Cub Cadet KM-92049-7001

SEAL-OIL,RVC2 6X11X10.2
(Superseded to KM-92049-0862)

$10.99

$

Usually ships in 3-6 days

0

16

Cub Cadet KM-92049-7019

SEAL-OIL,SO 8X14X5 HS

$2.49

$

In Stock, Qty 20+

0

17

Cub Cadet KM-92049-7015

SEAL-OIL,SD 35X62X8 L HS

$8.99

$

In Stock, Qty 20+

0

18

Cub Cadet KM-92049-7016

SEAL-OIL, SD 35X48X8 R HS

$6.99

$

In Stock, Qty 20+

0

19

Cub Cadet KM-92066-7002

PLUG

$

$

Not available

20

Cub Cadet KM-130BA0612

BOLT-FLANGED

$1.99

$

In Stock, Qty 20+

0

21

Cub Cadet KM-130BA0640

BOLT-FLANGED

$1.49

$

In Stock, only 4 left!

0

22

Cub Cadet KM-130CA0850

BOLT-FLANGED

$1.99

$

In Stock, Qty 20+

0

23

Cub Cadet KM-130CA0875

BOLT-FLANGED

$2.99

$

In Stock, Qty 20+

0

24

Cub Cadet KM-172BA0818

BOLT-STUD

$1.99

$

In Stock, Qty 20+

0

25

Cub Cadet KM-59071-2079

JOINT

$6.49

$

In Stock, Qty 12

0

Cub Cadet KM-FH541V-BS31S

Replacement Engine

Note: (not shown)

$

$

Not available
