HFF 1748 (55AG5D4V750) - Cub Cadet Walk-Behind Mower, Kawasaki Transmission Assembly Parts Diagram

Walk-Behind Mower, Kawasaki

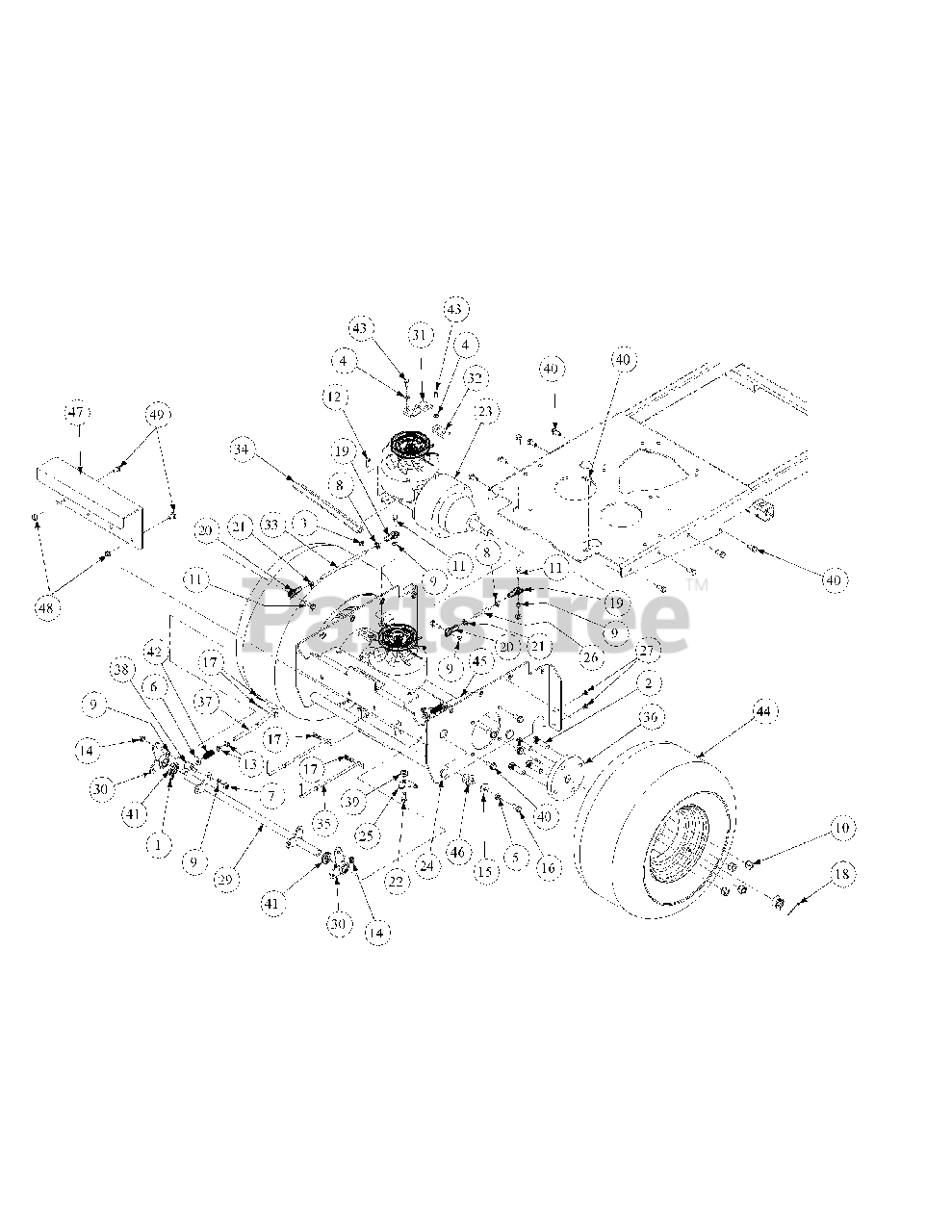

Transmission Assembly Parts Diagram

  • Title

1

Cub Cadet 00011454

Nut, 3/8-24, Jam

$

$

Not available

2

Cub Cadet 00012081

Wheel Bolt, 1/2-20 x 1-3/8

$

$

Not available

3

Cub Cadet 00012152

Nut, 1/4-20, Nylon Insert

$4.49

$

In Stock, only 1 left!

0

4

Cub Cadet 00012154

Washer, 1/4 Zinc
(Superseded to 936-3020)

$

$

Not available

5

Cub Cadet 936-0169

Lock Washer, 3/8 Zinc
(Superseded to 736-0169)

$3.99

$

In Stock, Qty 20+

0

6

Cub Cadet 00012158

Washer, 3/8 Zinc

$4.99

$

In Stock, only 2 left!

0

7

Cub Cadet 00012165

Nut, 5/16-18, Nylock

$4.99

$

Usually ships in 3-6 days

0

8

Cub Cadet 912-3057

Nut, 5/16-24, Hex

$7.49

$

In Stock, Qty 8

0

9

Cub Cadet 00012169

Washer, 5/16 Zinc

$4.99

$

Usually ships in 3-6 days

0

10

Cub Cadet 00012187

Lug Nut, 1/2-20
(Superseded to 712-04311)

$3.99

$

In Stock, Qty 20+

0

11

Cub Cadet 00013092

Hex Head Cap Screw, 5/16-18 x 1.0
(Superseded to 710-0376)

$4.49

$

In Stock, Qty 20+

0

12

Cub Cadet 00013131

Hex Head Cap Screw, 1/4-20 x .75

$6.49

$

In Stock, only 1 left!

0

13

Cub Cadet 912-3001

Nut, 3/8-24, Hex Jam

$7.49

$

In Stock, Qty 16

0

14

Cub Cadet 712-3004A

Nut, 5/16-18, Hex Flange Lock

$3.99

$

In Stock, Qty 20+

0

15

Cub Cadet 936-0133

Washer, 1.25 x .411 x .100
(Superseded to 736-0133)

$

$

Not available

16

Cub Cadet 710-0216

Hex Head Cap Screw, 3/8-16 x .75

$4.49

$

In Stock, Qty 8

0

17

Cub Cadet 914-0104

Cotter Pin, .072 x 1.12 Long
(Superseded to 714-0104)

$4.49

$

In Stock, Qty 15

0

18

Cub Cadet 01007773

Cotter Pin, .125 x 1.5 Long

$

$

Not available

19

Cub Cadet 01008410P

Right Hand Rod End, 5/16
(Superseded to 723-04039)

$60.99

$

Usually ships in 3-6 days

0

20

Cub Cadet 01008551P

Left Hand Rod End, 5/16

$53.99

$

Usually ships in 3-6 days

0

21

Cub Cadet 01008576P

Nut, 5/16-24, Hex

$10.99

$

Usually ships in 3-6 days

0

22

Cub Cadet 01008620

Screw, 5/16-18 x 0.750
(Superseded to 710-04484)

$3.99

$

In Stock, Qty 20+

0

23

Cub Cadet 01008699P

Transmission, Eaton

$

$

Not available

24

Cub Cadet 01008709

Transmission Weldment

$

$

Not available

25

Cub Cadet 01008717

Lever

$

$

Not available

26

Cub Cadet 01008721

Control Rod

$

$

Not available

27

Cub Cadet 01008801

Rivet, 1/4 x 5/8

$

$

Not available

28

Cub Cadet 01008904

V-Belt
(Superseded to 01008904P)

$50.99

$

Usually ships in 3-6 days

0

29

Cub Cadet 01009250

Pivot Rod Weldment

$

$

Not available

30

Cub Cadet 01009903

Bellcrank Assembly

$49.99

$

Usually ships in 3-6 days

0

30

Cub Cadet 737-04345

Grease Fitting

$4.99

$

In Stock, only 4 left!

0

31

Cub Cadet 01009125

Transmission Control Lever

$

$

Not available

32

Cub Cadet 01009127

Brake Control Lever

$

$

Not available

33

Cub Cadet 01009130

Lower Control Rod

$

$

Not available

34

Cub Cadet 01009143

Transmission Bracket

$

$

Not available

35

Cub Cadet 01009203

Transmission Rod

$

$

Not available

36

Cub Cadet 01009208

Wheel Motor Hub

$

$

Not available

37

Cub Cadet 01009215

Brake Rod

$

$

Not available

38

Cub Cadet 01009219

Pivot Brake Joint

$

$

Not available

39

Cub Cadet 01009242

Lever Spacer

$

$

Not available

40

Cub Cadet 01009243

Screw, 3/8-16 x .875

$15.99

$

Usually ships in 3-6 days

0

41

Cub Cadet 01009311

Collar, .750 ID x 1.25 OD x .37

$

$

Not available

42

Cub Cadet 01009333

Spacer, .625 OD x .390 ID x 1.2
(Superseded to 732-3065)

$3.99

$

Usually ships in 3-6 days

0

43

Cub Cadet 01009347

Hex Head Cap Screw, 1/4-28 x 5/8

$

$

Not available

44

Cub Cadet 01009350

Wheel Assembly, 18.00 x 8.50-8

$

$

Not available

45

Cub Cadet 01009384

Lower Brake Rod

$

$

Not available

46

Cub Cadet 941-0598

Hex Flange Bearing, .752 ID

$13.99

$

In Stock, Qty 20+

0

47

Cub Cadet 01009999

Rear Guard

$

$

Not available

48

Cub Cadet 00022560

Hex Flange Lock Nut, 3/8-16
(Superseded to 712-05007)

$4.49

$

In Stock, Qty 20+

0

49

Cub Cadet 710-3178

Carriage Bolt, 3/8-16 x .75

$4.49

$

In Stock, Qty 20+

0
