HG 3500 - Homelite Generator General Assembly Parts Diagram

Generator

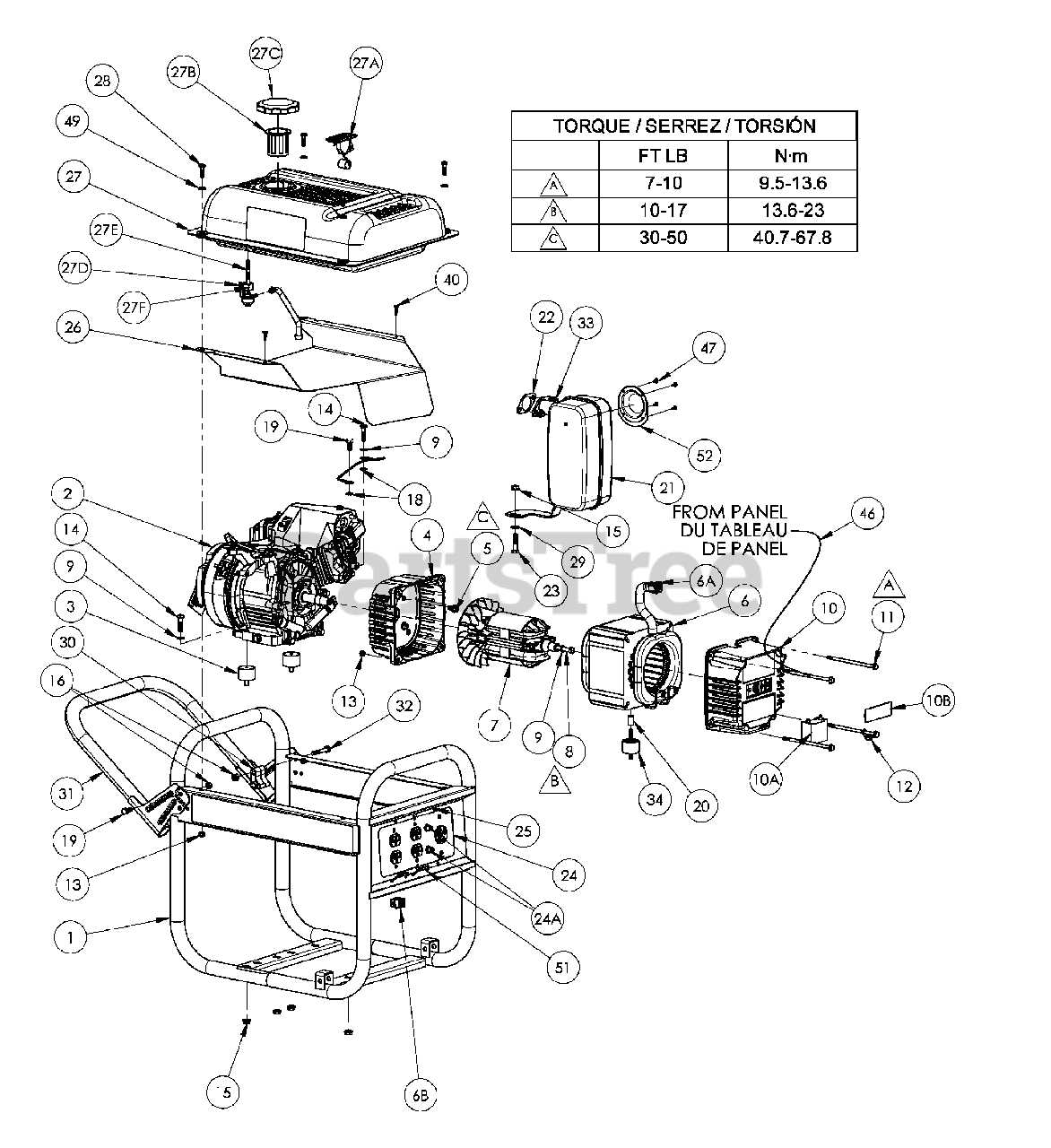

General Assembly Parts Diagram

  • Title

1

Homelite 0064921

Carrier, assembly
(Superseded to 310222003)

$

$

Not available

2

Engine Subaru OHC

Note: Note A

$

$

Not available

3

Homelite 0051094

Isolator
(Superseded to 570356001)

$

$

Not available

4

Homelite 0064949

Adapter, engine

$

$

Not available

5

Homelite 0000901.01

Bolt whz 5/16-24 x .63

$

$

Currently unavailable

6

Homelite 0065131

Stator 3.5 KW 60 HZ

$

$

Not available

6A

Homelite 0063998

Connector, stator

$

$

Currently unavailable

6B

Homelite 0063999

Connector hsg set panel

$

$

Not available

7

Homelite 0065132

Rotor 3.5 KW

$

$

Not available

8

Homelite 0050608

Bolt, hex 5/16-24 x 7.75
(Superseded to 660599003)

$4.49

$

Usually ships in 3-7 days

0

9

Washer, lock 5/16

Note: Note B

$

$

Not available

10

Homelite 0065133

Endbell Wired

$

$

Not available

10A

Homelite 0065134

Capacitor

$

$

Not available

10B

Homelite 0062745

Brush Cover

$

$

Not available

11

Homelite 0065153

Bolt, HWH 1/4-20 x 5.50
(Superseded to 661302001)

$1.49

$

Usually ships in 3-7 days

0

12

Homelite 0008854

Lug, ground
(Superseded to 638703001)

$2.49

$

Usually ships in 3-7 days

0

13

Homelite 0040832

Nut, nyloc 1/4-20
(Superseded to 678016006)

$

$

Not available

14

Bolt, 5/16-18 x 1-1/4

Note: Note B

$

$

Not available

15

Homelite 0057254

Nut, hex flg 5/16-18
(Superseded to 678145002)

$2.49

$

Usually ships in 3-7 days

0

16

Homelite 0048736

Nut, nyloc 5/16-18
(Superseded to 678259003)

$2.49

$

Usually ships in 3-7 days

0

17

Homelite 0064027

Assembly, ground wire

$

$

Not available

18

Washer, star external 5/16

Note: Note B

$

$

Not available

19

Bolt, hex 5/16-18 x 3/4

Note: Note B

$

$

Not available

20

Homelite 0047796

Spacer .38 ID
(Superseded to 678672001)

$2.49

$

Usually ships in 3-7 days

0

21

Homelite 0064993

Muffler
(Superseded to 309323001)

$

$

Not available

22

Homelite 0062566

Gasket
(Superseded to 638499003)

$

$

Currently unavailable

23

Bolt, 5/16-18 x 1 1/2

Note: Note B

$

$

Not available

24

Homelite 0063245

Panel, wired
(Superseded to 290403003)

$395.99

$

Usually ships in 3-7 days

0

24A

Homelite 0049071

Circuit Breaker 20 amp
(Superseded to 780350001)

$16.99

$

Usually ships in 3-7 days

0

25

Homelite 0062462

Screw #6-20 x .38 Type B
(Superseded to 660598001)

$3.49

$

In Stock, only 2 left!

0

26

Homelite 0063975

Shield, heat
(Superseded to 638497002)

$

$

Not available

27

Fuel tank assembly

Note: Note C

$

$

Not available

27A

Homelite 0061817

Fuel Gauge/Screws
(Superseded to 661519002)

$7.99

$

Usually ships in 3-7 days

0

27B

Homelite 0061942

Strainer Basket
(Superseded to 519710001)

$

$

Not available

27C

Homelite 0061816

Fuel Cap
(Superseded to 310720002)

$

$

Not available

27D

Homelite 0061811

Fuel Shut Off
(Superseded to 519711001)

$

$

Not available

27E

Homelite 0061876

Filter, fuel valve and washer

$

$

Not available

27F

Homelite 0061875

Nut, fuel valve

$2.49

$

Usually ships in 3-7 days

0

28

Bolt, 1/4-20 x 1

Note: Note B

$

$

Not available

29

Washer, flat 5/16

Note: Note B

$

$

Not available

30

Homelite 0063164

Spacer, handle bracket

$

$

Not available

31

Homelite 0064934

Handle
(Superseded to 310224003)

$

$

Not available

32

Bolt, 5/16-18 x 2

Note: Note B

$

$

Not available

33

Homelite 0061393

Nut whz 8mm

$

$

Currently unavailable

34

Homelite 0049743

Isolator
(Superseded to 570356002)

$

$

Not available

35

Homelite 0063771

Wheel
(Superseded to 310223002)

$

$

Not available

36

Bolt, 5/16-18 x 1.00

Note: Note B

$

$

Not available

37

Homelite 0055894

Foot rubber
(Superseded to 638706001)

$20.99

$

Usually ships in 3-7 days

0

38

Washer, flat 3/8

Note: Note B

$

$

Not available

39

Homelite 0062174

Lanyard
(Superseded to 310715001)

$

$

Not available

40

Homelite 0064138

Screw, #10 x .75
(Superseded to 660597002)

$

$

Not available

41

Bolt, 3/8-16 x 4.25

$

$

Not available

42

Homelite 0057578

Nut, nyloc 3/8-16
(Superseded to 678457003)

$

$

Not available

43

Homelite 0062433

Spacer .38 ID
(Superseded to 678672002)

$2.49

$

Usually ships in 3-7 days

0

44

Homelite 0062502

Pin, release
(Superseded to 310712001)

$1.99

$

In Stock, only 4 left!

0

45

Homelite 0058955

Cap, plastic
(Superseded to 519712001)

$

$

Not available

46

Homelite 0007767

Assembly, ground wire
(Superseded to 290412002)

$

$

Not available

47

Homelite 0001537

Screw HSW #8 x .38
(Superseded to 661300001)

$

$

Not available

48

Bolt, 1/4-20 x 1.50

Note: Note B

$

$

Not available

49

Washer, flat 1/4

Note: Note B

$

$

Not available

50

Homelite 0063976

Bracket, foot
(Superseded to 678505003)

$12.99

$

Usually ships in 3-7 days

0

51

Homelite 0055982.01

Cord retainer

$

$

Currently unavailable

52

Homelite 0038984

Screen, spark
(Superseded to 638682002)

$

$

Not available

Homelite 987000359

Operator's Manual

$

$

Currently unavailable

Homelite 099950001051

Bottle of Lubricant (10W30)

$

$

Currently unavailable

Homelite 099950002061

Data Label

$

$

Currently unavailable

Homelite 099950002062

Logo Label

$

$

Currently unavailable
