HG 5000 - Homelite 5,000 Watt Generator Figure I Parts Diagram

5,000 Watt Generator

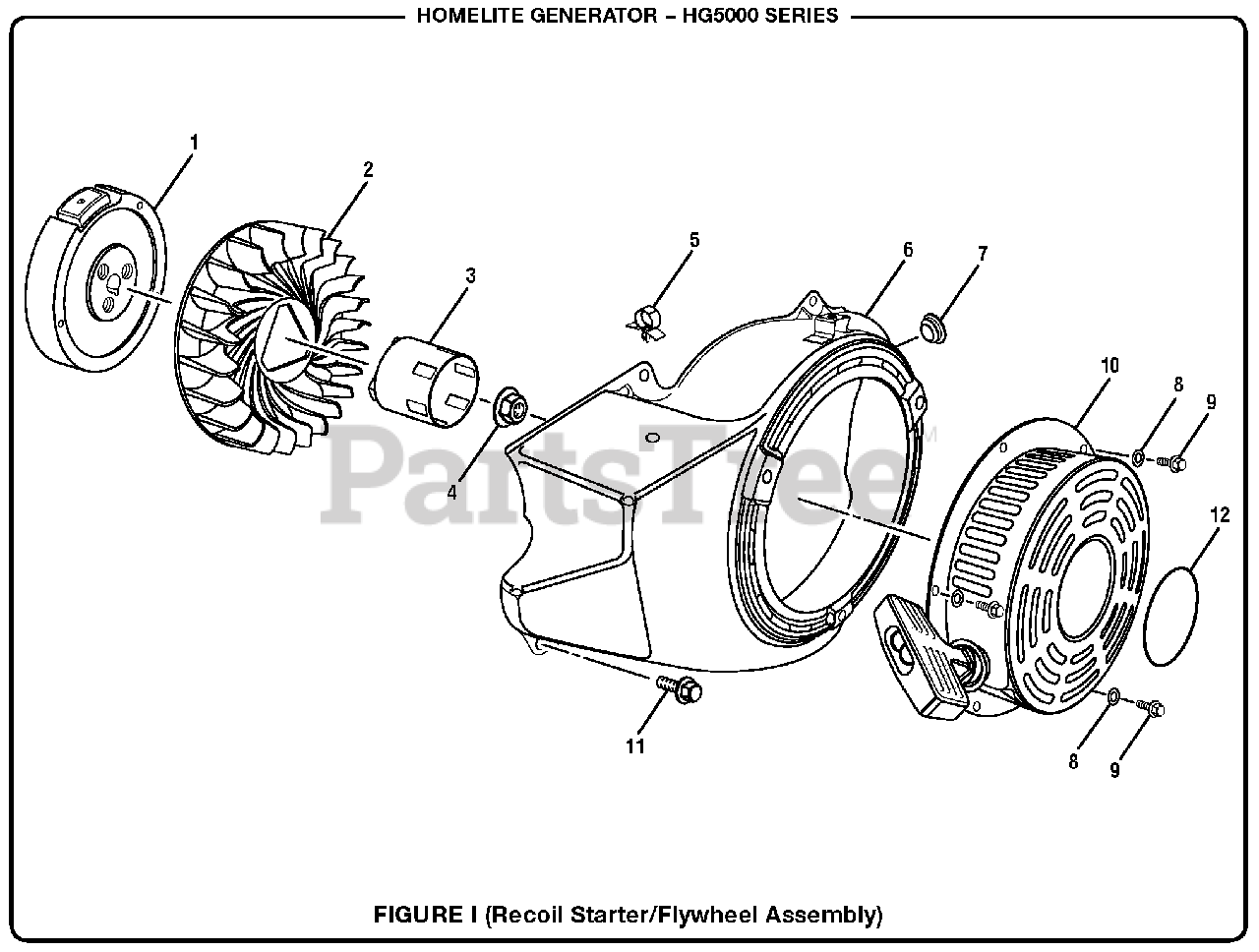

Figure I Parts Diagram

  • Title

1

Homelite 099958001036

Flywheel

$

$

Not available

2

Homelite 099958001035

Flywheel Fan

$

$

Not available

3

Homelite 099958001034

Starter Cup

$

$

Not available

4

Homelite 099958001033

Nut (M14 x 1.5 mm)

$

$

Not available

5

Homelite 099958001029

O-Ring (Fan Case)

$

$

Not available

6

Homelite 099958001711

Fan Case Assembly

$

$

Not available

7

Homelite 099958001028

Grommet (Fan Case)

$2.49

$

Usually ships in 3-7 days

0

8

Homelite 678370004

Washer (M6)

$

$

Not available

9

Homelite 099958001030

Bolt (M6 x 8 mm, Flange Hd.)

$

$

Not available

10

Homelite 099958001710

Recoil Starter Assembly

Note: (Incl. Key Nos. 5-9)

$168.99

$

Usually ships in 3-7 days

0

11

Homelite 099958001027

Bolt (M6 x 12 mm, Flange Hd.)

$

$

Not available

12

Homelite 940633003-00

Engine Recoil Label

$

$

Currently unavailable
