HG 5700 - Homelite 5,700 Watt Generator General Assembly Parts Diagram

5,700 Watt Generator

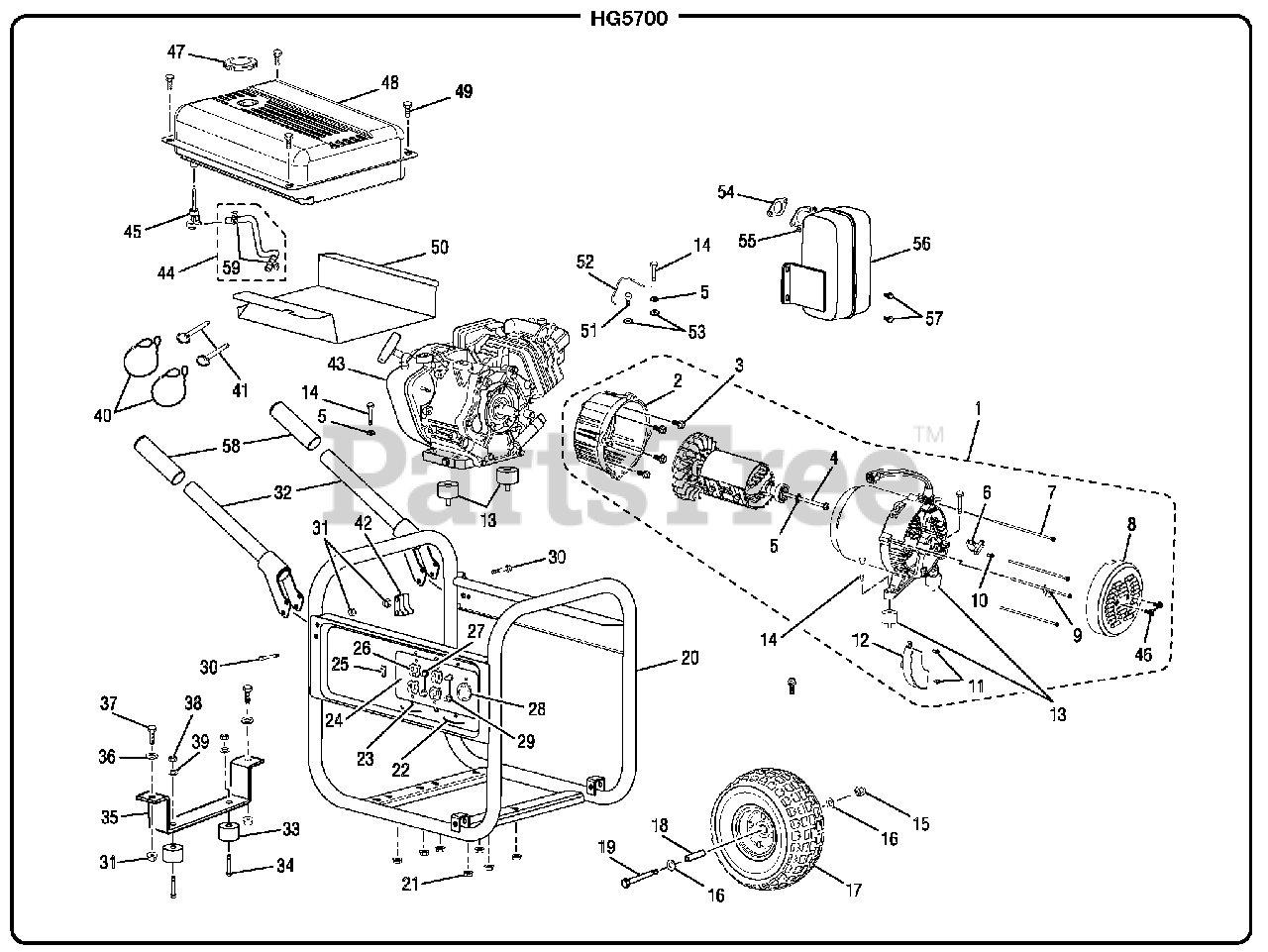

General Assembly Parts Diagram

  • Title

1

Homelite 310227003

Generator Head Assembly (Inc. Key Nos. 2 & 4-12)

$

$

Not available

2

Homelite 640331002

Adapter Housing

$74.99

$

Usually ships in 3-7 days

0

3

Homelite 660596002

Bolt, Wiz (3/8-18 x 1-1/4 in.)

$1.49

$

Usually ships in 3-7 days

0

4

Homelite 661557003

Bolt (5/16-24 x 6-5/8 in., Hex Hd.)

$

$

Not available

5

Homelite 638678002

Lock Washer (5/16 in.)

$2.99

$

Usually ships in 3-7 days

0

6

Homelite 290441001

Brush Assembly

$

$

Not available

7

Homelite 660596009

Bolt, Stator 5.7kW

$

$

Not available

8

Homelite 519785002

Brush Cover

$

$

Not available

9

Homelite 638703001

Ground Lug

$2.49

$

Usually ships in 3-7 days

0

10

Homelite 661603002

Bolt, Mounting Brush Assembly

$

$

Not available

11

Homelite 661603001

Bolt, Mounting AVR

$

$

Not available

12

Homelite 290440002

Automatic Voltage Regulator

$

$

Not available

13

Homelite 570356001

Isolator

$

$

Not available

14

Homelite 660591006

Bolt (5/16-18 x 1 1/2 in., Hex Hd.)

$2.49

$

In Stock, only 3 left!

0

15

Homelite 678659001

Lock Nut (3/8-16)

$2.49

$

Usually ships in 3-7 days

0

16

Homelite 638386003

Washer, Flat (3/8 in.)

$2.99

$

Usually ships in 3-7 days

0

17

Homelite 310223001

Wheel (10 in.)

$

$

Not available

18

Homelite 638498001

Wheel Spacer

$5.99

$

Usually ships in 3-7 days

0

19

Homelite 661558002

Bolt (3/8-16 x 4-1/4 in.)

$5.99

$

Usually ships in 3-7 days

0

20

Homelite 310222002

Frame Assembly

$

$

Not available

21

Homelite 678145002

Flange Nut (5/16-18)

$2.49

$

Usually ships in 3-7 days

0

22

Homelite 678655001

Cord Retainer

$2.49

$

Usually ships in 3-7 days

0

23

Homelite 660598001

Screw (6-20 x .38 in.)

$3.49

$

In Stock, only 2 left!

0

24

Homelite 290403002

Wire Panel

$170.99

$

Usually ships in 3-7 days

0

25

Homelite 760504002

Switch, Engine Stop

$

$

Not available

26

Homelite 290400001

Recepticle (120 V, 20 Amp)

$

$

Not available

27

Homelite 780350001

Circuit Breaker 20 Amp Single Pole

$16.99

$

Usually ships in 3-7 days

0

28

Homelite 290401001

Recepticle (240 V, 30 Amp)

$30.99

$

In Stock, only 2 left!

0

29

Homelite 780350003

Circuit Breaker 25 Amp Single Pole

$

$

Not available

30

Homelite 661503005

Bolt (1/4-20 x 1 in)

$2.49

$

In Stock, only 2 left!

0

31

Homelite 678259003

Lock Nut (5/16-18)

$2.49

$

Usually ships in 3-7 days

0

32

Homelite 310224006

Handle Assembly (Inc. Key No. 58)

$

$

Not available

33

Homelite 570355001

Rubber Foot

$

$

Not available

34

Homelite 661503003

Bolt (1/4-20 x 1/2 in.)

$2.99

$

In Stock, only 2 left!

0

35

Homelite 638706001

Front Foot Bracket

$20.99

$

Usually ships in 3-7 days

0

36

Homelite 638675004

Washer (5/16 in.)
(Superseded to 638675003)

$2.49

$

Usually ships in 3-7 days

0

37

Homelite 660599001

Bolt (5/16-18 x 1 in. Hex Hd.)

$2.99

$

Usually ships in 3-7 days

0

38

Homelite 678656001

Nut, Nyloc (1/4-20)

$

$

Not available

39

Homelite 638387002

Washer (1/4 in.)

$

$

Not available

40

Homelite 310715001

Lanyard

$

$

Not available

41

Homelite 310712001

Handle Lock Pin

$1.99

$

In Stock, only 4 left!

0

42

519728001

Handle Bracket Spacer

$

$

Not available

43

Engine (Yamaha OHV)

$

$

Not available

44

Homelite 570358001

Fuel Line Assembly (Incl. Key No. 59)

$

$

Not available

45

Homelite 519711001

Fuel Shut Off with Filter

$

$

Not available

46

Homelite 661603001

Bolt

$

$

Not available

47

Homelite 519709001

Fuel Cap

$

$

Not available

48

Homelite 310711004

Fuel Tank Assembly
(Superseded to 310711023)

$

$

Not available

49

Homelite 661503005

Screw (1/4-20 x 1 in.)

$2.49

$

In Stock, only 2 left!

0

50

Homelite 638497001

Heat Shield

$

$

Not available

51

Homelite 661502005

Bolt (5/16-18 x 3/4 in., Hex. Hd.)

$2.49

$

Usually ships in 3-7 days

0

52

Homelite 290404001

Ground Wire Assembly

$

$

Not available

53

Homelite 638704001

Washer (5/16 in.) External Star

$3.49

$

Usually ships in 3-7 days

0

54

Homelite 638499002

Gasket

$

$

Currently unavailable

55

Homelite 678654001

Nut (8 mm)

$

$

Currently unavailable

56

Homelite 309322002

Muffler

$

$

Not available

57

Homelite 660599002

Bolt (5/16-24 x 5/8 in.)

$3.49

$

Usually ships in 3-7 days

0

58

Homelite 570357001

Handle Grip
(Superseded to 310224002)

$

$

Not available

59

Homelite 678408005

Fuel Line Clamp

$

$

Not available

Homelite 901606006

Lubricant (SAE 10W30)

Note: (Not Shown)

$

$

Currently unavailable

Homelite 940971018

Caution/Danger Hang Tag

Note: (Not Shown)

$

$

Not available

Homelite 940974007

Risk of Fire Danger Label

Note: (Not Shown)

$

$

Not available

Homelite 940513010

Ground Label

Note: (Not Shown)

$

$

Not available

Homelite 940513008

Ground Warning Label

Note: (Not Shown)

$

$

Not available

Homelite 940680015

Hot Surface Label

Note: (Not Shown)

$2.99

$

Usually ships in 3-7 days

0

Homelite 940514001

Lock Pin Label

Note: (Not Shown)

$2.49

$

Usually ships in 3-7 days

0

Homelite 940752004

Logo Label

Note: (Not Shown)

$

$

Currently unavailable

Homelite 940708007

Engine Lubricant Label

Note: (Not Shown)

$

$

Not available

Homelite 940617033

Quick Start Label

Note: (Not Shown)

$

$

Not available

Homelite 940617023

Starting Label

Note: (Not Shown)

$

$

Not available

Homelite 987000481

Operator's Manual

Note: (Not Shown)

$

$

Not available
