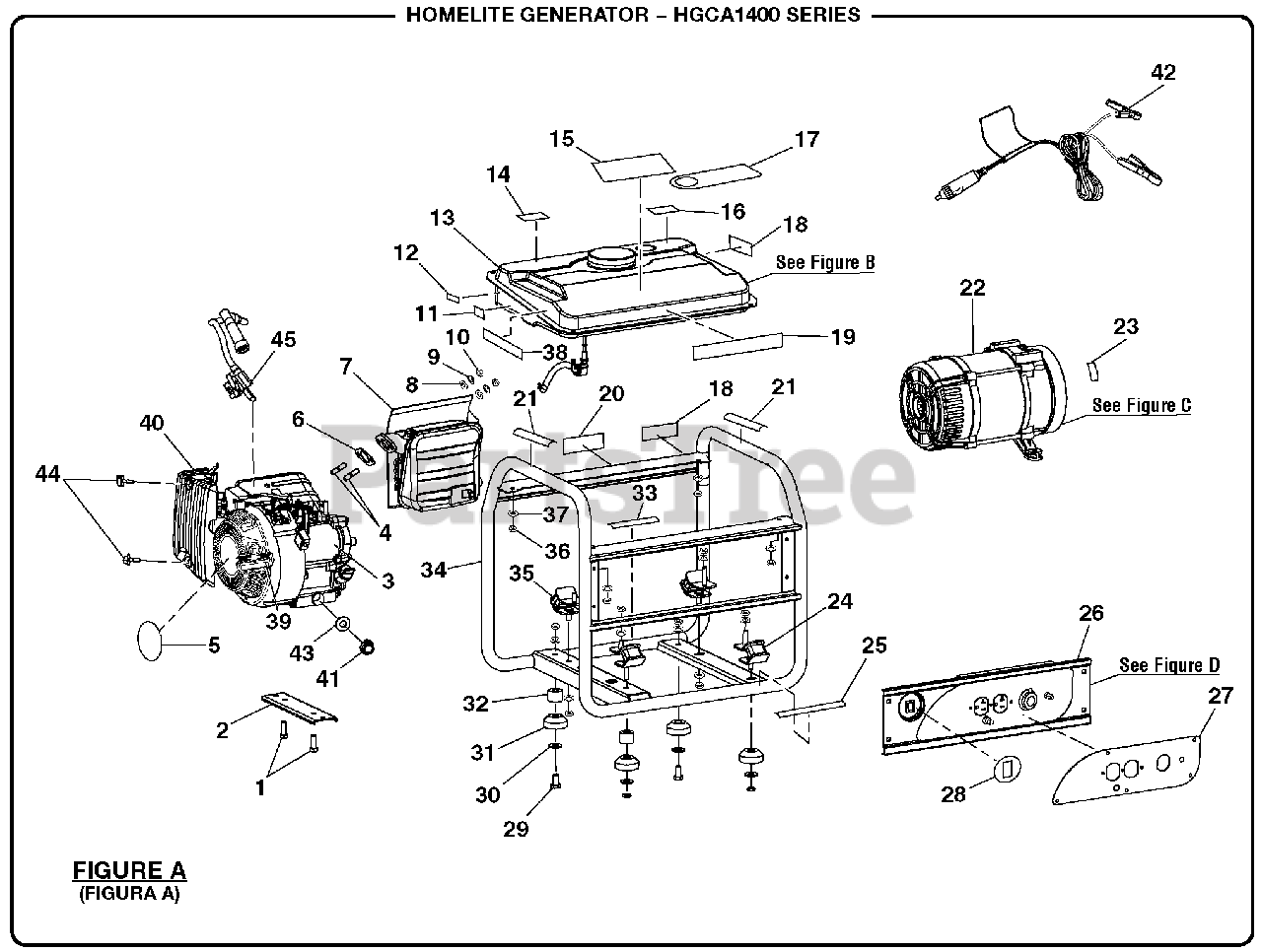

HGCA 1400 - Homelite 1,400 Watt Generator General Assembly Parts Diagram

1,400 Watt Generator

General Assembly Parts Diagram

  • Title

1

Homelite 099958002047

Screw (M8 x 20 mm)

$

$

Not available

2

Homelite 099958002001

Engine Support Bracket

$

$

Not available

3

Homelite 099958002002

Engine (3.0 HP OHV)

$

$

Not available

4

Homelite 099958002003

Exhaust Bolt

$

$

Not available

5

Homelite 940633006

Recoil Housing Label

$

$

Currently unavailable

6

Homelite 099958002004

Exhaust Gasket

$

$

Not available

7

Homelite 099958002005

Muffler

$

$

Not available

8

Homelite 099958002048

Washer (M8)

$

$

Not available

9

Homelite 099958002049

Lock Washer (M8)

$

$

Not available

10

Homelite 099958002050

Hex Nut (M8)

$

$

Not available

11

Homelite 940647041

Choke Label

$3.49

$

Usually ships in 3-7 days

0

12

Homelite 941494007

Fuel Valve Label

$

$

Currently unavailable

13

Homelite 099958002010

Fuel Tank

$47.99

$

Usually ships in 3-7 days

0

14

Homelite 940515023

CPSC Label (ENG)

$

$

Not available

15

Homelite 940654112

Danger Label

$

$

Not available

16

Homelite 940515024

CPSC Label (FR)

$15.99

$

Usually ships in 3-7 days

0

17

Homelite 940974058

Hang Tag

$

$

Currently unavailable

18

Homelite 940680034

Hot Surface Label
(Superseded to 940680027)

$1.49

$

Usually ships in 3-7 days

0

19

Homelite 940705104

Logo Label

$

$

Currently unavailable

20

Homelite 940678156-01

Data Label

$

$

Currently unavailable

21

Homelite 940513018

Ground Warning Label

$

$

Not available

22

Homelite 099958002051

Generator Head

$

$

Not available

23

Homelite 940513002

Ground Icon Label

$1.99

$

Usually ships in 3-7 days

0

24

Homelite 099958002026

Vibration Absorber (Generator Head Side)

$

$

Not available

25

Homelite 940708007

Lubricant Warning Label

$

$

Not available

26

Homelite 099958002052

Control Panel

$

$

Not available

27

Homelite 940040015

Control Panel Label

$

$

Currently unavailable

28

Homelite 940698012

On/Off Label

$

$

Currently unavailable

29

Homelite 099958002053

Bolt (M8 x 16 mm)

$1.49

$

Usually ships in 3-7 days

0

30

Homelite 099958002054

Washer (M8)

$1.49

$

Usually ships in 3-7 days

0

31

Homelite 099958002025

Rubber Foot

$1.49

$

Usually ships in 3-7 days

0

32

Homelite 099958002055

Spacer

$1.49

$

Usually ships in 3-7 days

0

33

Homelite 940974007

UL Warning Label

$

$

Not available

34

Homelite 099958002022

Frame

$

$

Not available

35

Homelite 099958002023

Vibration Absorber (Air Box Side)

$

$

Not available

36

Homelite 099958002056

Lock Nut (M6)

$

$

Currently unavailable

37

Homelite 099958002057

Washer (M6)

$

$

Not available

38

Homelite 940996008

Starting Label

$

$

Currently unavailable

39

Homelite 099958002033

Recoil Starter Grip

$

$

Not available

40

Homelite 099958002042

Air Box Cover

$

$

Not available

41

Homelite 099958002035

Oil Drainage Plug

$

$

Not available

42

Homelite 290425001

Battery Cable Assembly

$

$

Not available

43

Homelite 099958002036

Drain Plug Seal

$1.49

$

Usually ships in 3-7 days

0

44

Homelite 099958002043

Screw

$1.49

$

Usually ships in 3-7 days

0

45

Homelite 099958002046

Ignition Coil

$

$

Not available

Homelite 099958002039

Spark Plug

Note: (Not Shown)

$4.49

$

Usually ships in 3-7 days

0

Homelite 099958002032

Recoil Assembly

Note: (Not Shown)

$

$

Not available

Homelite 099958002034

Fan Case Cover

Note: (Not Shown)

$

$

Not available

Homelite 099958002037

Oil Fill Seal

Note: (Not Shown)

$

$

Not available

Homelite 099958002040

Air Cleaner Seat

Note: (Not Shown)

$

$

Not available

Homelite 099958002041

Air Cleaner Element

Note: (Not Shown)

$1.99

$

Usually ships in 3-7 days

0

Homelite 099958002044

Governor Connecting Rod

Note: (Not Shown)

$

$

Not available

Homelite 099958002045

Governor Spring

Note: (Not Shown)

$

$

Not available

Homelite 099958002089

Head Cover Gasket

Note: (Not Shown)

$

$

Not available

Homelite 099958002087

Carburetor Assembly

Note: (Not Shown)

$

$

Not available

Homelite 988000040

Operator's Manual

Note: (Not Shown)

$

$

Currently unavailable
