HGCA 5000 - Homelite 5,000 Watt Generator Figure H Parts Diagram

5,000 Watt Generator

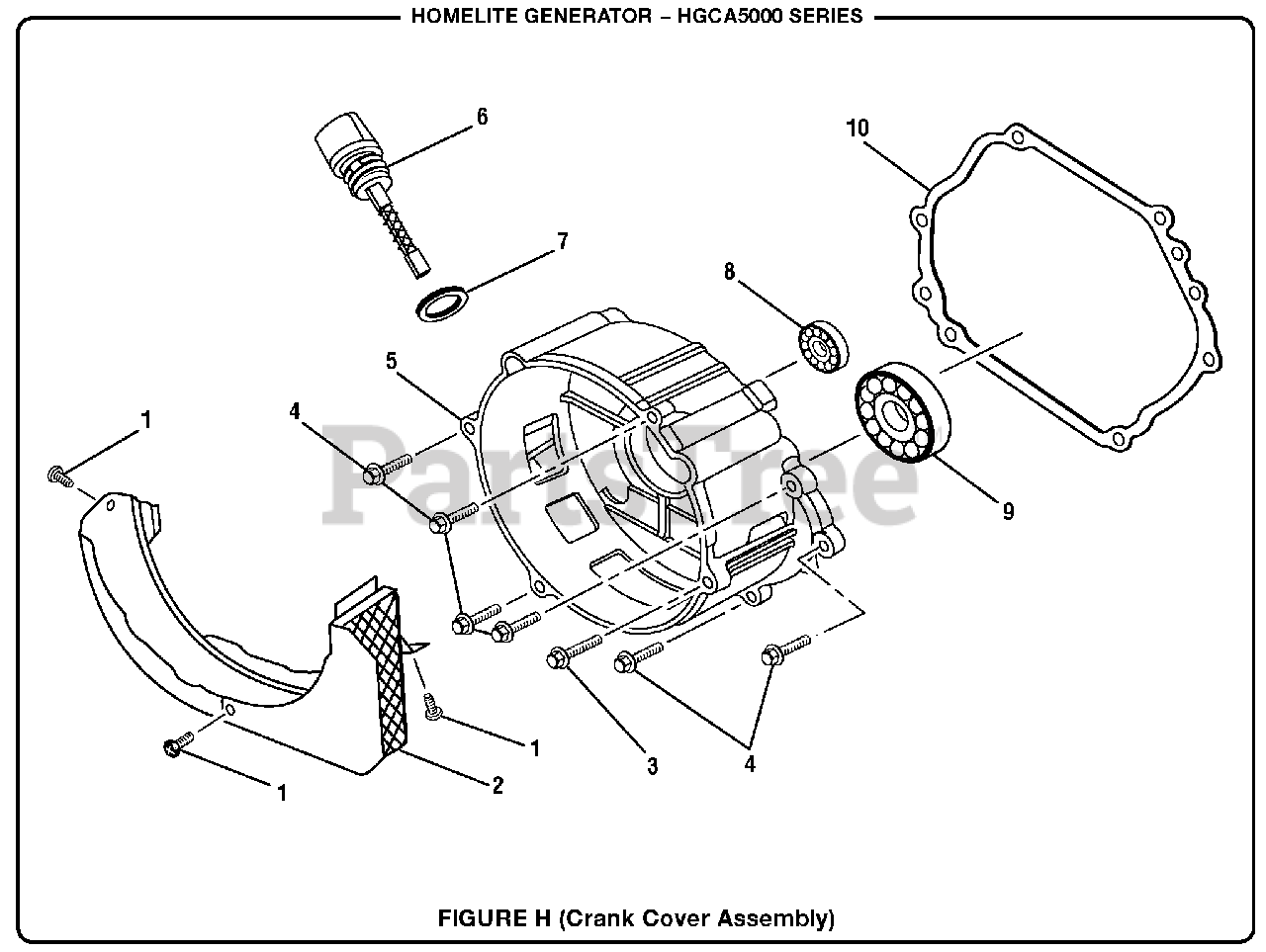

Figure H Parts Diagram

  • Title

1

Homelite 099958001011

Bolt (M5 x 12 mm, Flange Hd.)

$

$

Not available

2

Homelite 099958001009

Guard Cover (Crankcase)

$

$

Not available

3

Homelite 099958001013

Bolt (M8 X 40 mm)

$

$

Not available

4

Homelite 099958001012

Bolt (M8 X 35 mm)

$

$

Not available

5

Homelite 099947001063

Crankcase Cover Assembly .

$

$

Currently unavailable

6

Homelite 099958001704

Dipstick Assembly (Incl. Key No. 7)

$

$

Not available

7

Homelite 099958001007

Gasket (Dipstick)

$

$

Not available

8

Homelite 099958001004

Ball Bearing (6202)

$

$

Not available

9

Homelite 099958001010

Ball Bearing 6207

$

$

Not available

10

Homelite 099947001064

Gasket (Crankcase)

$

$

Not available
