HGCA 5000 - Homelite 5,000 Watt Generator Figure L Parts Diagram

5,000 Watt Generator

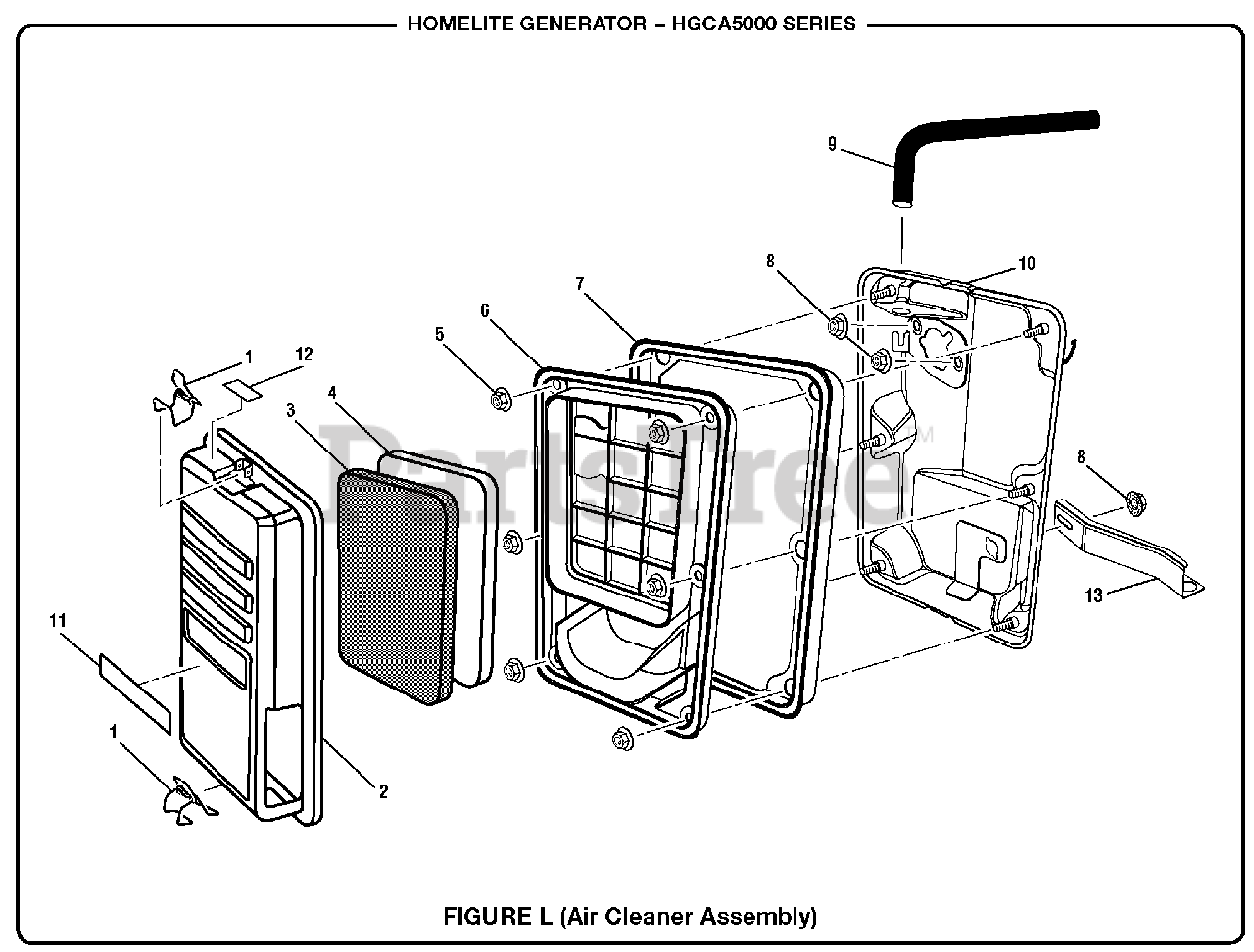

Figure L Parts Diagram

  • Title

Homelite 099958001714

Air Cleaner Assembly (Incl. Key Nos. 1-8, 10-12)

$30.99

$

Usually ships in 3-7 days

0

1

Homelite 099958001038

Air Cleaner Cover Hinge

$1.99

$

Usually ships in 3-7 days

0

2

Homelite 099958001713

Air Cleaner Cover Assembly (Incl. Key No. 1)

$

$

Not available

3

Homelite 310764002

Pre-filter

$12.99

$

Usually ships in 3-7 days

0

4

Homelite 099958001039

Air Filter Element

$5.49

$

Usually ships in 3-7 days

0

5

Homelite 099958001041

Nut (M5, Flange Nut)

$1.49

$

Usually ships in 3-7 days

0

6

Homelite 099958001042

Filter Element Retainer

$3.49

$

Usually ships in 3-7 days

0

7

Homelite 570740014

Air Cleaner Gasket

$1.49

$

Usually ships in 3-7 days

0

8

Homelite 099958001040

Nut (M6, Flange Nut)

$

$

Not available

9

Homelite 099958001043

Breather Tube

$

$

Not available

10

Homelite 678864001

Air Cleaner Support

$

$

Not available

11

Homelite 940996002

Starting Instruction Label

$

$

Not available

12

Homelite 940647033

Choke Label

$1.49

$

Usually ships in 3-7 days

0

13

Homelite 099958001044

Air Cleaner Bracket

$

$

Not available
