HH 100 A (UT-65044-A) - Homelite Portable Space Heater Exploded View Parts Diagram

Portable Space Heater

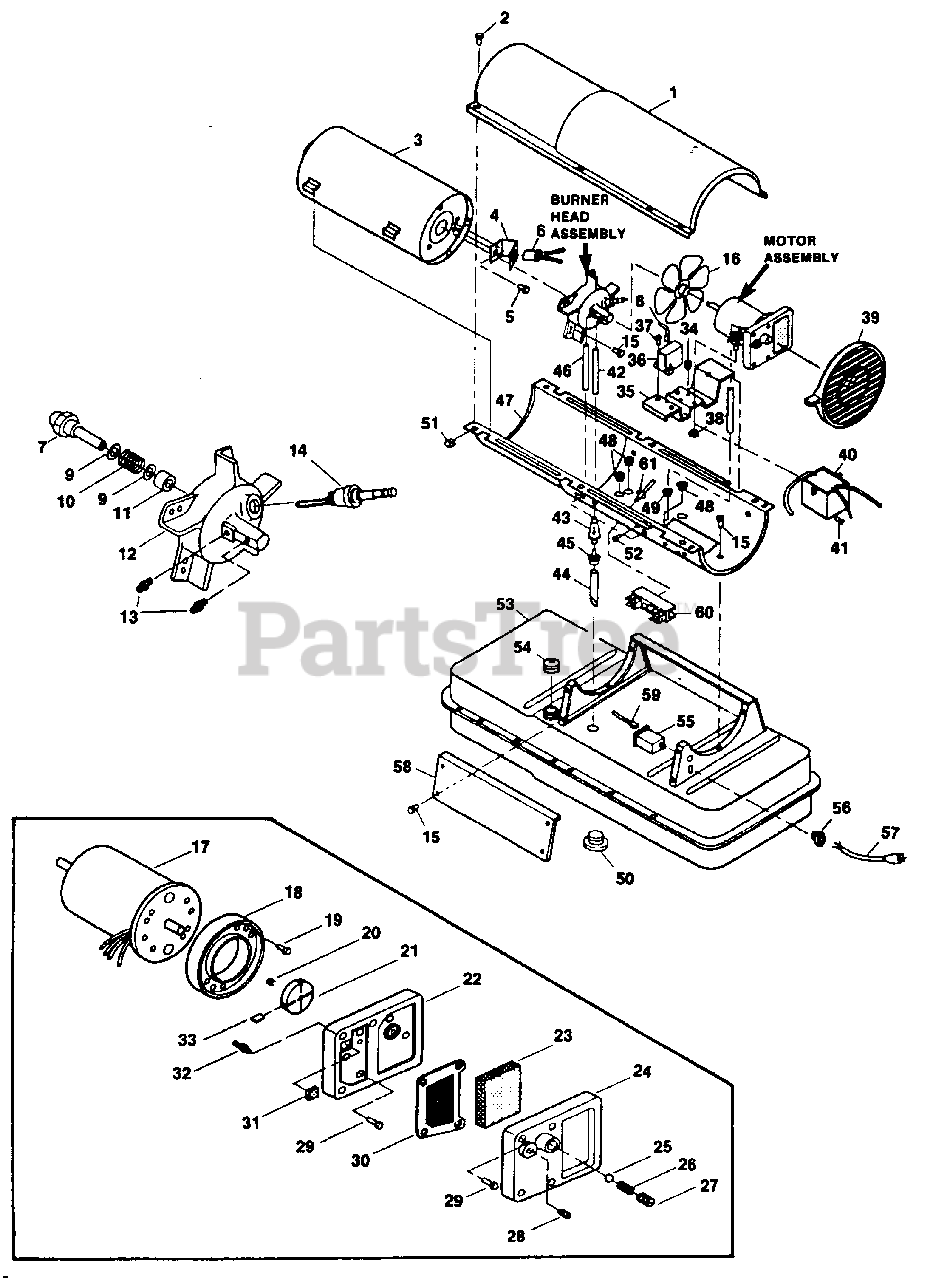

Exploded View Parts Diagram

  • Title

1

Homelite 0332695

SHELL- Upper

$

$

Currently unavailable

2

Homelite 0052916

SCREW- (#10-16 x 1/2")

$4.49

$

Usually ships in 3-7 days

0

3

Homelite 0053132

CHAMBER- Combustion

$

$

Not available

4

Homelite 0052919

BRACKET- Photocell

$

$

Currently unavailable

5

Homelite 0052907

SCREW- (#6-32 x 3/8")

$

$

Currently unavailable

6

Homelite A0332657

PHOTOCELL

$

$

Currently unavailable

7

Homelite 0332696

NOZZLE & SLEEVE

$

$

Currently unavailable

8

Homelite A0332679

WIRE ASSEMBLY (Red, 14 1/2")

$

$

Currently unavailable

9

Homelite 0053102

WASHER- Nozzle (5")

$

$

Currently unavailable

10

Homelite 0053103

SPRING- Nozzle (5")

$

$

Currently unavailable

11

Homelite 0053130

SLEEVE- Nozzle (5")

$

$

Currently unavailable

12

Homelite 0053120

BODY- Burner head

$

$

Currently unavailable

13

Homelite 0053119

FITTING- Barb
(Superseded to PT8357)

$

$

Not available

14

Homelite 0332697

SPARK PLUG
(Superseded to TY4589)

$33.99

$

Usually ships in 3-7 days

0

15

Homelite 0052911

SCREW- (#10-16 x 1/2")

$

$

Currently unavailable

16

Homelite 0053128

FAN
(Superseded to PT16018)

$

$

Not available

17

Homelite 0332675

MOTOR
(Superseded to PT16019)

$

$

Not available

18

Homelite 0052953

BODY- Pump (35")

$

$

Currently unavailable

19

Homelite 0052901

SCREW- (#10-32 x 1/4")

$

$

Currently unavailable

20

Homelite 0052920

INSERT- Rotor (10")

$

$

Currently unavailable

21

Homelite 0052921

PUMP- Rotor (8")

$

$

Not available

22

Homelite 0053117

COVER- Pump end (8")

$

$

Not available

23

Homelite 0053106

FILTER- Intake (10")
(Superseded to TY4071)

$

$

Currently unavailable

24

Homelite 0053110

COVER- Filter end (5")

$

$

Not available

25

Homelite 0052948

BALL- Steel (1/4" dia.)

$

$

Not available

26

Homelite 0052909

SPRING- Relief

$

$

Not available

27

Homelite 0052924

SCREW- Adjusting

$

$

Not available

28

Homelite 0052922

PLUG

$

$

Not available

29

Homelite 0052915

SCREW- (#10-32 x 1")

$4.49

$

Usually ships in 3-7 days

0

30

Homelite 0053107

FILTER- Output (10")
(Superseded to TY4066)

$

$

Not available

31

Homelite 0053105

FILTER- Lint
(Superseded to TY4077)

$

$

Not available

32

Homelite 0053119

FITTING- Barb
(Superseded to PT8357)

$

$

Not available

33

Homelite 0052947

BLADE- (20")

$

$

Currently unavailable

34

Homelite 0052938

BUMPER- Rubber

$

$

Currently unavailable

35

Homelite 0108612

BRACKET- Motor mtg.

$

$

Currently unavailable

36

Homelite 0053133

RELAY- Solid State

$

$

Currently unavailable

37

Homelite 0108645

SCREW (#8-18 x 1/2")

$

$

Currently unavailable

38

Homelite 0052949

NUT- Hex lock (1/4-20)

$

$

Currently unavailable

39

Homelite 0053124

GUARD- Fan
(Superseded to PT14711)

$

$

Not available

40

Homelite A0332663

IGNITOR KIT
(Superseded to PT19238)

$

$

Currently unavailable

41

Homelite 0052912

SCREW- (#10-16 x 3/4")

$

$

Currently unavailable

42

Homelite 0053129

LINE- Fuel

$

$

Currently unavailable

43

Homelite 0053126

FILTER- Fuel (2")
(Superseded to PT16024)

$

$

Not available

44

Homelite 0053127

TUBE- Fuel line
(Superseded to PT16025)

$

$

Not available

45

Homelite A0053139

BUSHING- Rubber

$

$

Currently unavailable

46

Homelite 0053217

TUBE- Air line

$

$

Currently unavailable

47

Homelite 0332676

SHELL- Lower

$

$

Currently unavailable

48

Homelite 0053004

BUSHING

$

$

Currently unavailable

49

Homelite 0052937

BUSHING

$

$

Currently unavailable

50

Homelite 0053215

PLUG- Drain (Inc. "o" ring)

$

$

Currently unavailable

51

Homelite 0052914

NUT- Tinnerman

$

$

Not available

52

Homelite 0052917

SCREW- Grounding (#8-18 x 1/4")

$

$

Currently unavailable

53

Homelite 0053134

TANK- Fuel

$

$

Currently unavailable

54

Homelite 0052958

CAP- Fuel (Inc. gasket)

$

$

Currently unavailable

55

Homelite 0332666

CONTROL- Safety

$

$

Not available

56

Homelite 0052913

BUSHING- Strain relief

$

$

Currently unavailable

57

Homelite 0332677

CORD- Power

$

$

Currently unavailable

58

Homelite 0053123

COVER- Side

$

$

Currently unavailable

59

Homelite A0332664

WIRE ASSEMBLY (Red, 6")

$

$

Currently unavailable

60

Homelite 0332678

BOARD- Terminal

$

$

Currently unavailable

61

Homelite 0332638

RIVET- (3/16")

$

$

Currently unavailable

Homelite 0053112

WHEELS

$

$

Currently unavailable

Homelite 0053121

AXLE

$

$

Currently unavailable

Homelite 0053108

FRAME - Wheel support

$

$

Currently unavailable

Homelite 0053101

HANDLE- Front

$

$

Currently unavailable

Homelite 0053109

SCREW- Mtg (10-24 x 1 2/4")

$

$

Not available

Homelite 0053115

NUT- Cap

$4.49

$

Usually ships in 3-7 days

0

Homelite 0053131

NUT- Hex lock #10-24

$2.99

$

Usually ships in 3-7 days

0

Homelite 0332654

HANG-UP THERMOSTAT

$

$

Not available

Homelite 0052902

AIR GUAGE KIT
(Superseded to PT19483)

$

$

Not available

Homelite 0332668

FUEL TANK FILTER SCREEN

$

$

Currently unavailable

Homelite A0332669

ROTOR KIT (Incl. #20, 21, & 23)

$

$

Currently unavailable

Homelite A0332680

FILTER KIT (Incl. #23, 30, & 31)

$

$

Not available

Homelite A0332671

PUMP KIT (Incl. #25 thru 28)

$

$

Currently unavailable
