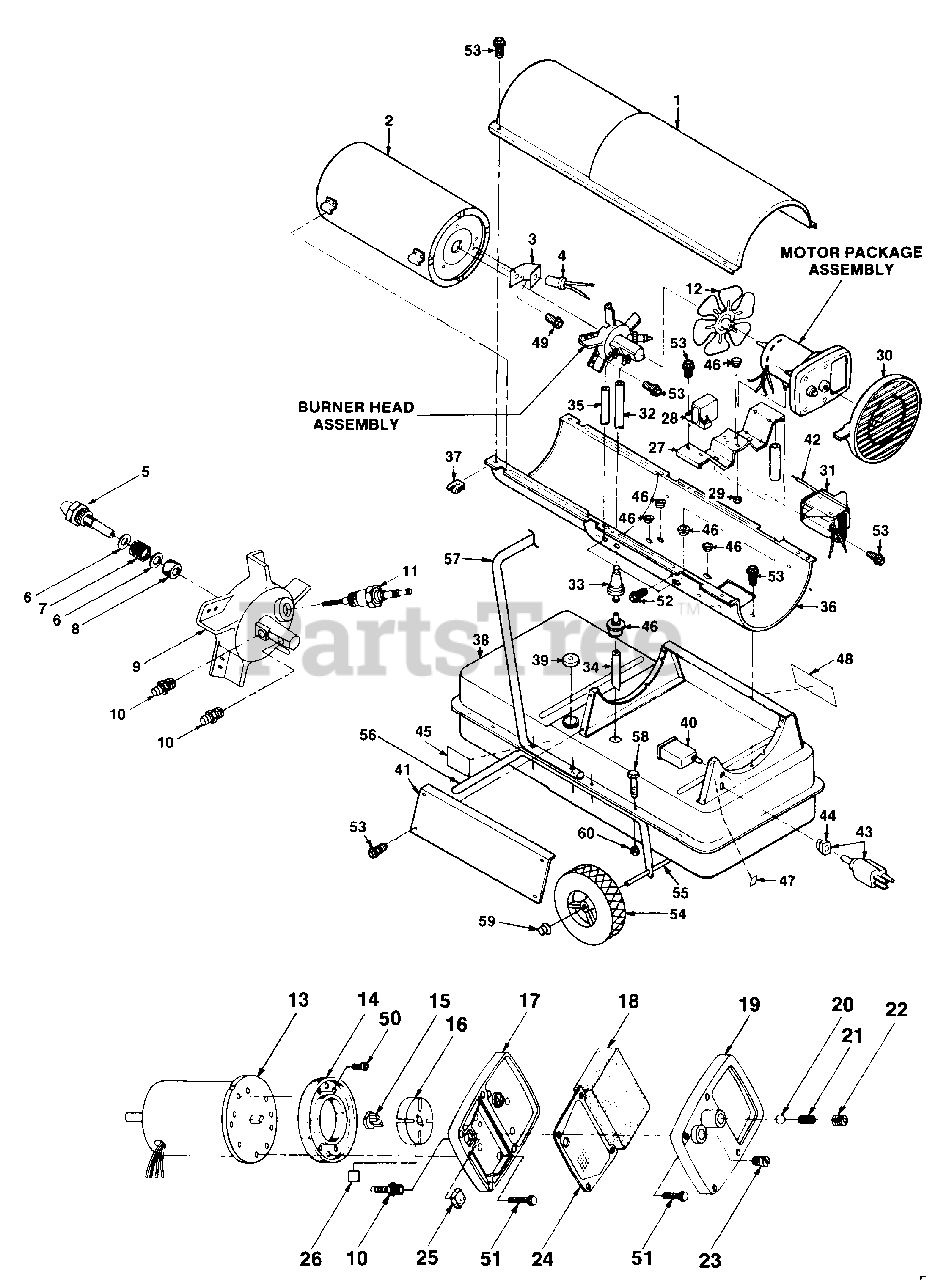

HH 100 (UT-65044) - Homelite Portable Space Heater Exploded View Parts Diagram

Portable Space Heater

Exploded View Parts Diagram

  • Title

1

Homelite 0053136

UPPER SHELL

$

$

Not available

2

Homelite 0053132

CHAMBER- Combustion

$

$

Not available

3

Homelite 0052919

PHOTOCELL BRACKET

$

$

Currently unavailable

4

Homelite 0052918

PHOTOCELL ASSEMBLY

$

$

Currently unavailable

5

Homelite 0053125

NOZZLE

$

$

Currently unavailable

6

Homelite 0053102

WASHER- Nozzle

$

$

Currently unavailable

7

Homelite 0053103

SPRING- Nozzle

$

$

Currently unavailable

8

Homelite 0053130

SLEEVE- Nozzle

$

$

Currently unavailable

9

Homelite 0053120

BODY- Burner head

$

$

Currently unavailable

10

Homelite 0053119

FITTING- Barb.
(Superseded to PT8357)

$

$

Not available

11

Homelite 0053104

SPARK PLUG

$

$

Currently unavailable

12

Homelite 0053128

FAN
(Superseded to PT16018)

$

$

Not available

13

Homelite 0053135

MOTOR (Split phase)

$

$

Currently unavailable

14

Homelite 0052953

PUMP- Body

$

$

Currently unavailable

15

Homelite 0052920

INSERT- Rotor

$

$

Currently unavailable

16

Homelite 0052921

ROTOR- Pump

$

$

Not available

17

Homelite 0053117

COVER- End pump

$

$

Not available

18

Homelite 0053106

FILTER- Intake
(Superseded to TY4071)

$

$

Currently unavailable

19

Homelite 0053110

COVER- End filter

$

$

Not available

20

Homelite 0052948

BALL- Steel 1/4 dia.

$

$

Not available

21

Homelite 0052909

SPRING- Relief

$

$

Not available

22

Homelite 0052924

SCREW- Adjusting

$

$

Not available

23

Homelite 0052922

PLUG

$

$

Not available

24

Homelite 0053107

FILTER- Output
(Superseded to TY4066)

$

$

Not available

25

Homelite 0053105

FILTER- Lint
(Superseded to TY4077)

$

$

Not available

26

Homelite 0052947

BLADE

$

$

Currently unavailable

27

Homelite 0053122

BRACKET- Motor Mounting

$

$

Currently unavailable

28

Homelite 0053133

SOLID STATE RELAY

$

$

Currently unavailable

29

Homelite 0052949

NUT- Lock hex

$

$

Currently unavailable

30

Homelite 0053124

GUARD- Fan
(Superseded to PT14711)

$

$

Not available

31

Homelite 0052951

IGNITOR

$

$

Currently unavailable

32

Homelite 0053129

FUEL LINE

$

$

Currently unavailable

33

Homelite 0053126

FILTER- Fuel
(Superseded to PT16024)

$

$

Not available

34

Homelite 0053127

FUEL LINE TUBE
(Superseded to PT16025)

$

$

Not available

35

Homelite 0053118

AIRLINE

$

$

Currently unavailable

36

Homelite 0053137

SHELL- Lower

$

$

Currently unavailable

37

Homelite 0052914

CLIP- Nut

$

$

Not available

38

Homelite 0053134

TANK- Fuel

$

$

Currently unavailable

39

Homelite 0052958

CAP- Fuel (includes gasket)

$

$

Currently unavailable

40

Homelite 0052939

CONTROL- Safety

$

$

Currently unavailable

41

Homelite 0053123

COVER- Side

$

$

Currently unavailable

42

Homelite 0052952

IGNITOR CABLE ASSY.

$

$

Currently unavailable

43

Homelite A0052962

POWER CORD ASSY.

$

$

Currently unavailable

44

Homelite 0052913

BUSHING- Strain Relief

$

$

Currently unavailable

45

Homelite 0053141

DECAL- Fuel

$

$

Currently unavailable

46

Homelite A0053139

RUBBER BUSHING & BUMPER KIT

$

$

Currently unavailable

47

Homelite 0053142

DECAL- Reset

$

$

Currently unavailable

48

Homelite 0053140

DECAL- General Info.

$

$

Currently unavailable

49

SCREW- #6-32 x 3/8

$

$

Not available

50

SCREW- #10-32 x 1/2

$

$

Not available

51

SCREW- #10-32 x 1

$

$

Not available

52

SCREW- Grounding #8-18 x 1/4

$

$

Not available

53

SCREW- #10-16 x 1/2

$

$

Not available

54

Homelite 0053112

WHEELS

$

$

Currently unavailable

55

Homelite 0053121

AXLE

$

$

Currently unavailable

56

Homelite 0053108

FRAME SUPPORT WHEEL

$

$

Currently unavailable

57

Homelite 0053101

FRONT HANDLE

$

$

Currently unavailable

58

Homelite 0053109

MOUNTING SCREWS

$

$

Not available

59

Homelite 0053115

NUT CAP

$4.49

$

Usually ships in 3-7 days

0

60

Homelite 0053131

NUT- Hex Lock #10-24

$2.99

$

Usually ships in 3-7 days

0

Homelite 0052903

HANG-UP THERMOSTAT

$

$

Currently unavailable
