HH 150 (UT-65045) - Homelite Portable Space Heater Exploded View Parts Diagram

Portable Space Heater

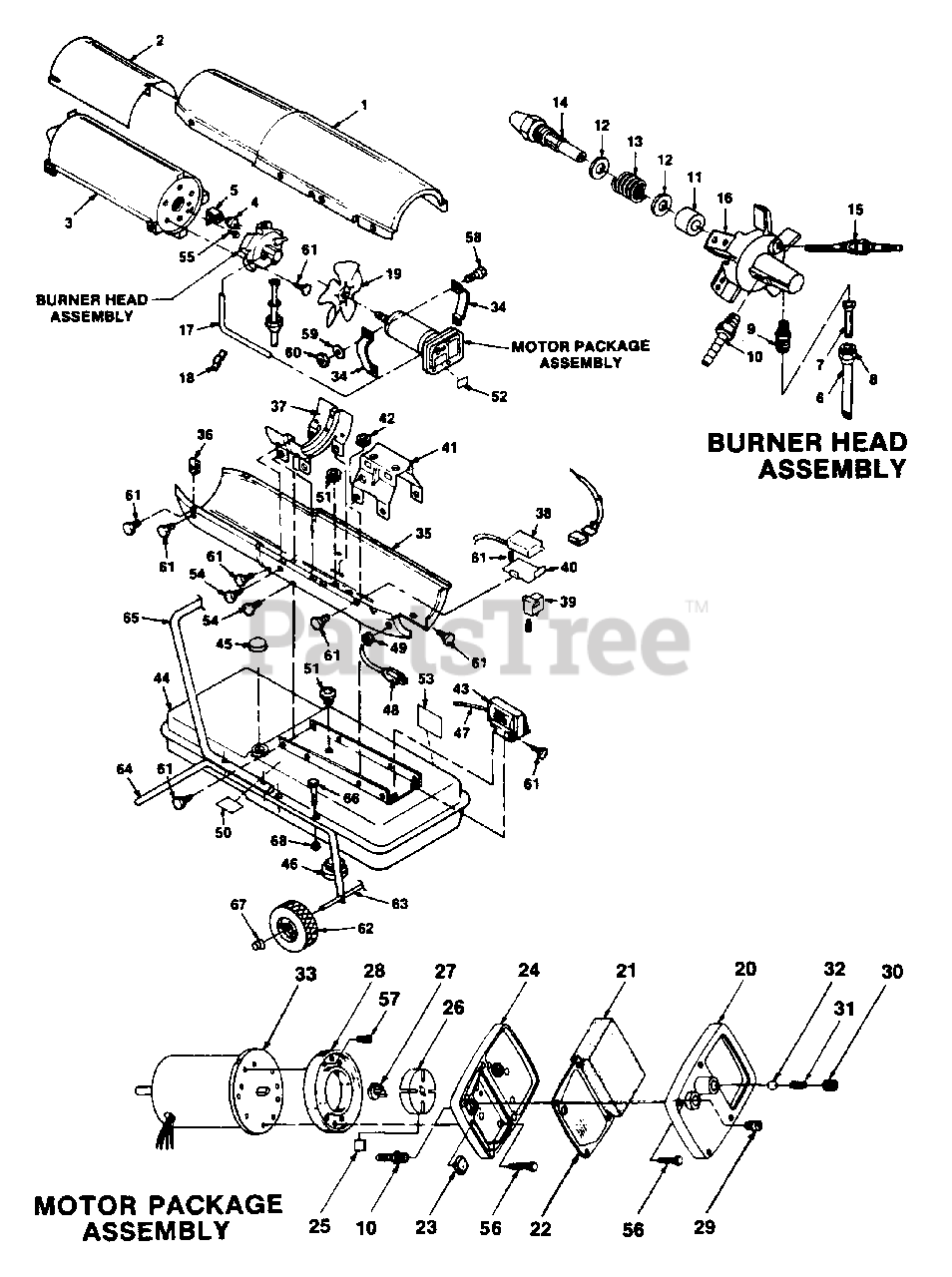

Exploded View Parts Diagram

  • Title

1

Homelite 0053230

UPPER SHELL

$

$

Currently unavailable

2

Homelite 0053209

DEFLECTOR- Heat

$

$

Currently unavailable

3

Homelite 0053211

CHAMBER- Combustion

$

$

Currently unavailable

4

Homelite 0052918

PHOTOCELL ASSEMBLY

$

$

Currently unavailable

5

Homelite 0052919

PHOTOCELL BRACKET

$

$

Currently unavailable

6

Homelite 0053210

FUEL LINE

$

$

Currently unavailable

7

Homelite 0053214

FILTER- Screen fuel

$

$

Currently unavailable

8

Homelite 0053216

NUT- Flare

$

$

Currently unavailable

9

Homelite 0053226

CONNECTOR- Male

$

$

Currently unavailable

10

Homelite 0053119

FITTING- Barb.
(Superseded to PT8357)

$

$

Not available

11

Homelite 0053130

SLEEVE- Nozzle

$

$

Currently unavailable

12

Homelite 0053102

WASHER- Nozzle

$

$

Currently unavailable

13

Homelite 0053103

SPRING- Nozzle

$

$

Currently unavailable

14

Homelite 0053213

NOZZLE- 1.1 GPH
(Superseded to TY4140)

$

$

Not available

15

Homelite 0053104

SPARK PLUG

$

$

Currently unavailable

16

Homelite 0053219

BODY- Burner head

$

$

Currently unavailable

17

Homelite 0053217

AIRLINE TUBING

$

$

Currently unavailable

18

Homelite 0053218

CLIP- Airline

$

$

Currently unavailable

19

Homelite 0053212

FAN
(Superseded to PT8331)

$111.99

$

Usually ships in 3-7 days

0

20

Homelite 0053110

COVER- End filter

$

$

Not available

21

Homelite 0053106

FILTER- Intake
(Superseded to TY4071)

$

$

Currently unavailable

22

Homelite 0053107

FILTER- Output
(Superseded to TY4066)

$

$

Not available

23

Homelite 0053105

FILTER- Lint
(Superseded to TY4077)

$

$

Not available

24

Homelite 0053117

COVER- End pump

$

$

Not available

25

Homelite 0052947

BLADE

$

$

Currently unavailable

26

Homelite 0052921

ROTOR- Pump

$

$

Not available

27

Homelite 0052920

INSERT- Rotor

$

$

Currently unavailable

28

Homelite 0052953

PUMP- Body

$

$

Currently unavailable

29

Homelite 0052922

PLUG

$

$

Not available

30

Homelite 0052924

SCREW- Adjusting

$

$

Not available

31

Homelite 0052909

SPRING- Relief

$

$

Not available

32

Homelite 0052948

BALL- 1/4 dia.

$

$

Not available

33

Homelite 0053229

MOTOR

$

$

Not available

34

Homelite 0053208

CLAMP- Motor

$

$

Currently unavailable

35

Homelite 0053231

SHELL- Lower

$

$

Currently unavailable

36

Homelite 0052914

NUT- Clip

$

$

Not available

37

Homelite 0053204

BRACKET- Shell support

$

$

Currently unavailable

38

Homelite 0052939

CONTROL- Safety

$

$

Currently unavailable

39

Homelite 0053133

SOLID STATE RELAY

$

$

Currently unavailable

40

Homelite 0053228

BRACKET- Solid state relay

$

$

Currently unavailable

41

Homelite 0053207

BRACKET- Motor support

$

$

Currently unavailable

42

Homelite 0053233

GROMMET

$

$

Currently unavailable

43

Homelite 0052951

IGNITOR

$

$

Currently unavailable

44

Homelite 0053224

TANK- Fuel

$722.99

$

Usually ships in 3-7 days

0

45

Homelite 0052958

CAP- Fuel (includes gasket)

$

$

Currently unavailable

46

Homelite 0053215

PLUG- Drain

$

$

Currently unavailable

47

Homelite 0053227

IGNITOR CABLE ASSY.

$

$

Currently unavailable

48

Homelite A0052962

POWER CORD ASSY.

$

$

Currently unavailable

49

Homelite 0052913

BUSHING- Strain Relief

$

$

Currently unavailable

50

Homelite 0053141

DECAL- Fuel

$

$

Currently unavailable

51

Homelite A0053235

BUSHING KIT

$

$

Currently unavailable

52

Homelite 0053237

DECAL- Reset left

$

$

Currently unavailable

53

Homelite 0053236

DECAL- General Info.

$

$

Currently unavailable

54

SCREW- #10-16 x 3/4

$

$

Not available

55

SCREW- #6-32 x 3/8

$

$

Not available

56

SCREW- #10-32 x 1

$

$

Not available

57

SCREW- #10-32 x 1/4

$

$

Not available

58

SCREW- #1/4-20 x 1 1/2"

$

$

Not available

59

WASHER- Lock 1/4"

$

$

Not available

60

NUT- Hex 1/4-20

$

$

Not available

61

SCREW- #10-16 x 1/2

$

$

Not available

62

Homelite 0053112

WHEELS

$

$

Currently unavailable

63

Homelite 0053206

AXLE

$

$

Currently unavailable

64

Homelite 0053205

FRAME SUPPORT WHEEL

$

$

Not available

65

Homelite 0053201

FRONT HANDLE

$

$

Not available

66

Homelite 0053109

MOUNTING SCREWS

$

$

Not available

67

Homelite 0053115

NUT CAP

$8.99

$

Usually ships in 3-7 days

0

68

Homelite 0053131

NUT- Hex Lock #10-24

$5.49

$

Usually ships in 3-7 days

0

Homelite 0052903

HANG-UP THERMOSTAT

$

$

Currently unavailable
