HHT25 S LTAT (HAFA) - Honda String Trimmer, Made in USA (SN: HAFA-1000001 - HAFA-1129999) FLYWHEEL@IGNITION COIL Parts Diagram

String Trimmer, Made in USA

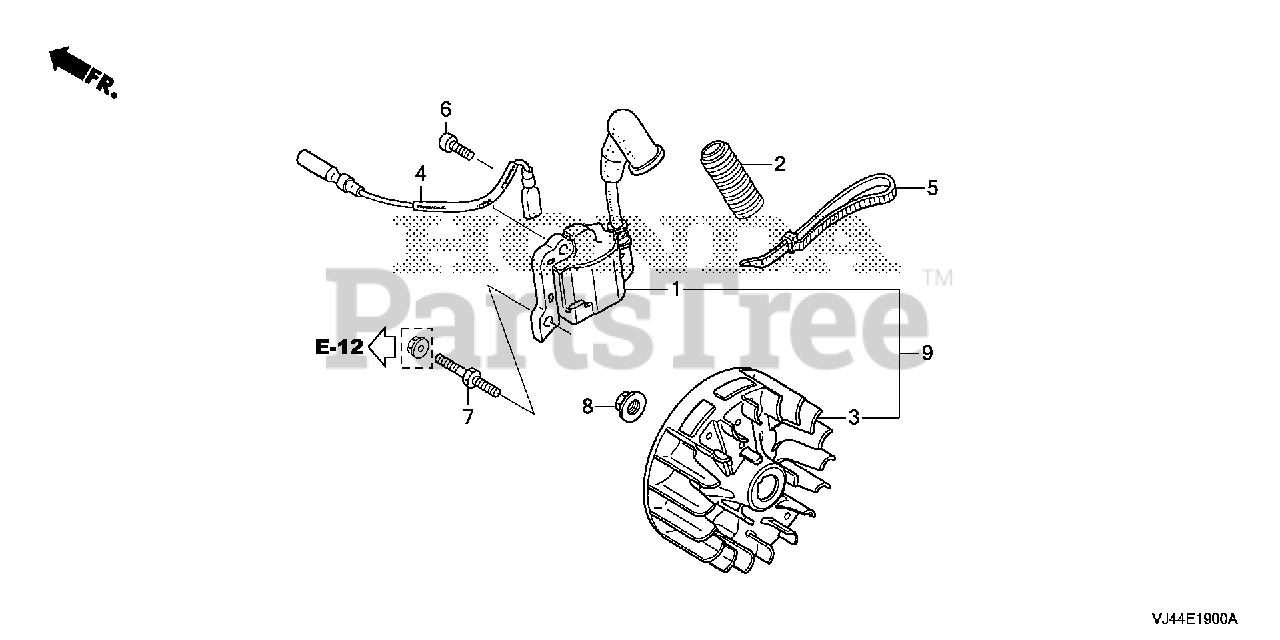

FLYWHEEL@IGNITION COIL Parts Diagram

  • Title

1

Honda 30500-Z3E-004

COIL ASSY., IGNITION

Note: Use from Engine SN 3016121.

$49.99

$

In Stock, only 3 left!

0

3

Honda 31110-Z3E-004

FLYWHEEL

Note: Use from Engine SN 3016121.

$13.99

$

Usually ships in 3-6 days

0

4

Honda 32195-Z0H-000

WIRE, STOP SWITCH

$4.49

$

Usually ships in 3-6 days

0

6

Honda 90012-Z0H-005

BOLT, SOCKET (4X14)

Note: Use up to Engine SN 1037065.

$0.99

$

In Stock, only 1 left!

0

6

Honda 90012-Z3E-003

BOLT, SOCKET (4X14)

Note: Use from Engine SN 1037066.

$0.99

$

Usually ships in 3-6 days

0

7

Honda 90101-Z0H-J00

BOLT, SPECIAL STUD (4MM)

$3.99

$

Usually ships in 3-6 days

0

8

Honda 90355-427-770

NUT, FLANGE (7MM)

$3.49

$

Usually ships in 3-6 days

0

9

Honda 06301-Z3E-000

IGNITION COIL & FLYWHEEL KIT

Note: Use up to Engine SN 3016120.

$41.99

$

In Stock, only 2 left!

0
