HHT25 S LTAT (HAFA) - Honda String Trimmer, Made in USA (SN: HAFA-1000001 - HAFA-1129999) LOOP HANDLE@THROTTLE LEVER Parts Diagram

String Trimmer, Made in USA

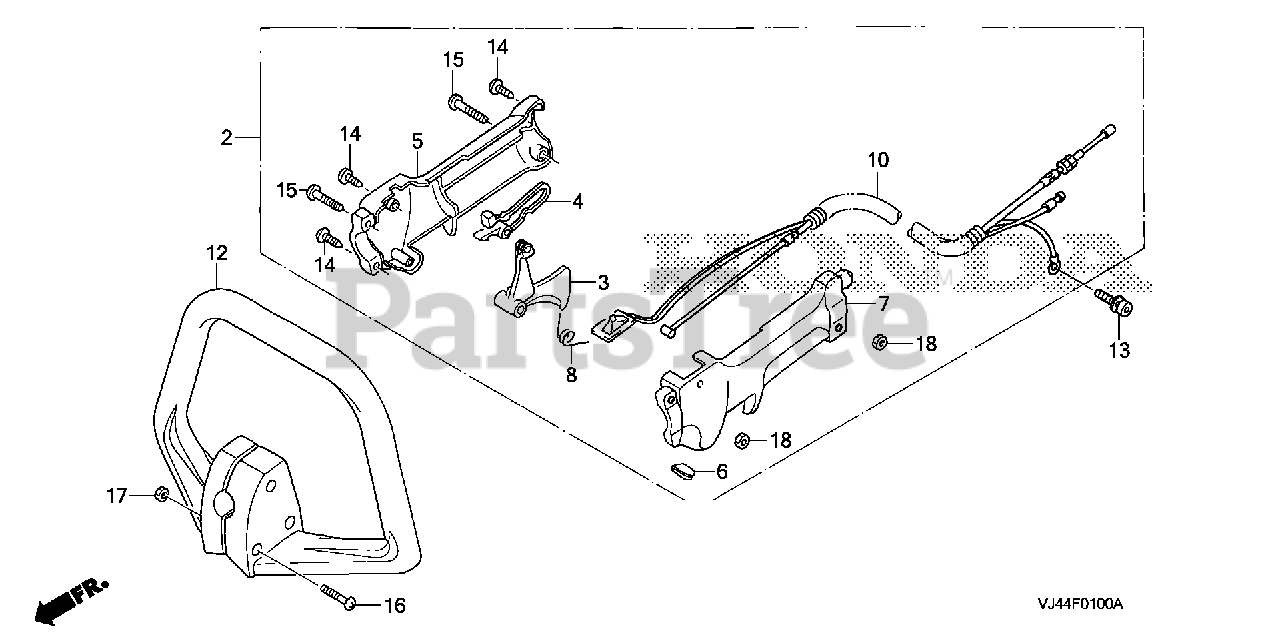

LOOP HANDLE@THROTTLE LEVER Parts Diagram

  • Title

2

Honda 17850-VJ4-003

LEVER ASSY., THROTTLE (L26) (LEVER=YELLOW)

$63.99

$

Usually ships in 3-6 days

0

3

Honda 17851-VH8-641

LEVER, THROTTLE (YELLOW)

$6.99

$

Usually ships in 3-6 days

0

4

Honda 17852-VH8-641

LEVER, THROTTLE LOCK (YELLOW)

$3.99

$

Usually ships in 3-6 days

0

5

Honda 17853-VF9-S41

GRIP, R. THROTTLE LEVER

$9.49

$

Usually ships in 3-6 days

0

6

Honda 17854-VF9-V31

CAP, THROTTLE LEVER

$1.49

$

In Stock, Qty 7

0

7

Honda 17856-VF9-S41

GRIP, L. THROTTLE LEVER

$9.49

$

Usually ships in 3-6 days

0

8

Honda 17859-VF9-V31

SPRING, THROTTLE LEVER

$1.99

$

Usually ships in 3-6 days

0

10

Honda 32100-VJ4-003

WIRE HARNESS ASSY.

$37.99

$

Usually ships in 3-6 days

0

12

Honda 53121-VH5-000

HANDLE, LOOP

$30.99

$

Usually ships in 3-6 days

0

13

Honda 93893-05010-08

SEE PART DETAILS - PRI; SCREW-WASHER (5X10)

Note: Use up to Frame SN 1088104.

$1.99

$

Usually ships in 3-6 days

0

13

Honda 93893-05012-00

SCREW-WASHER (5X12) (Honda Code 0638734).

Note: Use from Frame SN 1088105.

$1.99

$

In Stock, only 2 left!

0

14

Honda 90101-VF9-V31

SCREW, TAPPING (4X20)

$1.99

$

In Stock, Qty 5

0

15

Honda 93500-05020-0G

SEE PART DETAILS - PRI; SCREW, PAN (5X20)

$1.49

$

In Stock, Qty 5

0

16

Honda 93500-05028-0A

SCREW, PAN (5X28) (Honda Code 0171819).

$1.49

$

In Stock, only 4 left!

0

17

Honda 94001-05000-0S

SEE PART DETAILS - PRI; NUT, HEX. (5MM)

$3.99

$

Usually ships in 3-6 days

0

18

Honda 94002-05070-0S

NUT, HEX. (5MM)

$0.99

$

In Stock, Qty 6

0
