HK 18 (UT-18003) - Homelite String Trimmer Boom & Head Parts Diagram

String Trimmer

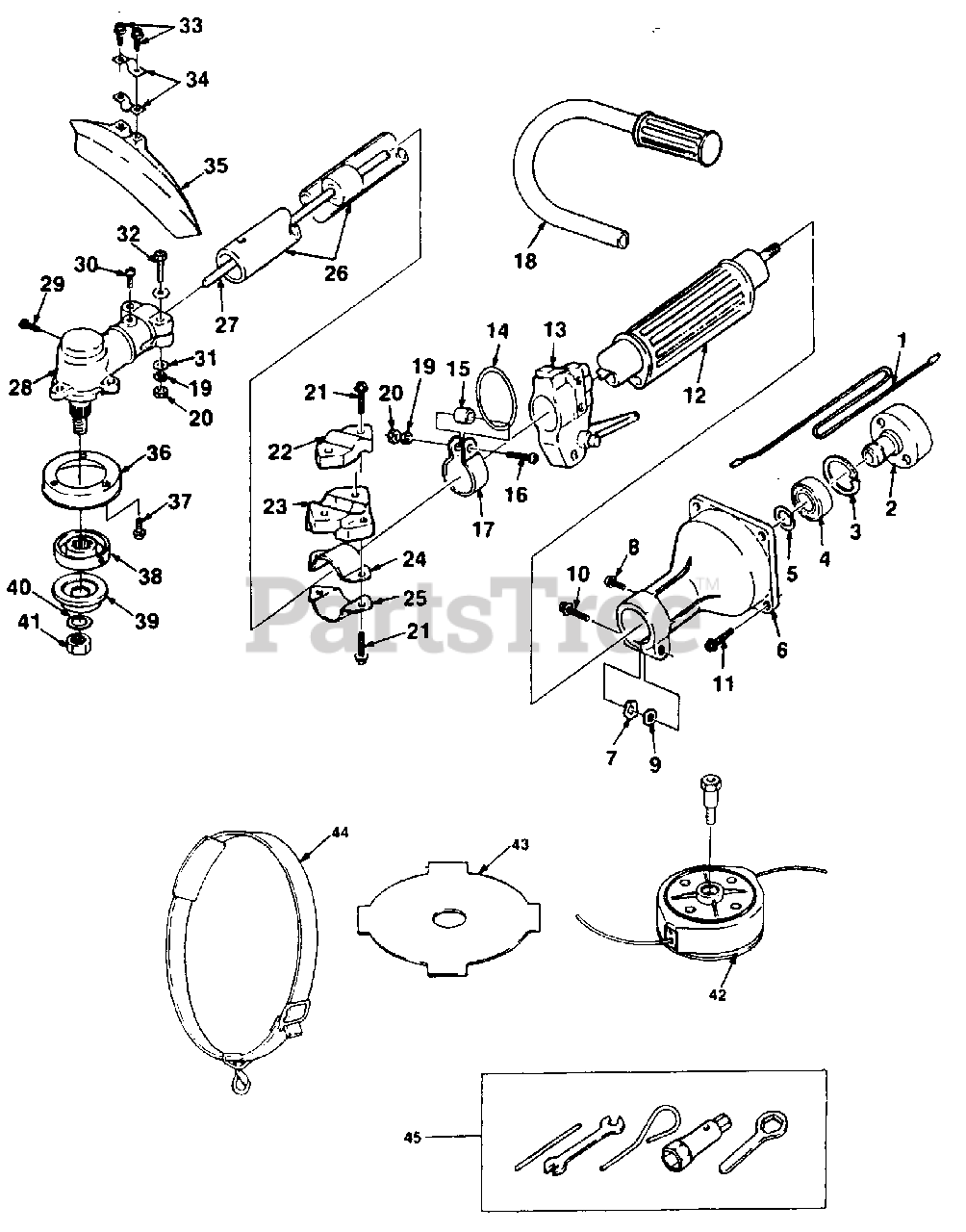

Boom & Head Parts Diagram

  • Title

1

Homelite 9855090

LEAD- Wire

$

$

Currently unavailable

Homelite A9855072

CLUTCH CASE ASSEMBLY

$230.99

$

Usually ships in 3-7 days

0

2

Homelite 9855074

DRUM- Clutch

$

$

Currently unavailable

3

Homelite 9855109

RING- Stop

$

$

Not available

4

Homelite 9855075

BEARING- Ball

$

$

Currently unavailable

5

Homelite 9855076

RING- Stop

$

$

Not available

6

Homelite 9855073

CASE- Clutch

$

$

Currently unavailable

7

Homelite 9855079

WASHER- Wave

$

$

Currently unavailable

8

Homelite 9855078

SCREW

$

$

Currently unavailable

9

Homelite 9855080

WASHER- Flat

$

$

Currently unavailable

10

Homelite 9855077

BOLT

$

$

Currently unavailable

11

Homelite 9855081

BOLT

$1.49

$

Usually ships in 3-7 days

0

12

Homelite 9855085

GRIP

$

$

Currently unavailable

13

Homelite 9855089

LEVER Throttle

$

$

Currently unavailable

14

Homelite 9855087

RING- Hanger

$

$

Currently unavailable

15

Homelite 9855088

SPACER

$

$

Currently unavailable

16

Homelite 9855130

SCREW

$

$

Currently unavailable

17

Homelite 9855086

HANGER

$

$

Currently unavailable

18

Homelite 9855091

U-HANDLE

$

$

Not available

19

Homelite 9855112

WASHER- Spring

$

$

Currently unavailable

20

Homelite 9855113

NUT
(Superseded to 9806537)

$

$

Not available

21

Homelite 9855081

BOLT

$1.49

$

Usually ships in 3-7 days

0

22

Homelite 9855092

BRACKET- Top

$

$

Currently unavailable

23

Homelite 9855093

BRACKET- Upper

$

$

Currently unavailable

24

Homelite 9855094

SPACER

$3.99

$

Usually ships in 3-7 days

0

25

Homelite 9855095

BRACKET- Lower

$

$

Currently unavailable

26

Homelite A9855082

DRIVE SHAFT HOUSING

$

$

Currently unavailable

27

Homelite 9855084

SHAFT- Drive

$

$

Currently unavailable

28

Homelite A9855098

GEAR CASE ASSEMBLY

$

$

Currently unavailable

29

Homelite 9855115

SCREW

$

$

Currently unavailable

30

Homelite 9855114

SCREW

$

$

Not available

31

Homelite 9855080

WASHER- Flat

$

$

Currently unavailable

32

Homelite 9855110

BOLT

$

$

Not available

Homelite 9855112

WASHER- Spring (see Fig. 19)

$

$

Currently unavailable

Homelite 9855113

NUT (see Fig. 20)
(Superseded to 9806537)

$

$

Not available

33

Homelite 9855118

SCREW

$1.49

$

Usually ships in 3-7 days

0

34

Homelite 9855117

STAY

$

$

Not available

35

Homelite 9855116

DEFLECTOR

$

$

Currently unavailable

36

Homelite 9855119

SHIELD

$

$

Not available

37

Homelite 9855120

SCREW

$1.49

$

Usually ships in 3-7 days

0

38

Homelite 9855121

FLANGE- Upper

$

$

Not available

39

Homelite 9855122

FLANGE- Lower

$

$

Not available

40

Homelite 9855123

WASHER- Special

$

$

Not available

41

Homelite 9855124

NUT- Blade

$

$

Not available

42

Homelite A9855136

STRING HEAD ASSEMBLY

$

$

Currently unavailable

43

Homelite 98512

BLADE- Brush (8" 4T accessory)
(Superseded to 638006004)

$12.99

$

Usually ships in 3-7 days

0

44

Homelite 9855097

HARNESS

$

$

Currently unavailable

45

Homelite A9855128

TOOL SET

$

$

Currently unavailable
