HL 2500 (UT-03681) - Homelite Generator Generator & Frame Parts Diagram

Generator

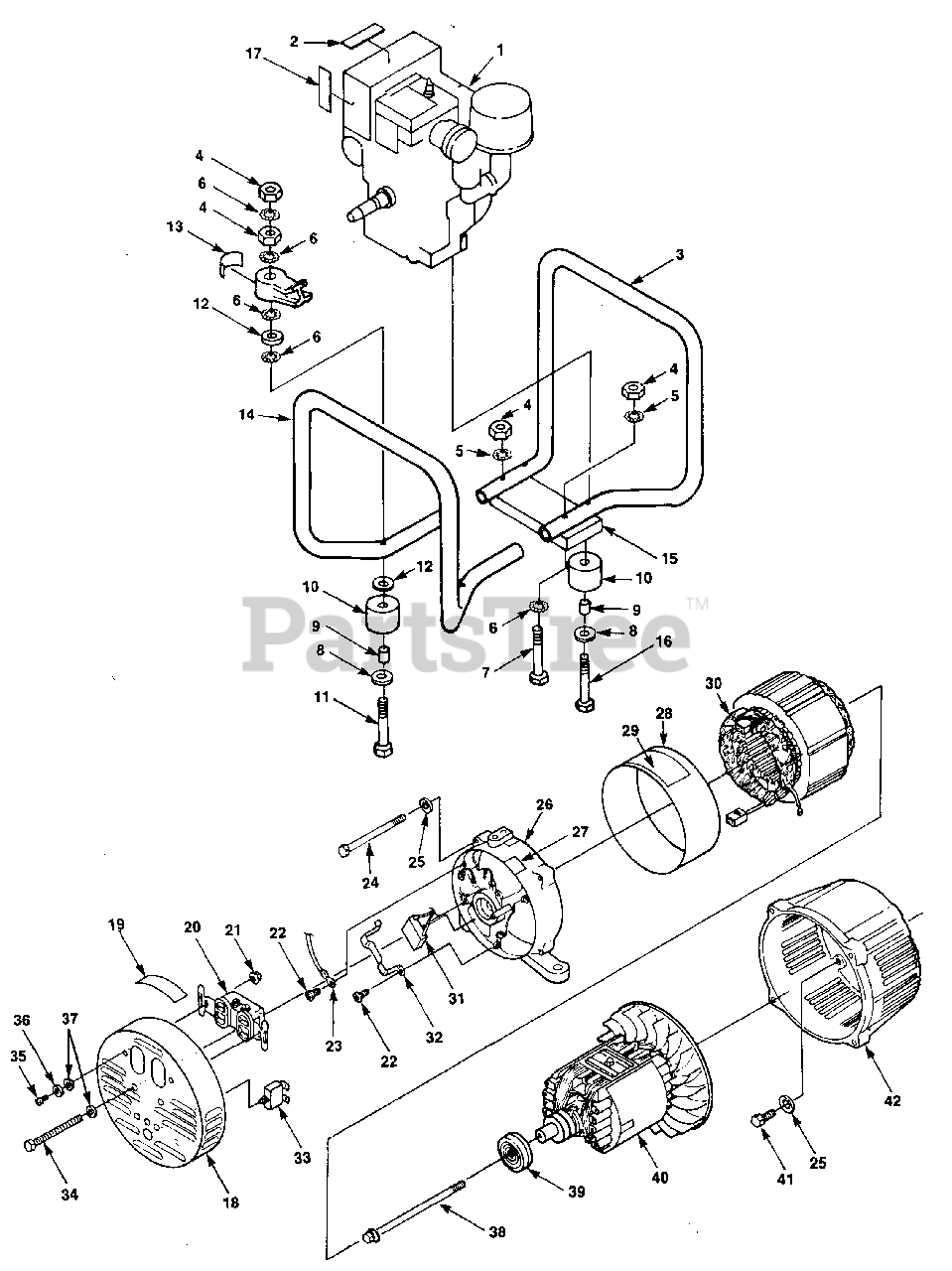

Generator & Frame Parts Diagram

  • Title

1

ENGINE (EH2500)

Note: For engine replacement parts locate the engine brand name, model number, and type number and consult the appropiate dealer in your area.

$

$

Not available

2

Homelite 49613

DECAL- Warning

$

$

Not available

3

Homelite 020271

MEMBER- Frame

Note: (Engine)

$

$

Currently unavailable

4

Homelite 81162

NUT- Hex (5/16-18)

$

$

Not available

5

Homelite 83081

WASHER- Lock int. (5/16")

$

$

Not available

6

Homelite 83033

WASHER- Lock ext./int.
(Superseded to 83081)

$

$

Not available

7

Homelite JA400200

BOLT- Engine (rear)

$

$

Not available

8

Homelite 84046

WASHER- Flat (5/16")

$

$

Not available

9

Homelite 49733

SPACER- Foot

$

$

Not available

10

Homelite 48789

FOOT

$

$

Not available

11

Homelite JA400204

SCREW- Cap hex. hd. (5/16-18 x 3")

$

$

Currently unavailable

12

Homelite 84058

WASHER- Flat (5/16")

$

$

Not available

13

Homelite 49490

DECAL- Ground

$

$

Not available

14

Homelite 020281

FRAME- Member

Note: (generator)

$

$

Currently unavailable

15

Homelite 498421

PLATE- Frame

$

$

Not available

16

Homelite 82530

BOLT- Engine (front)

$

$

Not available

17

Homelite 49598

DECAL- Caution

$

$

Not available

18

Homelite 0120920

END COVER

$

$

Currently unavailable

19

Homelite 49495

DECAL- Warning

$5.49

$

Usually ships in 3-7 days

0

20

Homelite 50991

RECEPTACLE (120V) (HL2500)
(Superseded to UP03497)

$

$

Not available

21

Homelite 81009

NUT- (120V receptacle)

$

$

Not available

22

Homelite 0120911

SCREW- (m5 x 12mm)

Note: (brush holder)

$

$

Currently unavailable

23

Homelite A47610

LEAD- Electrical

Note: (ground)

$

$

Currently unavailable

24

Homelite 0120913

BOLT- Stator

$

$

Currently unavailable

25

Homelite 83033

WASHER- Lock ext./int.
(Superseded to 83081)

$

$

Not available

26

Homelite 0120919

END BELL

$

$

Currently unavailable

27

Homelite 0120910

GROMMET

$6.99

$

Usually ships in 3-7 days

0

28

Homelite 0120918

COVER- Stator

$

$

Currently unavailable

29

Homelite 49641

DECAL- Output

$4.49

$

Usually ships in 3-7 days

0

30

Homelite 0120901

STATOR

$

$

Not available

31

Homelite 0120906

CAPACITOR

$

$

Not available

32

Homelite 0120909

HOLDER- Capacitor

$

$

Not available

33

Homelite 49831

BREAKER- Circuit (20 amp)
(Superseded to 09183)

$

$

Not available

34

Homelite 0120912

BOLT- Cover (m5)

$2.49

$

Usually ships in 3-7 days

0

35

Homelite 80260

SCREW- (120V receptacle)

$

$

Not available

36

Homelite 83022

WASHER- Lock
(Superseded to UP03410)

$

$

Not available

37

Homelite 84111

WASHER- Flat

$

$

Not available

38

Homelite 0120908

BOLT- Rotor

$

$

Not available

39

Homelite 0078244

BEARING- Ball

$

$

Not available

40

Homelite 0120903

ROTOR

$1109.99

$

Usually ships in 3-7 days

0

41

Homelite 80604

SCREW- Hex hd. (3/8-16 x 1")
(Superseded to UP03390)

$

$

Not available

42

Homelite 0120917

ADAPTOR

$

$

Currently unavailable
