HL 80220 - Homelite Electric Pressure Washer Figure A Parts Diagram

Electric Pressure Washer

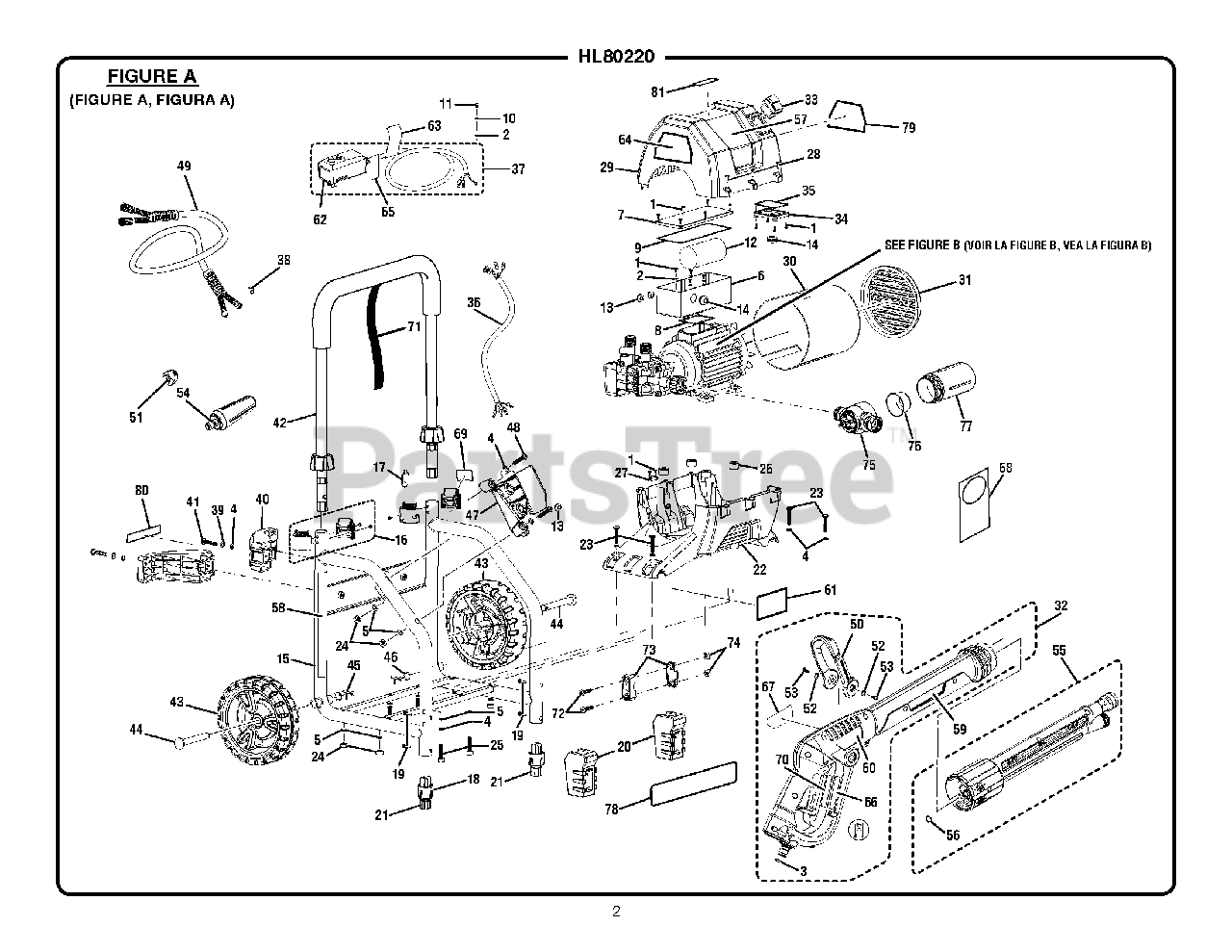

Figure A Parts Diagram

  • Title

1

Homelite 661425002

Screw (M10)

$

$

Not available

2

Homelite 678600006

Washer (M4)

$

$

Not available

3

Homelite 570768001

O-ring

$1.49

$

In Stock, only 2 left!

0

4

Homelite 678823002

Lock Washer (M6)

$

$

Not available

5

Homelite 678370006

Washer (M6)

$

$

Not available

6

Homelite 290429011

Electrical Box

$

$

Not available

7

Homelite 519707003

Electrical Box Cover

$

$

Not available

8

Homelite 570740017

Upper Electrical Box Gasket

$

$

Not available

9

Homelite 290403015

Lower Electrical Box Gasket

$

$

Not available

10

Homelite 678600007

Lock Washer (M4)

$

$

Not available

11

Homelite 661610005

Screw (M4 x 6 mm)

$

$

Not available

12

Homelite 820270003

Capacitor

$

$

Not available

13

Homelite 561383008

Grommet

$

$

Not available

14

Homelite 561383009

Grommet

$

$

Not available

15

Homelite 308582023

Frame (w/Label)

$

$

Not available

16

Homelite 308638024

Handle Clamp Assembly

$

$

Not available

17

Homelite 308910004

Handle Release Button

$

$

Not available

18

Homelite 308909009

Foot

$1.49

$

Usually ships in 3-7 days

0

19

Homelite 661610004

Screw (M4 x 18 mm)

$

$

Not available

20

Homelite 570355004

Foot Cover

$

$

Not available

21

Homelite 570554008

Foot Pad

$

$

Not available

22

Homelite 522038001

Lower Housing (w/Label)

$

$

Not available

23

Homelite 660481014

Screw (M6 x 40 mm)

$

$

Not available

24

Homelite 678460007

Lock Nut (M6)

$

$

Not available

25

Homelite 660481012

Screw (M6 x 35 mm)

$

$

Not available

26

Homelite 638791001

Motor Pad

$

$

Not available

27

Homelite 67819004

Cord Clamp

$

$

Currently unavailable

28

Homelite 661610002

Screw (M3.5 x 20 mm)

$

$

Not available

29

Homelite 522032002

Upper Housing (w/Labels)

$

$

Not available

30

Homelite 519832006

Baffle

$

$

Not available

31

Homelite 522039001

Vent Cover

$

$

Not available

32

Homelite 310425001

Trigger Housing Assembly (w/Labels)
(Superseded to 31123301G)

$

$

Not available

33

Homelite 760504005

Switch

$

$

Not available

34

Homelite 570417002

Switch Cover

$

$

Not available

35

Homelite 570740016

Switch Cover Gasket

$

$

Not available

36

Homelite 290493002

Wiring Harness

$

$

Not available

37

Homelite 290426005

Power Cord Assembly

$

$

Not available

38

Homelite 519858002

Low Pressure Hose Clip

$

$

Not available

39

Homelite 678823002

Washer

$

$

Not available

40

Homelite 522037001

Cord Wrap Arm

$

$

Not available

41

Homelite 660481011

Screw (M6 x 16 mm)

$

$

Not available

42

Homelite 308790024

Handle Assembly

Note: (Incl. Key No. 71)

$

$

Not available

43

Homelite 308451020

Wheel

$

$

Not available

44

Homelite 620599013

Axle

$

$

Not available

45

Homelite 678522012

Pin

$

$

Not available

46

Homelite 638275003

Washer

$

$

Not available

47

Homelite 518955003

Wand Holder Assembly

$

$

Not available

48

Homelite 660481013

Screw (M6 x 38)

$

$

Not available

49

Homelite 308835028

Hose Assembly
(Superseded to 31125301G)

$

$

Not available

50

Homelite 519819002

Low Pressure Trigger

$

$

Not available

51

Homelite 308246004

High Pressure Nozzle

$

$

Not available

52

Homelite 678370007

Washer (M6)

$

$

Not available

53

Homelite 661425001

Screw (M2.9 x 20 mm)

$

$

Not available

54

Homelite 308311008

Turbo Nozzle

$

$

Not available

55

Homelite 308494031

Lance Assembly

$

$

Not available

56

Homelite 120442002

O-ring

$1.49

$

In Stock, only 2 left!

0

57

Homelite 940779032

Performance Label

$

$

Not available

58

Homelite 940620007

Quick Start Label

$

$

Not available

59

Homelite 940870001

HydroSurge Trigger Handle Label

$

$

Not available

60

Homelite 940324007

Trigger Handle Logo Label

$

$

Not available

61

Homelite 940678129

Data Label

$

$

Not available

62

Homelite 940971051

GFCI Reset Label

$

$

Not available

63

Homelite 940324013

Warning Label (UL)

$1.49

$

Usually ships in 3-7 days

0

64

Homelite 940707009

Danger Label

$

$

Not available

65

Homelite 940604001

California Proposition 65 Label

$

$

Not available

66

Homelite 940779008

Trigger Handle Specifications Label

$

$

Not available

67

Homelite 940324005

Trigger Handle Warning Label

$

$

Not available

68

Homelite 940971052

G-Clean Hang Tag

$

$

Currently unavailable

69

Homelite 940758010

Handle Release Label

$

$

Not available

70

Homelite 940654087

Wand Warning Label (FR/SP)

$

$

Not available

71

Homelite 310765003

Hose Strap

$

$

Not available

72

Homelite 661426001

Clamp screw

$

$

Not available

73

Homelite 678890001

G-Clean Clamp

$

$

Not available

74

Homelite 678891001

Clamp nut

$

$

Not available

75

Homelite 309024005

G-Clean Assembly

Note: (Inc. Key Nos. 76-77)

$

$

Not available

76

Homelite 678981001

Mesh Filter

$

$

Not available

77

Homelite 519840004

Detergent Container

$

$

Not available

78

Homelite 940869001

Front Panel Label

$

$

Not available

79

Homelite 940707027

Danger (FR)

$

$

Not available

80

Homelite 940604005

Homelite Inquires Label

$

$

Not available

81

Homelite 940324014

Hydrosurge Label

$

$

Not available

Homelite 987000904

Operator's Manual

Note: Not Shown

$

$

Not available

Homelite 987000906

Assembly Guide

Note: Not Shown

$

$

Currently unavailable
