HL 80923 - Homelite 3,100 PSI Pressure Washer General Assembly Parts Diagram

3,100 PSI Pressure Washer

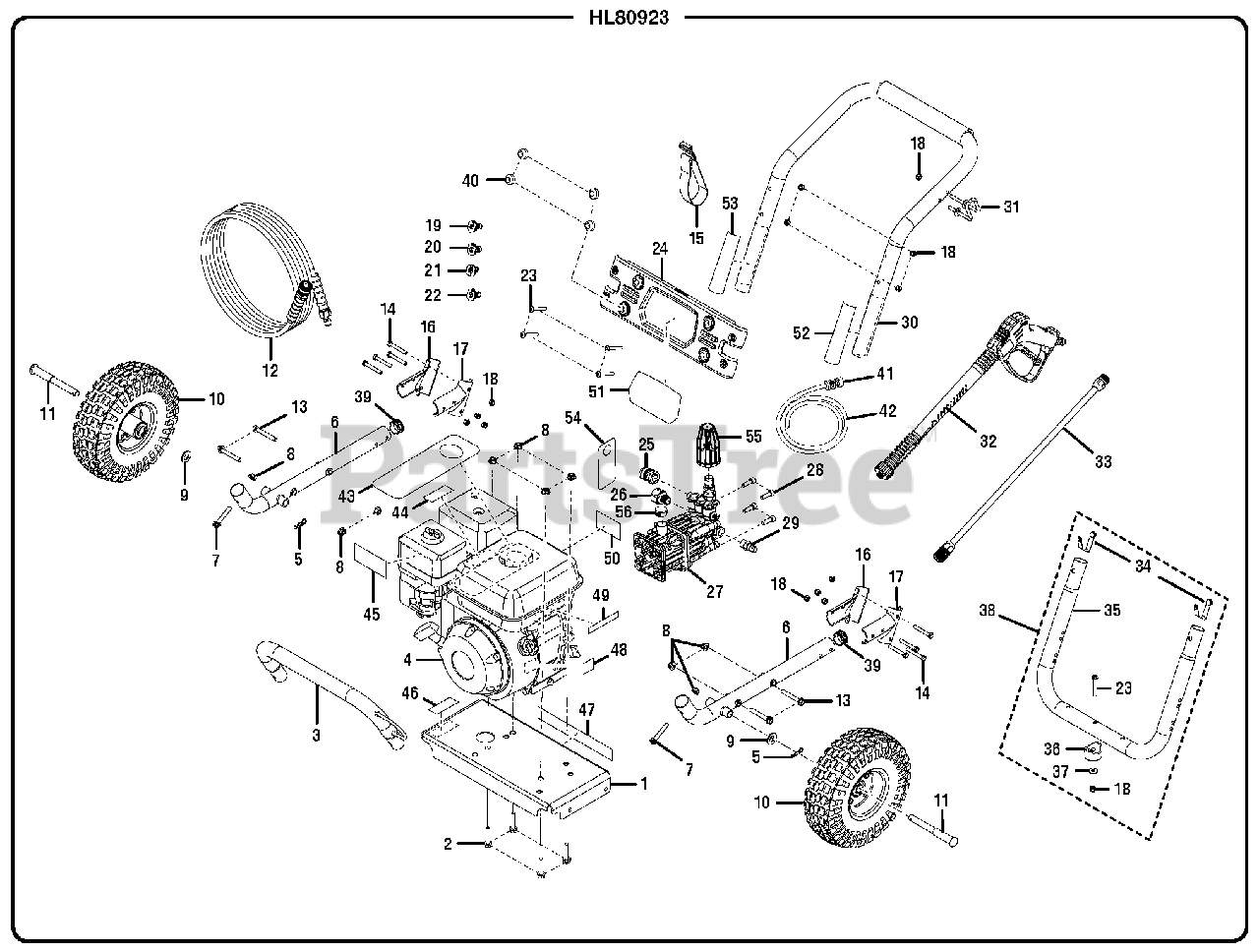

General Assembly Parts Diagram

  • Title

1

Homelite 638662010

Engine Plate

$

$

Not available

2

Homelite 661505005

Bolt (M8 x 36 mm, Flange Hd.)

$2.49

$

Usually ships in 3-7 days

0

3

Homelite 308659011

Front Frame

$

$

Not available

4

Engine (Honda GX200)

$

$

Not available

5

Homelite 678146004

Hitch Pin

$

$

Not available

6

Homelite 308582018

Main Frame Assembly

$

$

Not available

7

Homelite 661505004

Bolt (M8 x 45 mm, Flange Hd.)

$2.49

$

In Stock, Qty 5

0

8

Homelite 678774001

Lock Nut (M8 x 1-1/4 in.)

$2.49

$

Usually ships in 3-7 days

0

9

Homelite 638275002

Washer (1/2 in.)

$2.49

$

In Stock, Qty 5

0

10

Homelite 308451012

Wheel (10 in. x 13 in.)

$

$

Not available

11

Homelite 620599008

Axle

$

$

Not available

12

Homelite 308835021

High Pressure Hose (30 ft.)
(Superseded to 308835026)

$121.99

$

Usually ships in 3-7 days

0

13

Homelite 660962001

Bolt w/Washer (M8 x 55 mm, Hex Hd.)
(Superseded to 660969001)

$2.49

$

Usually ships in 3-7 days

0

14

Homelite 660869005

Bolt (1/4 x 52 mm, Hex Hd.)

$2.49

$

Usually ships in 3-7 days

0

15

Homelite 310801001

Hose Storage Strap (Velcro)

$3.49

$

Usually ships in 3-7 days

0

16

Homelite 638577001

Handle Bracket (Left)

$

$

Not available

17

Homelite 638578001

Handle Bracket (Right)

$

$

Not available

18

Homelite 678016006

Lock Nut (1/4-20)
(Superseded to 678016002)

$

$

Not available

19

Homelite 308697017

0 Degree Nozzle

$9.99

$

Usually ships in 3-7 days

0

20

Homelite 308699017

25 Degree Nozzle

$

$

Not available

21

Homelite 308706006

Soap Nozzle

$2.99

$

Usually ships in 3-7 days

0

22

Homelite 308700017

40 Degree Nozzle

$6.99

$

Usually ships in 3-7 days

0

23

Homelite 661501001

Screw (1/4-20 x 2 in., T30, Torx Hd.)

$

$

Not available

24

Homelite 310673008

Hose and Nozzle Holder Assembly

Note: (Incl. Key Nos. 40 & 51)

$21.99

$

Usually ships in 3-7 days

0

25

Homelite 308661004

Quick Disconnect (3/8 in.)

$

$

Not available

26

Homelite 308405002

Adaptor

$8.99

$

Usually ships in 3-7 days

0

27

Homelite 308653017

Pump

Note: (Incl. Key Nos. 55-56)

$

$

Not available

28

Homelite 660739003

Hex Bolt (5/16 x 23 mm)

$

$

Not available

29

Homelite 678169005

Thermal Relief Valve

$13.99

$

Usually ships in 3-7 days

0

30

Homelite 308638015

Handle w/Grip Assembly

$

$

Not available

31

Homelite 308316002

Wand Holder

$

$

Not available

32

Homelite 308760010

Trigger Handle Assembly

$157.99

$

Usually ships in 3-7 days

0

33

Homelite 308494004

Wand
(Superseded to 308494058)

$

$

Not available

34

Homelite 308421004

Spring Clip Assembly

$2.49

$

Usually ships in 3-7 days

0

35

Homelite 638546002

Rear Frame
(Superseded to 310774002)

$

$

Not available

36

Homelite 570554002

Wear Pad

$2.49

$

Usually ships in 3-7 days

0

37

Homelite 638128004

Washer (1/4 in.)

$2.49

$

In Stock, Qty 5

0

38

Homelite 310774002

Rear Tube Assembly

$

$

Not available

39

Homelite 518932001

Handle Tube Cap

$1.49

$

Usually ships in 3-7 days

0

40

Homelite 561383004

Rubber Grommets

$

$

Not available

41

Homelite 518391001

Chemical Siphon Filter

$2.49

$

In Stock, only 1 left!

0

42

Homelite 561399003

Chemical Siphon Tube

$3.49

$

In Stock, Qty 7

0

43

Homelite 940917038

Hang Tag (Oil)

$

$

Currently unavailable

44

Homelite 940778007

Hot Muffler Label

$

$

Not available

45

Homelite 940779027

Performance Label (Air Box)

$

$

Currently unavailable

46

Homelite 940707028

Warning Label

$2.49

$

Usually ships in 3-7 days

0

47

Homelite 940599021

Data Label

$

$

Currently unavailable

48

Homelite 940654088

UL Fire Warning Label

$2.49

$

Usually ships in 3-7 days

0

49

Homelite 940708007

Low Oil Label

$

$

Not available

50

Homelite 940608006

Honda Logo

$

$

Currently unavailable

51

Homelite 940779018

Performance Label (Upper Accessory)

$

$

Not available

52

Homelite 940617063

Engine Quick Start Label

$

$

Not available

53

Homelite 940617049

Quick Start Pump Label

$

$

Not available

54

Homelite 940716003

Vent Cap Hang Tag

$

$

Currently unavailable

55

Homelite 518683002

Pressure Adjustment Knob

$

$

Currently unavailable

56

Homelite 521549001

Vent Cap

$

$

Not available

Homelite 901606020

Power Care Oil (SAE 10W 30)

Note: Not Shown

$

$

Currently unavailable

Homelite 120900099

Pump O-Ring Kit

Note: Not Shown

$

$

Currently unavailable

Homelite 308452002

Soap Injector Kit

Note: Not Shown

$6.99

$

In Stock, Qty 6

0

Homelite 987000556

Operator's Manual

Note: Not Shown

$

$

Not available
