HLCA 80710 - Homelite Pressure Washer General Assembly (Part 1) Parts Diagram

Pressure Washer

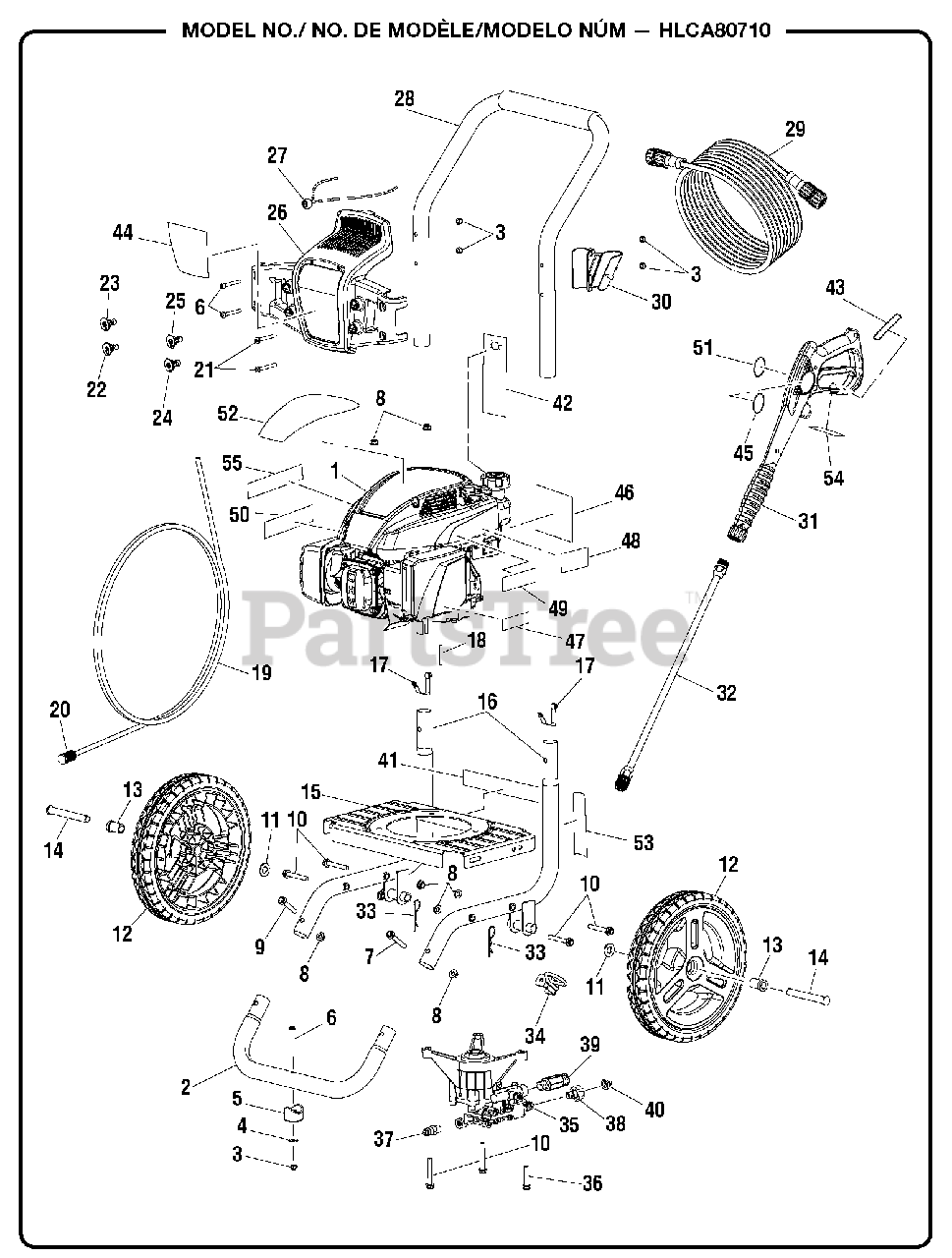

General Assembly (Part 1) Parts Diagram

  • Title

1

Homelite 308655003

163 cc Engine

$

$

Not available

2

Homelite 308659013

Front Frame
(Superseded to 310742002)

$

$

Not available

3

Homelite 678016006

Lock Nut (1/4-20)
(Superseded to 678016002)

$1.49

$

In Stock, only 2 left!

0

4

Homelite 638128004

Washer (1/4 in.)

$1.49

$

In Stock, Qty 5

0

5

Homelite 570554002

Wear Pad

$1.49

$

In Stock, Qty 5

0

6

Homelite 661501001

Screw (1/4-20 x 1.85 in., Torx)

$

$

Not available

7

Homelite 661505003

Bolt (M8 x 50 mm)

$1.49

$

Usually ships in 3-7 days

0

8

Homelite 678774001

Lock Nut (M8 x 1-1/4 in.)

$1.49

$

Usually ships in 3-7 days

0

9

Homelite 661505004

Bolt (M8 x 45 mm)

$1.49

$

In Stock, only 1 left!

0

10

Homelite 660962001

Bolt (M8 x 55 mm)
(Superseded to 660969001)

$

$

Not available

11

Homelite 638275002

Washer (1/2 in.)

$1.49

$

Usually ships in 3-7 days

0

12

Homelite 308451006

Wheel (12 in. x 2 in.)
(Superseded to 308451019)

$

$

Not available

13

Homelite 519857001

Axle Sleeve

$

$

Not available

14

Homelite 620599007

Axle

$2.49

$

In Stock, only 2 left!

0

15

Homelite 638662003

Engine Plate

$32.99

$

Usually ships in 3-7 days

0

16

Homelite 310742002

Main Frame Assembly (Inc. Key No. 17)

$

$

Not available

17

Homelite 308421001

Lock Button w/Spring Clip
(Superseded to 308421004)

$

$

Not available

18

Homelite 678041002

Output Shaft Key
(Superseded to 678041007)

$1.49

$

Usually ships in 3-7 days

0

19

Homelite 561399003

Injection Hose

$1.99

$

In Stock, only 1 left!

0

20

Homelite 518391001

Filter

$1.49

$

In Stock, only 3 left!

0

21

Homelite 661501007

Screw (1/4-20 x 2 in., Torx)

$1.49

$

Usually ships in 3-7 days

0

22

Homelite 308700012

40deg Nozzle

$12.99

$

Usually ships in 3-7 days

0

23

Homelite 308697012

0deg Nozzle
(Superseded to 308697014)

$9.49

$

Usually ships in 3-7 days

0

24

Homelite 308699012

25deg Nozzle

$4.49

$

In Stock, only 2 left!

0

25

Homelite 308706006

Detergent Nozzle

$2.99

$

Usually ships in 3-7 days

0

26

Homelite 310673006

Storage Holder (4 Nozzle)

$

$

Not available

27

Homelite 310664001

Bungee Cord and Bead Assembly

$2.49

$

Usually ships in 3-7 days

0

28

Homelite 308638014

Handle Assembly

$

$

Not available

29

Homelite 308835006

High Pressure Hose (25 ft.)

$33.99

$

Usually ships in 3-7 days

0

30

Homelite 519313002

Upper Wand Holder
(Superseded to 519313007)

$1.49

$

Usually ships in 3-7 days

0

31

Homelite 308760007

Trigger Handle Assembly
(Superseded to 308760019)

$27.99

$

In Stock, only 1 left!

0

32

Homelite 308494003

Spray Wand
(Superseded to 308494004)

$

$

Not available

33

Homelite 678238001

Hitch Pin

$1.49

$

In Stock, only 3 left!

0

34

Homelite 678243005

Lower Wand Holder

$

$

Not available

35

Homelite 308653006

Pump (Incl. Key Nos. 38-40)
(Superseded to 308653093)

$170.99

$

Usually ships in 3-7 days

0

36

Homelite 660764002

Bolt (M8 x 40 mm Hex Hd.)

$

$

Not available

37

Homelite 678169004

Thermal Release Valve

$

$

Not available

38

Homelite 308861003

Inlet Tube

$12.99

$

Usually ships in 3-7 days

0

39

Homelite 308862003

Outlet Tube

$5.49

$

Usually ships in 3-7 days

0

40

Homelite 308662001

Filter Screen

$

$

Not available

41

Homelite 940678107

Data Label

$1.49

$

Usually ships in 3-7 days

0

42

Homelite 940971021

Hang Tag (Engine Oil Fill)

$

$

Not available

43

Homelite 940786006

Wand Label (Max Rating)

$

$

Not available

44

Homelite 940779023

Performance Label

$1.99

$

Usually ships in 3-7 days

0

45

Homelite 940654084

Trigger Handle Warning Label

$1.99

$

Usually ships in 3-7 days

0

46

Homelite 940654119

Warning Label

$1.49

$

Usually ships in 3-7 days

0

47

Homelite 940617066

Engine Quick Start Label

$1.49

$

Usually ships in 3-7 days

0

48

Homelite 940698007

Switch Label (Engine Off)

$

$

Not available

49

Homelite 940947003

Warning Label (Combustion)

$

$

Not available

50

Homelite 940680027

Hot Surface Label

$1.49

$

Usually ships in 3-7 days

0

51

Homelite 940786016

Wand Label

$1.49

$

Usually ships in 3-7 days

0

52

Homelite 940972004

Engine Label

$

$

Not available

53

Homelite 940617067

Pump Quick Start Label

$1.49

$

Usually ships in 3-7 days

0

54

Homelite 940654089

Warning Label (French/Spanish)

$1.49

$

In Stock, only 1 left!

0

55

Homelite 940803018

EMC Label

$1.49

$

Usually ships in 3-7 days

0

Homelite 308452002

Detergent Suction Kit

Note: (Not Shown)

$3.49

$

Usually ships in 3-7 days

0

Lubricant (SAE 10W30)

Note: (Not Shown)

$

$

Not available

Homelite 987000740

Operator's Manual

Note: (Not Shown)

$

$

Currently unavailable
