HLCA 80710 - Homelite Pressure Washer General Assembly (Part 2) Parts Diagram

Pressure Washer

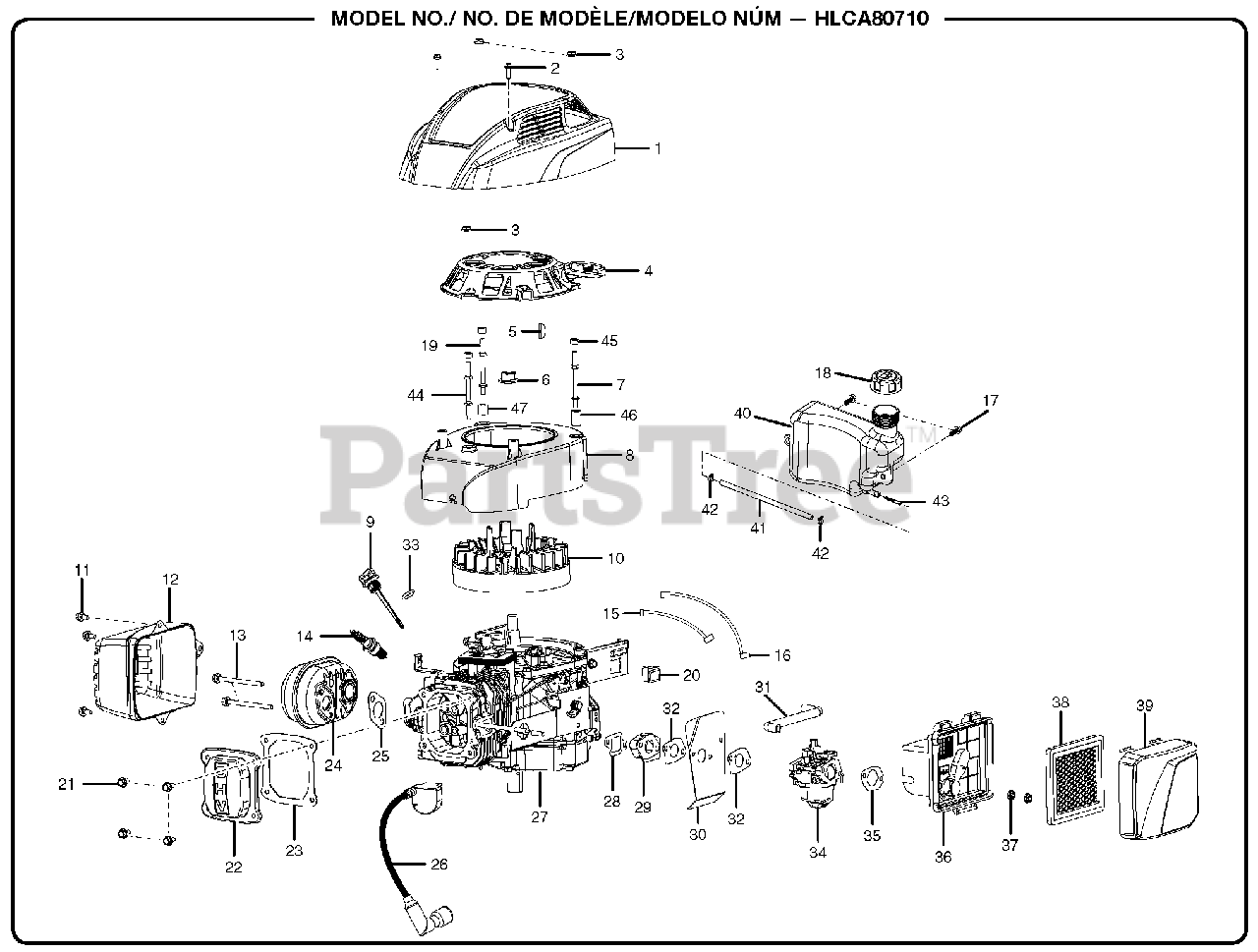

General Assembly (Part 2) Parts Diagram

  • Title

1

Homelite 099980153001

Engine Cover

$

$

Not available

2

Homelite 099980131003

Bolt (Engine Cover)

$

$

Not available

3

Homelite 099980131006

Hex Nut (Starter)

$

$

Not available

4

Homelite 099980130003

Starter w/Recoil Assembly

$32.99

$

Usually ships in 3-7 days

0

5

Homelite 099980128008

Key

$

$

Not available

6

Homelite 099980136001

Flywheel Nut

$

$

Not available

7

Homelite 099980131007

Stud A

$3.99

$

In Stock, only 1 left!

0

8

Homelite 099980131002

Engine Shroud

$

$

Not available

9

Homelite 099980126004

Oil Dip Stick Assembly

$

$

Not available

10

Homelite 099980136

Flywheel Assembly

$

$

Not available

11

Homelite 099980134004

Bolt (Muffler Cover)

$

$

Not available

12

Homelite 099980134001

Muffler Cover

$

$

Not available

13

Homelite 099980134005

Muffler Bolt

$

$

Not available

14

Homelite 099980153002

Spark Plug

$17.99

$

Usually ships in 3-7 days

0

15

Homelite 099980136010

Ground Wire

$

$

Not available

16

Homelite 099980136012

Coil Wire

$

$

Not available

17

Homelite 099980135005

Bolt (Fuel Tank)

$

$

Not available

18

Homelite 099980135009

Fuel Cap

$5.49

$

Usually ships in 3-7 days

0

19

Homelite 099980131005

Stud C

$

$

Not available

20

Homelite 099980136011

Switch

$10.99

$

Usually ships in 3-7 days

0

21

Homelite 099980125005

Bolt (Valve Cover)

$

$

Not available

22

Homelite 099980125001

Valve Cover

$

$

Not available

23

Homelite 099980125002

Valve Cover Gasket

$

$

Not available

24

Homelite 099980134002

Muffler

$

$

Not available

25

Homelite 099980134003

Muffler Gasket

$

$

Not available

26

Homelite 099980153003

Ignition Coil

$

$

Not available

27

Homelite 099980126

Crankcase Assembly
(Superseded to 309591018)

$

$

Not available

28

Homelite 099980132001

Gasket (Insulator Plate)

$

$

Not available

29

Homelite 099980132002

Insulator Plate

$3.49

$

Usually ships in 3-7 days

0

30

Homelite 099980132004

Gasket (Insulator Plate)

$

$

Not available

31

Homelite 099980133002

Breather Tube

$

$

Not available

32

Homelite 099980132003

Gasket (Carburateur)

$

$

Not available

33

Homelite 099980126002

Seal Ring
(Superseded to 099980126004)

$

$

Not available

34

Homelite 099980132005

Carburateur Assembly

$

$

Not available

35

Homelite 099980132023

Gasket (Air Filter)

$

$

Not available

36

Homelite 099980133004

Air Filter Case

$12.99

$

Usually ships in 3-7 days

0

37

Homelite 099980133005

Hex Nut (Air Filter)

$

$

Not available

38

Homelite 099980133006

Air Filter

$13.99

$

Usually ships in 3-7 days

0

39

Homelite 099980133007

Air Filter Cover

$14.99

$

In Stock, only 1 left!

0

40

Homelite 099980135001

Fuel Tank

$

$

Not available

41

Homelite 099980135008

Fuel Tube

$

$

Not available

42

Homelite 099980135007

Clamp (Fuel Tube)

$1.49

$

Usually ships in 3-7 days

0

43

Homelite 099980135006

Fuel Filter

$1.49

$

Usually ships in 3-7 days

0

44

Homelite 099980131004

Stud B

$3.49

$

In Stock, only 1 left!

0

45

Homelite 099980131008

Bushing (Engine Shroud)

$

$

Not available

46

Homelite 099980131009

Bushing (Tall)

$

$

Not available

47

Homelite 099980131010

Bushing (Short)

$

$

Not available
