HLT 18 (UT-20584) - Homelite String Trimmer Boom & Head Parts Diagram

String Trimmer

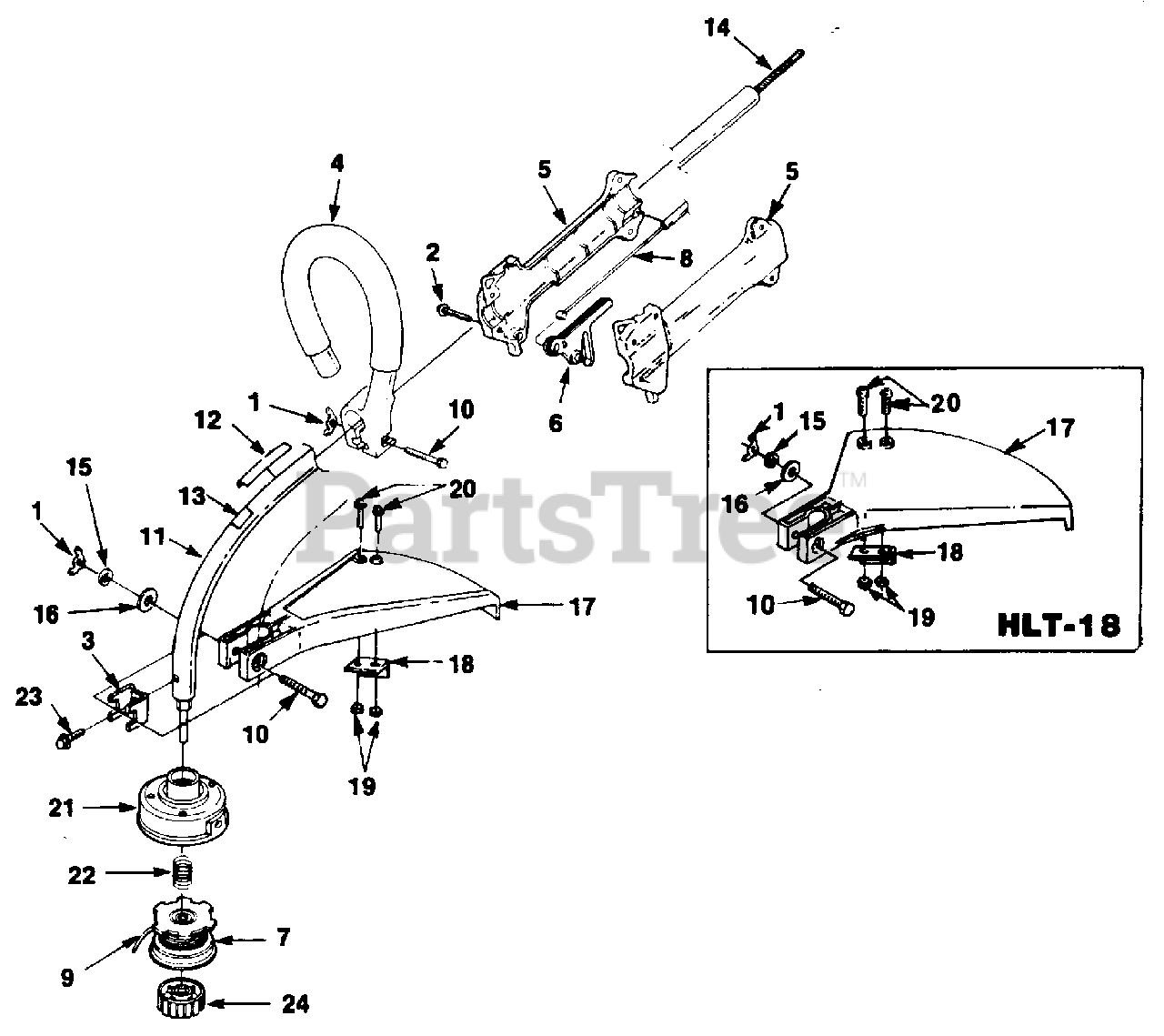

Boom & Head Parts Diagram

  • Title

1

Homelite 93932

NUT-Wing

$

$

Not available

2

Homelite 82368

SCREW- Plastite (#8 x 3/4")
(Superseded to PS00055)

$

$

Not available

3

Homelite 98853

CLAMP
(Superseded to 07928)

$

$

Not available

4

Homelite A98525

HANDLE- Front

$

$

Currently unavailable

5

Homelite A00879

HANDLE GRIP ASSEMBLY

$

$

Not available

6

Homelite 98772A

TRIGGER
(Superseded to UP04558)

$

$

Not available

7

Homelite DA02598A

SPOOL & STRING

$

$

Currently unavailable

8

Homelite A03006

CABLE

$

$

Not available

9

Homelite 0395903

LINE- Replacement (.095" Dia.) (1 lb.)
(Superseded to D06514)

$

$

Not available

10

Homelite 80295

SCREW (1/4-20 x 2")

$2.99

$

Usually ships in 3-7 days

0

11

Homelite A03182B

HOUSING-Driveshaft

$

$

Currently unavailable

12

Homelite 989231

DECAL

$

$

Currently unavailable

13

Homelite 02985

DECAL- Warning
(Superseded to 983751001)

$

$

Not available

14

Homelite 98816

SHAFT- Flexible
(Superseded to PS01502)

$

$

Not available

15

Homelite 83009

LOCKWASHER (1/4")

$4.99

$

Usually ships in 3-7 days

0

16

Homelite 84006

WASHER- Flat (1/4")

$

$

Not available

17

Homelite 98821

DEFLECTOR- Grass
(Superseded to T308744001)

$

$

Not available

Homelite 02610

DEFLECTOR- Grass (HLT-18 only)
(Superseded to UP06572A)

$

$

Not available

18

Homelite A03832

BLADE- Cut-off (HLT-16 Only)
(Superseded to UP04119)

$

$

Not available

Homelite A03833

BLADE- Cut-Off (HLT-18 Only)

$

$

Not available

19

Homelite 81261

NUT (10-24)

$

$

Not available

20

Homelite 82531

SCREW (10-24 x 1")
(Superseded to 660616001)

$

$

Not available

21

Homelite A98231A

HOUSING & EYELET- Dual line
(Superseded to 099068001005)

$

$

Not available

22

Homelite 98848

SPRING- Compression
(Superseded to UP06526)

$1.49

$

In Stock, only 2 left!

0

23

Homelite 88077

SCREW (10-24 x 3/8")
(Superseded to PS05243)

$

$

Not available

24

Homelite DA98866A

RETAINER- Spool (R.H. Thread)
(Superseded to UP04273A)

$

$

Not available
