HM 20 P5 (UT-30153) - Homelite 20" Mulcher Walk-Behind Mower Mower Parts Diagram

20" Mulcher Walk-Behind Mower

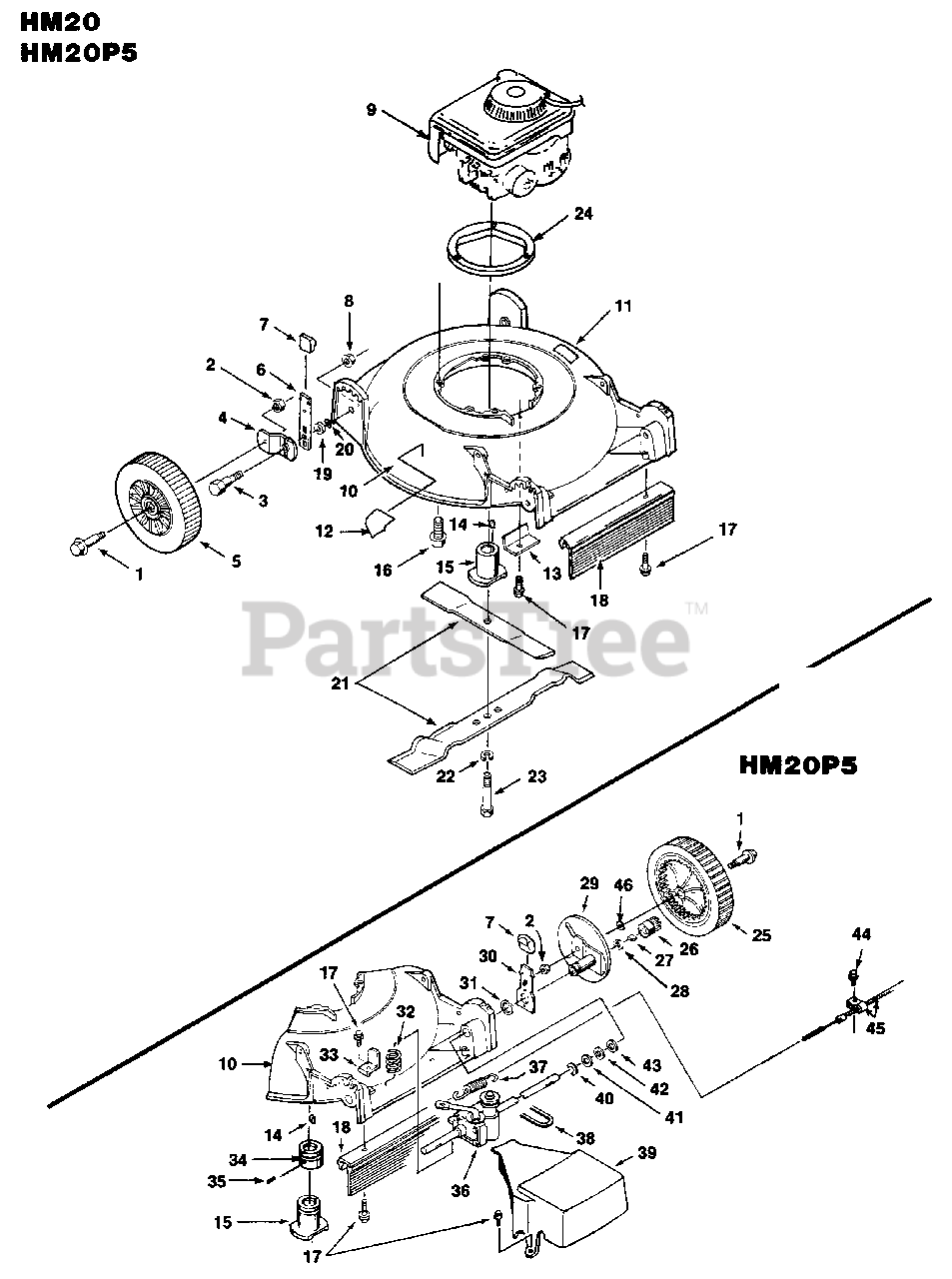

Mower Parts Diagram

  • Title

1

Homelite JA992138

AXLE ASSY.
(Superseded to UP06685)

$

$

Currently unavailable

2

Homelite JA444850

HEX NUT (CM20P4) TBO
(Superseded to JA993711)

$

$

Not available

3

Homelite JA359180

Bolt, TBO

$

$

Not available

4

Homelite JA991287

ARM - Wheel hgt. adj.
(Superseded to GP031455)

$

$

Currently unavailable

5

Homelite JA993958

WHEEL & TIRE
(Superseded to UP06670)

$

$

Not available

6

Homelite JA990087

Index Front Spring, Tbo
(Superseded to GP586051)

$22.99

$

Usually ships in 3-7 days

0

7

Homelite JA336623

KNOB
(Superseded to UP06697)

$

$

Not available

8

Homelite JA445775

HEX WASHER NUT-TBO
(Superseded to UP06674)

$

$

Not available

9

$

$

Not available

10

Homelite JA994968

Note: Not Used On This Model

$

$

Currently unavailable

Homelite JA994704

DECK- 20"

$

$

Currently unavailable

11

Homelite JA994751

DECAL- Warning

$

$

Currently unavailable

12

Homelite JA992264

DECAL-CPSC

$

$

Not available

13

Homelite JA994703

Cover - belt opening

Note: Not Used On This Model

$

$

Currently unavailable

14

Homelite JA463029

KEY TBO

$

$

Not available

15

Homelite JA994701

ADAPTER
(Superseded to UP06696)

$

$

Not available

16

Homelite JA408876

Bolt - hex 3/8-16 x 1 1/2

$

$

Not available

17

Homelite JA408878

SCREW - 1/4-20 x 3/4" Hex Tap

$

$

Not available

18

Homelite JA336644

DEFLECTOR TBO

$

$

Not available

19

Homelite JA358362

SPACER - Wheel hgt. adj.

$

$

Not available

20

Homelite JA453009

FLAT WASHER(HSD'S) TBO
(Superseded to UP07173)

$

$

Not available

21

Homelite JA519009

$

$

Currently unavailable

22

Homelite JA446142

WASHER - Lock 3/8"

$

$

Not available

23

Homelite JA401209

Screw-Hex hd. 3/8-24 x 2"

$

$

Currently unavailable

24

Homelite JA994311

RING - Engine

$

$

Not available

25

Homelite JA993975

DRIVE WHEEL TBO

$

$

Not available

26

Homelite JA204244

PINION- R.H.

$

$

Not available

Homelite JA204245

PINION- L.H.

$

$

Currently unavailable

27

Homelite JA313659

PAWL TBO

$

$

Not available

28

Homelite JA351077

WASHER-TBO

$

$

Not available

29

Homelite JA990074

DRIVE WHEEL SUPPORT-TBO
(Superseded to GP095304)

$

$

Not available

30

Homelite JA991288

INDEX SPRING-TBO

$

$

Not available

31

Homelite JA359141

SPACER - Rear hgt. adj.

$

$

Not available

32

Homelite JA359469

SPRING

$

$

Currently unavailable

33

Homelite JA359230

Bracket - Transmission

$

$

Currently unavailable

34

Homelite JA991819

PULLEY- Drive

$

$

Currently unavailable

35

Homelite JA422505

Screw - set 1/4-20 x 3/8

$

$

Not available

36

Homelite JA990529

HOUSING - Gear box

$

$

Currently unavailable

37

Homelite JA375748

SPRING - Ext.

$

$

Not available

38

Homelite JA390165

BELT
(Superseded to UP07148)

$

$

Not available

39

Homelite JA395078

COVER- Drive

$

$

Not available

40

Homelite JA458451

RING TBO

$1.99

$

Usually ships in 3-7 days

0

41

Homelite JA353406

WASHER

$

$

Not available

42

Homelite JA328147

WASHER

$

$

Not available

43

Homelite JA454037

WASHER

$

$

Not available

44

Homelite JA416908

BOLT
(Superseded to JA416911)

$

$

Currently unavailable

45

Homelite JA994965

Pulley - drive

$

$

Currently unavailable

46

Homelite JA359500

WASHER

$

$

Not available
