HM 20 (UT-30139-A) - Homelite 20" Mulcher Walk-Behind Mower Mower Parts Diagram

20" Mulcher Walk-Behind Mower

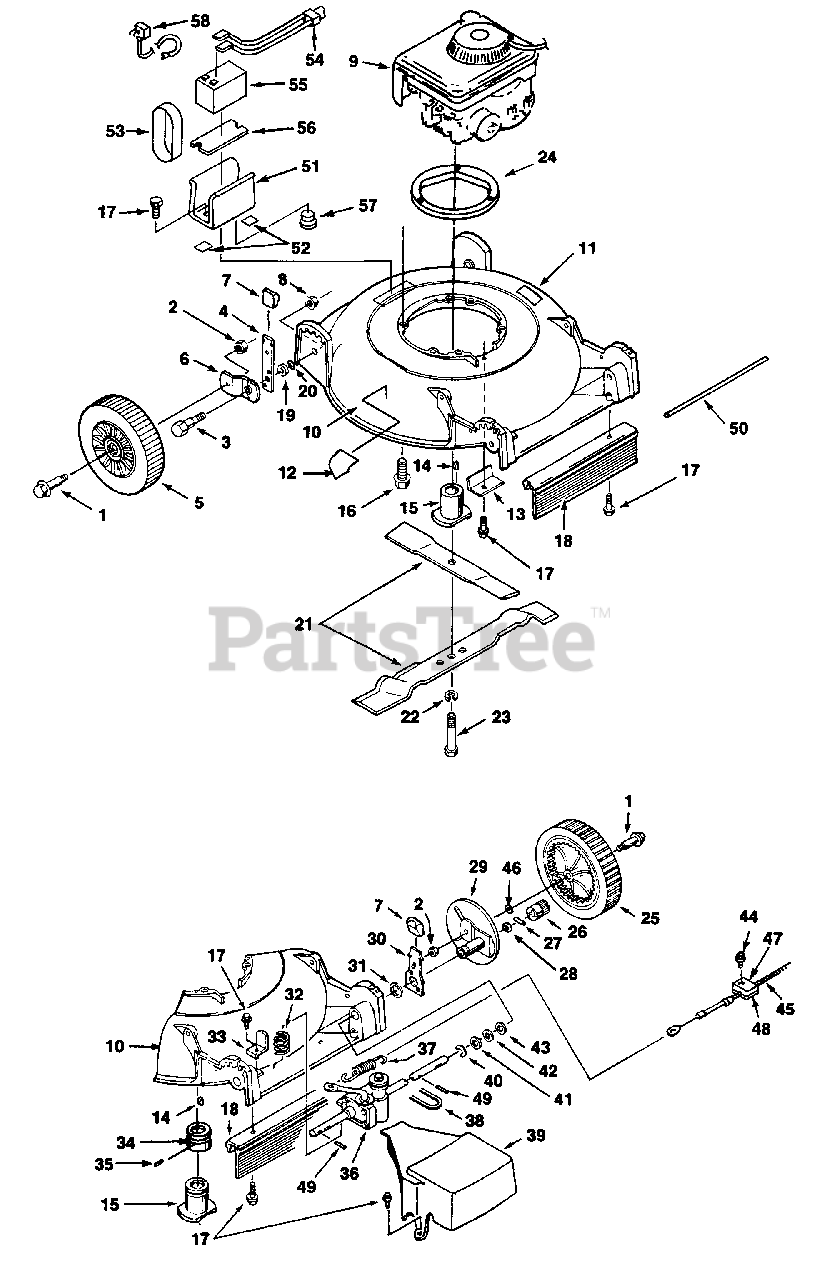

Mower Parts Diagram

  • Title

1

Homelite JA992138

SUPPORT- Axle
(Superseded to UP06685)

$

$

Currently unavailable

2

Homelite JA444850

NUT
(Superseded to JA993711)

$

$

Not available

3

Homelite JA359180

BOLT- Height adjusting

$

$

Not available

4

Homelite JA993658

INDEX SPRING & PIN
(Superseded to GP588452)

Note: (Front Left & Back Right)

$

$

Not available

Homelite JA993657

INDEX SPRING & PIN
(Superseded to GP588451)

Note: (Front Right & Back Left)

$

$

Currently unavailable

5

Homelite JA993958

WHEEL & TIRE
(Superseded to UP06670)

$

$

Not available

6

Homelite JA991287

ARM- Wheel adjusting
(Superseded to GP031455)

$

$

Currently unavailable

7

Homelite JA336623

KNOB- index spring
(Superseded to UP06697)

$

$

Not available

8

Homelite JA445775

NUT- Flange
(Superseded to UP06674)

$

$

Not available

9

ENGINE

Note: For engine replacement parts, locate the engine brand name, model number, and type number and consult the appropriate dealer in your area.

$

$

Not available

10

Homelite JA994704

DECK- 20"

$

$

Currently unavailable

11

Homelite JA994751

DECAL- Warning

$

$

Currently unavailable

12

Homelite JA992264

DECAL- CPSC

$

$

Not available

13

Homelite JA994703

COVER- Belt opening

$

$

Currently unavailable

14

Homelite JA463029

KEY- Woodruff

$

$

Not available

15

Homelite JA994701

ADAPTOR- Blade
(Superseded to UP06696)

$

$

Not available

16

Homelite JA408876

SCREW- (3/8-16 x 1 1/2")

$

$

Not available

17

Homelite JA408878

SCREW- (3/8-16 x 3/4")

$

$

Not available

18

Homelite JA994999

DEFLECTOR

$

$

Currently unavailable

19

Homelite JA358362

SPACER- Height adjusting

$

$

Not available

20

Homelite JA453009

WASHER- Flat (5/16")
(Superseded to UP07173)

$

$

Not available

21

Homelite A03408

BLADE KIT

$

$

Not available

22

Homelite JA446142

WASHER- Lock (3/8")

$

$

Not available

23

Homelite JA401209

SCREW- Hex hd. (3/8-24 x 2")

$

$

Currently unavailable

24

Homelite JA994311

RING- Engine

$

$

Not available

25

Homelite JA993975

WHEEL & TIRE

$

$

Not available

26

Homelite JA994800

PINION- R.H.

$

$

Not available

Homelite JA994801

PINION- L.H.

$

$

Currently unavailable

27

Homelite JA994740

PIN- Drive

$

$

Currently unavailable

28

Homelite JA351077

WASHER- Thrust (9/16 x 1 1/8")

$

$

Not available

29

Homelite JA990074

SUPPORT- Drive wheel
(Superseded to GP095304)

$

$

Not available

30

INDEX SPRING & PIN

Note: Not used on this product.

$

$

Not available

31

SPACER- Rear

$

$

Not available

32

Homelite JA359469

SPRING

$

$

Currently unavailable

33

Homelite JA359230

BRACKET

$

$

Currently unavailable

34

Homelite JA991819

PULLEY- Drive

$

$

Currently unavailable

35

Homelite JA422505

SCREW

$

$

Not available

36

Homelite JA994995

REDUCER- Gear

$

$

Currently unavailable

37

Homelite JA375748

SPRING- Extension

$

$

Not available

38

Homelite JA993790

BELT- Traction
(Superseded to GP116780)

$

$

Not available

39

Homelite JA395078

COVER- Drive

$

$

Not available

40

Homelite JA458451

RING- Eaton

$3.49

$

Usually ships in 3-7 days

0

41

Homelite JA353406

WASHER

$

$

Not available

42

Homelite JA328147

WASHER

$

$

Not available

43

Homelite JA454037

WASHER

$

$

Not available

44

Homelite JA416908

BOLT
(Superseded to JA416911)

$

$

Currently unavailable

45

Homelite JA990535

TRACTION CABLE

$

$

Currently unavailable

46

Homelite JA359500

WASHER

$

$

Not available

47

Homelite JA994971

CLAMP- Casing

$

$

Currently unavailable

48

Homelite JA994963

PLATE- Backing

$

$

Currently unavailable

49

Homelite JA461361

PIN- Roll

$

$

Not available

50

Homelite JA995000

RETAINER

$

$

Currently unavailable

51

Homelite JA994195

HOLDER- Battery

$

$

Currently unavailable

52

Homelite JA993865

SPACER

$

$

Currently unavailable

53

Homelite JA991289

BAND- Rubber

$

$

Not available

54

Homelite JA991224

LEAD- Battery

$

$

Currently unavailable

55

Homelite JA991223

BATTERY- 12V

$

$

Currently unavailable

56

Homelite JA991263

PAD- Battery

$

$

Currently unavailable

57

Homelite 12096

BUMPER

$

$

Not available

58

Homelite JA992108

CHARGER- Battery

Note: (120 V)

$

$

Not available

Homelite JA375654

CHARGER- Battery

Note: (240 V)

$

$

Currently unavailable
