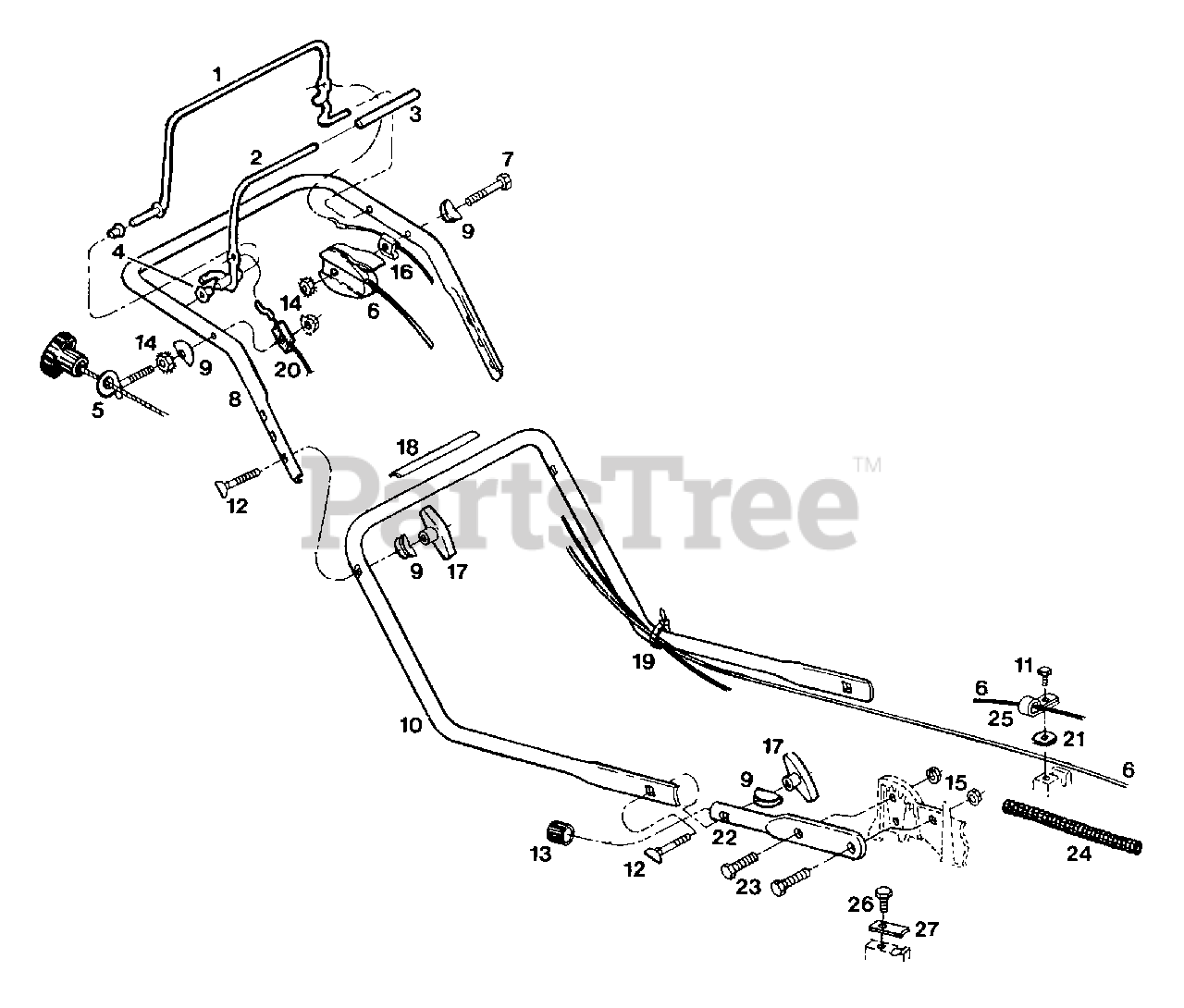

HMB 21 P4-I (UT-30528-B) - Homelite 21" Walk-Behind Mower Handles & Controls Parts Diagram

21" Walk-Behind Mower

Handles & Controls Parts Diagram

  • Title

1

Homelite GP073616

BAIL - engine control

$

$

Currently unavailable

2

Homelite JA993860

BAIL - traction

$18.99

$

Usually ships in 3-7 days

0

3

Homelite JA993682

SLEEVE - traction bail

$

$

Not available

4

Homelite JA993670

BUSHING - traction bail

$

$

Not available

5

Homelite GP152629

GUIDE - rope

$

$

Currently unavailable

6

Homelite GP053107

CONTROL - Throttle

$

$

Currently unavailable

7

Homelite GP616094

BOLT - Hex (1/4-20 x 2 1/2")

$

$

Currently unavailable

8

Homelite GP023891

HANDLE - Upper

$

$

Currently unavailable

9

Homelite GP150201

WASHER - curved

$2.49

$

Usually ships in 3-7 days

0

10

Homelite JA994741

HANDLE - Lower

$

$

Not available

11

Homelite GP158097

SCREW - Hex tap (1/4-20 x 5/8")

$

$

Currently unavailable

12

Homelite GP151936

BOLT - curved head (5/16-18 x 2 1/4")

$

$

Currently unavailable

13

Homelite JA994795

PLUG - Cap

$

$

Currently unavailable

14

Homelite GP715037

NUT - Hex (1/4-20) keps

$

$

Currently unavailable

15

Homelite JA445775

NUT - Hex flange (5/16-18)
(Superseded to UP06674)

$

$

Not available

16

Homelite GP053108

CABLE - engine/blade

$

$

Currently unavailable

17

Homelite GP115540

KNOB - Handle

$

$

Currently unavailable

18

Homelite GP800068

DECAL - control bail

$

$

Currently unavailable

19

Homelite JA994274

CABLE - Tie

$

$

Not available

20

Homelite GP053093

CABLE - Traction
(Superseded to UP06700)

$

$

Not available

21

Homelite GP151555

WASHER - Plain

$

$

Currently unavailable

22

Homelite JA994739

STUB - Handle mtg

$

$

Currently unavailable

23

Homelite 80085

BOLT - Hex (5/16-18 x 1")

$1.49

$

Usually ships in 3-7 days

0

24

Homelite JA994888

COVER - Cable

$

$

Currently unavailable

25

Homelite JA994310

CLAMP - cable

$

$

Currently unavailable

26

Homelite JA409907

SCREW - hex 1/4 20 x 1/2

$

$

Not available

27

Homelite JA991065

CLAMP

$

$

Not available
