HMB 21 P4 (UT-30069) - Homelite 21" Maxi Bagger Walk-Behind Mower Mower Parts Diagram

21" Maxi Bagger Walk-Behind Mower

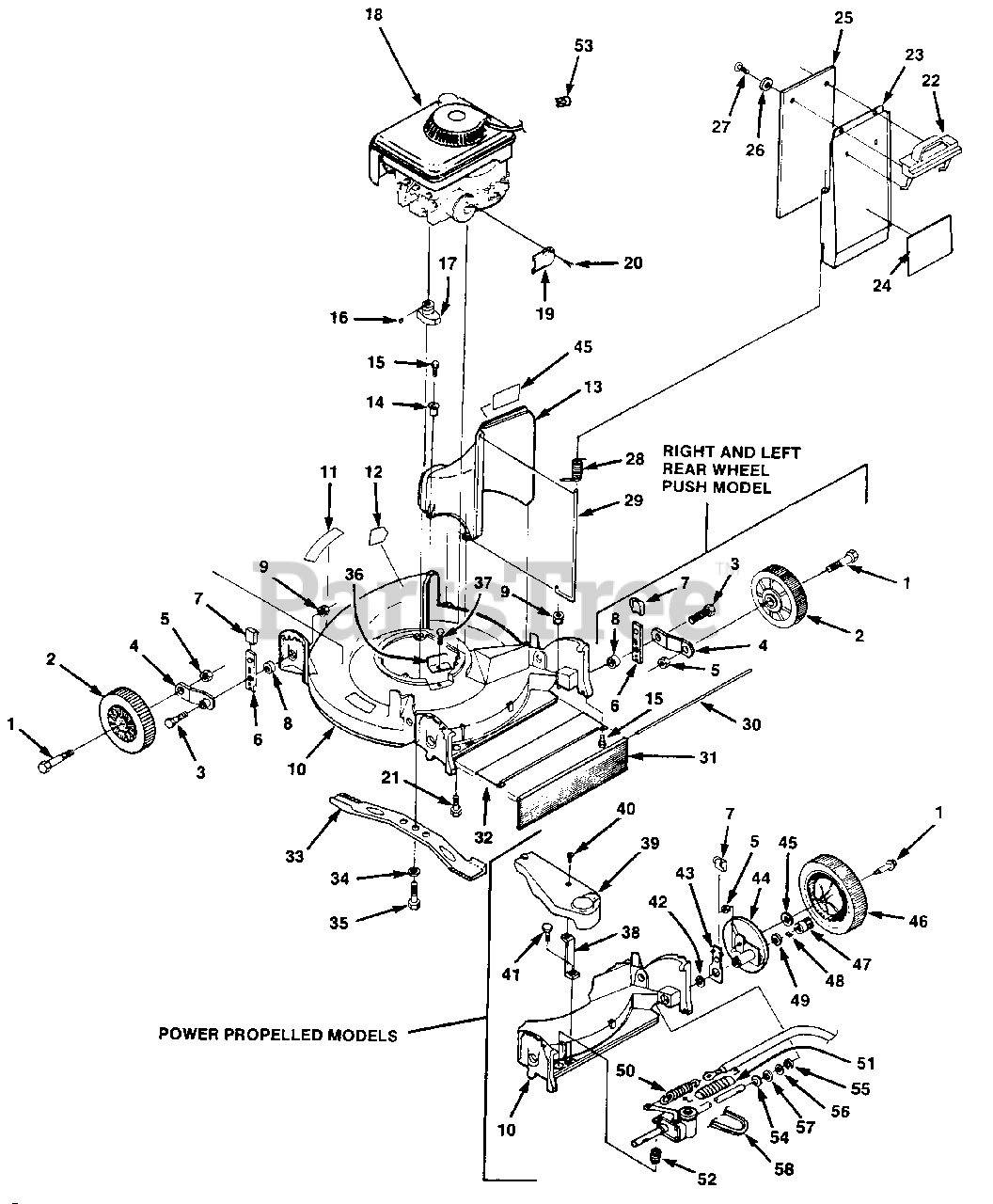

Mower Parts Diagram

  • Title

1

Homelite JA359181

BOLT- Axle

$4.49

$

Usually ships in 3-7 days

0

2

Homelite JA991782

WHEEL & TIRE
(Superseded to UP06670)

$

$

Not available

3

Homelite JA359180

BOLT- Hex hd. 5/16-18

$

$

Not available

4

Homelite JA991287

ARM- Wheel hgt. adj.
(Superseded to GP031455)

$

$

Currently unavailable

5

Homelite JA445776

NUT- Hex 3/8-24

$

$

Currently unavailable

6

Homelite JA990087

SPRING- Index
(Superseded to GP586051)

$22.99

$

Usually ships in 3-7 days

0

7

Homelite JA336623

KNOB- Indexing spring
(Superseded to UP06697)

$

$

Not available

8

Homelite JA358362

SPACER- Indexing spring

$

$

Not available

9

Homelite JA445775

NUT- Flange 5/16-18
(Superseded to UP06674)

$

$

Not available

10

Homelite JA991931

DECK- 21"

Note: (incl. #11 & 12)

$

$

Currently unavailable

11

Homelite JA992028

DECAL- Product ident.

Note: Not used on this product

$

$

Currently unavailable

12

Homelite JA339460

DECAL- Warning

$

$

Not available

13

Homelite JA991912

CHUTE- Discharge

Note: (incl #14)

$

$

Currently unavailable

14

Homelite JA473183

EYELET- Simpson

$5.49

$

Usually ships in 3-7 days

0

15

Homelite JA408878

SCREW- Hex hd. (1/4-20 x 3/4")

$

$

Not available

16

Homelite JA463107

KEY- 5/8 x 5/32

$

$

Not available

17

Homelite JA241708

ADAPTER- Blade

$

$

Currently unavailable

Homelite JA991198

ADAPTER- Blade

$

$

Currently unavailable

18

Homelite JA991274

ENGINE- 3.5 HP

Note: (incl. 19, 20, & 53)

$

$

Currently unavailable

Homelite JA991275

ENGINE- 4 H.P.

Note: (incl. 19, 20, & 53)

$

$

Currently unavailable

19

Homelite JA359256

DEFLECTOR- Muffler

$

$

Not available

20

Homelite JA408880

SCREW- Hex hd. 8-32 x 3/8"

$

$

Currently unavailable

21

Homelite JA400188

SCREW- 5/16-18 x 1
(Superseded to 80085)

$1.49

$

Usually ships in 3-7 days

0

22

Homelite JA991919

HANDLE- Door

$

$

Currently unavailable

23

Homelite JA991921

DOOR- Chute

Note: (incl. #24)

$

$

Currently unavailable

24

Homelite JA991217

DECAL- Door

$

$

Currently unavailable

25

Homelite JA359283

DAMP- Flap

$

$

Not available

26

Homelite JA453023

WASHER- Flat 1/4"
(Superseded to 678013001)

$1.49

$

Usually ships in 3-7 days

0

27

Homelite JA408881

SCREW- (Rd. Hd. 1/4-10 x 5/8")

$

$

Not available

28

Homelite JA359258

SPRING- Door
(Superseded to JA992947)

$

$

Not available

29

Homelite JA359167

PIN- Hinge

$

$

Not available

30

Homelite JA359170

ROD- Drap flap

$

$

Currently unavailable

31

Homelite JA359257

FLAP- Drag

$

$

Currently unavailable

32

Homelite JA992101

COVER- Rear
(Superseded to JA991285)

$

$

Currently unavailable

33

Homelite JA390162

BLADE- 21"

$

$

Currently unavailable

34

Homelite JA446148

WASHER- Lock 7/16"

$

$

Not available

35

Homelite JA991212

BOLT- Shoulder

$

$

Not available

36

Homelite JA991923

COVER- Belt opening

Note: Not used on this product

$

$

Currently unavailable

37

Homelite JA409907

SCREW- (Hex hd. 1/4-20 x 1/2")

Note: Not used on this product

$

$

Not available

38

Homelite JA359260

SUPPORT

$

$

Currently unavailable

39

Homelite JA991924

COVER- Drive

$

$

Currently unavailable

40

Homelite JA408879

SCREW- (Rd. Hd. 1/4-20 x 3/4")

$

$

Currently unavailable

41

Homelite JA409704

SCREW- (Hex hd. 10-16 x 1/2")

$

$

Not available

42

Homelite JA359141

SPACER- Hgt. Adj.

$

$

Not available

43

Homelite JA991288

SPRING- Index

$

$

Not available

44

Homelite JA990074

DRIVE WHEEL SUPPORT
(Superseded to GP095304)

$

$

Not available

45

Homelite JA359500

WASHER- Flat

$

$

Not available

46

Homelite JA991783

WHEEL & TIRE (drive)
(Superseded to JA993975)

$

$

Not available

47

Homelite JA204244

PINION- R.H.

$

$

Not available

Homelite JA204245

PINION- L.H.

$

$

Currently unavailable

48

Homelite JA313659

PAWL- Pinion

$

$

Not available

49

Homelite JA351077

WASHER- Flat

$

$

Not available

50

Homelite JA375748

SPRING- Traction lever

$

$

Not available

51

Homelite JA359270

COVER- Spring

$

$

Currently unavailable

52

Homelite JA359266

SPRING- Compression

$

$

Not available

53

Homelite JA990567

STOP- Rope

$

$

Not available

54

Homelite JA458451

RING- Eaton

$1.99

$

Usually ships in 3-7 days

0

55

Homelite JA454037

WASHER- Flat

$

$

Not available

56

Homelite JA353406

WASHER

$

$

Not available

57

Homelite JA328147

WASHER- Shim

$

$

Not available

58

Homelite JA991218

BELT- Drive

$

$

Not available
