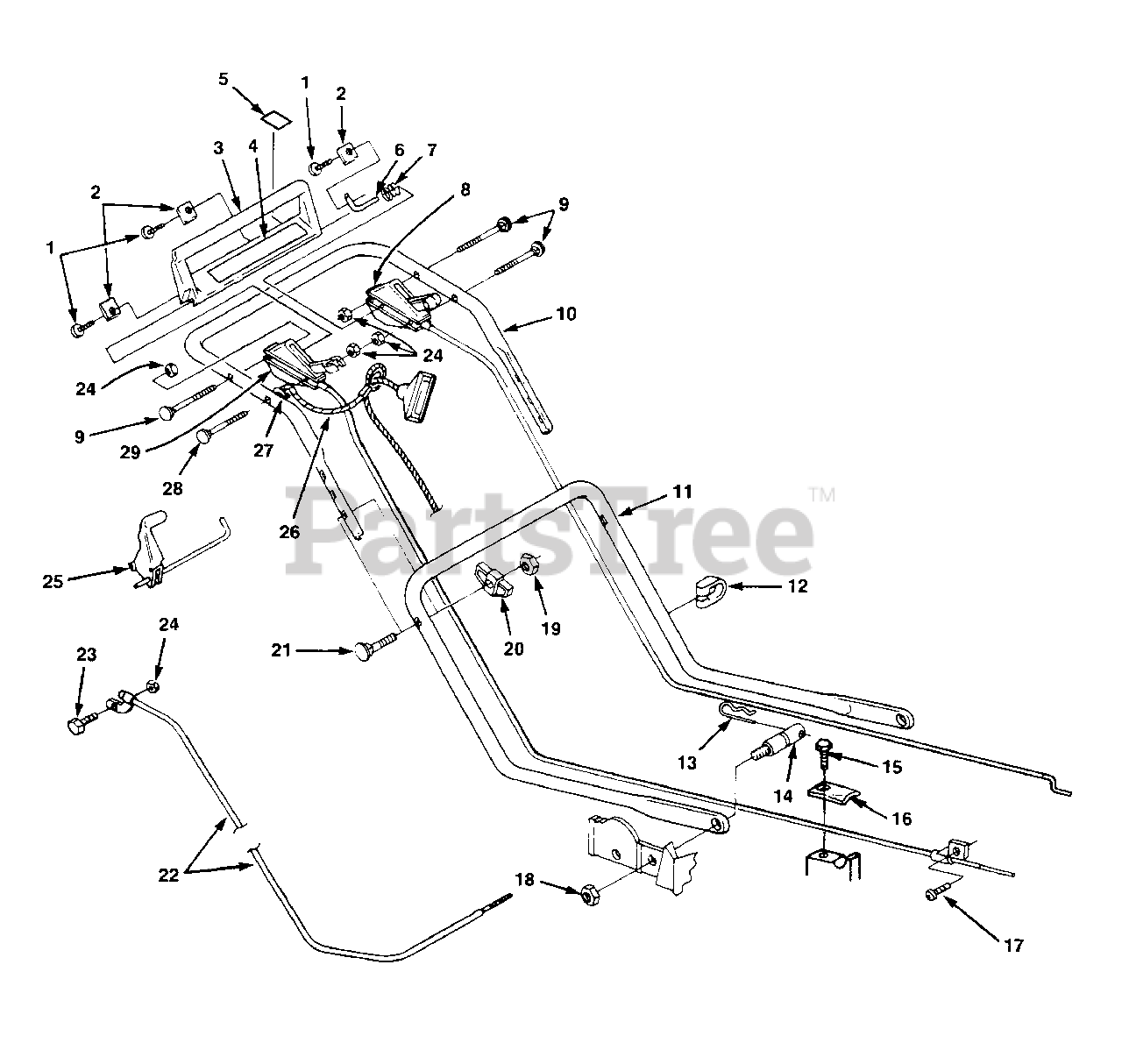

HMB 21 P42B (UT-30122) - Homelite 21" Maxi Bagger Walk-Behind Mower Handles & Controls Parts Diagram

21" Maxi Bagger Walk-Behind Mower

Handles & Controls Parts Diagram

  • Title

1

Homelite JA408881

SCREW- 1/4-10 x 5/8"

$

$

Not available

2

Homelite JA992570

CLAMP- Pivot shaft

$

$

Currently unavailable

3

Homelite JA993190

BAIL- Brake control

$

$

Currently unavailable

4

Homelite JA993713

DECAL- Brake bail

$

$

Currently unavailable

5

Homelite JA994090

DECAL- Blade rotation

$5.49

$

Usually ships in 3-7 days

0

6

Homelite JA992560

SHAFT- Pivot (short)

$

$

Currently unavailable

7

Homelite JA990141

SPRING- Compression

$

$

Not available

8

Homelite JA992695

CONTROL- Throttle

$

$

Currently unavailable

9

Homelite JA992920

BOLT- Sq. neck 1/4-20 x 2"

$

$

Currently unavailable

10

Homelite JA992350

HANDLE- Upper

$

$

Currently unavailable

11

Homelite JA992360

HANDLE- Lower

$

$

Currently unavailable

12

Homelite JA994274

CABLE- Tie

$

$

Not available

13

Homelite JA460306

PIN- Cotter hair

$

$

Not available

14

Homelite JA359178

STUD- Handle mtg.

$

$

Not available

15

Homelite JA409908

SCREW- Hex hd. 1/4-20 x 5/8"

$4.49

$

Usually ships in 3-7 days

0

16

Homelite JA991065

CLAMP

$

$

Not available

17

Homelite JA403586

SCREW- Hex hd. 10-32 x 3/8"
(Superseded to UP07186)

$5.99

$

Usually ships in 3-7 days

0

18

Homelite JA445775

NUT- Hex flange 5/16-18
(Superseded to UP06674)

$

$

Not available

19

Homelite JA443106

NUT- Hex 5/16-18
(Superseded to 81018)

$

$

Not available

20

Homelite JA339550

KNOB- Handle

$

$

Not available

21

Homelite JA359102

BOLT- Sq. neck

$

$

Not available

22

Homelite JA991075

CABLE- Traction

$

$

Not available

23

Homelite JA400116

SCREW- Hex hd. 1/4-20 x 1 1/2"

$

$

Not available

24

Homelite JA444708

NUT- Hex locking 1/4-20

$

$

Currently unavailable

25

Homelite JA995540

LEVER- Traction

$

$

Currently unavailable

26

Homelite JA995390

ROPE- Restraint

$57.99

$

Usually ships in 3-7 days

0

27

Homelite JA344544

WASHER- Curved

$

$

Not available

28

Homelite JA992930

BOLT- Sq. neck 1/4-20 x 2 1/4"

$6.49

$

Usually ships in 3-7 days

0

29

Homelite JA992708

CONTROL- Manual start

$

$

Currently unavailable
