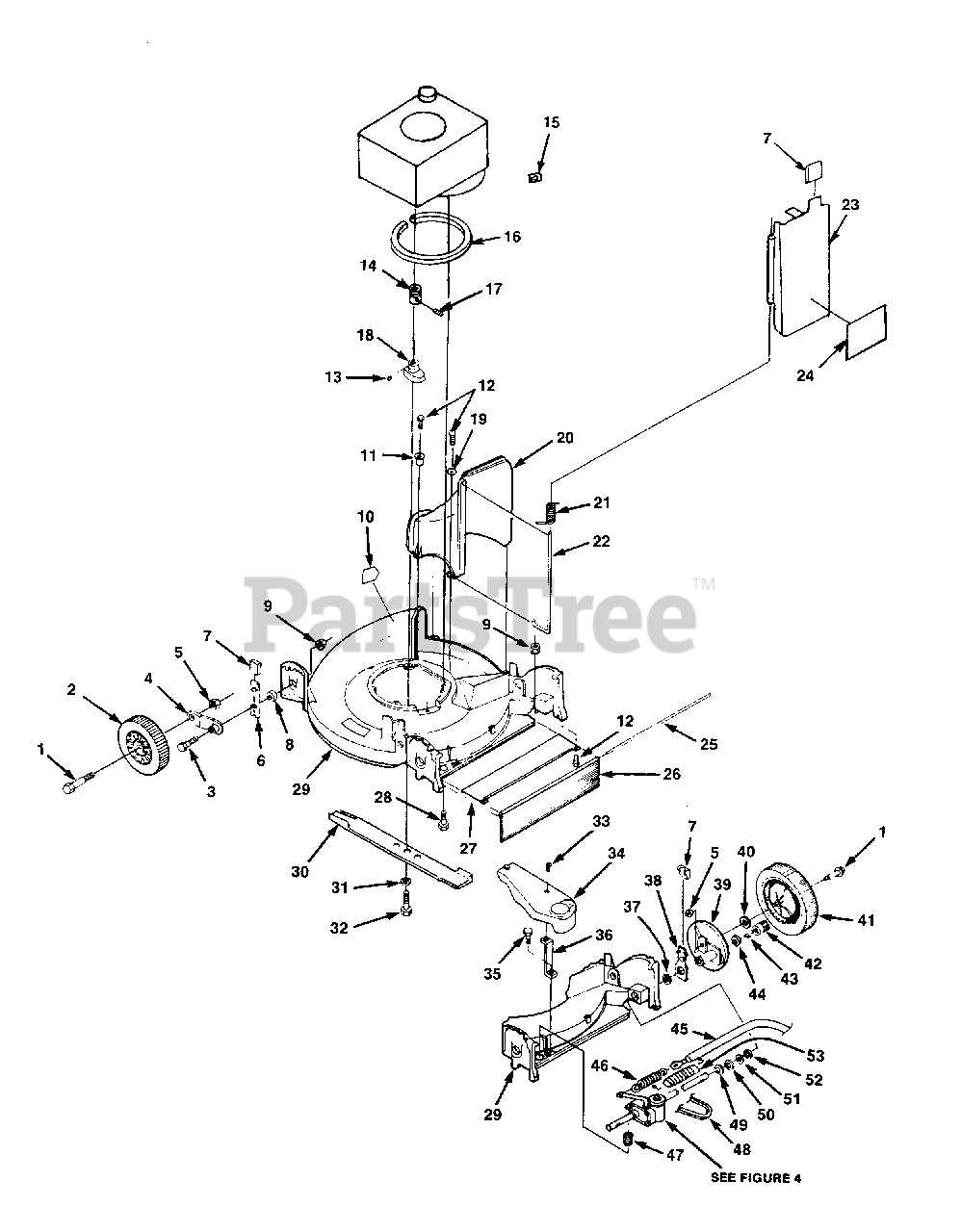

HMB 21 P42B (UT-30122) - Homelite 21" Maxi Bagger Walk-Behind Mower Mower Parts Diagram

21" Maxi Bagger Walk-Behind Mower

Mower Parts Diagram

  • Title

1

Homelite JA992955

BOLT- Axle 3/8-16
(Superseded to UP06685)

$

$

Currently unavailable

2

Homelite JA993958

WHEEL & TIRE Push W/B Wheels
(Superseded to UP06670)

$

$

Not available

3

Homelite JA359180

BOLT- Hex hd. hgt. adj. 5/16-18

$

$

Not available

4

Homelite JA991287

ARM- Wheel hgt. adjusting
(Superseded to GP031455)

$

$

Currently unavailable

5

Homelite JA444850

NUT- Hex 3/8-16
(Superseded to JA993711)

$

$

Not available

6

Homelite JA990087

SPRING- Index
(Superseded to GP586051)

$44.99

$

Usually ships in 3-7 days

0

7

Homelite JA336623

KNOB- Index spring
(Superseded to UP06697)

$

$

Not available

8

Homelite JA358362

SPACER- Height adj.

$

$

Not available

9

Homelite JA445775

NUT- Flange 5/16-18
(Superseded to UP06674)

$

$

Not available

10

Homelite JA339460

DECAL- Warning

$

$

Not available

11

Homelite JA473183

SIMPSON EYELET

$10.99

$

Usually ships in 3-7 days

0

12

Homelite JA408878

SCREW- Hex hd. 1/4-20 x 3/4"

$

$

Not available

13

Homelite JA463029

KEY- Woodruff #61

$

$

Not available

14

Homelite JA993007

PULLEY- Drive

$

$

Not available

15

Homelite JA990567

STOP- Rope

$

$

Not available

16

Homelite JA994311

RING- Engine

$

$

Not available

17

Homelite JA422505

SCREW- Set 1/4-20 x 3/8"

$

$

Not available

18

Homelite JA991821

ADAPTER- Blade

$35.99

$

Usually ships in 3-7 days

0

19

Homelite JA453023

WASHER- Plain 1/4"
(Superseded to 678013001)

$2.49

$

Usually ships in 3-7 days

0

20

Homelite JA991912

CHUTE- Discharge

Note: (Incl. #11)

$

$

Currently unavailable

21

Homelite JA992947

SPRING- Chute door

$

$

Not available

22

Homelite JA359167

PIN- Hinge

$

$

Not available

23

Homelite JA994092

DOOR- Chute

Note: (Incl. #24 and #7)

$153.99

$

Usually ships in 3-7 days

0

24

Homelite JA991217

DECAL- Door

$

$

Currently unavailable

25

Homelite JA359170

ROD- ZP Drag flap

$

$

Currently unavailable

26

Homelite JA359257

FLAP- Drag

$

$

Currently unavailable

27

Homelite JA991285

COVER- Rear

$

$

Currently unavailable

28

Homelite JA408876

SCREW- 3/8-16 x 1 1/2"

$

$

Not available

29

Homelite JA991931

DECK- 21"

Note: (Incl. #10)

$

$

Currently unavailable

30

Homelite JA992766

BLADE- 21"

$

$

Currently unavailable

31

Homelite JA446142

WASHER- Lock hvy. 3/8"

$

$

Not available

32

Homelite JA403753

SCREW- 3/8-24 x 1 1/4"

$

$

Not available

33

Homelite JA408879

SCREW

$

$

Currently unavailable

34

Homelite JA994312

COVER- Drive

$

$

Currently unavailable

35

Homelite JA409704

SCREW- Hex hd. 10-16 x 1/2"

$

$

Not available

36

Homelite JA994243

SUPPORT- Belt cover

$

$

Currently unavailable

37

Homelite JA359141

SPACER- Rear hgt. adj.

$

$

Not available

38

Homelite JA991288

SPRING- Index

$

$

Not available

39

Homelite JA990074

DRIVE WHEEL SUPPORT
(Superseded to GP095304)

$

$

Not available

40

Homelite JA359500

WASHER- Flat

$

$

Not available

41

Homelite JA993975

WHEEL & TIRE (Drive)

$

$

Not available

42

Homelite JA204244

PINION (R.H.)

$

$

Not available

Homelite JA204245

PINION (L.H.)

$

$

Currently unavailable

43

Homelite JA313659

PAWL- Pinion HT

$

$

Not available

44

Homelite JA351077

WASHER- Flat

$

$

Not available

45

Homelite JA991075

CABLE- Traction Contr.

$

$

Not available

46

Homelite JA375748

SPRING- Traction lever

$

$

Not available

47

Homelite JA359266

SPRING- Compression

$

$

Not available

48

Homelite JA991218

BELT- Drive

$

$

Not available

49

Homelite JA458451

RING- Eaton

$3.49

$

Usually ships in 3-7 days

0

50

Homelite JA353406

WASHER

$

$

Not available

51

Homelite JA328147

WASHER- Shim

$

$

Not available

52

Homelite JA454037

WASHER- Flat

$

$

Not available

53

Homelite JA359270

COVER- Spring

$

$

Currently unavailable
