HMB 21 P4C (UT-30121) - Homelite 21" Maxi Bagger Walk-Behind Mower Handles & Controls Parts Diagram

21" Maxi Bagger Walk-Behind Mower

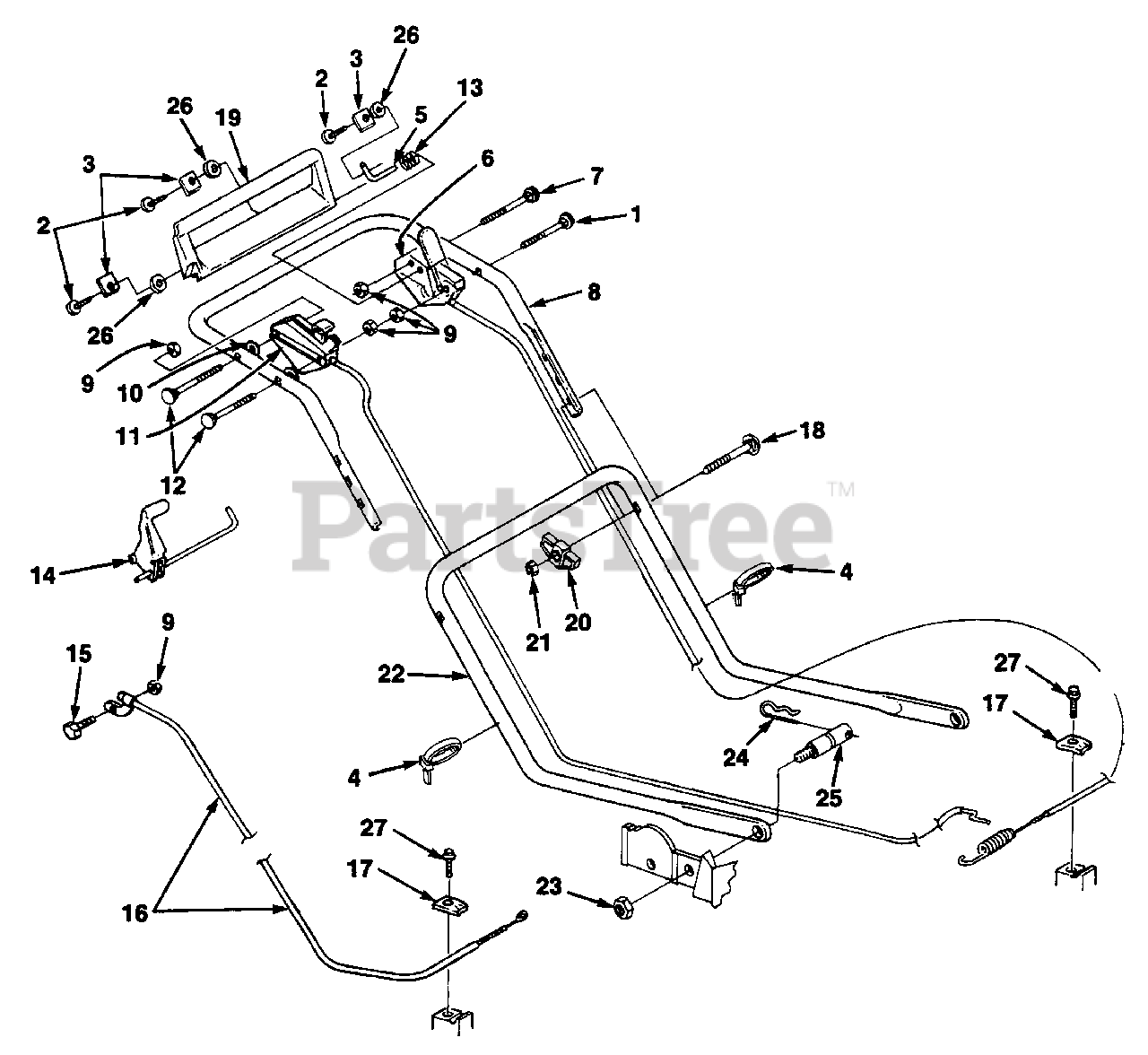

Handles & Controls Parts Diagram

  • Title

1

Homelite JA991611

BOLT- Sq. neck

$3.49

$

Usually ships in 3-7 days

0

2

Homelite JA408881

SCREW- (1/4-10 x 5/8")

$

$

Not available

3

Homelite JA992570

CLAMP- Pivot shaft

$

$

Currently unavailable

4

Homelite JA994224

TIES- Cable

$

$

Currently unavailable

5

Homelite JA992560

SHAFT- Pivot

$

$

Currently unavailable

6

Homelite JA991353

CONTROL- Blade/Brake/Clutch

$

$

Currently unavailable

7

Homelite JA992930

BOLT- Sq. neck

$3.49

$

Usually ships in 3-7 days

0

8

Homelite JA992350

HANDLE- Upper

$

$

Currently unavailable

9

Homelite JA444708

NUT- Hex (1/4-20)

$

$

Currently unavailable

10

Homelite JA991469

SPACER

$

$

Currently unavailable

11

Homelite JA993035

CONTROL- Throttle

$

$

Currently unavailable

12

Homelite JA992920

BOLT- Sq. neck

$

$

Currently unavailable

13

Homelite JA990141

SPRING

$

$

Not available

14

Homelite JA995541

LEVER- Assembly-Traction
(Superseded to JA995540)

$

$

Currently unavailable

15

Homelite JA400116

SCREW- (1/4-20 x 1 1/2")

$

$

Not available

16

Homelite JA991075

CABLE- Traction

$

$

Not available

17

Homelite JA991065

CLAMP

$

$

Not available

18

Homelite JA359102

BOLT

$

$

Not available

19

Homelite JA991448

BAIL- Brake control

$

$

Currently unavailable

20

Homelite JA339550

KNOB- Handle

$

$

Not available

21

Homelite JA443106

NUT- Hex (5/16 x 18)
(Superseded to 81018)

$

$

Not available

22

Homelite JA992360

HANDLE- Lower

$

$

Currently unavailable

23

Homelite JA445775

NUT- Flange (5/16-18)
(Superseded to UP06674)

$

$

Not available

24

Homelite JA460306

PIN- Cotter hair

$

$

Not available

25

Homelite JA359178

STUD

$

$

Not available

26

Homelite JA453023

WASHER- (1/4")
(Superseded to 678013001)

$1.49

$

Usually ships in 3-7 days

0

27

Homelite JA409908

SCREW- (1/4-20 x 5/8")

$2.49

$

Usually ships in 3-7 days

0
