HMB 21 P4C (UT-30121) - Homelite 21" Maxi Bagger Walk-Behind Mower Mower Parts Diagram

21" Maxi Bagger Walk-Behind Mower

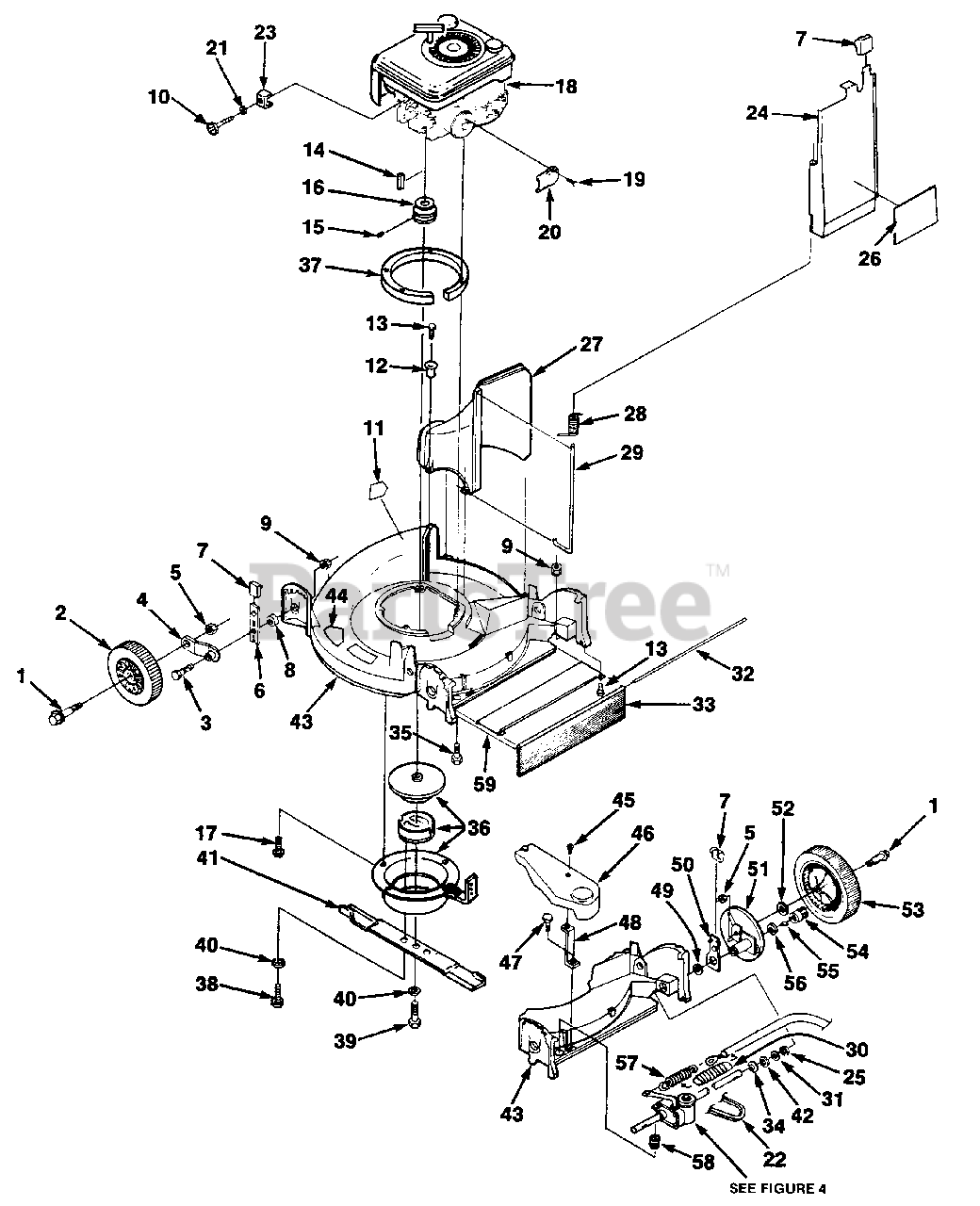

Mower Parts Diagram

  • Title

1

Homelite JA992138

BOLT- Axle
(Superseded to UP06685)

$

$

Currently unavailable

2

Homelite JA993958

WHEEL & TIRE ASSY.
(Superseded to UP06670)

$

$

Not available

3

Homelite JA359180

BOLT

$

$

Not available

4

Homelite JA991287

WHEEL- Adjuster arm
(Superseded to GP031455)

$

$

Currently unavailable

5

Homelite JA444850

NUT- (3/8-16)
(Superseded to JA993711)

$

$

Not available

6

Homelite JA990087

SPRING
(Superseded to GP586051)

$44.99

$

Usually ships in 3-7 days

0

7

Homelite JA336623

KNOB
(Superseded to UP06697)

$

$

Not available

8

Homelite JA358362

SPACER

$

$

Not available

9

Homelite JA445775

NUT- Flange (5/16-20)
(Superseded to UP06674)

$

$

Not available

10

Homelite JA400104

SCREW- Hex hd. (1/4-20 x 1/2")
(Superseded to UP03379)

$

$

Not available

11

Homelite JA339460

DECAL- Warning

$

$

Not available

12

Homelite JA473183

EYELET

$10.99

$

Usually ships in 3-7 days

0

13

Homelite JA408878

SCREW- (1/4-20 x 3/4")

$

$

Not available

14

Homelite JA463107

KEY- (5/8 x 5/32")

$

$

Not available

15

Homelite JA422541

SCREW- Set (8/32")

$5.99

$

Usually ships in 3-7 days

0

16

Homelite JA991176

PULLEY- Drive

$

$

Currently unavailable

17

Homelite JA409912

SCREW- (5/16-18)

$8.49

$

Usually ships in 3-7 days

0

18

ENGINE- 4.0 H.P.

Note: When ordering engine replacement parts for model 110708, see your local Briggs & Stratton dealer.

$

$

Not available

19

Homelite JA408880

SCREW- (#8-32 x 3/8")

$

$

Currently unavailable

20

Homelite JA359256

DEFLECTOR

$

$

Not available

21

Homelite JA446128

WASHER- Lock (1/4")
(Superseded to UP03409)

$9.99

$

Usually ships in 3-7 days

0

22

Homelite JA991218

BELT- Drive

$

$

Not available

23

Homelite JA993026

CLAMP

$

$

Currently unavailable

24

Homelite JA992797

DOOR- Chute

$

$

Currently unavailable

25

Homelite JA454037

WASHER

$

$

Not available

26

Homelite JA991217

DECAL- Door

$

$

Currently unavailable

27

Homelite JA991912

CHUTE

$

$

Currently unavailable

28

Homelite JA992947

SPRING

$

$

Not available

29

Homelite JA359167

PIN- Hinge

$

$

Not available

30

Homelite JA359270

COVER- Spring

$

$

Currently unavailable

31

Homelite JA328147

WASHER

$

$

Not available

32

Homelite JA359170

ROD- Drag flap

$

$

Currently unavailable

33

Homelite JA359257

FLAP- Drag

$

$

Currently unavailable

34

Homelite JA458451

RING- Eaton

$3.49

$

Usually ships in 3-7 days

0

35

Homelite JA408885

SCREW- (3/8-16 x 2 1/4")

$

$

Currently unavailable

36

Homelite JA991027

BLADE/BRAKE/CLUTCH

$

$

Currently unavailable

37

Homelite JA994196

RING- Engine

$

$

Currently unavailable

38

Homelite JA401208

SCREW- (3/8-16 x 1")

$

$

Currently unavailable

39

Homelite JA401209

SCREW- (3/8-24 x 2")

$

$

Currently unavailable

40

Homelite JA446142

WASHER- Lock (3/8")

$

$

Not available

41

Homelite JA991189

BLADE- (21")

$

$

Currently unavailable

42

Homelite JA353406

WASHER

$

$

Not available

43

Homelite JA994236

DECK ASSY.

Note: (Incl. decals)

$

$

Currently unavailable

44

Homelite JA993664

DECAL- Foot pad

$

$

Currently unavailable

45

Homelite JA408879

SCREW- (1/4-20 x 3/4")

$

$

Currently unavailable

46

Homelite JA994218

COVER- Drive

$

$

Currently unavailable

47

Homelite JA409704

SCREW- Hex (#10-16)

$

$

Not available

48

Homelite JA359260

SUPPORT

$

$

Currently unavailable

49

Homelite JA359141

SPACER

$

$

Not available

50

Homelite JA991288

SPRING

$

$

Not available

51

Homelite JA990074

DRIVE WHEEL SUPPORT ASSY.
(Superseded to GP095304)

$

$

Not available

52

Homelite JA359500

WASHER

$

$

Not available

53

Homelite JA993975

WHEEL & TIRE

$

$

Not available

54

Homelite JA204244

PINION (R.H.)

$

$

Not available

Homelite JA204245

PINION (L.H.)

$

$

Currently unavailable

55

Homelite JA313659

PAWL- Pinion

$

$

Not available

56

Homelite JA351077

WASHER

$

$

Not available

57

Homelite JA375748

SPRING- Extension

$

$

Not available

58

Homelite JA359266

SPRING- Compression

$

$

Not available

59

Homelite JA991285

COVER

$

$

Currently unavailable
