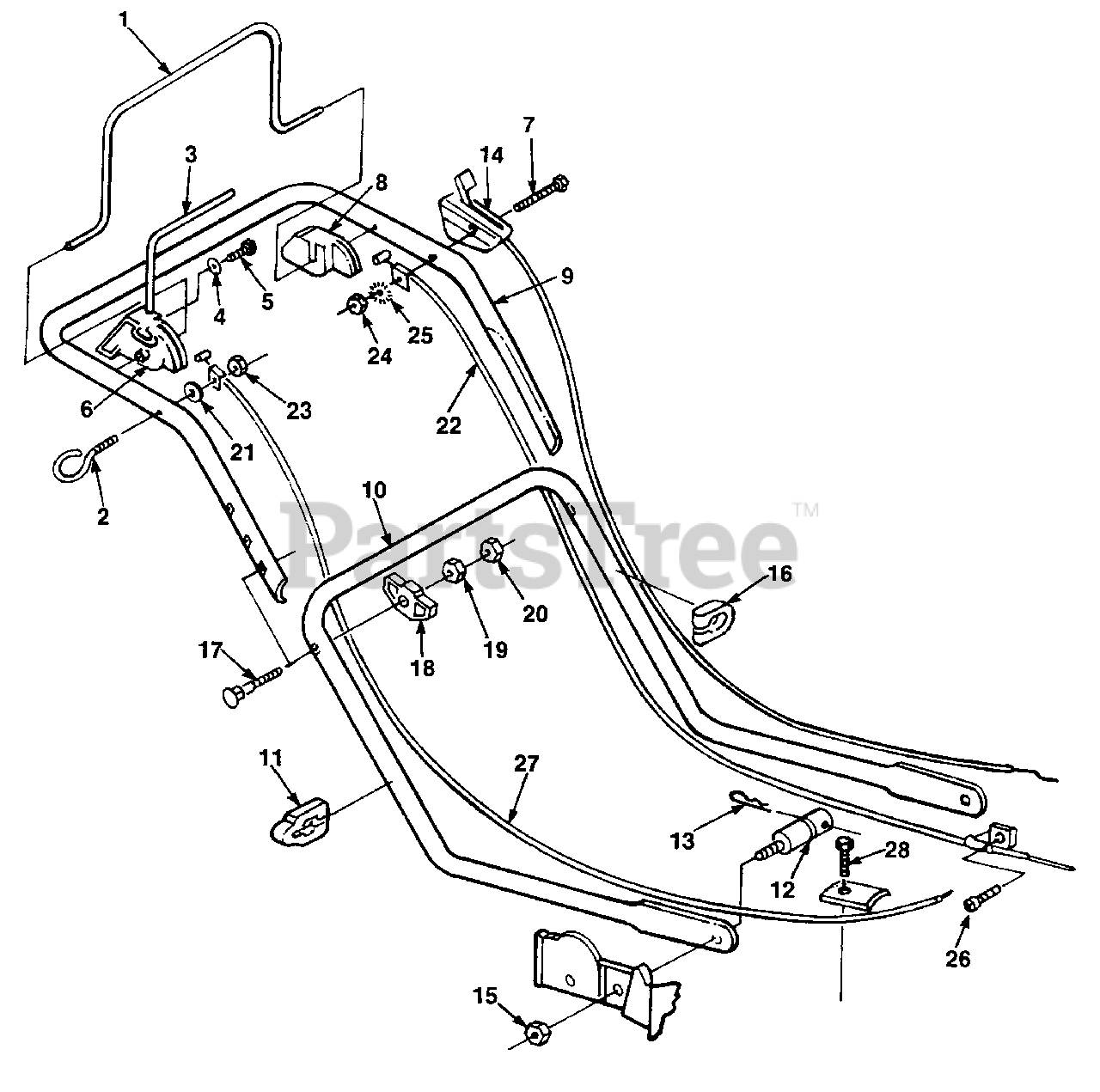

HMB 21 (UT-30068) - Homelite 21" Maxi Bagger Walk-Behind Mower Handles & Controls Parts Diagram

21" Maxi Bagger Walk-Behind Mower

Handles & Controls Parts Diagram

  • Title

1

Homelite JA991886

BAIL- Brake

$46.99

$

Usually ships in 3-7 days

0

2

Homelite JA991952

EYEBOLT

$

$

Currently unavailable

3

Homelite JA991893

TRACTION BAIL

Note: Not used on this product

$

$

Currently unavailable

4

Homelite 84103

WASHER

Note: Not used on this product

$

$

Not available

5

Homelite 82215

SCREW
(Superseded to 82528)

Note: Not used on this product

$1.49

$

Usually ships in 3-7 days

0

6

Homelite JA991906

ACTUATOR- R.H.

Note: Not used on this product

$

$

Currently unavailable

7

Homelite JA992920

BOLT- Sq. neck

$

$

Currently unavailable

8

Homelite JA991907

ACTUATOR- L.H.

$

$

Currently unavailable

9

Homelite JA991895

HANDLE- Upper

$

$

Currently unavailable

10

Homelite JA992360

HANDLE- Lower

$

$

Currently unavailable

11

Homelite JA995420

CLAMP- Cable (single)
(Superseded to JA994274)

$

$

Not available

12

Homelite JA359178

STUD- Handle mtg.

$

$

Not available

13

Homelite JA460306

PIN- Cotter hair

$

$

Not available

14

Homelite JA991897

CONTROL- Throttle
(Superseded to JA993179)

$

$

Not available

15

Homelite JA445775

NUT- Hex flange 5/16-18
(Superseded to UP06674)

$

$

Not available

16

Homelite JA995410

CLAMP- Cable (double)
(Superseded to JA994274)

$

$

Not available

17

Homelite JA359102

BOLT- Sq. neck

$

$

Not available

18

Homelite JA339550

KNOB- Handle

$

$

Not available

19

Homelite JA443106

NUT- Hex locking 5/16-18
(Superseded to 81018)

$

$

Not available

20

Homelite JA444718

NUT- Hex locking 5/16-18

$

$

Not available

21

Homelite JA343535

WASHER

$

$

Currently unavailable

22

Homelite JA991896

CONTROL- Manual start

$

$

Currently unavailable

23

Homelite JA444708

NUT- Hex locking 1/4-20

$

$

Currently unavailable

24

Homelite JA443102

NUT- Hex
(Superseded to JA993730)

$

$

Not available

25

Homelite JA447010

WASHER

$

$

Currently unavailable

26

Homelite JA403586

SCREW- Hex hd. (10-32 x 3/8")
(Superseded to UP07186)

$2.99

$

Usually ships in 3-7 days

0

27

Homelite JA991898

CABLE- Traction

Note: Not used on this product

$

$

Currently unavailable

28

Homelite JA409908

SCREW- Hex hd. (1/4-20 x 5/8")

Note: Not used on this product

$2.49

$

Usually ships in 3-7 days

0

Homelite JA473168

TIE- Secure

Note: (not shown)

$

$

Currently unavailable
