Horse I - Troy-Bilt Rear-Tine Tiller, 6hp (SN: 001001 - 639999) SEALS, COVERS, GASKETS, AND PIPE PLUGS Parts Diagram

Rear-Tine Tiller, 6hp

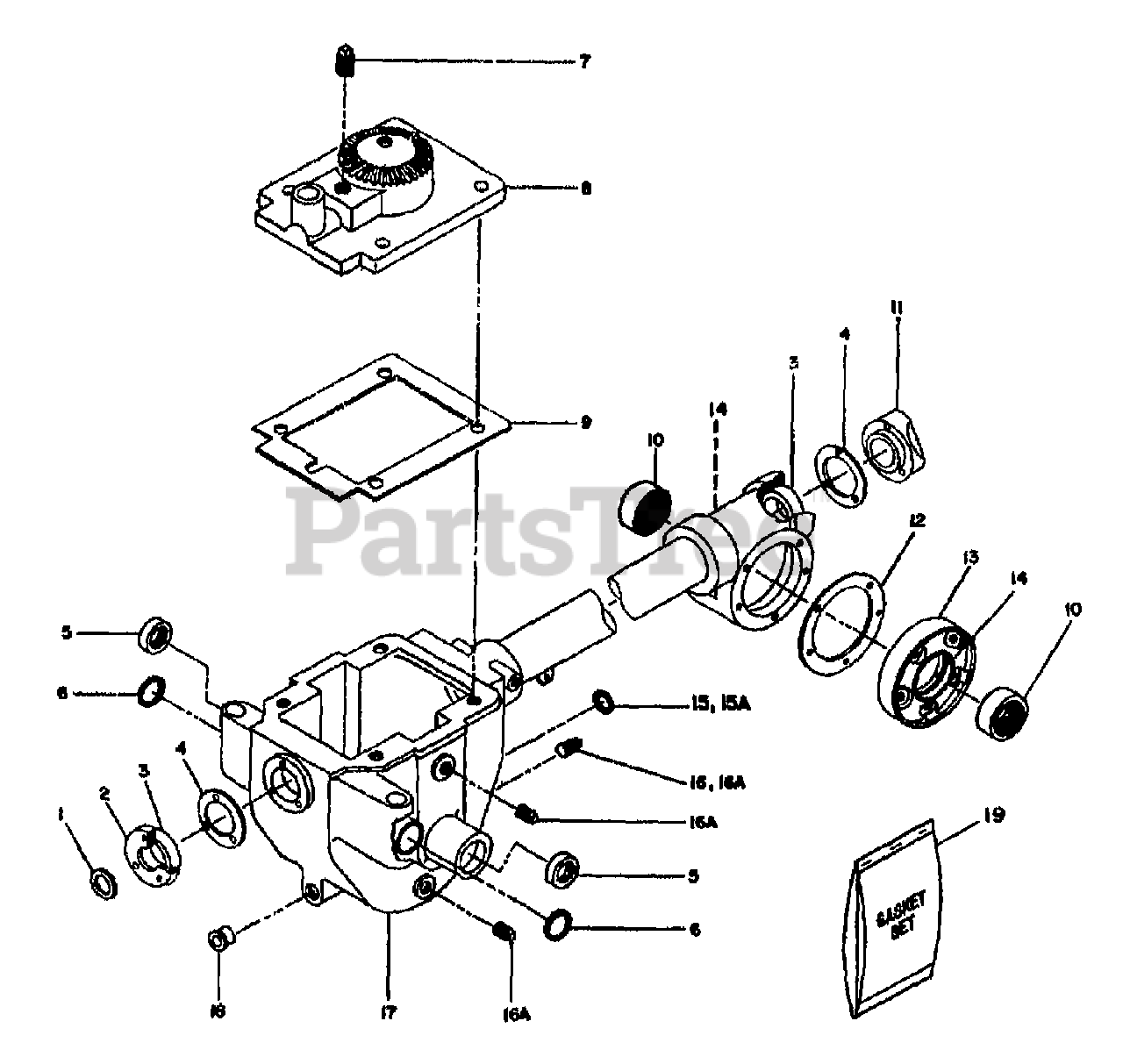

SEALS, COVERS, GASKETS, AND PIPE PLUGS Parts Diagram

  • Title

Troy-Bilt GW-1360A

OIL
(Superseded to 490-000-V045)

$19.99

$

In Stock, Qty 7

0

1

Troy-Bilt GW-9600

SEAL-PINION SHAFT PT/85030/00
(Superseded to 921-04044)

$8.99

$

In Stock, Qty 20+

0

2

Troy-Bilt GW-1114

COVER-FRONT
(Superseded to 718-04007)

$17.99

$

In Stock, only 2 left!

0

3

Troy-Bilt GW-1714

KIT-BRG CONE&RACE-DRIVESHAFT
(Superseded to 941-0107)

$44.99

$

In Stock, Qty 20+

0

4

Troy-Bilt GW-1124-2

GASKET-BRG COVER
(Superseded to GW-1124-2099)

$4.49

$

In Stock, Qty 20+

0

5

Troy-Bilt GW-9609

SEAL-OIL WHEELSHAFT
(Superseded to 921-04031)

$10.99

$

In Stock, Qty 20+

0

6

Troy-Bilt GW-9604

RING-O 1 ID

$4.99

$

In Stock, Qty 20+

0

7

Troy-Bilt GW-9727

PLUG-PIPE 3/8 NPT
(Superseded to 737-04202)

$6.49

$

Usually ships in 3-6 days

0

8

MTD GW-1003

ASSM-COVER W/BOLT-HORSE

$

$

Not available

9

Troy-Bilt GW-1123

GASKET-TRANS COVER

$7.99

$

In Stock, only 3 left!

0

10

Troy-Bilt GW-9616

SEAL-OIL TILLERSHAFT
(Superseded to GW-9618099)

$19.99

$

In Stock, Qty 20+

0

11

Troy-Bilt GW-1115

CAP-REAR #1115
(Superseded to 718-04406)

$46.99

$

In Stock, Qty 5

0

12

Troy-Bilt GW-1129-1

GASKET-TILLER COVER
(Superseded to GW-1129-1099)

$8.49

$

In Stock, Qty 20+

0

12

Troy-Bilt GW-1129-2

GASKET-TILLER COVER
(Superseded to GW-1129-2099)

$8.49

$

In Stock, Qty 17

0

13

Troy-Bilt GW-1872

COVER-W/SCRS(TLR) (9780)
(Superseded to GW-10456)

$143.99

$

Usually ships in 3-6 days

0

14

Troy-Bilt GW-11527

KIT-TILLER GEAR & BRGS

$243.99

$

In Stock, only 3 left!

0

15

Troy-Bilt GW-9611

SEAL-OIL ECCENTRIC
(Superseded to 921-04034)

$9.49

$

In Stock, Qty 20+

0

15A

Troy-Bilt GW-9603

RING-O .625 X .438

$3.49

$

Usually ships in 3-6 days

0

16

Troy-Bilt GW-9727

PLUG-PIPE 3/8 NPT
(Superseded to 737-04202)

$6.49

$

Usually ships in 3-6 days

0

16A

Troy-Bilt GW-9726

PLUG-PIPE 1/4 NPT
(Superseded to 1105620)

$3.99

$

In Stock, Qty 5

0

17

N/A

CASE

$

$

Not available

18

Troy-Bilt GW-9122

PLUG-CAP (RED)

$9.49

$

Usually ships in 3-6 days

0

19

Troy-Bilt GW-1121A

TRANS GASKET SET

$32.99

$

In Stock, Qty 9

0
