Horse-OPC - Troy-Bilt Rear-Tine Tiller, 7 & 8hp (SN: 00864077 - 00923346) ELECTRIC START SYSTEM Parts Diagram

Rear-Tine Tiller, 7 & 8hp

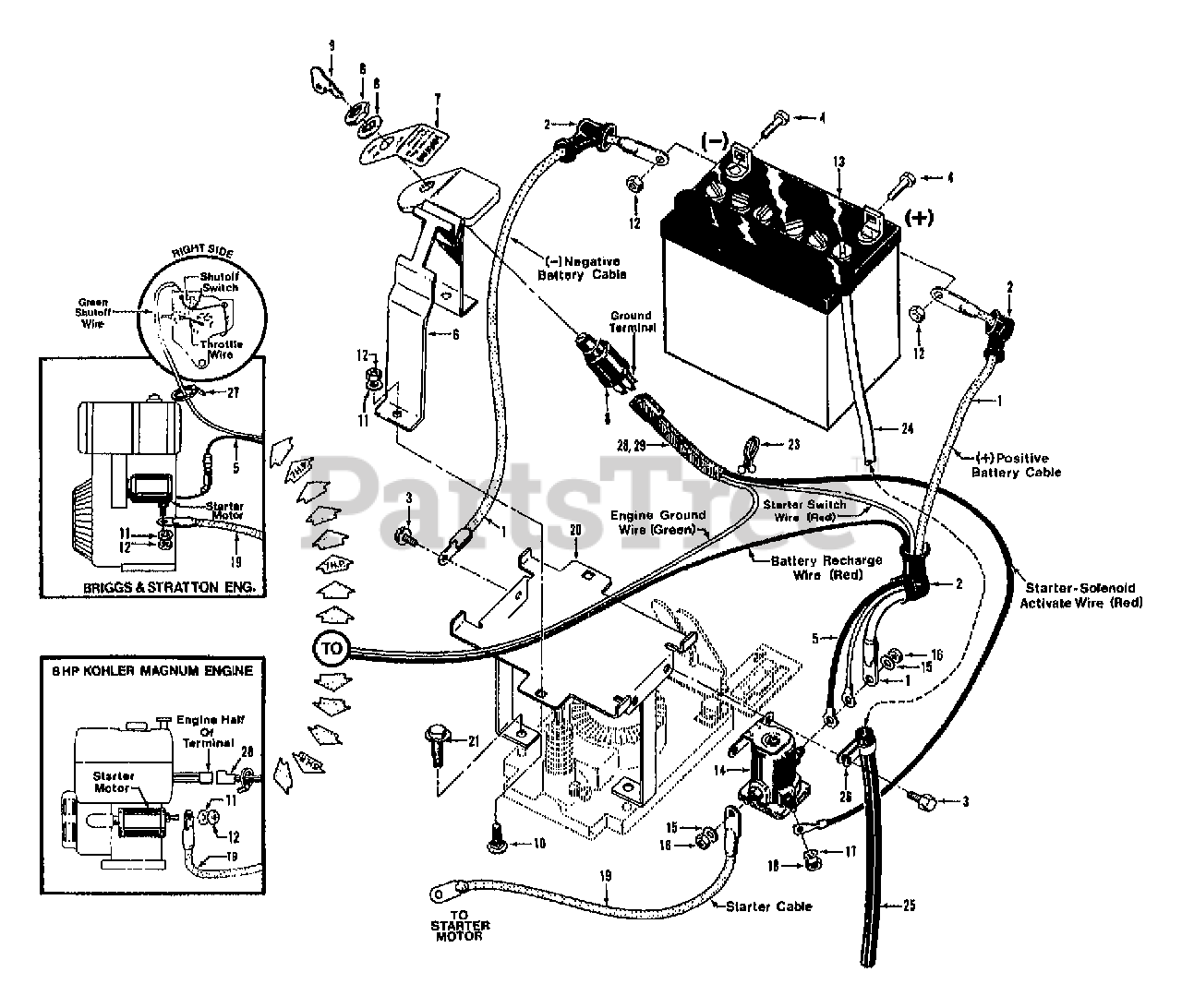

ELECTRIC START SYSTEM Parts Diagram

  • Title

1

Troy-Bilt GW-96515

CABLE-BATTERY 10"

$14.99

$

In Stock, only 1 left!

0

2

Troy-Bilt GW-97020

BOOT-BATTERY CABLE

$

$

Not available

3

Troy-Bilt GW-9552

SCR-HWH 1/4-20 X .5 STH
(Superseded to 710-0599)

$3.99

$

In Stock, Qty 20+

0

4

Troy-Bilt GW-9780

SCR-HH 1/4-20X.625
(Superseded to 1186309)

$

$

Not available

5

Troy-Bilt GW-2648

WIRE-RECHARGE 5&7 BRIGGS (INCLUDES TERMINAL AND EYELET)
(Superseded to 1901894)

$

$

Not available

6

Troy-Bilt GW-2616

CLAMP-KEYSWITCH W/DECAL OPC
(Superseded to 1900873)

$150.99

$

In Stock, only 1 left!

0

7

MTD GW-20820

DECAL-KEYSWITCH

$

$

Not available

8

MTD GW-9230

KEYSWITCH W/KEYS (HARDWARE NOT AVAILABLE SEPARATELY FROM GARDEN WAY)

$

$

Not available

9

Troy-Bilt GW-9243

KEYS(1 PAIR) FOR SWITCH
(Superseded to GW-9243099)

$

$

Not available

10

Troy-Bilt GW-9565

SCR-CARR 1/4-20X1.5

$

$

Currently unavailable

11

Troy-Bilt GW-9910

WASHER-LK .25 ZP
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 12

0

12

Troy-Bilt GW-9800

NUT-HEX 1/4-20 ZP
(Superseded to 712-3006)

$4.49

$

In Stock, Qty 20+

0

13

Troy-Bilt GW-9092B

BATTERY-12 VOLT HORSE (COMES WITH #9009 VENT TUBE)
(Superseded to 925-1707D)

$

$

Not available

14

Troy-Bilt GW-1959

KIT-SOL W/HDW

$109.99

$

Usually ships in 3-6 days

0

15

Troy-Bilt GW-9912

WASHER-LK .312 ZP
(Superseded to 936-0119)

$4.49

$

In Stock, Qty 20+

0

16

Troy-Bilt GW-9826

NUT-HEX 5/16-24
(Superseded to 912-3057)

$6.49

$

In Stock, Qty 13

0

17

Troy-Bilt GW-9921

WASHER-EXTERNAL TOOTH 1
(Superseded to 936-0147)

$3.49

$

Usually ships in 3-6 days

0

18

Troy-Bilt GW-9809

NUT-HH M10-32X.125
(Superseded to 1186208)

$5.99

$

Usually ships in 3-6 days

0

19

Troy-Bilt GW-96510

CABLE-BATTERY 12"

$11.99

$

Usually ships in 3-6 days

0

20

Troy-Bilt GW-2571

BRKT-BATTERY OPC PNT

$120.99

$

Usually ships in 3-6 days

0

21

Troy-Bilt GW-90047

SCR-HFLK 3/8-16X1.50
(Superseded to 1186349)

$3.49

$

Usually ships in 3-6 days

0

22

0

NOT USED

$

$

Not available

23

Troy-Bilt GW-9265

TIE-TWIST LOCK

$

$

Not available

24

MTD GW-9009

TUBE-VENT BATTERY/HSE

$

$

Not available

25

MTD GW-1475

TUBING-RUBBER

$

$

Not available

26

MTD GW-9224

CLAMP

$

$

Not available

27

Troy-Bilt GW-9202

TIE-RED
(Superseded to 725-0157)

$3.49

$

In Stock, only 4 left!

0

28

Troy-Bilt GW-2647

ASSM-HARNESS 2647/20857 (FOR BRIGGS & STRATTON ENGINE)

$

$

Currently unavailable

29

Troy-Bilt GW-2613

HARNESS-WIRE 3.5 (FOR KOHLER ENGINE)

$

$

Currently unavailable

Troy-Bilt GW-96514

SOLENOID
(Superseded to GW-96514099)

$44.99

$

In Stock, only 1 left!

0
