Horse-OPC - Troy-Bilt Rear-Tine Tiller, 7 & 8hp (SN: 00864077 - 00923346) POWER UNIT TRANSMISSION ASSEMBLIES Parts Diagram

Rear-Tine Tiller, 7 & 8hp

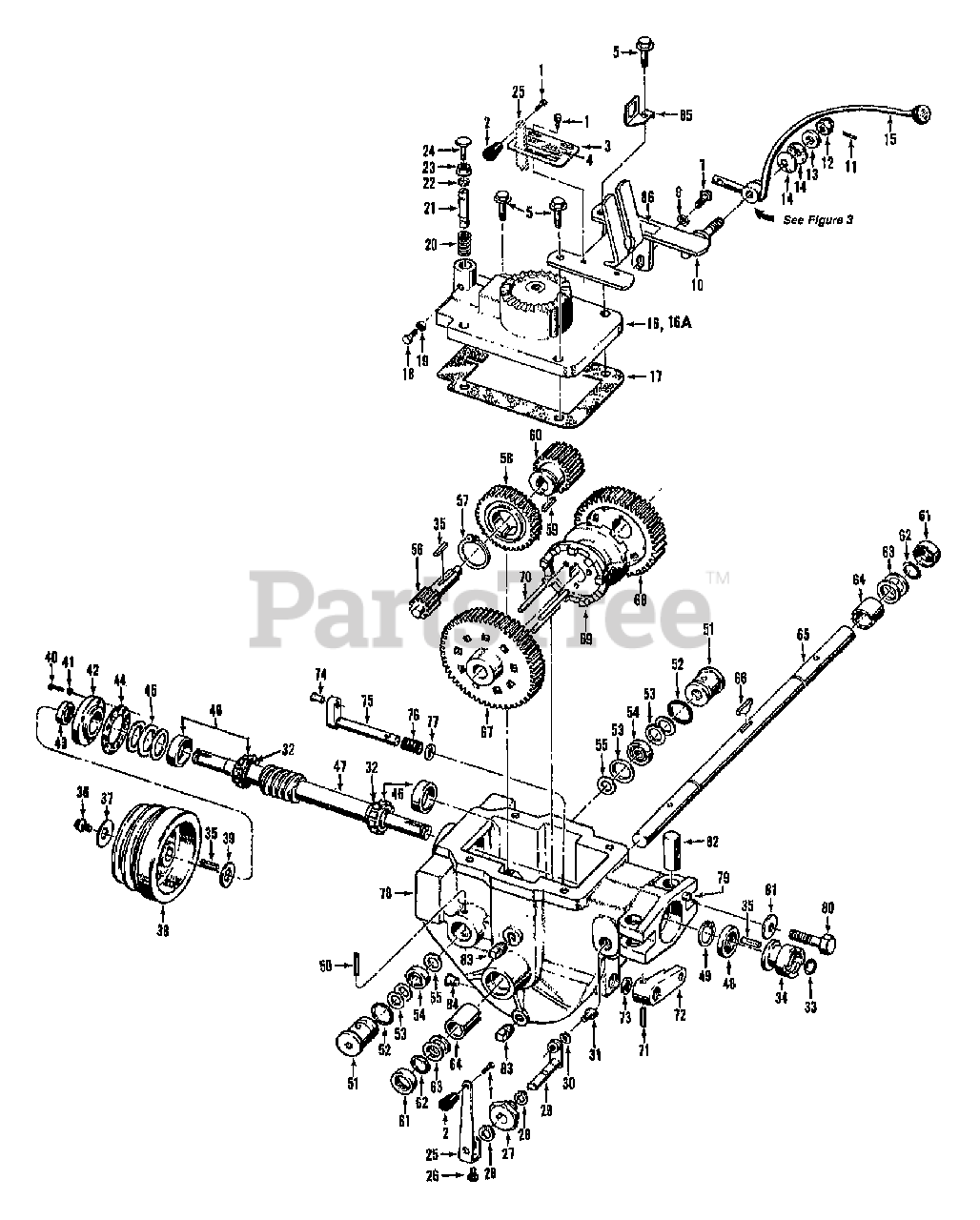

POWER UNIT TRANSMISSION ASSEMBLIES Parts Diagram

  • Title

Troy-Bilt GW-1360A

OIL-SAE 140WT.TILLER GEAR LUBE
(Superseded to 490-000-V045)

$19.99

$

In Stock, Qty 6

0

1

Troy-Bilt GW-9782

SCR 10-32
(Superseded to 710-04454)

$3.99

$

In Stock, Qty 6

0

2

Troy-Bilt GW-9463

KNOB-TAPERED

$10.99

$

In Stock, Qty 6

0

3

Troy-Bilt GW-2263

PLATE-TINE ENGAGE W/DECAL #2599 (#4)

$48.99

$

Usually ships in 3-6 days

0

4

Troy-Bilt GW-2599

DECAL-TINE ENGAGE
(Superseded to 777I20945)

$4.99

$

In Stock, only 3 left!

0

5

Troy-Bilt GW-90047

SCR-HFLK 3/8-16X1.50
(Superseded to 1186349)

$3.49

$

Usually ships in 3-6 days

0

6

0

THIS REF. NOT USED

$

$

Not available

7

Troy-Bilt GW-90044

SCR-HFLK 5/16-18X.75 ZP
(Superseded to 710-04043)

$3.99

$

In Stock, only 2 left!

0

8

0

THIS REF. NOT USED

$

$

Not available

9

Troy-Bilt GW-9902

WASHER-FLAT 5/16 SAE
(Superseded to 736-0567)

$3.49

$

Usually ships in 3-6 days

0

10

Troy-Bilt GW-2149

BRKT-H HOOD 2149 (SEE #86 FOR DECAL)
(Superseded to 1900870001)

$166.99

$

In Stock, only 2 left!

0

11

Troy-Bilt GW-9362

PIN-SPRING .125 X 1

$4.49

$

Usually ships in 3-6 days

0

12

Troy-Bilt GW-9838

NUT-HEX 1/2-20

$

$

Not available

13

Troy-Bilt GW-9934

WASHER-# SHOULDER ZP (SHLDR FACES DISC WSHRS)

$14.99

$

In Stock, only 1 left!

0

14

Troy-Bilt GW-9932

WASHER-# 1.97X1X.118

$22.99

$

In Stock, only 3 left!

0

15

0

LEVER, WHEEL SPEED SHIFT (SHOWN FOR REF ONLY)

$

$

Not available

16

Troy-Bilt GW-2523

COVER-TRANS RED
(Superseded to 719-04015P)

$217.99

$

In Stock, only 3 left!

0

16A

MTD GW-2566

ASSM-TRANS COVER OPC (INCL #'S 18-24)

$

$

Not available

17

Troy-Bilt GW-1123

GASKET-TRANS COVER

$7.99

$

In Stock, only 3 left!

0

18

Troy-Bilt GW-9751

SCR-HH 5/16-18X1.0 G5 ZP (REMOVE WITH CARE)
(Superseded to 710-0376)

$3.99

$

In Stock, Qty 16

0

19

Troy-Bilt GW-9801

NUT-HEX 5/16-18 ZP
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

20

Troy-Bilt GW-1496

SPRING-REV PLUNGER ZP (REMOVE WITH CARE)
(Superseded to 1901439)

$11.99

$

In Stock, only 4 left!

0

21

Troy-Bilt GW-1035

ASSM-NEUTRAL PLUNGER W/ CLIP RING #22 (9504)

$35.99

$

In Stock, only 3 left!

0

22

Troy-Bilt GW-9504

RING-KLIP EXT .594 ID ZP
(Superseded to 1901440)

$5.49

$

In Stock, Qty 20+

0

23

Troy-Bilt GW-9831

NUT-HFLK 3/8-16 ZP
(Superseded to 1186393)

$2.99

$

Usually ships in 3-6 days

0

24

Troy-Bilt GW-9545

SCR 3/8-16X1.5 UNC-2AG
(Superseded to 1902004)

$7.99

$

In Stock, only 1 left!

0

25

Troy-Bilt GW-2122

LEVER-ECCENTRIC RED (ALSO SEE REF #'S 1-4)
(Superseded to 786-04002)

$52.99

$

In Stock, only 4 left!

0

26

Troy-Bilt GW-9743

SCR-HH 1/4-20X.5 GR5 YEL
(Superseded to 710-3013)

$4.49

$

In Stock, only 1 left!

0

27

Troy-Bilt GW-2123

BUSHING-.87X.5X.62 ECC
(Superseded to 741-04008)

$26.99

$

Usually ships in 3-6 days

0

28

Troy-Bilt GW-9516

RING-RETAINING 5100-50

$3.99

$

In Stock, Qty 14

0

29

Troy-Bilt GW-2130

KIT-CLUTCH DOGS TILLER
(Superseded to 1902404)

$154.99

$

In Stock, only 4 left!

0

30

Troy-Bilt GW-9911

WASHER-LK .25 HI-COLLAR

$5.99

$

In Stock, Qty 19

0

31

Troy-Bilt GW-9672

SCR-HXSKT 1/4-20X.38 G8
(Superseded to 710-04354)

$3.99

$

In Stock, Qty 15

0

32

Troy-Bilt GW-50043

WASHER-#1.25X.75X.06 (DRIVE SHAFT)
(Superseded to 736-04304)

$4.49

$

In Stock, Qty 14

0

33

Troy-Bilt GW-9500

RING-RETAIN EXT .707 ID (SNAP RING)
(Superseded to 916-0101)

$3.49

$

In Stock, only 3 left!

0

34

Troy-Bilt GW-2120-3

KIT-CLUTCH DOGS TILLER (POWER UNIT)
(Superseded to 1902404)

$154.99

$

In Stock, only 4 left!

0

35

Troy-Bilt GW-9301

KEY-.188 SQX1.0 (USED ON DRVE & PINION SHFTS)

$3.49

$

In Stock, Qty 13

0

36

Troy-Bilt GW-9655

SCR-HH 5/16-24X.75 G5 ZP
(Superseded to 710-0157)

$3.99

$

In Stock, Qty 15

0

37

Troy-Bilt GW-9944

WASHER-.827X.331X.098 (CONCAVE)
(Superseded to 736-04193)

$6.49

$

In Stock, Qty 8

0

38

Troy-Bilt GW-2107

PULLEY-TRANS MACH

$135.99

$

In Stock, only 4 left!

0

39

Troy-Bilt GW-50027

WASHER-SHLDR HARDENED

$6.49

$

In Stock, Qty 10

0

40

Troy-Bilt GW-9701

SCR-HH 1/4-20X.75 G5 ZP
(Superseded to 710-3015)

$3.99

$

In Stock, Qty 20+

0

41

Troy-Bilt GW-9910

WASHER-LK .25 ZP
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 12

0

42

Troy-Bilt GW-2424

COVER-FRONT
(Superseded to 718-04007)

$17.99

$

In Stock, only 2 left!

0

43

Troy-Bilt GW-9600

SEAL-PINION SHAFT PT/85030/00
(Superseded to 921-04044)

$8.99

$

In Stock, Qty 20+

0

44

Troy-Bilt GW-1124-2

GASKET-BRG COVER
(Superseded to GW-1124-2099)

$4.49

$

In Stock, Qty 20+

0

45

Troy-Bilt GW-1224-1

SHIM-1.75X1.5X.01
(Superseded to 736-04308)

$4.49

$

In Stock, Qty 20+

0

45

Troy-Bilt GW-1224-2

SHIM-1.75X1.5X.03
(Superseded to 736-04307)

$4.49

$

In Stock, Qty 16

0

45

Troy-Bilt GW-1224-3

SHIM-1.75X1.5X.005
(Superseded to 736-04306)

$3.99

$

In Stock, Qty 20+

0

45

Troy-Bilt GW-1224-4

SHIM-1.75X1.5X.062
(Superseded to 736-04305)

$3.99

$

In Stock, Qty 20+

0

46

Troy-Bilt GW-1714

KIT-BRG CONE&RACE-DRIVESHAFT
(Superseded to 941-0107)

$44.99

$

In Stock, Qty 20+

0

47

Troy-Bilt GW-1985

KIT-TRANS DRSHAFT HORSE (MAIN DRVE, PWR UNIT)

$452.99

$

Usually ships in 3-6 days

0

48

Troy-Bilt GW-9617

SEAL-OIL DRIVESHAFT REAR
(Superseded to 921-04030)

$11.99

$

In Stock, Qty 20+

0

49

Troy-Bilt GW-9517

RING-RETAINING 5000-181 (SNAP RING)
(Superseded to 716-04102)

$4.49

$

In Stock, Qty 20+

0

50

Troy-Bilt GW-9309

PIN-SPIROL .25 X 2.0 (RETAINS #51 1060A PLUG)
(Superseded to 715-0121)

$6.49

$

In Stock, Qty 12

0

51

Troy-Bilt GW-1060A

PLUG-PINION BRG W/RING #52 (9604)

$

$

Not available

52

Troy-Bilt GW-9604

RING-O 1 ID

$4.99

$

In Stock, Qty 20+

0

53

Troy-Bilt GW-1132-1

SHIM-1.234X1.015X.033
(Superseded to 736-04386)

$6.49

$

In Stock, Qty 11

0

53

Troy-Bilt GW-1132-2

SHIM-1.234X1.015X.062
(Superseded to 736-04310)

$3.99

$

In Stock, Qty 15

0

53

Troy-Bilt GW-1132-3

SHIM-1.234X1.015X.01

$6.49

$

In Stock, Qty 7

0

54

Troy-Bilt GW-9404

BRG-BALL (7 BALLS)

$25.99

$

In Stock, only 2 left!

0

55

Troy-Bilt GW-1126

WASHER-# 1X.484X.06 (1 USED ON LT & RT SIDES)
(Superseded to 936-0272)

$4.49

$

In Stock, Qty 20+

0

56

Troy-Bilt GW-1222

GEAR-SPLINE 10 TEETH MACH

$130.99

$

Usually ships in 3-6 days

0

57

Troy-Bilt GW-9502

RING-RETAINING 5100-150 (SNAP RING)
(Superseded to 716-04119)

$13.99

$

In Stock, only 1 left!

0

58

Troy-Bilt GW-1221

GEAR-WORM 36 TEETH MACH

$

$

Not available

59

Troy-Bilt GW-9300

KEY

$3.49

$

Usually ships in 3-6 days

0

60

Troy-Bilt GW-1233

GEAR-SPUR 20 TEETH MACH

$132.99

$

Usually ships in 3-6 days

0

61

Troy-Bilt GW-9621

SEAL-OIL WHEELSHAFT
(Superseded to 921-04031)

$10.99

$

In Stock, Qty 20+

0

62

Troy-Bilt GW-9511

RING-HEAVY EXT .906 ID (SNAP RING)
(Superseded to 716-04104)

$3.99

$

In Stock, Qty 20+

0

63

Troy-Bilt GW-1166-1

SHIM-1.375X1.015X.062
(Superseded to 736-04309)

$3.99

$

In Stock, Qty 17

0

63

Troy-Bilt GW-1166-2

SHIM-1.375X1.015X.03
(Superseded to 736-04260)

$6.49

$

In Stock, Qty 16

0

63

Troy-Bilt GW-1166-3

SHIM-1.375X1.015X.015
(Superseded to 736-04259)

$6.49

$

In Stock, Qty 19

0

63

Troy-Bilt GW-1166-4

SHIM-1.375X1.015X.01
(Superseded to 736-04258)

$3.99

$

In Stock, Qty 20+

0

63

Troy-Bilt GW-1166-5

SHIM-1.375X1.015X.005
(Superseded to 736-04257)

$3.99

$

In Stock, Qty 9

0

64

Troy-Bilt GW-1086

BUSHING-1.25X1.005X1.5
(Superseded to 941-04300)

$15.99

$

In Stock, Qty 20+

0

65

Troy-Bilt GW-1878

KIT-WHEELSHAFT (INCL 66 & 62)

$213.99

$

In Stock, Qty 9

0

66

Troy-Bilt GW-9357

KEY-HI PRO .25X1.812
(Superseded to 714-04014)

$19.99

$

In Stock, only 4 left!

0

67

Troy-Bilt GW-1223

GEAR-SPUR 56 TEETH MACH

$207.99

$

Usually ships in 3-6 days

0

68

Troy-Bilt GW-1232

GEAR-SPUR 46 TEETH MACH

$143.99

$

Usually ships in 3-6 days

0

69

Troy-Bilt GW-1237

CLUTCH-MACH

$151.99

$

Usually ships in 3-6 days

0

70

Troy-Bilt GW-1112

PIN-CLUTCH .25 2.65

$4.49

$

In Stock, Qty 6

0

71

Troy-Bilt GW-9307

PIN-SPIROL .188 X 1.25
(Superseded to 915-0246)

$6.49

$

In Stock, Qty 9

0

72

Troy-Bilt GW-1029

LEVER-ECC. #1029
(Superseded to 619-04000-0637)

$56.99

$

Usually ships in 3-6 days

0

73

Troy-Bilt GW-9622

SEAL-OIL ECCENTRIC
(Superseded to 921-04034)

$9.49

$

In Stock, Qty 20+

0

74

Troy-Bilt GW-1442

PIN-.375 X .72
(Superseded to 738-04448)

$7.99

$

In Stock, Qty 9

0

75

Troy-Bilt GW-1568

SHAFT-ECCENTRIC HORSE TLR
(Superseded to 611-04003)

$83.99

$

Usually ships in 3-6 days

0

76

Troy-Bilt GW-1441

SPRING .845 X 1.25

$3.99

$

In Stock, only 1 left!

0

77

Troy-Bilt GW-1440

WASHER # .875 X .65 X .06
(Superseded to 736-04079)

$4.49

$

In Stock, Qty 7

0

78

Troy-Bilt GW-2260

CASE-TRANS W/PIN
(Superseded to GW-2109099)

$871.99

$

Usually ships in 3-6 days

0

79

Troy-Bilt GW-9359

PIN-DRIVE .375X.75 ZP

$3.49

$

Usually ships in 3-6 days

0

80

Troy-Bilt GW-9560

SCR-HH 1/2-13X2.0 G5 ZP
(Superseded to 1100067)

$

$

Not available

81

Troy-Bilt GW-9928

WASHER-DISC SPRING (CONCAVE)

$11.99

$

Usually ships in 3-6 days

0

82

Troy-Bilt GW-2126

POST (TC)

$29.99

$

Usually ships in 3-6 days

0

83

Troy-Bilt GW-9726

PLUG-PIPE 1/4 NPT (OIL DRAIN & LVL CHCK PLUG)
(Superseded to 1105620)

$3.99

$

In Stock, Qty 5

0

84

Troy-Bilt GW-9122

PLUG-CAP (RED)

$9.49

$

Usually ships in 3-6 days

0

85

MTD GW-9205

CLIP-CONNECTOR

$

$

Not available

86

Troy-Bilt GW-2590

DECAL-FWD INTERLOCK WIRE
(Superseded to 777I20944)

$9.99

$

In Stock, only 2 left!

0
