HP 150 (UT-65046) - Homelite Propane Construction Heater Exploded View Parts Diagram

Propane Construction Heater

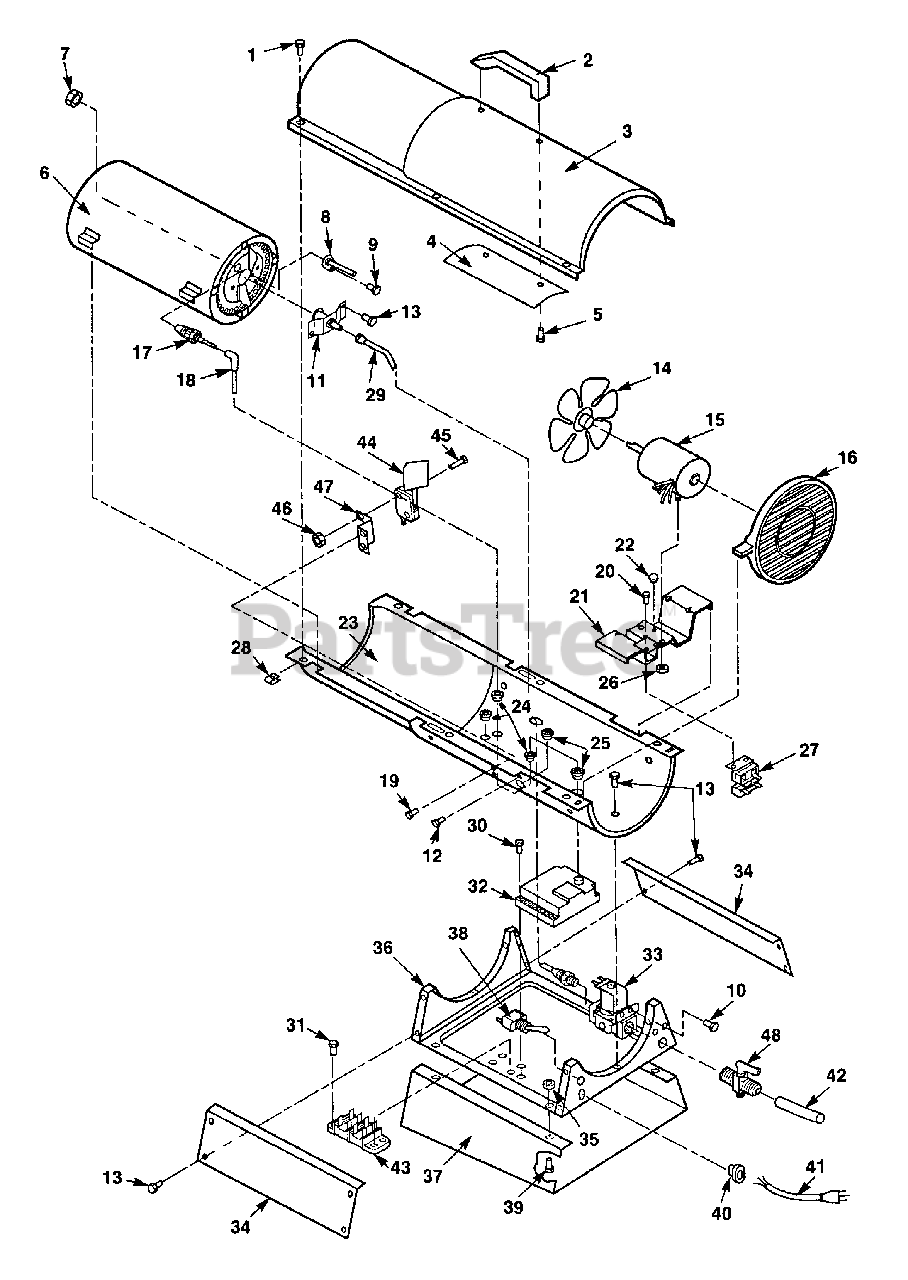

Exploded View Parts Diagram

  • Title

1

SCREW- #10-16 x 1/2

Note: Standard Hardware Item. Available Locally.

$

$

Not available

2

Homelite 0052944

HANDLE

$

$

Currently unavailable

3

Homelite 0108601

SHELL- Upper

$

$

Currently unavailable

4

Homelite 0052945

SHIELD- Heat

$

$

Currently unavailable

5

SCREW- Handle #10-16 x 3/4"

Note: Standard Hardware Item. Available Locally.

$

$

Not available

6

Homelite 0108603

COMBUSTION CHAMBER

$

$

Currently unavailable

7

Homelite 0052932

NUT- 14mm

$

$

Currently unavailable

8

Homelite 0108604

SENSOR- Flame
(Superseded to PT14718)

$

$

Not available

9

SCREW- #6-32 x 3/8"

Note: Standard Hardware Item. Available Locally.

$

$

Not available

10

SCREW- #10-16 x 3/8"

Note: Standard Hardware Item. Available Locally.

$

$

Not available

11

Homelite A0108605

ASSY. NOZZLE

$

$

Currently unavailable

12

Homelite 0108632

SCREW- #8-18 x 3/8"

$

$

Currently unavailable

13

SCREW- #10-16 x 1/2

Note: Standard Hardware Item. Available Locally.

$

$

Not available

14

Homelite 0108608

FAN

$

$

Currently unavailable

15

Homelite 0108609

MOTOR
(Superseded to 0332632)

$

$

Currently unavailable

16

Homelite 0053124

GUARD- Fan
(Superseded to PT14711)

$

$

Not available

17

Homelite 0052933

PLUG- Spark
(Superseded to AM36791)

$

$

Currently unavailable

18

Homelite 0108610

CABLE- Ignition

$

$

Currently unavailable

19

SCREW-#8-18 x 1/4"

Note: Standard Hardware Item. Available Locally.

$

$

Not available

20

Homelite 0114518

SCREW-#8-32 x 1/4"

$

$

Currently unavailable

21

Homelite 0108612

BRACKET- Motor

$

$

Currently unavailable

22

Homelite 0052938

BUMPER- Rubber

$

$

Currently unavailable

23

Homelite 0108637

SHELL- Lower

$

$

Currently unavailable

24

Homelite 0052923

BUSHING- Snap

$

$

Currently unavailable

25

Homelite 0108641

BUSHING- Shorty

$

$

Currently unavailable

26

Homelite 0052949

NUT- Hex Jam

$

$

Currently unavailable

27

Homelite 0108613

RELAY

$

$

Currently unavailable

28

Homelite 0052914

NUT- Clip

$

$

Not available

29

Homelite 0108614

TUBE- Fuel

$

$

Currently unavailable

30

Homelite 0108615

SCREW- #6-20 x 7/8"

$

$

Currently unavailable

31

Homelite 0108645

SCREW- #8-15 x 1/2"

$

$

Currently unavailable

32

Homelite 0108616

CONTROL D.S.I.

$343.99

$

Usually ships in 3-7 days

0

33

Homelite 0108617

SOLENOID VALVE

$

$

Currently unavailable

34

Homelite 0053123

COVER- Side

$

$

Currently unavailable

35

Homelite 0052949

NUT- 1/4-20

$

$

Currently unavailable

36

Homelite 0108618

LOWER SHELL CRADLE

$

$

Currently unavailable

37

Homelite 0108644

BASE

$

$

Currently unavailable

38

Homelite 0108642

SWITCH- On/Off

$

$

Currently unavailable

39

Homelite 0108643

BOLT- 1/4-20 x 3/8"

$

$

Currently unavailable

40

Homelite 0052913

BUSHING- Strain Relief

$

$

Currently unavailable

41

Homelite 0108622

CORD- Power

$

$

Currently unavailable

42

Homelite 0108626

CAP- Sleeve

$

$

Currently unavailable

43

Homelite 0108627

BOARD- Terminal

$

$

Currently unavailable

44

Homelite 0108628

AIR SWITCH

$

$

Currently unavailable

45

Homelite 0108629

SCREW- #4-40 x 3/4"

$

$

Currently unavailable

46

Homelite 0108630

NUT- #4-40

$

$

Currently unavailable

47

Homelite 0108631

BRACKET- Air Switch

$

$

Currently unavailable

48

Homelite 0108633

VALVE- Shut-Off LP Gas

$

$

Currently unavailable

Homelite 0108634

REGULATOR AND HOSE ASSY. (Not Shown)

$

$

Currently unavailable

Homelite 0108635

REGULATOR VALVE (Not Shown)

$

$

Currently unavailable

Homelite 0108636

HOSE ASSY. (Not Shown)

$

$

Currently unavailable

Homelite 0052903

THERMOSTAT- Hang-up (Not Shown) (Optional)

$

$

Currently unavailable
