HP 22 T - Weed Eater String Trimmer Carburetor Assembly (WA199) P/N 530035259 Parts Diagram

String Trimmer

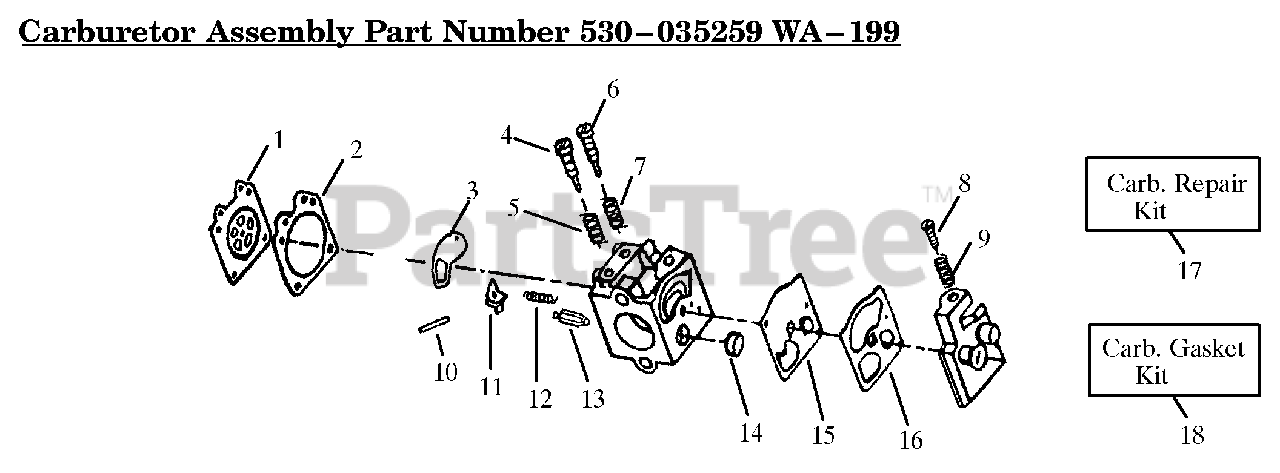

Carburetor Assembly (WA199) P/N 530035259 Parts Diagram

  • Title

1

Poulan 530035014

Metering Diaphragm
(Superseded to 503896701)

Note: Included in Carb. Kwik Repair Kit & Carb. Gasket/Diaphragm Kit

$8.99

$

In Stock, only 2 left!

0

2

Poulan 530035151

Metering Diaphragm Gasket

Note: Included in Carb. Kwik Repair Kit & Carb. Gasket/Diaphragm Kit

$3.99

$

In Stock, Qty 8

0

3

Poulan 530035147

Circuit Plate Gasket
(Superseded to 501781301)

Note: Included in Carb. Kwik Repair Kit & Carb. Gasket/Diaphragm Kit

$

$

Not available

4

Poulan 530035142

Hi Speed Needle
(Superseded to 501782201)

$

$

Not available

5

Poulan 530035036

Hi Speed Needle Spring

$

$

Not available

6

Poulan 530035141

Idle Needle

$2.99

$

Usually ships in 3-10 days

0

7

Poulan 530035023

Idle Needle Spring
(Superseded to 501467301)

$0.99

$

Usually ships in 3-10 days

0

8

Poulan 530035203

Idle Speed Screw

$8.99

$

Usually ships in 3-10 days

0

9

Poulan 530035208

Idle Speed Spring
(Superseded to 501667801)

$

$

Not available

10

Poulan 530035028

Metering Lever Pin
(Superseded to 505520125)

Note: Included in Carb. Kwik Repair Kit

$3.49

$

In Stock, only 3 left!

0

11

Poulan 530035031

Metering Lever
(Superseded to 505520127)

Note: Included in Carb. Kwik Repair Kit

$5.99

$

Usually ships in 3-10 days

0

12

Poulan 530035188

Metering Lever Spring

Note: Included in Carb. Kwik Repair Kit

$4.99

$

In Stock, Qty 11

0

13

Poulan 530035106

Inlet Needle Valve
(Superseded to 503117001)

Note: Included in Carb. Kwik Repair Kit

$11.99

$

In Stock, Qty 11

0

14

Poulan 530035178

Inlet Screen

Note: Included in Carb. Kwik Repair Kit

$3.99

$

Usually ships in 3-10 days

0

15

Poulan 530035166

Pump Diaphragm
(Superseded to 504130807)

Note: Included in Carb. Kwik Repair Kit & Carb. Gasket/Diaphragm Kit

$6.49

$

In Stock, Qty 10

0

16

Poulan 530035164

Pump Gasket
(Superseded to 504130906)

Note: Included in Carb. Kwik Repair Kit & Carb. Gasket/Diaphragm Kit

$4.99

$

In Stock, Qty 5

0

17

Poulan 530035260

Carb. Kwik Repair Kit

$26.99

$

In Stock, only 3 left!

0

18

Poulan 530035185

Carb. Gasket/Diaphragm Kit

$36.99

$

In Stock, only 2 left!

0

530035259

Poulan 530035259

Carburetor Assembly (WA199)
(Superseded to 545081825)

$

$

Not available
