HP 250 (UT-65047) - Homelite Propane Construction Heater Exploded View Parts Diagram

Propane Construction Heater

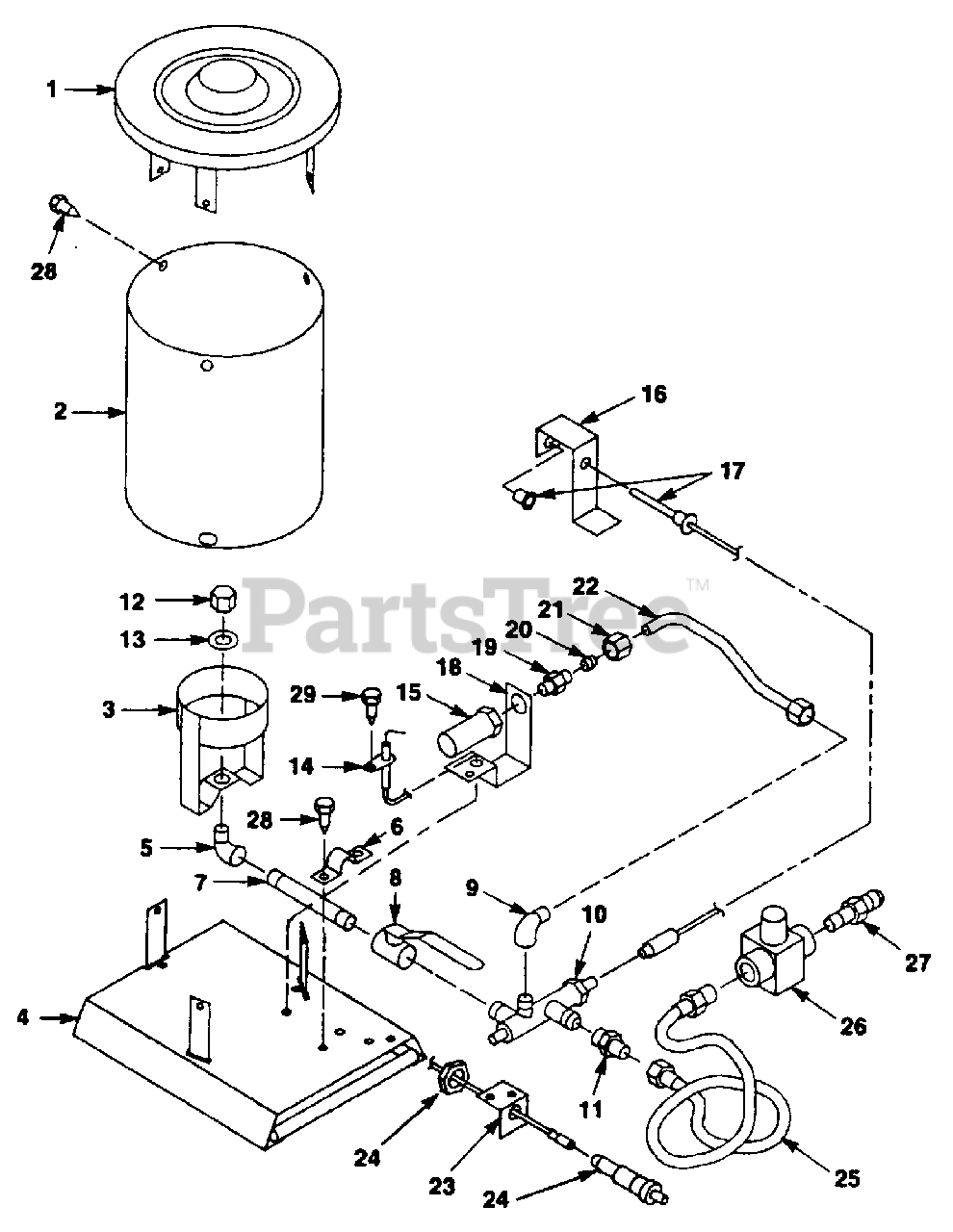

Exploded View Parts Diagram

  • Title

1

Homelite 0108701

TOP DEFLECTOR ASSY.

$

$

Currently unavailable

2

Homelite 0108702

BODY- Shell

$

$

Currently unavailable

3

Homelite 0108703

BURNER RING ASSY.

$

$

Currently unavailable

4

Homelite 0108704

BASE ASSY.

$

$

Currently unavailable

5

Homelite 0108705

FITTING- 90

$

$

Currently unavailable

6

Homelite 0108706

CLAMP- Main Burner Pipe

$

$

Currently unavailable

7

Homelite 0108707

PIPE- Main Burner 1/4" FPT x 1/4" FPT

$

$

Currently unavailable

8

Homelite 0108708

VALVE- Main Burner Shut-Off

$

$

Currently unavailable

9

Homelite 0108709

FITTING- Female Elbow 1/8" FPT x 1/4" Flare

$

$

Currently unavailable

10

Homelite 0108710

VALVE- Safety

$

$

Currently unavailable

11

Homelite 0108711

CONNECTOR- Female 1/4" FPT x 1/4" Flare

$

$

Currently unavailable

12

Homelite 0108712

NOZZLE- Burner

$

$

Currently unavailable

13

Homelite 0108713

WASHER- Shim

$

$

Currently unavailable

14

Homelite 0108714

IGNITOR- Electrode

$

$

Currently unavailable

15

Homelite 0108715

PILOT BURNER ASSY.

$

$

Currently unavailable

16

Homelite 0108716

BRACKET- Thermocouple

$

$

Currently unavailable

17

Homelite 0108717

THERMOCOUPLE 12" W/Retaining Clip

$

$

Currently unavailable

18

Homelite 0108718

BRACKET- Pilot Burner

$

$

Currently unavailable

19

Homelite 0108719

ORIFICE- Pilot Burner

$

$

Currently unavailable

20

Homelite 0108720

SLEEVE

$

$

Currently unavailable

21

Homelite 0108721

NUT- Hex 7/16-24

$

$

Currently unavailable

22

Homelite 0108722

PILOT FUEL TUBE ASSY.

$

$

Currently unavailable

23

Homelite 0108723

BRACKET- Piezo

$

$

Currently unavailable

24

Homelite 0108724

PIEZO- Ignitor W/Nut

$

$

Currently unavailable

25

Homelite 0108725

HOSE ASSY.

$347.99

$

Usually ships in 3-7 days

0

26

Homelite 0108726

VALVE- LP Gas Regulator 10 PSI

$133.99

$

Usually ships in 3-7 days

0

27

Homelite 0108727

ADAPTOR- Excess Flow P.O.L.

$

$

Currently unavailable

28

SCREW-Tapping AB #10 x.38

Note: Standard Hardware Item. Available Locally.

$

$

Not available

29

SCREW-Tapping F #6-32 x.38

Note: Standard Hardware Item. Available Locally.

$

$

Not available
