HP 28 P - Weed Eater String Trimmer Cutting Head Assembly Parts Diagram

String Trimmer

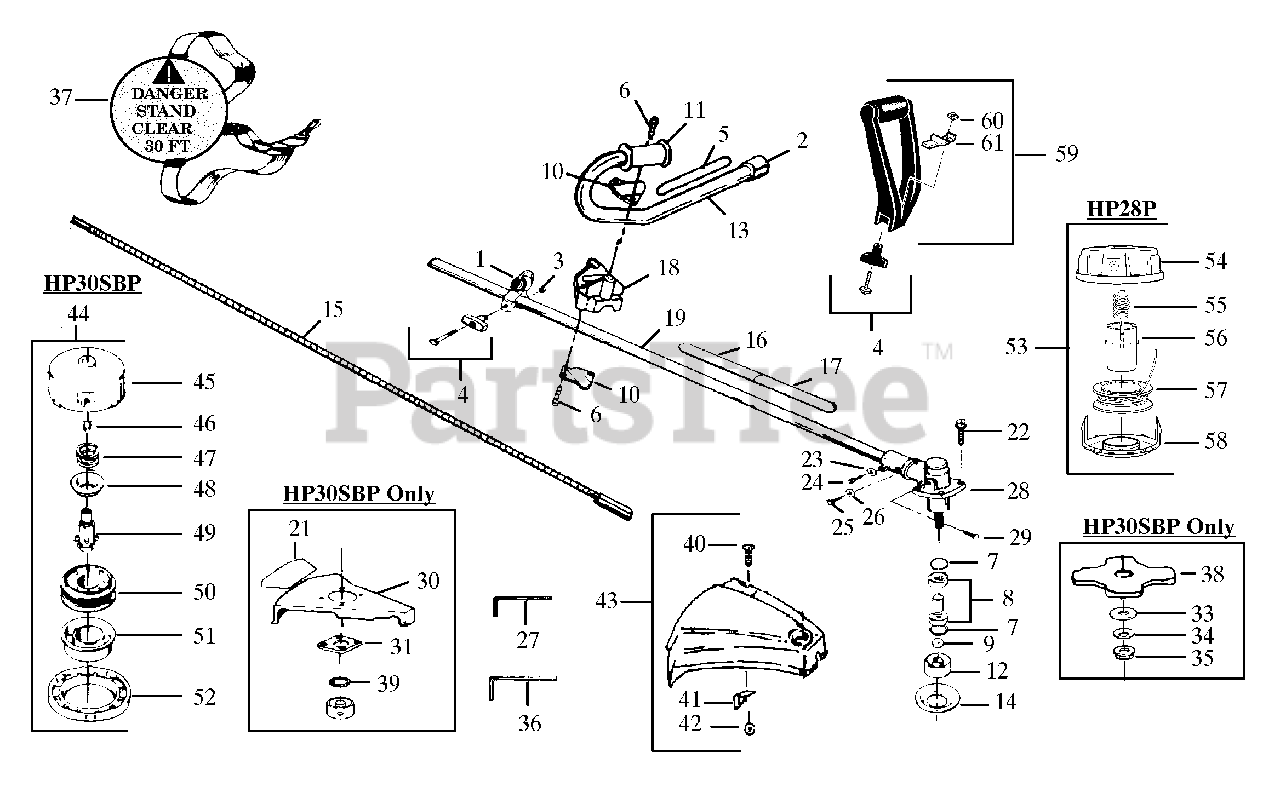

Cutting Head Assembly Parts Diagram

  • Title

1

Poulan 530094686

Clamp Harness Ass'y.

$7.49

$

Usually ships in 3-10 days

0

2

Poulan 530092192

Handlebar Cap

$0.99

$

Usually ships in 3-10 days

0

3

Poulan 530015197

Nut

$6.49

$

In Stock, Qty 5

0

4

Poulan 530069252

"T" Handle Ass'y.
(Superseded to 530069347)

$5.99

$

In Stock, only 1 left!

0

5

Poulan 530027778

Handlebar Warning Decal

$

$

Not available

6

Poulan 530015791

Screw

$3.99

$

Usually ships in 3-10 days

0

7

Poulan 530091783

Retainer

$

$

Not available

8

Poulan 530069086

Bearing & Spacer Kit

$27.99

$

Usually ships in 3-10 days

0

9

Poulan 530092216

Washer

$

$

Not available

10

Poulan 530094572

Handlebar Bracket

$3.99

$

In Stock, only 1 left!

0

11

Poulan 530092086

Handlebar Grip

$

$

Not available

12

Poulan 530092359

Dust Cup

$

$

Not available

13

Poulan 530010723

Handlebar

$

$

Not available

14

Poulan 530094571

Grass Washer

$1.99

$

Usually ships in 3-10 days

0

15

Poulan 530095146

Drive Shaft Model HP28P

$

$

Not available

15

Poulan 530094585

Drive Shaft Model HP30SBP

$

$

Not available

16

Poulan 530029162

Shaft Warning Decal Upper

$

$

Not available

17

Poulan 530029163

Shaft Warning Decal Lower

$

$

Not available

18

Poulan 530012207

Handlebar Clamp

$8.99

$

Usually ships in 3-10 days

0

19

Poulan 530014772

Drive Shaft Housing Model HP28P

$34.99

$

Usually ships in 3-10 days

0

19

Poulan 530094684

Drive Shaft Housing Model HP30SBP

$

$

Not available

21

Poulan 530027749

Blade Direction Decal

$

$

Not available

22

Poulan 530015791

Screw

Note: (Use with metal shield)

$3.99

$

Usually ships in 3-10 days

0

22

Poulan 530092243

Screw
(Superseded to 530016107)

Note: (Use with plastic shield)

$3.99

$

In Stock, Qty 11

0

23

Poulan 530015328

Lockwasher

$3.99

$

Usually ships in 3-10 days

0

24

Poulan 530094612

Screw

$0.99

$

Usually ships in 3-10 days

0

25

Poulan 530001711

Screw

$1.99

$

In Stock, only 1 left!

0

26

Poulan 530001642

Lockwasher

$3.99

$

Usually ships in 3-10 days

0

27

Poulan 530031111

Hex Wrench (5/32)
(Superseded to 530031159)

$4.99

$

In Stock, only 1 left!

0

28

Poulan 530094568

Gear Box Ass'y.
(Superseded to 530071781)

$

$

Not available

29

Poulan 530094616

Screw

$

$

Not available

30

Poulan 530094627

Shield
(Superseded to 530094633)

$

$

Not available

31

Poulan 530027615

Shield Retention Plate

$7.49

$

Usually ships in 3-10 days

0

33

Poulan 530015792

Washer

$4.99

$

Usually ships in 3-10 days

0

34

Poulan 530015492

Washer
(Superseded to 530016240)

$6.49

$

In Stock, Qty 5

0

35

Poulan 530015793

Nut

$6.49

$

In Stock, Qty 11

0

36

Poulan 530031098

Hex Wrench (3/16)

$2.49

$

Usually ships in 3-10 days

0

37

Poulan 530094417

Shoulder Strap

$

$

Not available

38

Poulan 952701611

Weed Blade
(Superseded to 952711585)

$

$

Not available

39

Poulan 530094640

Seal

$6.49

$

Usually ships in 3-10 days

0

40

Poulan 530015037

Screw

$2.49

$

Usually ships in 3-10 days

0

41

Poulan 530094570

Line Limiter

$3.99

$

In Stock, only 2 left!

0

42

Poulan 530001543

Nut

$

$

Not available

43

Poulan 530069256

Shield Kit Ass'y.

Note: (Incl. 40-42)

$

$

Not available

44

Poulan 952701643

Cutting Head Ass'y.

Note: (Incl. 45-52)

$

$

Not available

45

Poulan 530093896

Hub
(Superseded to 530071295)

$21.99

$

In Stock, only 1 left!

0

46

Poulan 530093898

Line Saver

$4.99

$

Usually ships in 3-10 days

0

47

Poulan 530340007

Spring

$3.99

$

Usually ships in 3-10 days

0

48

Poulan 530092068

Spring Adaptor
(Superseded to 530328929)

$

$

Not available

49

Poulan 530093897

Drive Gear

$9.99

$

Usually ships in 3-10 days

0

50

Poulan 952701589

Spool w/ Line

$6.99

$

In Stock, Qty 6

0

51

Poulan 530093387

Release Button
(Superseded to 530401183)

$

$

Not available

52

Poulan 530092133

Cover

$

$

Not available

53

Poulan 952701657

Cutting Head Ass'y.
(Superseded to 952711550)

Note: (Incl. 54-58)

$

$

Not available

54

Poulan 530014773

Hub Ass'y.

$

$

Not available

55

Poulan 530094830

Spring

$3.99

$

In Stock, Qty 20+

0

56

Poulan 530094827

Release Button

$

$

Not available

57

Poulan 952701619

Spool w/Line

$

$

Not available

58

Poulan 530094828

Cover

$

$

Not available

59

Poulan 530069496

Assist Handle Kit

Note: (Incl. 60 & 61)

$

$

Not available

60

Poulan 530015610

Nut

$0.99

$

Usually ships in 3-10 days

0

61

Poulan 530094742

Clamp

$4.99

$

Usually ships in 3-10 days

0

Poulan 530081850

Operator's Manual Model HP28P

Note: Not Shown

$4.99

$

Usually ships in 3-10 days

0

Poulan 530081803

Operator's Manual Model HP30SBP

Note: Not Shown

$3.99

$

Usually ships in 3-10 days

0

Poulan 530047125

Carton Contents Bag Model HP28P

Note: Not Shown

$

$

Not available

Poulan 530047124

Carton Contents Bag Model HP30SBP

Note: Not Shown

$

$

Not available

Poulan 530085006

Carton Model HP28P

Note: Not Shown

$

$

Not available

Poulan 530061990

Carton Model HP30SBP

Note: Not Shown

$

$

Not available
