HP 3127 S - Homelite Gasoline Pressure Washer General Assembly (Part 1) Parts Diagram

Gasoline Pressure Washer

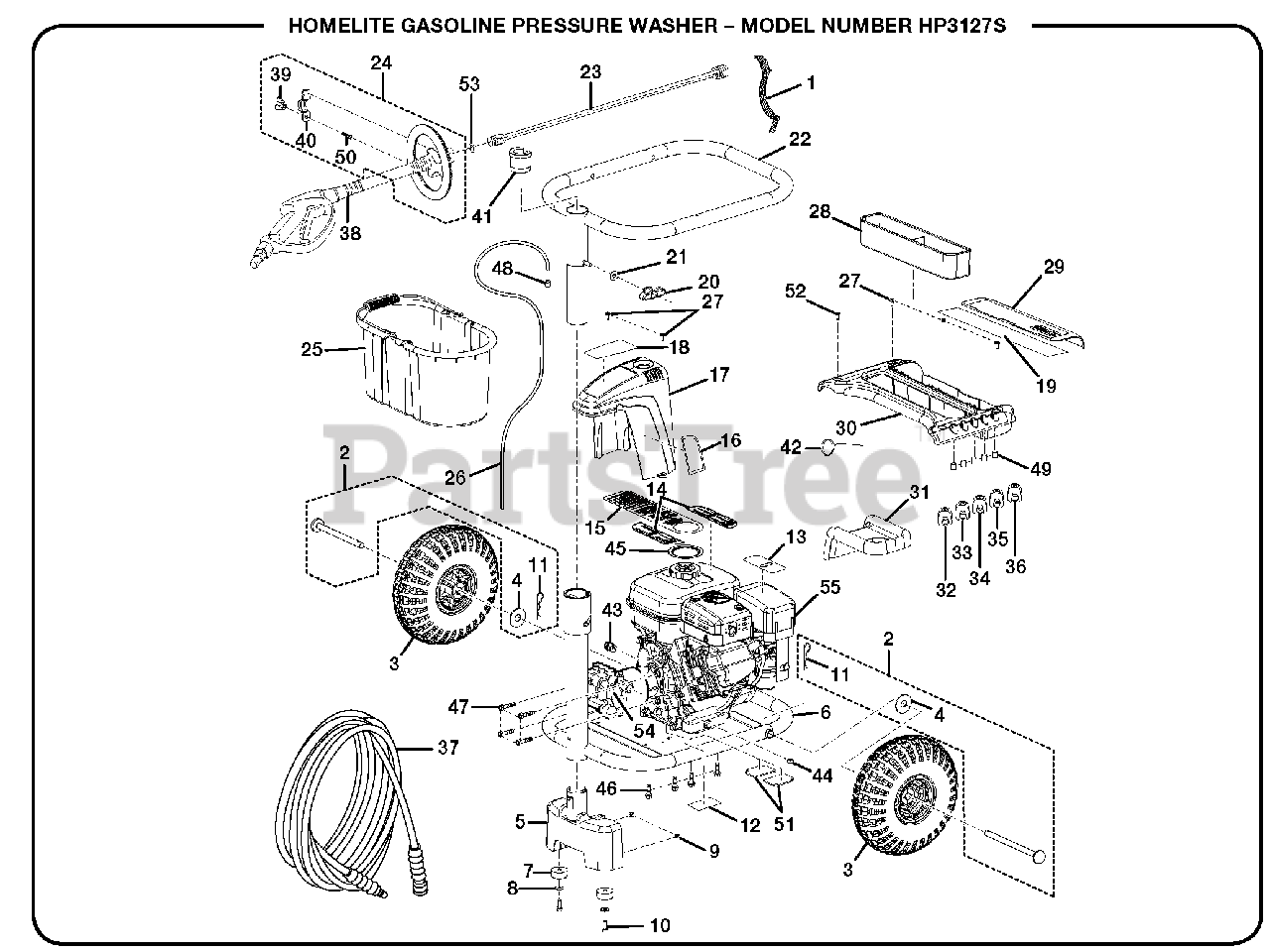

General Assembly (Part 1) Parts Diagram

  • Title

1

Homelite 308488001

HOOK AND LOOP STRAP

$

$

Not available

2

Homelite 308530001

BAGGED AXLE ASSEMBLY (INC. KEY NOS. 4 AND 11)
(Superseded to 120900011)

$4.49

$

Usually ships in 3-7 days

0

3

Homelite 308710002

WHEEL ASSEMBLY

$

$

Not available

4

Homelite 638128001

WASHER

$1.49

$

Usually ships in 3-7 days

0

5

Homelite 518111002

FOOT

$

$

Not available

6

Homelite 308559002

LOWER TUBE BODY

$

$

Not available

7

Homelite 570554001

WEAR PAD

$1.49

$

Usually ships in 3-7 days

0

8

Homelite 638128003

WASHER

$1.49

$

Usually ships in 3-7 days

0

9

Homelite 678016002

NYLON LOCK NUT (1/4-20)

Note: Purchase Locally

$1.49

$

In Stock, only 2 left!

0

10

Homelite 660738001

SCREW (1/4-20 X 3/4 in. HEX HD.)

Note: Purchase Locally

$1.49

$

Usually ships in 3-7 days

0

11

Homelite 678146001

HITCH PIN

$1.49

$

Usually ships in 3-7 days

0

12

Homelite 940678007

DATA LABEL.

$

$

Not available

13

Homelite 940230102

LABEL, HOT SURFACE WARNING

$

$

Not available

14

Homelite 940654010

LABEL, WARNING

$

$

Not available

15

Homelite 940971009

LABEL, CAUTION
(Superseded to 986112001)

$

$

Not available

16

Homelite 940618001

LABEL, PUMP DESIGNATOR
(Superseded to 986111001)

$1.49

$

Usually ships in 3-7 days

0

17

Homelite 518112001

PUMP COVER
(Superseded to 985662001)

$

$

Not available

18

Homelite 940617007

LABEL, QUICK START GUIDE

$

$

Not available

19

Homelite 940620005

QUICK START GUIDE

$

$

Not available

20

Homelite 518208001

KNOB (5/16 in.)
(Superseded to 985771001)

$1.49

$

Usually ships in 3-7 days

0

21

Homelite 638128002

WASHER (5/16 in.)

$

$

Not available

22

Homelite 308534002

UPPER TUBE BODY

$

$

Not available

23

Homelite 308494004

SPRAY WAND EXTENSION
(Superseded to 308494058)

$

$

Not available

24

Homelite 308250001

HANDLE ASSEMBLY (INCLUDES KEY NOS. 39, 40 AND 50)
(Superseded to 985672001)

$7.99

$

Usually ships in 3-7 days

0

25

Homelite 308029002

DETERGENT BUCKET

$

$

Not available

26

Homelite 561399001

INJECTION HOSE

$

$

Not available

27

Homelite 660733003

SCREW (12-14 TYPE B THREAD)

$

$

Not available

28

Homelite 518116002

TRAY INSERT

$

$

Not available

29

Homelite 518712001

LID

$

$

Not available

30

Homelite 518381001

TRAY

$

$

Not available

31

Homelite 591081001

GAS SPILL COVER
(Superseded to 985657001)

$

$

Not available

32

Homelite 678266001

NOZZLE 0deg

$10.99

$

Usually ships in 3-7 days

0

33

Homelite 678266002

NOZZLE 15deg

$10.99

$

Usually ships in 3-7 days

0

34

Homelite 678266003

NOZZLE 25deg

$10.99

$

Usually ships in 3-7 days

0

35

Homelite 678266004

NOZZLE 40deg

$10.99

$

Usually ships in 3-7 days

0

36

Homelite 678267001

NOZZLE, SOAP

$5.99

$

Usually ships in 3-7 days

0

37

Homelite 308492001

HIGH PRESSURE HOSE

$

$

Not available

38

Homelite 308413003

SPRAY WAND
(Superseded to 985674001)

$

$

Not available

39

Homelite 678016003

WING NUT

$

$

Not available

40

Homelite 638121005

CLAMP
(Superseded to 985673001)

$1.49

$

Usually ships in 3-7 days

0

41

Homelite 570555001

WAND SLEEVE

$

$

Not available

42

Homelite 678148002

NOZZLE CLEANING TOOL

$

$

Not available

43

Homelite 678149001

QUICK DISCONNECT, BRASS
(Superseded to 985683001)

$

$

Not available

44

Homelite 678189001

HEX NUT (M8)

Note: Purchase Locally

$

$

Not available

45

Homelite 678172001

FUEL TANK LOCK RING

$

$

Not available

46

Homelite 660764001

BOLT (M8 X 40 mm HEX HD.)

Note: Purchase Locally

$1.49

$

Usually ships in 3-7 days

0

47

Homelite 660739001

BOLT (5/16 in.)
(Superseded to 985661001)

$1.49

$

Usually ships in 3-7 days

0

48

Homelite 518391001

INJECTION HOSE FILTER

$1.49

$

In Stock, only 3 left!

0

49

Homelite 561383001

GROMMET, NOZZLE STORAGE

$

$

Not available

50

Homelite 660733004

BOLT (1/4-20 X .609 in. SQ. HD).
(Superseded to 985770001)

$1.49

$

Usually ships in 3-7 days

0

51

Homelite 570565001

RUBBER VIBRATION PAD
(Superseded to 986097001)

$1.99

$

In Stock, only 2 left!

0

52

Homelite 660956001

SCREW (12-14 X 15 mm)

Note: Purchase Locally

$1.49

$

Usually ships in 3-7 days

0

53

Homelite 561640001

O RING

$1.49

$

Usually ships in 3-7 days

0

54

Homelite 308241001

PUMP
(Superseded to 985660001)

$

$

Not available

55

ROBIN ENGINE (EX21)

Note: Parts Available At Your Local Robin Dealer

$

$

Not available

Homelite 987000044

OPERATOR'S MANUAL (960970009)

$

$

Not available
